Forged Wheels for the Chevrolet Corvette C8 Stingray

The Chevrolet Corvette C8 Stingray (2020 onward) uses a 5x120 bolt pattern with a 66.9 mm centre bore and M12x1.5 lug nuts. Below are the setups our engineers start from, the designs we can forge in this fitment, and what a set costs.

From $880per set of four ($220 per wheel)
About 25 daysmade to order after drawing approval
5x120 / 66.9machined hub-centric, no spacer rings
IATF 16949and ISO 9001 certified factory

Final price depends on diameter, width, design and finish. You get a written quote and a drawing to approve before production.

Forged wheels for the Corvette C8 Stingray — drilled 5x120 with a 66.9 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.

Get a quote for this car
WhatsApp the factory

Wheel setups for the Corvette C8 Stingray

SetupSize and offsetWhat it does
Factory sizeF: 19x8.5J R: 20x11.0JWhat the car left the factory with. A good choice if you want the forged weight saving with no change in look or handling.
Flush fit20x9.0J ET42 front / 21x11.5J ET52 rearMoves the wheel face out towards the fender line for a fuller look, with normal tyre sizes.
Aggressive fit20x9.5J ET38 front / 21x12.0J ET48 rearThe widest reference size in our guide. Usually needs tyre, camber or ride-height checks first.

Sizes come from our 2020 Chevrolet Corvette C8 Stingray fitment guide. They are starting points: every set is checked against your brakes, suspension and tyre size before machining, and we can forge any width and offset in between.

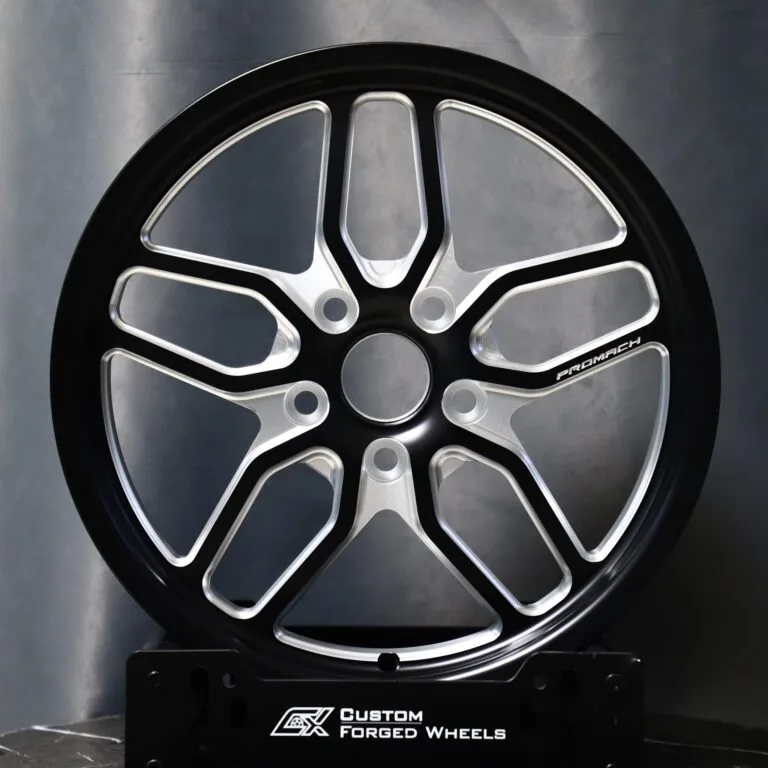

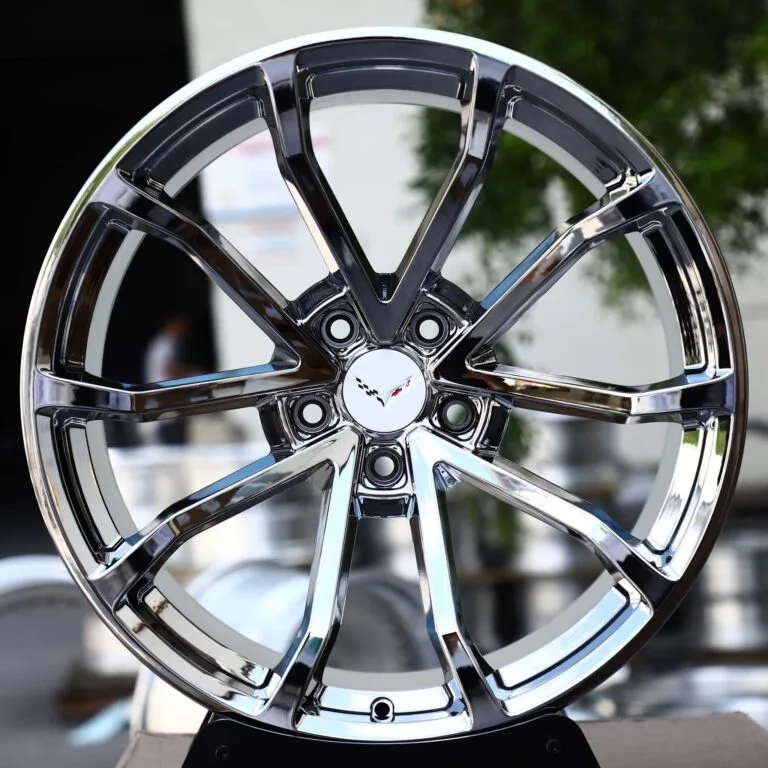

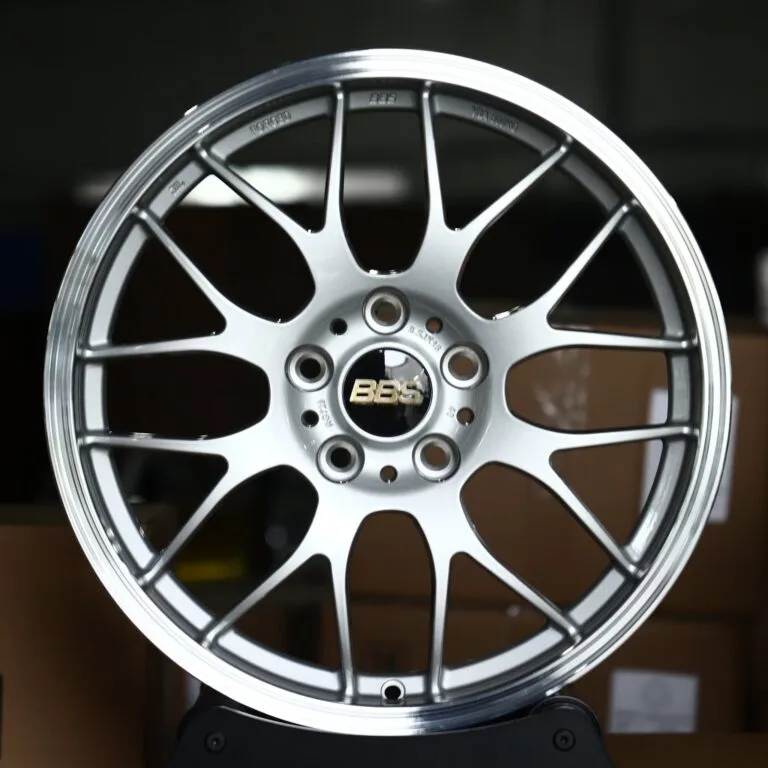

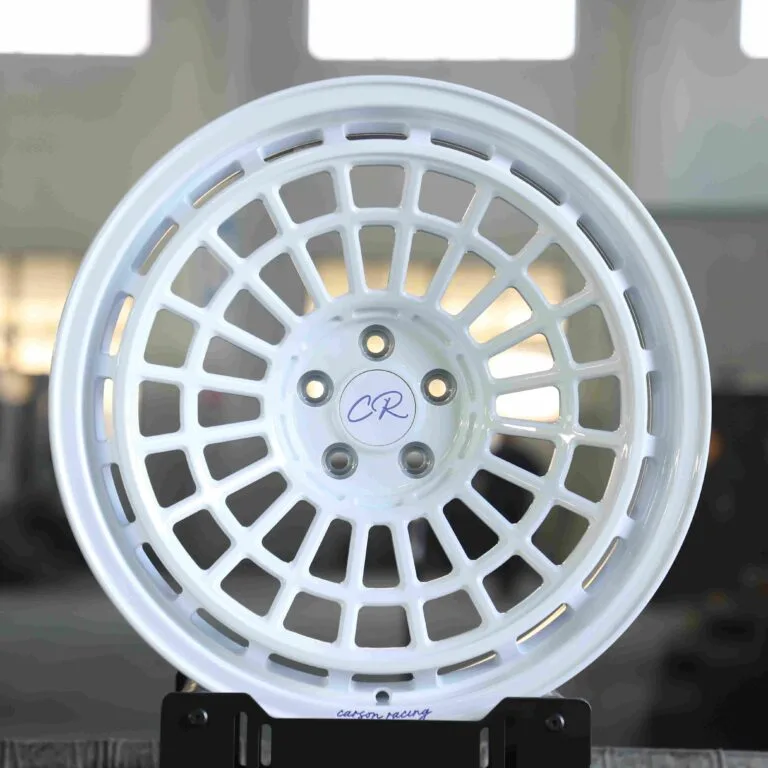

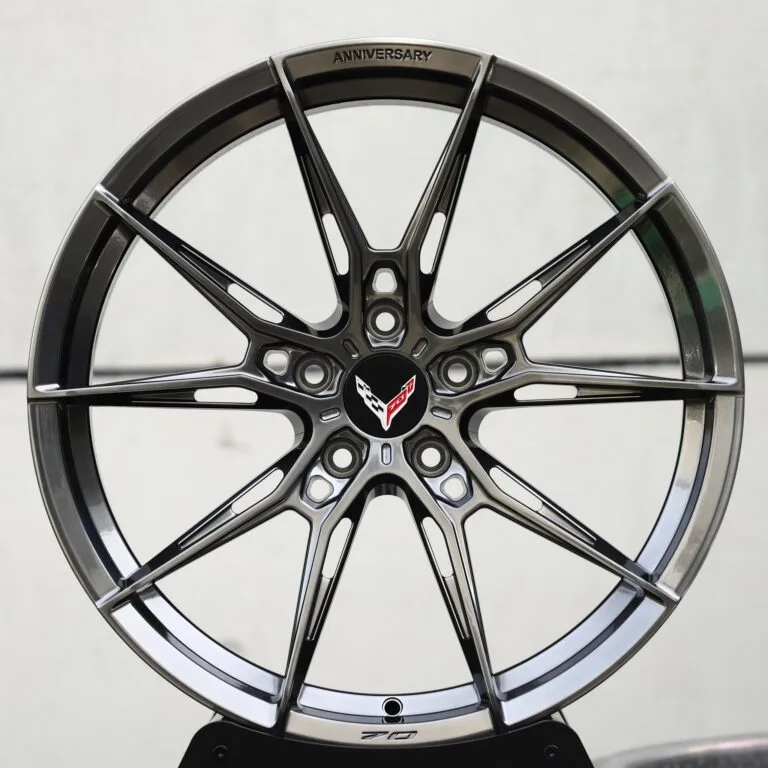

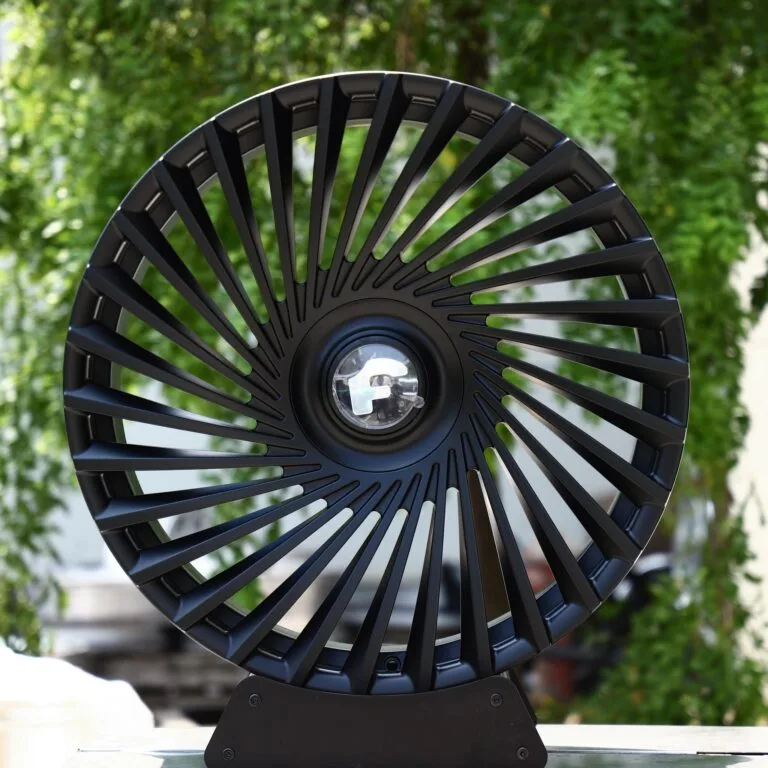

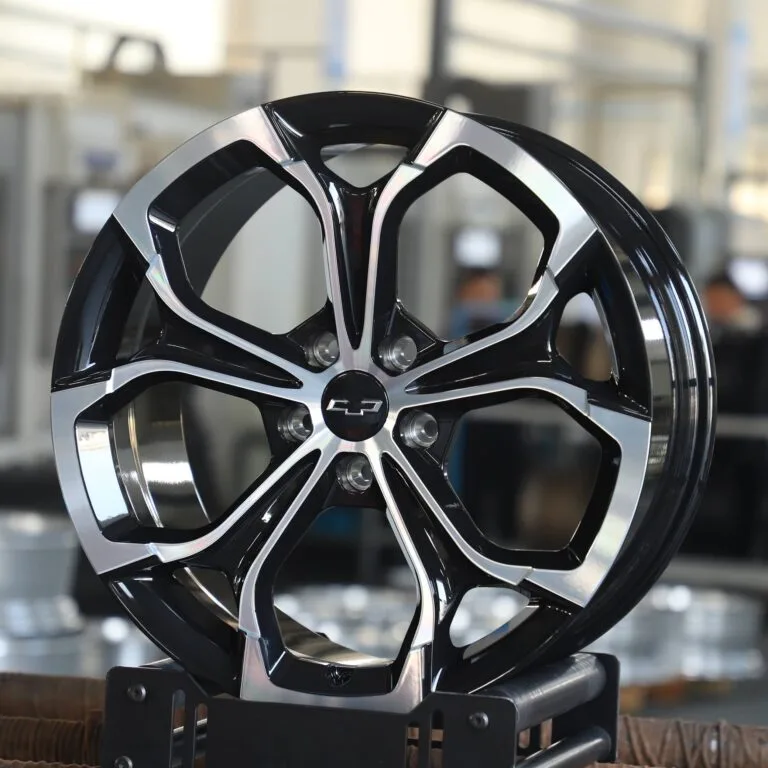

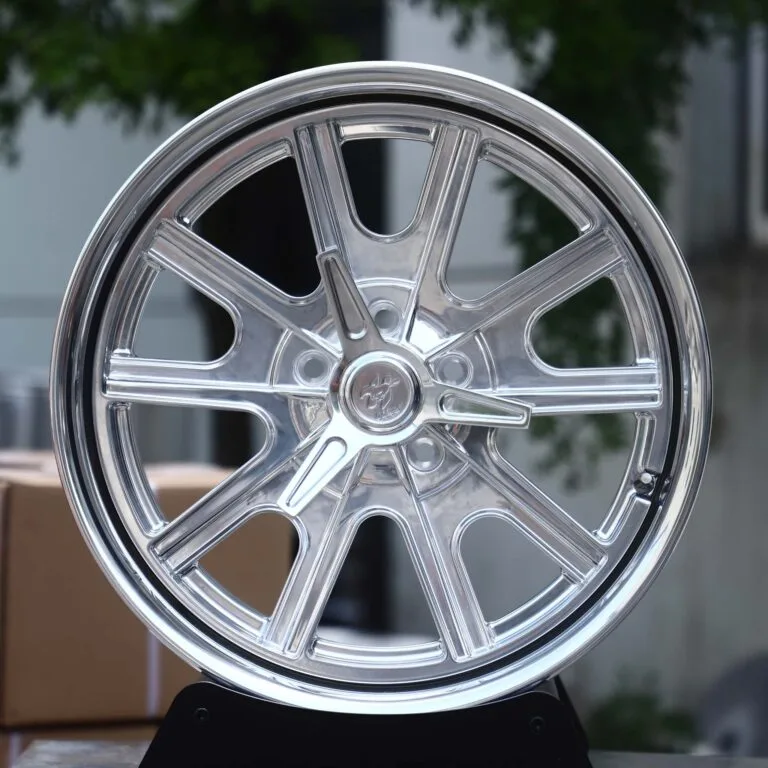

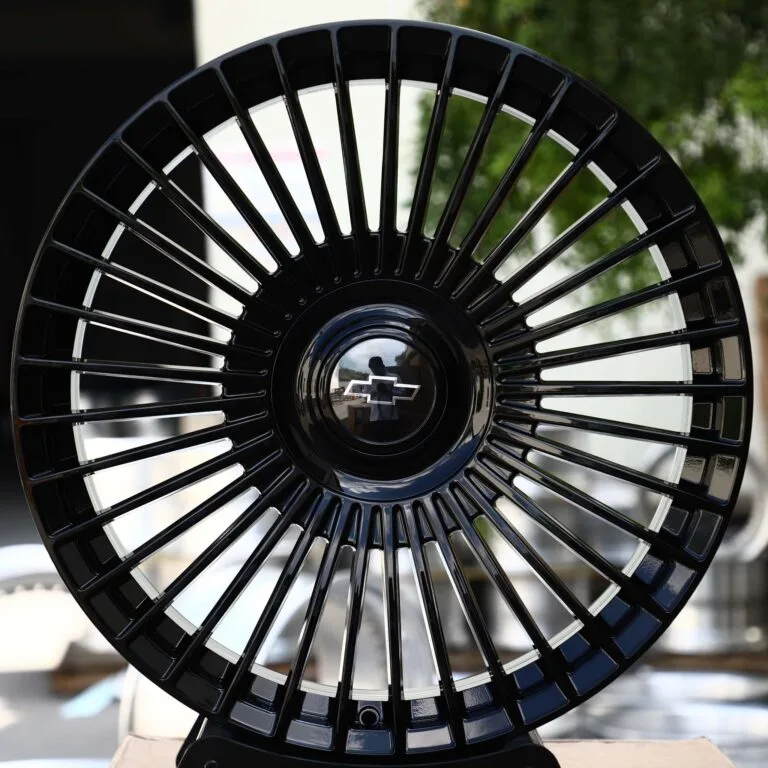

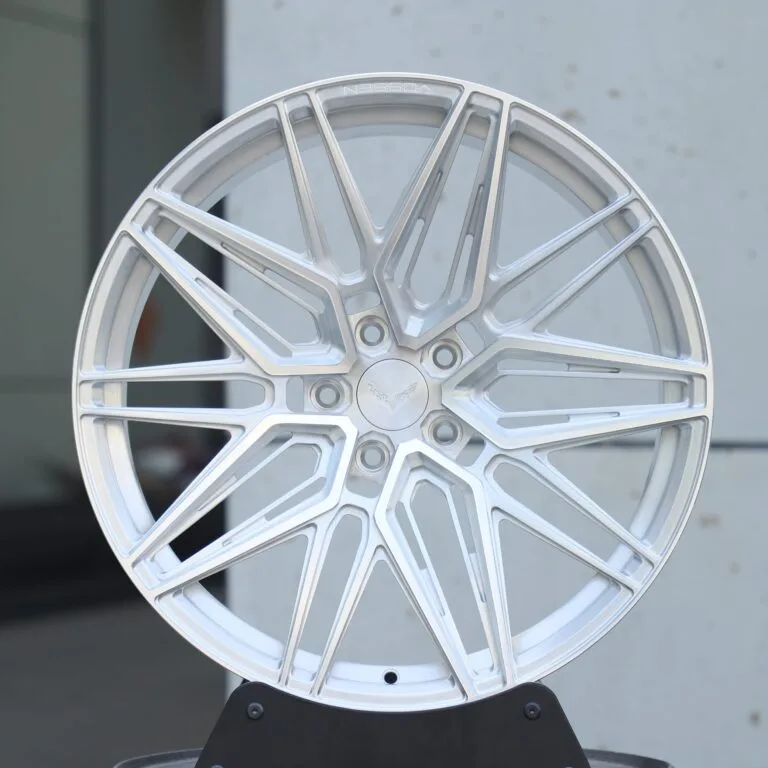

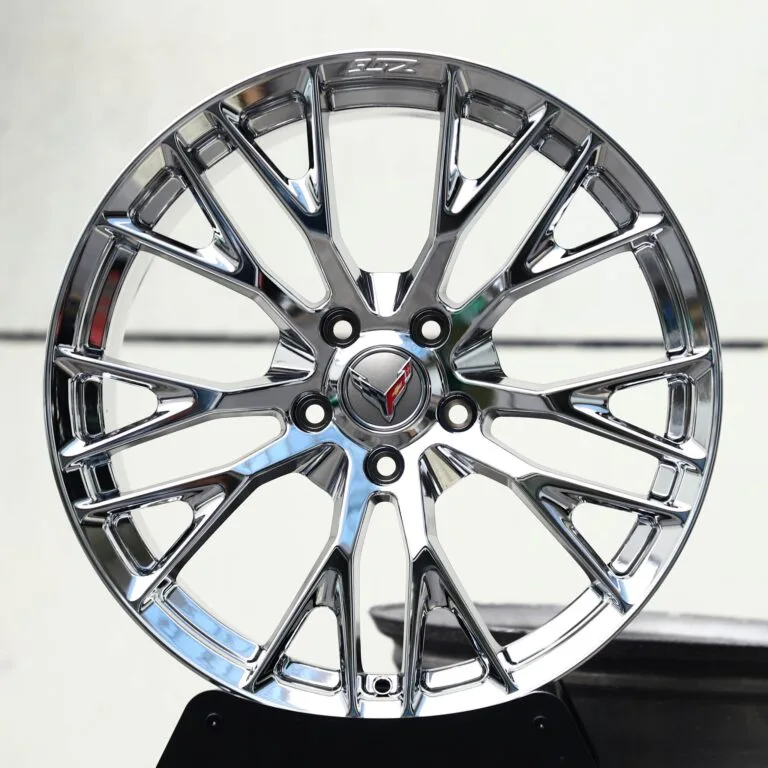

Forged designs for the Corvette C8 Stingray

Each design below can be forged in 5x120 with the Corvette C8 Stingray bore and your chosen offset. Pick one and send it with your quote request, or send a photo of a style you like.

Before you order for the Corvette C8 Stingray

  • On a performance car, the usual reasons to go forged are lower unsprung weight, a tighter wheel-to-fender fit and room for bigger brakes.
  • This page covers the Stingray coupe and convertible, including the Z51 package. The wide-body Z06 has its own page because its wheels are wider.
  • Factory brakes listed in our guide: Brembo monoblock 4-piston fixed front (OEM, STI). Spoke and barrel clearance is checked against them on the drawing.
  • Hardware: the car uses M12x1.5 lug nuts. Tell us if you are fitting aftermarket hardware so the seat type matches.

Corvette C8 Stingray forged wheel FAQ

What bolt pattern and centre bore do Corvette C8 Stingray wheels need?

The Chevrolet Corvette C8 Stingray uses a 5x120 bolt pattern with a 66.9 mm centre bore, fastened with M12x1.5 lug nuts. We machine the bore to match the hub, so the wheel is hub-centric without spacer rings.

How much does a set of forged wheels for the Corvette C8 Stingray cost?

Our forged wheels start at $220 per wheel, about $880 for a set of four. Larger diameters, wider rims, two-piece construction and special finishes cost more. You get a written quote and a drawing before anything is made.

How long does it take to make them?

About 25 days in our Guangzhou factory after you approve the drawing, plus shipping time to your country.

Can I keep my factory TPMS sensors and M12x1.5 lug nuts?

Tell us when you ask for a quote. The engineer checks the valve hole and the lug seat type on the drawing, and tells you whether the factory parts can be reused or which hardware to order.
