2005 Toyota Soarer Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Toyota Soarer wheels? This page gives the 2005 Toyota Soarer bolt pattern (5x114.3), centre bore, factory rim size and the offset range for aftermarket and forged Toyota Soarer rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Toyota Soarer (2005): 5x114.3 bolt pattern, 60.1mm center bore. Factory wheels: 18x8J F/R. Flush and max fitment confirmed on request.
Bolt Pattern5x114.3
Wheel Bolt/NutNut
Center Bore60.1mm
Wheel Load Rating700–850 kg/wheel (Performance / Sports Car segment reference)
Caliper TypeFactory disc brakes, all four corners (OEM)
Year2005
CategorySports Coupe
Data check: the bolt pattern and center bore on this page have not yet been confirmed by a second independent source. Measure your hub or ask us before ordering. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Forged wheels for the Toyota SoarerMachined to the 5x114.3 bolt pattern and 60.1 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
On a performance-oriented coupe, the wheel is one of the few components where shaving weight has a compounding effect - less rotational mass means less work for the brakes, the drivetrain, and the chassis on every input. A forged wheel gets there without compromising the strength margin the factory engineered in.
We publish the factory specification for the Toyota Soarer below. We have not yet been able to verify aftermarket flush or maximum-aggressive offsets for this exact variant against a source we trust, so we are not listing any - an invented offset is worse than no offset when a wheel has to clear a caliper.
Toyota Soarer OE Wheel Specs
The 2005 Toyota Soarer (Sports Coupe) uses a 5x114.3 bolt pattern with a 60.1mm center bore. Factory wheels are 18x8J F/R.
Why the factory spec works for most owners:
- Keeps unsprung weight low to preserve the factory handling balance
- Matches the wider, performance-oriented tire sizing typical of this platform
- Maintains clearance for the factory brake package and suspension geometry
- Balances grip with ride comfort for daily and spirited driving
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Toyota Soarer (2005) we drill the 5x114.3 pattern and cut the centre bore to 60.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 6,436 vehicles, free to download, CC BY 4.0.
Aftermarket Fitment: Confirmed on Request
Published aftermarket fitment for this exact variant is still thin, so we have not committed to a flush or maximum-aggressive figure. Our engineering team is still collecting verified data for this variant. In the meantime the factory specification above is accurate and is the safe reference point for ordering.
What we do know: Generation IV (Z40), model years 2005. Verified against two independent fitment references.
Need a wheel for this car now? Contact ANKUSI with your target diameter, width and offset and our engineers will confirm the correct forged spec against your brake package before anything is cut. You can also use our Offset & Backspacing Calculator to work through the numbers yourself.
Custom Forged Wheels for the Toyota Soarer (2005)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x114.3 pattern and the 60.1mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
Designs we already tool for the 5x114.3 pattern — each one is re-cut to your sizes and offsets:
Rays-Style Gunmetal 10 Y-Mesh Forged Wheels – Nissan 370Z / Toyota GR86 Fitment (5-Lug)
Toyota OEM-Style Matte Silver 6-Spoke Forged Wheels – Toyota GR86 / Supra Fitment (5-Lug)
Toyota OEM-Style Gold 6-Spoke Forged Wheels – Toyota Camry / Supra Fitment (5-Lug)
Toyota OEM-Style Gloss Black Machined Split Multi-Spoke Forged Wheels – Toyota Camry / Supra Fitment (5-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the Toyota Soarer use?
The 2005 Toyota Soarer uses a 5x114.3 bolt pattern.
How many lug bolts does the Toyota Soarer use?
The Toyota Soarer uses a 5-lug bolt pattern (5x114.3), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Toyota Soarer?
The Toyota Soarer's center bore is 60.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Toyota Soarer?
Factory wheels on the Toyota Soarer are 18x8J F/R.
Do I need wheel spacers for my Toyota Soarer?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Toyota Soarer?
The Toyota Soarer runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Vehicles With the Same Hub as the Toyota Soarer (5x114.3, 60.1 mm Bore)
In our database, 216 other vehicle entries from 19 makes use exactly the same 5x114.3 bolt pattern and 60.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.0% of the vehicle entries in our database (1,303 of 6,503); 16.7% of those also use a 60.1 mm center bore.
Hub-Centric Rings for a 60.1 mm Center Bore
A wheel with a center bore larger than 60.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 63.4 mm | 63.4 → 60.1 mm |
| 64.1 mm | 64.1 → 60.1 mm |
| 65.1 mm | 65.1 → 60.1 mm |
| 66.1 mm | 66.1 → 60.1 mm |
| 73.1 mm | 73.1 → 60.1 mm |
ANKUSI forged wheels are bored to exactly 60.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 18x8 wheels · 18 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Toyota Soarer
Every design below is forged to order, so it can be machined to the Toyota Soarer's 5x114.3 bolt pattern and 60.1 mm center bore, with the width and offset calculated for your setup.
Toyota OEM-Style Gold 6-Spoke Forged Wheels
Toyota Camry / Supra Fitment · 5-Lug
Toyota GR Supra MkV Final Edition Forged Wheels
Gunmetal Gray 6-Spoke · 18-20in, 5×112
Toyota OEM-Style Gloss Black Machined Split Multi-Spoke Forged Wheels
Toyota Camry / Supra Fitment · 5-Lug
Rays-Style Mirror Polished 6-Spoke Black-Ring Beadlock Forged Wheels
Honda Civic Type R / GR Supra Fitment · 5-Lug

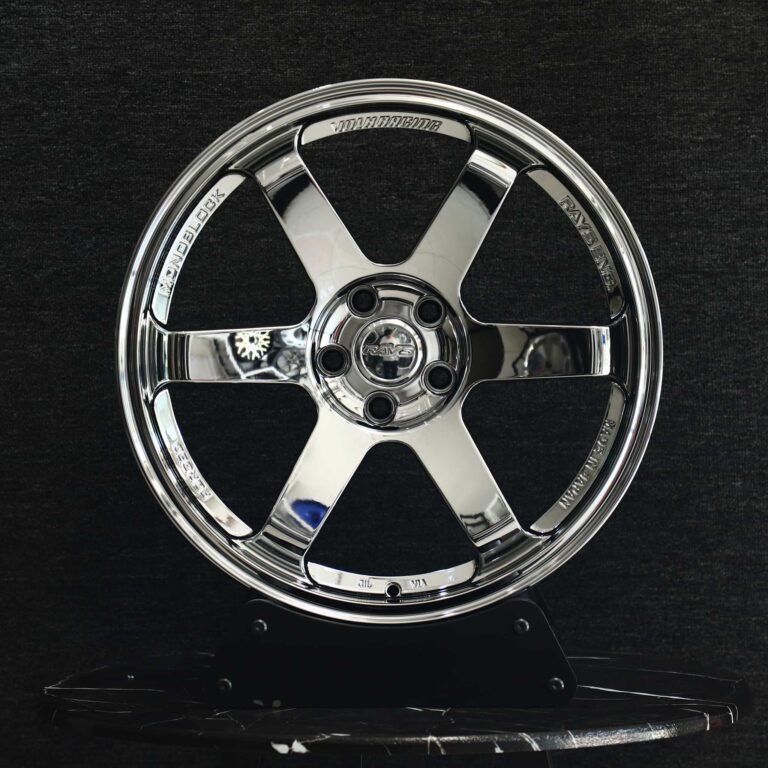

Rays Volk Racing TE37-Style Chrome Silver 6-Spoke Forged Wheels - Toyota GR86 / Subaru WRX Fitment (5-Lug)
Rays-Style forged wheels featuring the volk racing TE37-style chrome silver 6-spoke design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.
Honda S2000 / Toyota GR86 Forged Wheels
Gloss White 5-Spoke
Nissan 370Z / Toyota GR86 Forged Wheels
Metallic Gray / Gray 7 Y-Spoke
Wheel Installation Reference: Torque, Thread & TPMS
Thread & Fastener: M12x1.5, conical-seat lug nut.
Factory Torque Spec: 103-110 Nm (76-81 ft-lb). Range covers most Toyota passenger cars, crossovers, and light trucks on M12x1.5 studs.
TPMS: Vehicles built before the 2008 model year were not federally required to carry factory TPMS in the US, though many manufacturers adopted it earlier; verify whether your specific build has TPMS before ordering sensor-compatible wheels.
Tire Pressure: Always set tire pressure to the value on your vehicle's tire placard (driver's doorjamb or glovebox), not the max PSI printed on the tire sidewall — this is trim- and tire-size-specific and stays the same reference point when you switch to a different wheel and tire combination.
Reference data compiled from published OEM service specifications and cross-checked against independent repair sources; always confirm against your owner's manual or door-jamb placard before installation.
Bolt pattern and center bore on this page were cross-checked against at least two independent sources before publication. Last reviewed 2026-10-10. Spotted an error? Email info@ankusi.com and we will verify and correct it.
