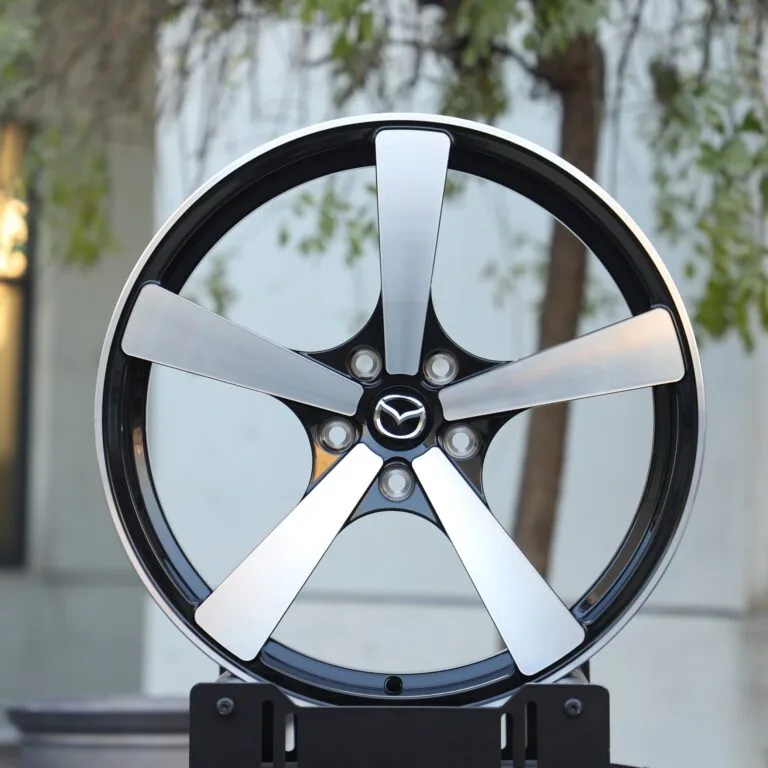

Mazda CX-5 / 6 Forged Wheels
Matte Silver 5-Spoke Machined Face
2025 Mazda EZ-6 [CN] Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Mazda EZ-6 [CN] wheels? This page gives the 2025 Mazda EZ-6 [CN] bolt pattern (5x114.3), centre bore, factory rim size and the offset range for aftermarket and forged Mazda EZ-6 [CN] rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2025 Mazda EZ-6 [CN] uses a 5x114.3 bolt pattern with a 60.1 mm centre bore and M12x1.5 lug nuts. Factory wheels: 19x8.0J at ET45, front and rear. For aftermarket wheels, 20x8.5J ET38 sits flush and 20x9.5J ET35 is the most aggressive fit.
Forged wheels for the 2025 Mazda EZ-6 [CN] — drilled 5x114.3 with a 60.1 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
Mazda EZ-6 [CN] (2025): 5x114.3 bolt pattern, 60.1mm center bore. Factory wheels: 19x8.0J at ET45 offset, front and rear. Reference fitment ranges.
Bolt Pattern5x114.3
Wheel Bolt/NutM12x1.5 Nut
Center Bore60.1mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Year2025
Category5-Lug Standard Sedan
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 25, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 19x8.0J at ET45 offset, front and rear |
| Flush Fitment | 20x8.5J at ET38 offset |
| Maximum Aggressive | 20x9.5J at ET35 offset |
Forged wheels for the Mazda EZ-6 [CN]Machined to the 5x114.3 bolt pattern and 60.1 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
A sedan's wheel spec is a balance point the factory tuned between ride comfort, steering feel, and everyday durability. Forging lets us hold that same structural margin while cutting rotational mass, which is where most of the real-world benefit — quicker steering response, marginally better ride — actually comes from.
The Mazda EZ-6 [CN] runs a 5x114.3 bolt pattern, 60.1mm center bore, and a 19x8.0J at ET45, front and rear, wheel from the factory. Our Flush Fitment reference is 20x8.5J, which tucks the tire under the fender lip on a stock-height Mazda EZ-6 [CN]. Our Maximum Aggressive reference is 20x9.5J at ET35 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Mazda EZ-6 [CN] OE Wheel Specs
The 2025 Mazda EZ-6 [CN] (EV Sedan) uses a 5x114.3 bolt pattern with a 60.1mm center bore. Factory wheels are 19x8.0J at ET45 offset, front and rear.
Why the factory spec works for most owners:
- Balances ride comfort with everyday fuel efficiency
- A widely used size in this segment, so tire and wheel availability stays strong
- Keeps unsprung weight low for stable, predictable handling
- Maintains clearance for the factory brake calipers and suspension components
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Mazda EZ-6 [CN] (2025) we drill the 5x114.3 pattern and cut the centre bore to 60.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look, a 20x8.5J wheel at ET38 offset (front and rear) is a commonly used starting point — clearance must be verified on a stock or mildly lowered Mazda EZ-6 [CN].
Maximum Aggressive Fitment
20x9.5J at ET35 offset is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
5-Tier Configuration Options
A Factory-Style 19x8.0J ET45
Recommended setup: 19x8.0J ET45 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B Comfortable Upgrade 20x8.5J ET42
Recommended setup: 20x8.5J ET42 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit 20x8.5J ET38
Recommended setup: 20x8.5J ET38 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive 20x9.0J ET37
Recommended setup: 20x9.0J ET37 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive 20x9.5J ET35
Recommended setup: 20x9.5J ET35 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 19x8.0J ET45 | 20x8.5J ET42 | 20x8.5J ET38 | 20x9.0J ET37 | 20x9.5J ET35 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 19x8.0J ET45
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 20x8.5J ET38
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 20x9.5J ET35
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Mazda EZ-6 [CN] owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: 19x8.0J ET45 → ~6.27" backspacing
- Flush: 20x8.5J ET38 → ~6.25" backspacing
- Max: 20x9.5J ET35 → ~6.63" backspacing
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or can't find your exact Mazda spec, or want a wheel built to a custom offset for your Mazda EZ-6 [CN]? Contact ANKUSI with your bolt pattern and offset target and we'll confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Mazda EZ-6 [CN] (2025)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x114.3 pattern and the 60.1mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Mazda orders on this platform land somewhere between the 20x8.5J ET38 flush setup and the 20x9.5J ET35 aggressive setup referenced above.
Designs we already tool for the 5x114.3 pattern — each one is re-cut to your sizes and offsets:
Frequently Asked Questions
What bolt pattern (PCD) does the Mazda EZ-6 [CN] use?
The 2025 Mazda EZ-6 [CN] uses a 5x114.3 bolt pattern.
How many lug bolts does the Mazda EZ-6 [CN] use?
The Mazda EZ-6 [CN] uses a 5-lug bolt pattern (5x114.3), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Mazda EZ-6 [CN]?
The Mazda EZ-6 [CN]'s center bore is 60.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Mazda EZ-6 [CN]?
Factory wheels on the Mazda EZ-6 [CN] are 19x8.0J at ET45 offset, front and rear.
What is the biggest wheel size I can fit on my Mazda EZ-6 [CN] without rubbing?
The most aggressive fitment we recommend without fender work is 20x9.5J at ET35 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Mazda EZ-6 [CN]?
For a flush look with minimal to no rubbing, we recommend 20x8.5J at ET38 offset as a starting point on a stock or mildly lowered Mazda EZ-6 [CN].
Do I need wheel spacers for my Mazda EZ-6 [CN]?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Mazda EZ-6 [CN]?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 6.25" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Mazda EZ-6 [CN]?
The Mazda EZ-6 [CN] runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Vehicles With the Same Hub as the Mazda EZ-6 [CN] (5x114.3, 60.1 mm Bore)
In our database, 217 other vehicle entries from 19 makes use exactly the same 5x114.3 bolt pattern and 60.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.0% of the vehicle pages in our English fitment guide (1,300 of 6,503); 16.8% of those also use a 60.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 19x8J | ET45 | 6.27 in (159 mm) | — | — |
| Maximum | 20x9.5J | ET35 | 6.63 in (168 mm) | +9 mm | +29 mm |
Hub-Centric Rings for a 60.1 mm Center Bore
A wheel with a center bore larger than 60.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 63.4 mm | 63.4 → 60.1 mm |
| 64.1 mm | 64.1 → 60.1 mm |
| 65.1 mm | 65.1 → 60.1 mm |
| 66.1 mm | 66.1 → 60.1 mm |
| 73.1 mm | 73.1 → 60.1 mm |
ANKUSI forged wheels are bored to exactly 60.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 19x8 wheels · 19 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Mazda EZ-6 [CN]
Every design below is forged to order, so it can be machined to the Mazda EZ-6 [CN]'s 5x114.3 bolt pattern and 60.1 mm center bore, with the width and offset calculated for your setup.
Mazda MX-5 / 3 Forged Wheels
Chrome 10 Y-Spoke
Alpine OEM-Style Hyper Silver 5 Y-Spoke Forged Wheels
Alpine A290 Fitment · 5-Lug
Vossen HF-5-Style Bronze 5 Y-Spoke Concave Forged Wheels - Tesla Model 3 / Tesla Model Y Fitment (5-Lug)
Vossen-Style forged wheels featuring the HF-5-style bronze 5 Y-spoke concave design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.
Mazda MX-5 / 3 Forged Wheels
Bright Silver Full-Face 7-Spoke

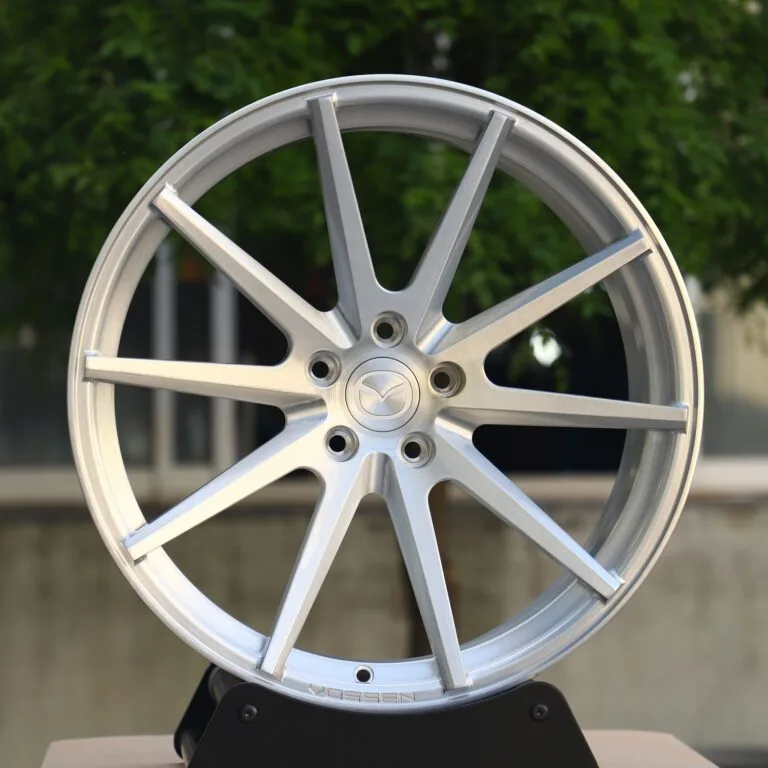

Mazda MX-5 / 3 Forged Wheels
