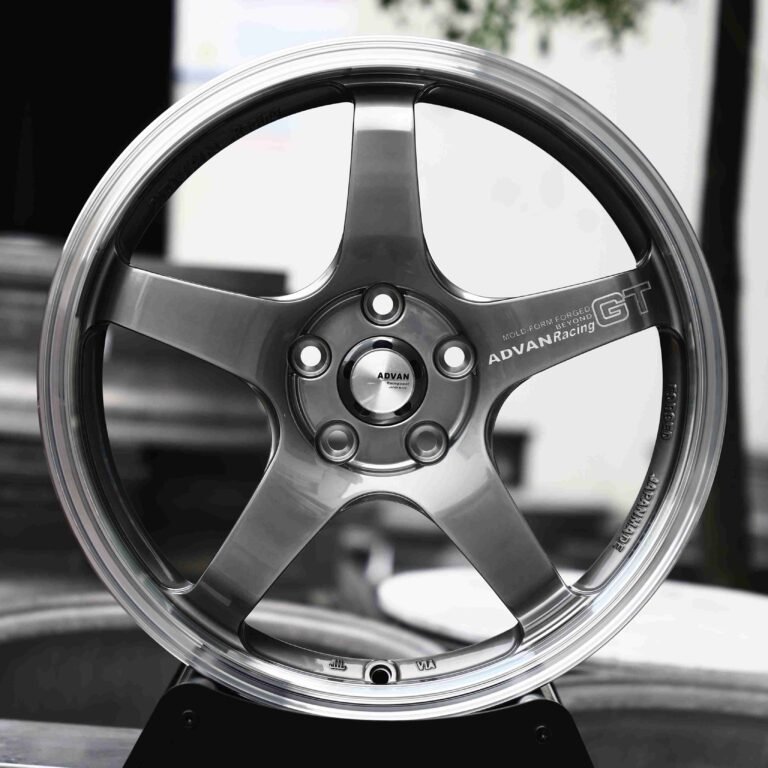

Advan-Style Brushed Silver 5-Spoke Deep-Lip Forged Wheels
Toyota GR86 / Honda Civic Type R Fitment · 5-Lug
2004 Toyota Corolla Verso D4D Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Toyota Corolla Verso D4D wheels? This page gives the 2004 Toyota Corolla Verso D4D bolt pattern (5x114.3), centre bore, factory rim size and the offset range for aftermarket and forged Toyota Corolla Verso D4D rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Toyota Corolla Verso D4D (2004): 5x114.3 bolt pattern, 60.1mm center bore. Factory wheels: F/R: 16x6.5J at ET45 offset, front and rear. Reference fitment ranges.
Bolt Pattern5x114.3
Wheel Bolt/NutM12x1.5 Nut
Center Bore60.1mm
Wheel Load Rating900–1100 kg/wheel (Van / MPV segment reference)
Year2004
CategoryCompact MPV
✓ Verified by ANKUSI's Engineering Team — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | F/R: 16x6.5J F/R |
| Flush Fitment | 17x7.5J at ET38 offset |
| Maximum Aggressive | 18x8.0J at ET35 offset |
Forged wheels for the Toyota Corolla Verso D4DMachined to the 5x114.3 bolt pattern and 60.1 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Minivans carry passengers and cargo across a wide range of loaded conditions, so the factory wheel spec is built around a conservative load margin. Forging lets us hold that same margin while trimming rotational mass, which shows up as smoother ride quality whether the vehicle is empty or fully loaded.
The Toyota Corolla Verso D4D runs a 5x114.3 bolt pattern, 60.1mm center bore, and a 16x6.5J, front and rear, wheel from the factory. Our Flush Fitment reference is 17x7.5J ET38, which tucks the tire under the fender lip on a stock-height Toyota Corolla Verso D4D. Our Maximum Aggressive reference is 18x8.0J ET35 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Toyota Corolla Verso D4D OE Wheel Specs
The 2004 Toyota Corolla Verso D4D (Compact MPV) uses a 5x114.3 bolt pattern with a 60.1mm center bore. Factory wheels are F/R: 16x6.5J F/R.
Why the factory spec works for most owners:
- Balances ride comfort with everyday drivability
- A commonly used size for this vehicle class, supporting parts and tire availability
- Maintains clearance for the factory suspension and brake components
- Provides stable, predictable handling across normal driving conditions
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Toyota Corolla Verso D4D (2004) we drill the 5x114.3 pattern and cut the centre bore to 60.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 6,436 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look, F/R 17x7.5J ET38 is a commonly used starting point — clearance must be verified on a stock or mildly lowered Toyota Corolla Verso D4D.
Maximum Aggressive Fitment
F/R 18x8.0J ET35 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
5-Tier Configuration Options
A Flush Fit (Conservative) 17x7.5J ET38
Recommended setup: 17x7.5J ET38 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B Comfortable Upgrade 17x7.5J ET37
Recommended setup: 17x7.5J ET37 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced 18x8.0J ET37
Recommended setup: 18x8.0J ET37 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive 18x8.0J ET36
Recommended setup: 18x8.0J ET36 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive 18x8.0J ET35
Recommended setup: 18x8.0J ET35 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 17x7.5J ET38 | 17x7.5J ET37 | 18x8.0J ET37 | 18x8.0J ET36 | 18x8.0J ET35 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Flush Fit (Conservative))
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 17x7.5J ET38
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 18x8.0J ET37
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 18x8.0J ET35
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced) is the default choice for most Toyota Corolla Verso D4D owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: F/R: 16x6.5J ET45 → ~5.52″ backspacing
- Flush: 17x7.5J ET38 → ~5.75″ backspacing
- Max: 18x8.0J ET35 → ~5.88″ backspacing
A Note on Clearance
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Toyota spec, or want a wheel built to a custom offset for your Toyota Corolla Verso D4D? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Toyota Corolla Verso D4D (2004)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x114.3 pattern and the 60.1mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Toyota orders on this platform land somewhere between the 17x7.5J ET38 flush setup and the 18x8.0J ET35 aggressive setup referenced above.
Designs we already tool for the 5x114.3 pattern — each one is re-cut to your sizes and offsets:
Rays-Style Gunmetal 10 Y-Mesh Forged Wheels – Nissan 370Z / Toyota GR86 Fitment (5-Lug)
Toyota OEM-Style Matte Silver 6-Spoke Forged Wheels – Toyota GR86 / Supra Fitment (5-Lug)
Toyota OEM-Style Gold 6-Spoke Forged Wheels – Toyota Camry / Supra Fitment (5-Lug)
Toyota OEM-Style Gloss Black Machined Split Multi-Spoke Forged Wheels – Toyota Camry / Supra Fitment (5-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the Toyota Corolla Verso D4D use?
The 2004 Toyota Corolla Verso D4D uses a 5x114.3 bolt pattern.
How many lug bolts does the Toyota Corolla Verso D4D use?
The Toyota Corolla Verso D4D uses a 5-lug bolt pattern (5x114.3), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Toyota Corolla Verso D4D?
The Toyota Corolla Verso D4D's center bore is 60.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Toyota Corolla Verso D4D?
Factory wheels on the Toyota Corolla Verso D4D are F/R: 16x6.5J F/R.
What is the biggest wheel size I can fit on my Toyota Corolla Verso D4D without rubbing?
The most aggressive fitment we recommend without fender work is 18x8.0J at ET35 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Toyota Corolla Verso D4D?
For a flush look with minimal to no rubbing, we recommend 17x7.5J at ET38 offset as a starting point on a stock or mildly lowered Toyota Corolla Verso D4D.
Do I need wheel spacers for my Toyota Corolla Verso D4D?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Toyota Corolla Verso D4D?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 5.75" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Toyota Corolla Verso D4D?
The Toyota Corolla Verso D4D runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Vehicles With the Same Hub as the Toyota Corolla Verso D4D (5x114.3, 60.1 mm Bore)
In our database, 206 other vehicle entries from 16 makes use exactly the same 5x114.3 bolt pattern and 60.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.1% of the vehicle entries in our database (1,284 of 6,396); 16.1% of those also use a 60.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 16x6.5J | ET45 | 5.52 in (140 mm) | — | — |
| Flush | 17x7.5J | ET38 | 5.75 in (146 mm) | +6 mm | +20 mm |
| Maximum | 18x8J | ET35 | 5.88 in (149 mm) | +9 mm | +29 mm |
Hub-Centric Rings for a 60.1 mm Center Bore
A wheel with a center bore larger than 60.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 63.4 mm | 63.4 → 60.1 mm |
| 64.1 mm | 64.1 → 60.1 mm |
| 65.1 mm | 65.1 → 60.1 mm |
| 66.1 mm | 66.1 → 60.1 mm |
| 73.1 mm | 73.1 → 60.1 mm |
ANKUSI forged wheels are bored to exactly 60.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 16x6.5 wheels · 16 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Toyota Corolla Verso D4D
Every design below is forged to order, so it can be machined to the Toyota Corolla Verso D4D's 5x114.3 bolt pattern and 60.1 mm center bore, with the width and offset calculated for your setup.
Toyota GR86 / Supra Forged Wheels
Gloss Black Machined Face
Toyota OEM-Style Gloss Black Machined Split Multi-Spoke Forged Wheels
Toyota Camry / Supra Fitment · 5-Lug
Toyota OEM-Style Gold 6-Spoke Forged Wheels
Toyota Camry / Supra Fitment · 5-Lug
SSR-Style Gunmetal 12-Spoke Forged Wheels
Toyota Supra / Nissan GT-R Fitment · 5-Lug

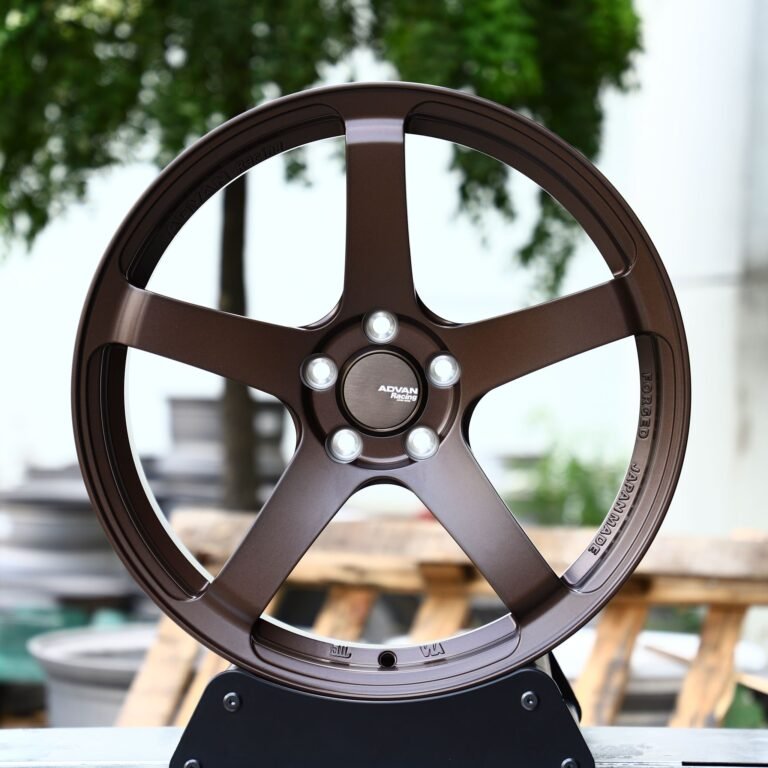

Advan Racing Bronze 5-Spoke Forged Wheels
Honda S2000 / Toyota GR86 Fitment · 5-Lug

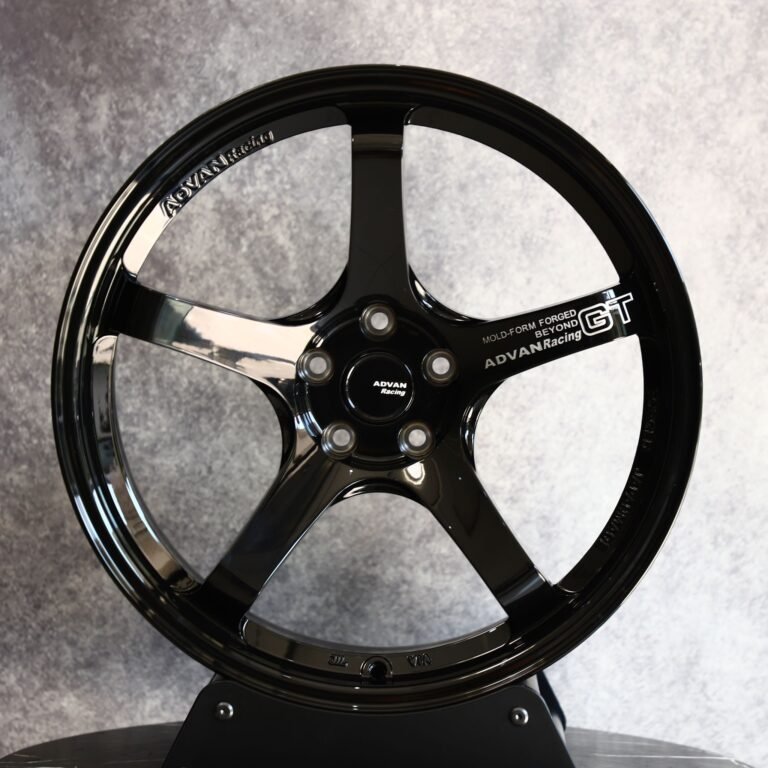

Advan-Style Gloss Black 5-Spoke Deep Lip Forged Wheels
Honda S2000 / GR86 Fitment · 5-Lug
Rohana-Style Brushed Silver Y-Spoke Mesh Forged Wheels
Lexus IS / Toyota Camry Fitment · 5-Lug
Wheel Installation Reference: Torque, Thread & TPMS
Thread & Fastener: M12x1.5, conical-seat lug nut.
Factory Torque Spec: 103-110 Nm (76-81 ft-lb). Range covers most Toyota passenger cars, crossovers, and light trucks on M12x1.5 studs.
TPMS: Vehicles built before the 2008 model year were not federally required to carry factory TPMS in the US, though many manufacturers adopted it earlier; verify whether your specific build has TPMS before ordering sensor-compatible wheels.
Tire Pressure: Always set tire pressure to the value on your vehicle's tire placard (driver's doorjamb or glovebox), not the max PSI printed on the tire sidewall — this is trim- and tire-size-specific and stays the same reference point when you switch to a different wheel and tire combination.
Reference data compiled from published OEM service specifications and cross-checked against independent repair sources; always confirm against your owner's manual or door-jamb placard before installation.
Bolt pattern and center bore on this page were cross-checked against at least two independent sources before publication. Last reviewed 2026-09-18. Spotted an error? Email info@ankusi.com and we will verify and correct it.
