2007-2010 Seat Leon Cupra Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Seat Leon Cupra wheels? This page gives the 2007-2010 Seat Leon Cupra bolt pattern (5x112), centre bore, factory rim size and the offset range for aftermarket and forged Seat Leon Cupra rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2007-2010 Seat Leon Cupra uses a 5x112 bolt pattern with a 57.1 mm centre bore and M14x1.5 lug bolts. Factory wheels: 18x7.5J ET51, front and rear. For aftermarket wheels, 19x8.0J ET53 sits flush and 19x8.5J ET40 front / 19x9.5J ET42 rear is the most aggressive fit.
Forged wheels for the 2007-2010 Seat Leon Cupra — drilled 5x112 with a 57.1 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
Seat Leon Cupra (2007-2010): 5x112 bolt pattern, 57.1mm center bore. Factory wheels: 18x7.5J at ET51 offset, front and rear. Reference fitment ranges.
Bolt Pattern5x112
Wheel Bolt/NutM14x1.5 Bolt
Center Bore57.1mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Year2007-2010
CategoryHot Hatch
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 18x7.5J F/R |
| Flush Fitment | F 19x8.0J ET53 / R 19x8.0J ET53 |
| Maximum Aggressive | F 19x8.5J ET40 / R 19x9.5J ET42 |
Forged wheels for the Seat Leon CupraMachined to the 5x112 bolt pattern and 57.1 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Hot hatches and performance compacts are built around quick direction changes, so rotational mass at the wheel has an outsized effect on how the car actually feels to drive. Forging trims that mass while holding the same strength margin as the factory wheel, which is exactly the trade-off this kind of platform rewards.
The Seat Leon Cupra runs a 5x112 bolt pattern, 57.1mm center bore, and a 18x7.5J, front and rear, wheel from the factory. Our Flush Fitment reference is F 19x8.0J ET53 / R 19x8.0J ET53, which tucks the tire under the fender lip on a stock-height Seat Leon Cupra. Our Maximum Aggressive reference is F 19x8.5J ET40 / R 19x9.5J ET42 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Seat Leon Cupra OE Wheel Specs
The 2007-2010 Seat Leon Cupra (Hot Hatch) uses a 5x112 bolt pattern with a 57.1mm center bore. Factory wheels are 18x7.5J F/R.
Why the factory spec works for most owners:
- Balances ride comfort with everyday drivability
- A commonly used size for this vehicle class, supporting parts and tire availability
- Maintains clearance for the factory suspension and brake components
- Provides stable, predictable handling across normal driving conditions
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Seat Leon Cupra (2007-2010) we drill the 5x112 pattern and cut the centre bore to 57.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look, F 19x8.0J ET53 / R 19x8.0J ET53 is a commonly used starting point — clearance must be verified on a stock or mildly lowered Seat Leon Cupra.
Maximum Aggressive Fitment
F 19x8.5J ET40 / R 19x9.5J ET42 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
5-Tier Configuration Options
A
Factory-Style
F 18x7.5J ET51 / R 18x7.5J ET51Recommended setup: F 18x7.5J ET51 / R 18x7.5J ET51 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B
Comfortable Upgrade
F 19x8.0J ET52 / R 19x8.0J ET52Recommended setup: F 19x8.0J ET52 / R 19x8.0J ET52 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C
Balanced / Flush Fit
F 19x8.0J ET53 / R 19x8.0J ET53Recommended setup: F 19x8.0J ET53 / R 19x8.0J ET53 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D
Aggressive
F 19x8.5J ET47 / R 19x9.0J ET48Recommended setup: F 19x8.5J ET47 / R 19x9.0J ET48 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E
Max Aggressive
F 19x8.5J ET40 / R 19x9.5J ET42Recommended setup: F 19x8.5J ET40 / R 19x9.5J ET42 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | F 18x7.5J ET51 / R 18x7.5J ET51 | F 19x8.0J ET52 / R 19x8.0J ET52 | F 19x8.0J ET53 / R 19x8.0J ET53 | F 19x8.5J ET47 / R 19x9.0J ET48 | F 19x8.5J ET40 / R 19x9.5J ET42 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: F 18x7.5J ET51 / R 18x7.5J ET51
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: F 19x8.0J ET53 / R 19x8.0J ET53
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: F 19x8.5J ET40 / R 19x9.5J ET42
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Seat Leon Cupra owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: 18x7.5J ET51 → ~6.26″ backspacing
- Flush: F 19x8.0J ET53 → ~6.59″ F backspacing, R 19x8.0J ET53 → ~6.59″ R backspacing
- Max: F 19x8.5J ET40 → ~6.32″ F backspacing, R 19x9.5J ET42 → ~6.9″ R backspacing
A Note on Clearance
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Seat spec, or want a wheel built to a custom offset for your Seat Leon Cupra? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Seat Leon Cupra (2007-2010)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x112 pattern and the 57.1mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
Designs we already tool for the 5x112 pattern — each one is re-cut to your sizes and offsets:
Mercedes-Benz OEM-Style Satin Black Machined 5 Y-Spoke Forged Wheels – Mercedes S-Class / CLS Fitment (5-Lug)
Mercedes-Benz OEM-Style Gloss Black Hole Disc Windowed Ring Forged Wheels – Mercedes G-Class / GLS Fitment (5-Lug)
Mercedes-Benz OEM-Style Brushed Silver Multi-Spoke Forged Wheels – Mercedes E-Class / CLS Fitment (5-Lug)
Mercedes-Benz OEM-Style Polished 15-Spoke Forged Wheels – Mercedes CLA / A-Class Fitment (5-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the Seat Leon Cupra use?
The 2007-2010 Seat Leon Cupra uses a 5x112 bolt pattern.
How many lug bolts does the Seat Leon Cupra use?
The Seat Leon Cupra uses a 5-lug bolt pattern (5x112), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Seat Leon Cupra?
The Seat Leon Cupra's center bore is 57.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Seat Leon Cupra?
Factory wheels on the Seat Leon Cupra are 18x7.5J F/R.
What is the biggest wheel size I can fit on my Seat Leon Cupra without rubbing?
The most aggressive fitment we recommend without fender work is F 19x8.5J ET40 / R 19x9.5J ET42. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Seat Leon Cupra?
For a flush look with minimal to no rubbing, we recommend F 19x8.0J ET53 / R 19x8.0J ET53 as a starting point on a stock or mildly lowered Seat Leon Cupra.
Do I need wheel spacers for my Seat Leon Cupra?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Seat Leon Cupra?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 6.59" backspacing up front and 6.59" in the rear.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Seat Leon Cupra?
Yes — the Seat Leon Cupra's factory and our recommended flush/max fitments already use staggered sizing (different width front and rear), and ANKUSI can forge matching staggered sets to your target offsets.
Vehicles With the Same Hub as the Seat Leon Cupra (5x112, 57.1 mm Bore)
In our database, 406 other vehicle entries from 18 makes use exactly the same 5x112 bolt pattern and 57.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x112 is used by 21.6% of the vehicle pages in our English fitment guide (1,407 of 6,503); 29.0% of those also use a 57.1 mm center bore.
Seat Leon Cupra: Specs by Model Year
| Year | Bolt pattern | Center bore | Factory wheel |
|---|---|---|---|
| 2007-2010 | 5x112 | 57.1 mm | 18x7.5J ET51 |
| 2014-2017 | 5x112 | 57.1 mm | 19x8J ET50 |
Bolt pattern and center bore stay the same across all 2 model years in our database (2007–2014).
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 18x7.5J | ET51 | 6.26 in (159 mm) | — | — |
| Flush | 19x8J | ET53 | 6.59 in (167 mm) | +8 mm | +4 mm |
| Maximum | 19x8.5J | ET40 | 6.32 in (161 mm) | +2 mm | +24 mm |
Hub-Centric Rings for a 57.1 mm Center Bore
A wheel with a center bore larger than 57.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 60.1 mm | 60.1 → 57.1 mm |
| 63.4 mm | 63.4 → 57.1 mm |
| 64.1 mm | 64.1 → 57.1 mm |
| 65.1 mm | 65.1 → 57.1 mm |
| 73.1 mm | 73.1 → 57.1 mm |
ANKUSI forged wheels are bored to exactly 57.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 18x7.5 wheels · 18 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Seat Leon Cupra
Every design below is forged to order, so it can be machined to the Seat Leon Cupra's 5x112 bolt pattern and 57.1 mm center bore, with the width and offset calculated for your setup.
Edelweiss-Style Champagne 5 Split-Spoke Forged Wheels
BMW M2 G87 / M3 G80 Fitment · 5-Lug
Audi A4 / A6 Forged Wheels
Black / Machined 5 Twin-Spoke Directional

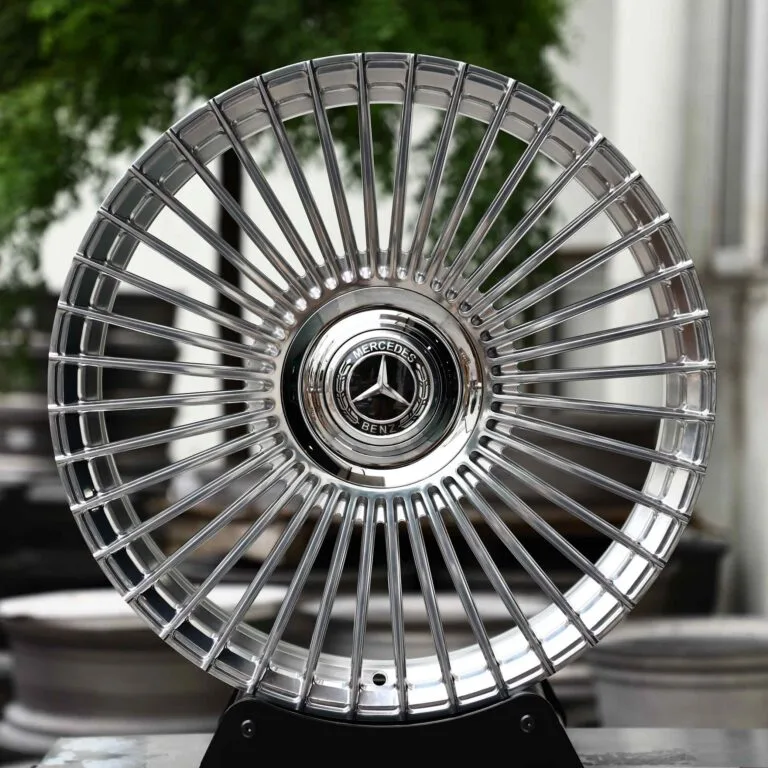

Mercedes-Benz E-Class / S-Class Forged Wheels
Polished Silver Multi-Spoke

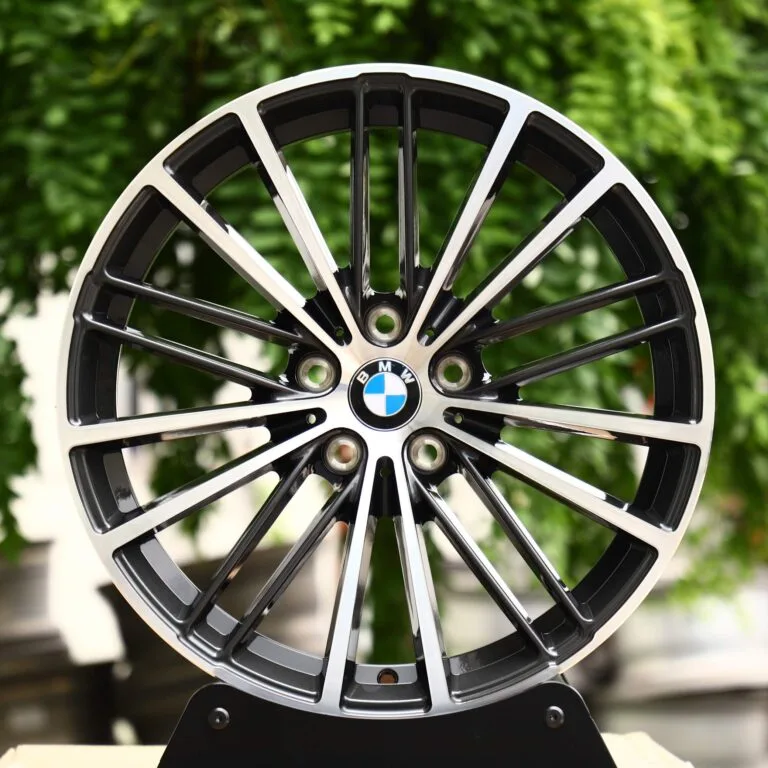

BMW 5 Series / 3 Series Forged Wheels
Gray Split Machined Face

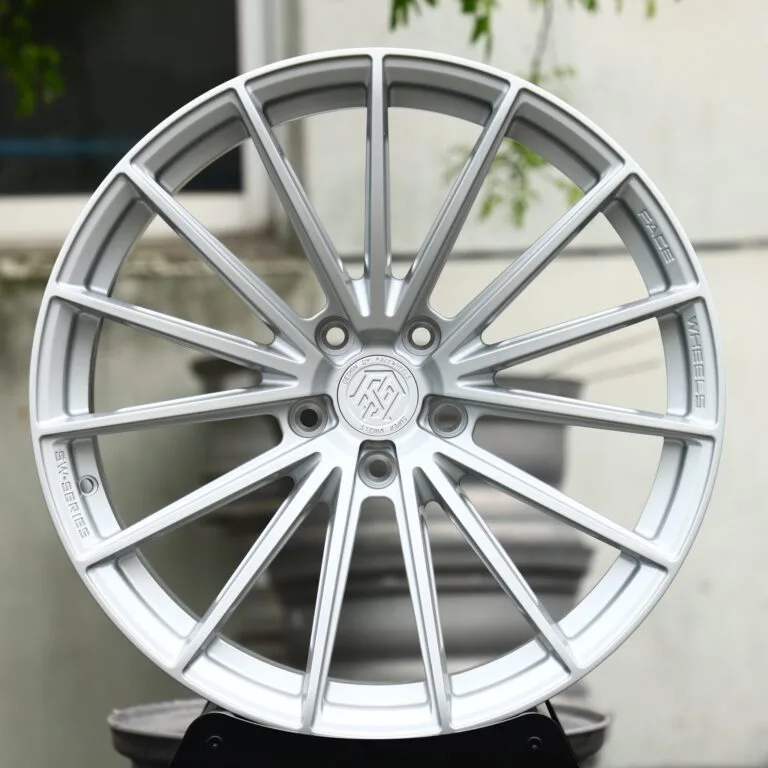

Porsche 911 / M3 Forged Wheels
Hyper Silver Multi-Spoke · 5-Lug

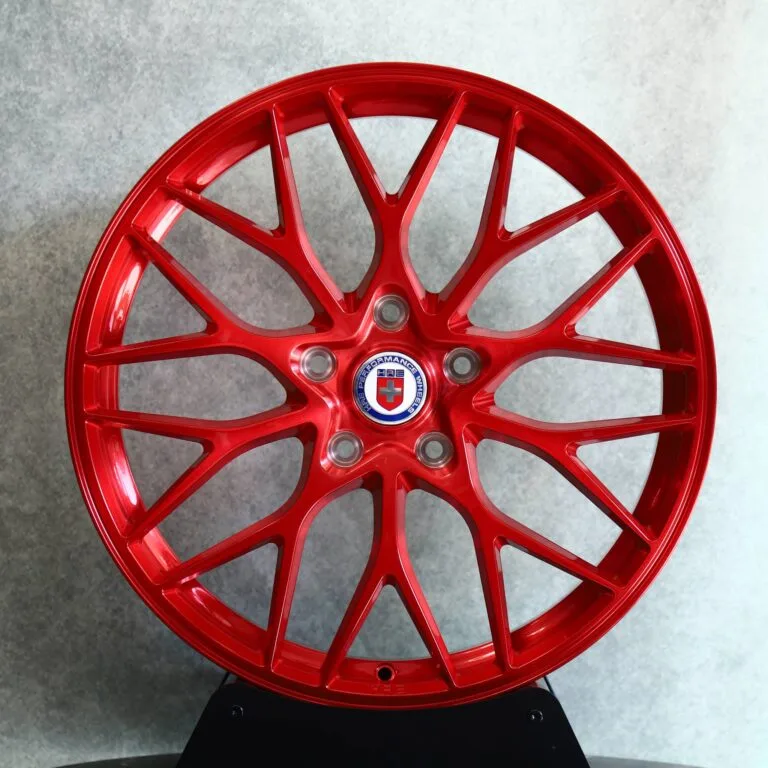

HRE-Style Candy Red Mesh Multi-Spoke Forged Wheels
