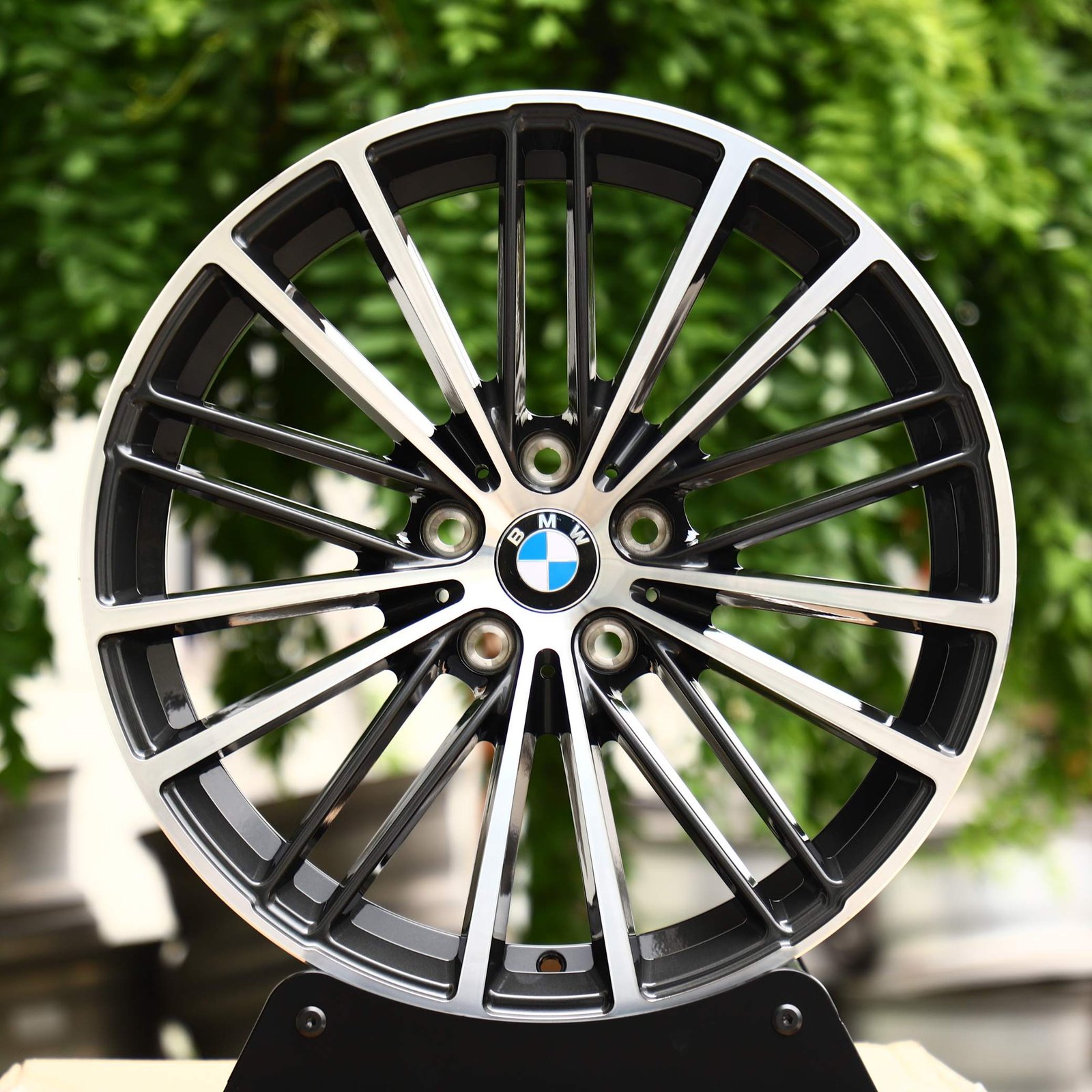

BMW 5 Series wheels – Gray Split Machined Face, front view

BMW 5 Series / 3 Series Forged Wheels – Gray Split Machined Face

BMW Style forged wheels in Gray with a split machined face, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are all machined for your exact vehicle — this listing covers 5-lug applications.

Category	Monoblock
SKU	ANK-62505
Bolt Pattern	5x120
Material	Forged Aluminum
Finish	Gray
Reference price	From $180 per wheel Approximate. Final quote depends on size, finish and quantity.
Made to order	Custom size, offset, PCD & finish

Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.

Product Details

BMW Style forged wheels finished in Gray, built around a split machined face. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Fitment

Commonly ordered for BMW 5 Series (5x120, 72.6mm centre bore); BMW 3 Series (5x120, 72.6mm centre bore); BMW M3 (5x120, 72.6mm centre bore). Every set is cut to order, so we machine the bolt pattern, centre bore and offset to match your car exactly — send us the year, model and brake setup and we confirm the spec before anything is cut.

Specification

Construction: forged 6061-T6 aluminium
Bolt pattern: 5-lug, machined to order
Diameter and width: cut to order
Offset: calculated for your vehicle, flush to aggressive
Finish: Gray

Single sets through to full container orders. Tell us your vehicle and the stance you are after and we will quote.

BMW 5 Series wheels and BMW 3 Series wheels: bolt patterns this design is cut for

This Gray Split Machined Face design is forged blank and machined to order, so the same wheel is made as 5x120 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern; send us your year and model and we confirm the exact spec before production.

BMW 5 Series wheels – 5x120, 72.6 mm centre bore
BMW 3 Series wheels – 5x120, 72.6 mm centre bore
BMW M3 F80 – 5x120, 72.6 mm centre bore (factory F: 19x9.0J R: 20x10.0J)
BMW M4 F82 – 5x120, 72.6 mm centre bore (factory F: 19x9.0J R: 20x10.0J)
Tesla Model S – 5x120, 64.1 mm centre bore (factory F: 19x9.5J R: 19x10.5J)
Tesla Model X – 5x120, 64.1 mm centre bore (factory F: 20x9.0J R: 20x10.0J)
BMW M2 F87 – 5x120, 72.6 mm centre bore (factory F: 19x9.0J R: 19x10.0J)
Honda Civic Type R FL5 – 5x120, 64.1 mm centre bore (factory 19x9.5J at ET60 offset, front and rear)

Fitment Reference

Factory bolt pattern, center bore and wheel sizes by generation for the vehicles this design is most often ordered for. We machine the bolt pattern and center bore to your exact car.

Vehicle	Bolt pattern	Center bore	Factory wheels
BMW 5-Series Touring G61 (2025)	5x112	66.6 mm	F: 19x8.5J R: 19x10.0J
BMW 5-Series G60 (2024)	5x112	66.6 mm	F: 19x8.5J R: 19x9.5J
BMW 5-Series G30 (2021)	5x112	66.6 mm	F: 18x8.0J R: 18x9.0J
BMW 3 Series G20 (2025)	5x112	66.6 mm	18x8.0J at ET34 offset, front and rear
BMW 3-Series Touring G21 (2025)	5x112	66.6 mm	F: 18x7.5J R: 18x8.5J
BMW 3-Series Long Wheelbase G28 (2020)	5x112	66.6 mm	F: 18x7.5J R: 18x8.5J

Questions about this wheel

Will these forged wheels fit my BMW 5 Series?

Yes. These rims are forged to order, so we machine the bolt pattern (5x120 for the vehicles listed) and the centre bore to your exact car. Send us the year, model and brake setup and we confirm fitment before production starts.

What sizes can I order?

Diameter, width and offset are cut to order on a 5-lug hub, from a factory-flush fit to an aggressive stance. Tell us the size you want and we check it against your car.

How much do these wheels cost?

The reference price starts from $180 per wheel. The final quote depends on size, finish and quantity, and we send it after confirming your fitment.

Can I choose a different color or finish?

Yes. Every wheel is finished to order; Gray is one option shown here. Tell us the color, polish or two-tone finish you want.

Can custom forged wheels be returned?

Because each set is forged and machined to your order, we do not accept returns. That is why we confirm the fitment and specifications with you before production.
