2020 Nissan Titan Wheels & Rims: Bolt Pattern, Offset & Sizes

Fitting Nissan Titan wheels? This page gives the 2020 Nissan Titan bolt pattern (6x139.7), centre bore, factory rim size and the offset range for aftermarket and forged Nissan Titan rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.

Nissan Titan (2020): 6x139.7 bolt pattern, 77.8mm center bore. Factory wheels: 20x8.0J at ET23 offset, front and rear. Reference fitment ranges.

Bolt Pattern6x139.7
Wheel Bolt/NutM12x1.25 Nut
Center Bore77.8mm
Wheel Load Rating1000–1400 kg/wheel (Pickup / Light Truck segment reference)
Year2020
CategoryFull-Size Pickup

✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify

Use this spec on your site

Paste this code into a forum post, listing or web page to show the Nissan Titan 2020 bolt pattern, center bore and factory wheel size. Free, no sign-up.

<iframe src="https://ankusiwheels.com/wp-content/uploads/ankusi-embed/lookup.html?vehicle=nissan-titan-2020&card=1" width="100%" height="230" style="border:0;max-width:560px" loading="lazy" title="Nissan Titan 2020 bolt pattern"></iframe>
<p style="font-size:13px"><a href="https://ankusiwheels.com/fitment-guide/nissan-titan-2020/">Nissan Titan 2020 bolt pattern and offset guide</a> by ANKUSI Wheels</p>

More free tools: bolt pattern lookup and offset calculator for your website.

Wheel Size & Offset at a Glance

Nissan Titan wheel size and offset comparison by configuration
ConfigurationWheel Size & Offset
Factory (OE)20x8.0J F/R
Flush Fitment20x9.0J at ET18 offset
Maximum Aggressive22x9.5J at ET0 offset

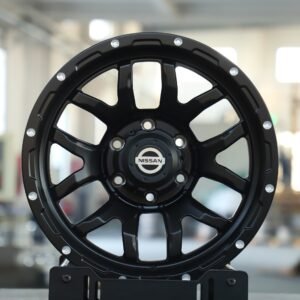

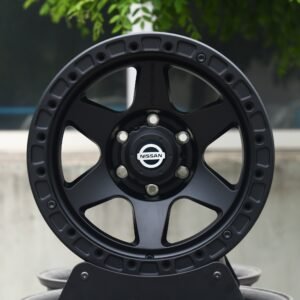

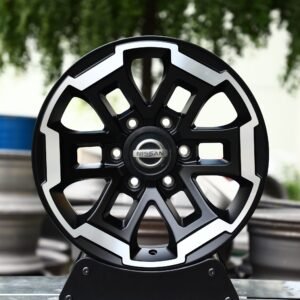

Forged Wheel Designs for the Nissan Titan

Every design below is forged to order, so it can be machined to the Nissan Titan's 6x139.7 bolt pattern and 77.8 mm center bore, with the width and offset calculated for your setup.

American Force-Style Forged Wheels

How to Read Wheel Offset & Measurements

Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.

Diagram showing wheel measurement points: centerline, center bore diameter, PCD, offset, rim width and diameter
Centerline, center bore, PCD, offset, width & diameter
Diagram comparing positive, zero, and negative wheel offset relative to the wheel centerline
Positive vs. zero vs. negative offset

ANKUSI Engineering Expert Advice

Payload and towing figures on a truck are engineered around a specific unsprung mass budget at each corner. Forging lets ANKUSI hit the factory strength rating for the Nissan Titan at a lower rotational weight than an equivalent cast wheel, which is the more meaningful upgrade on a work-capable platform than diameter alone.

The Nissan Titan runs a 6x139.7 bolt pattern, 77.8mm center bore, and a 20x8.0J, front and rear, wheel from the factory. Our Flush Fitment reference is 20x9.0J ET18, which tucks the tire under the fender lip on a stock-height Nissan Titan. Our Maximum Aggressive reference is 22x9.5J ET0 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.

Nissan Titan OE Wheel Specs

Correction (19 Sep 2026): factory wheel offset corrected from ET44 to ET23 (verified against wheel-size.com and avtoreference.com). The flush and maximum-aggressive reference sizes below were written against the previous figure and are being re-verified; treat them as provisional until this notice is removed.

The 2020 Nissan Titan (Full-Size Pickup) uses a 6x139.7 bolt pattern with a 77.8mm center bore. Factory wheels are 20x8.0J F/R.

Why the factory spec works for most owners:

  • Supports higher payload and towing capacity
  • Preserves ground clearance for towing, hauling and light off-road use
  • Matches tire sizing commonly available for this class of vehicle
  • Maintains clearance for the factory suspension and brake package

ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Nissan Titan (2020) we drill the 6x139.7 pattern and cut the centre bore to 77.8mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.

IATF 16949 & ISO 9001 certified · own 10,000-ton press in Guangzhou · from a single set to a full container

Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.

The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.

Offset & Backspacing Reference

Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):

  • OE: 20x8.0J ET23 → ~5.41″ backspacing
  • Flush: 20x9.0J ET18 → ~5.71″ backspacing
  • Max: 22x9.5J ET0 → ~5.25″ backspacing

A Note on Clearance

Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.

Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Nissan spec, or want a wheel built to a custom offset for your Nissan Titan? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.

Frequently Asked Questions

What bolt pattern (PCD) does the Nissan Titan use?
The 2020 Nissan Titan uses a 6x139.7 bolt pattern.
How many lug bolts does the Nissan Titan use?
The Nissan Titan uses a 6-lug bolt pattern (6x139.7), so you need a 6-lug forged wheel to bolt straight on.
What is the center bore size on the Nissan Titan?
The Nissan Titan's center bore is 77.8mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Nissan Titan?
Factory wheels on the Nissan Titan are 20x8.0J F/R.
What is the biggest wheel size I can fit on my Nissan Titan without rubbing?
The most aggressive fitment we recommend without fender work is 22x9.5J at ET0 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Nissan Titan?
For a flush look with minimal to no rubbing, we recommend 20x9.0J at ET18 offset as a starting point on a stock or mildly lowered Nissan Titan.
Do I need wheel spacers for my Nissan Titan?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Nissan Titan?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 5.71" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Nissan Titan?
The Nissan Titan runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.

Wheel Installation Reference: Torque, Thread & TPMS

Thread & Fastener: M12x1.25, conical-seat lug nut.

Factory Torque Spec: 103-122 Nm (76-90 ft-lb). Range covers most Nissan passenger cars and crossovers on M12x1.25 studs.

TPMS: TPMS (Tire Pressure Monitoring System) has been federally mandated on all new light vehicles sold in the US since the 2008 model year. If your wheels use OE-style sensors, have them transferred or cloned to the new wheels at installation.

Tire Pressure: Always set tire pressure to the value on your vehicle's tire placard (driver's doorjamb or glovebox), not the max PSI printed on the tire sidewall — this is trim- and tire-size-specific and stays the same reference point when you switch to a different wheel and tire combination.

Reference data compiled from published OEM service specifications and cross-checked against independent repair sources; always confirm against your owner's manual or door-jamb placard before installation.
