/ KG1 Forged Radar Polished Forged Wheels – Ram 1500 TRX Fitment (20-22in, 6×139.7)
Concave Forged Wheels
KG1 Forged Radar Polished Forged Wheels – Ram 1500 TRX Fitment (20-22in, 6×139.7)
KG1 Forged Radar fine multi-spoke forged wheel in Polished finish. Featured fitment: Ram 1500 TRX (6x139.7).
| Category | Concave |
|---|---|
| SKU | AK-KG1-RADAR-6X139 |
| Bolt Pattern | 6x139.7 |
| Diameter | 20", 21", 22", 23", 24", 26", 28", 30" |
| Width | 6.0", 6.5", 7.0", 7.5", 8.0", 8.5", 9.0", 9.5", 10.0", 10.5", 11.0", 11.5", 12.0", 12.5", 13.0" |
| Finish | Polished |
| Material | Forged Aluminum |
| Offset | -105mm, -100mm, -95mm, -90mm, -85mm, -80mm, -75mm, -70mm, -65mm, -60mm, -55mm, -50mm, -45mm, -40mm, -35mm, -30mm, -25mm, -20mm |
| Price | Contact for factory-direct quote |
| Made to order | Custom size, offset, PCD & finish |
Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.
Product Details

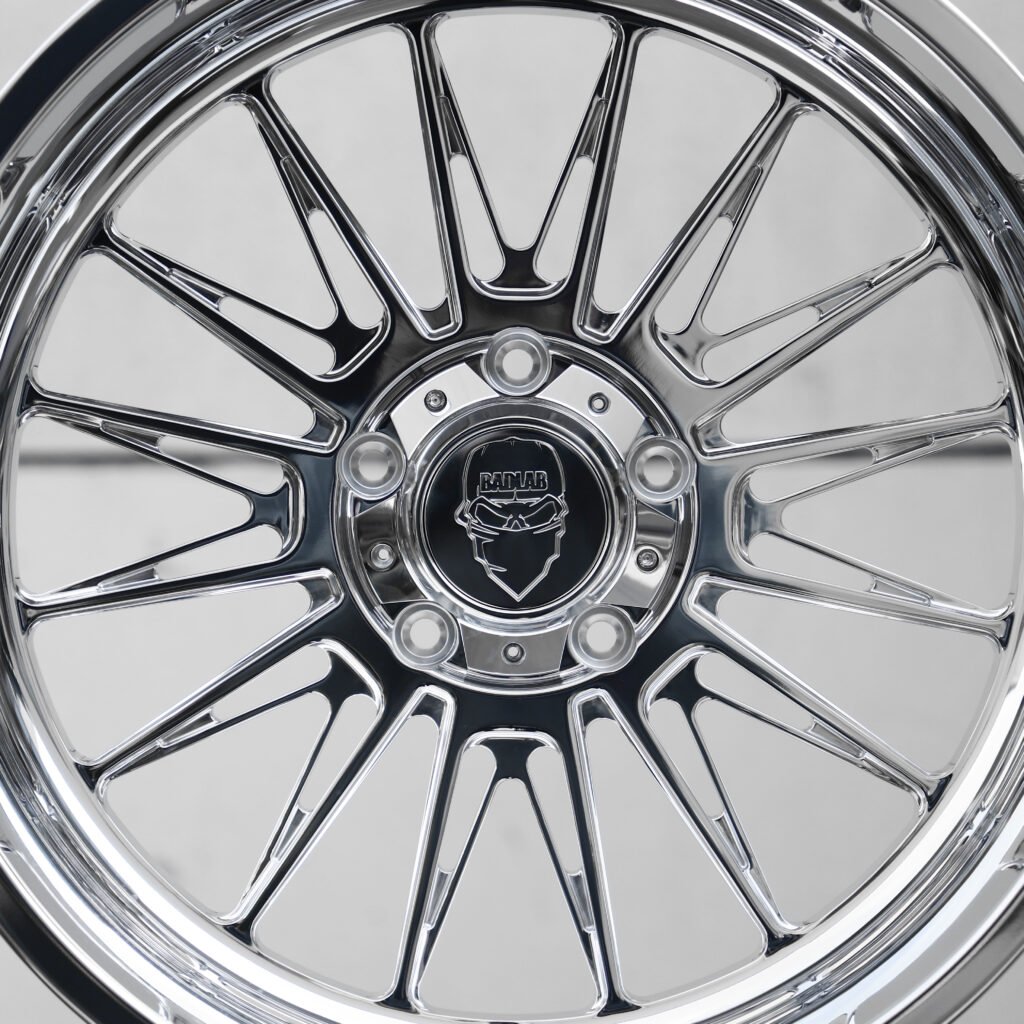

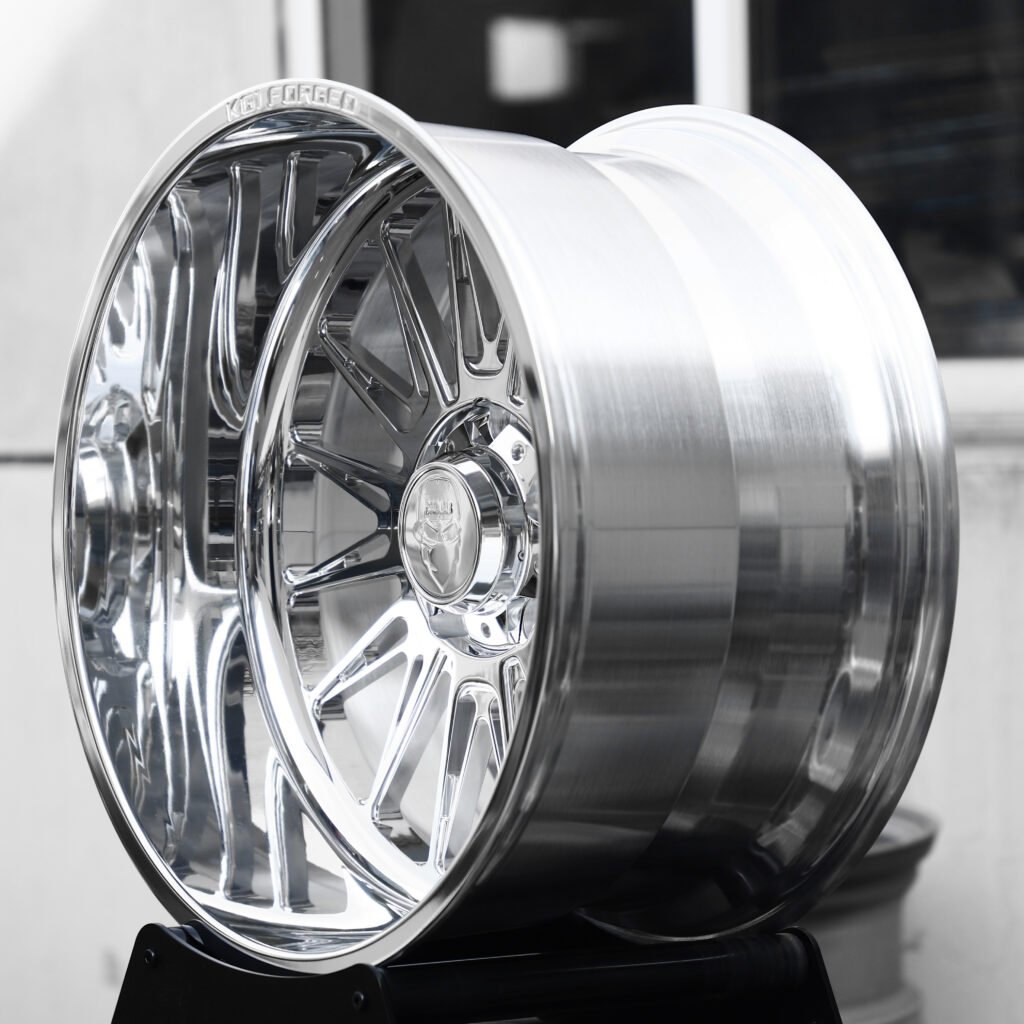

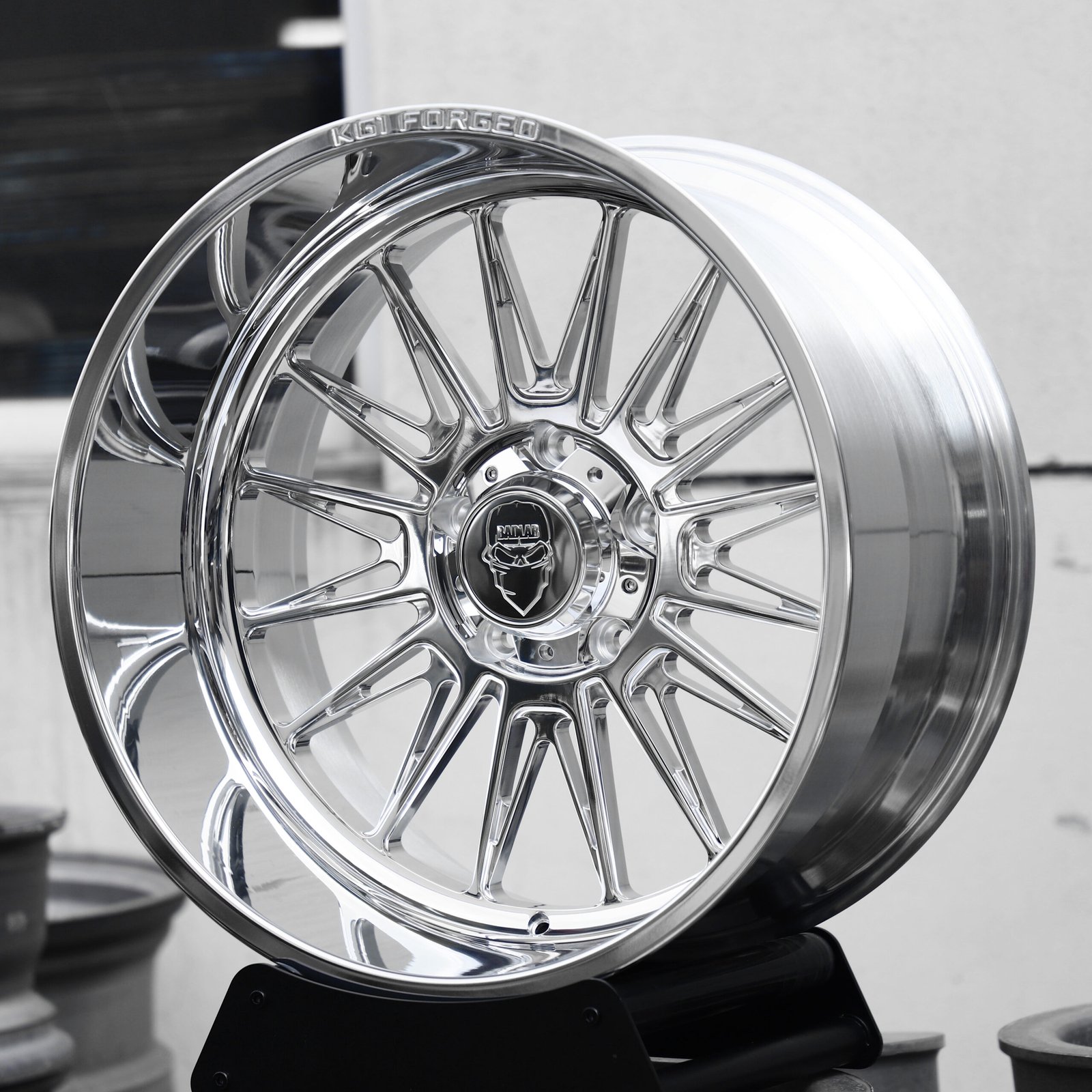

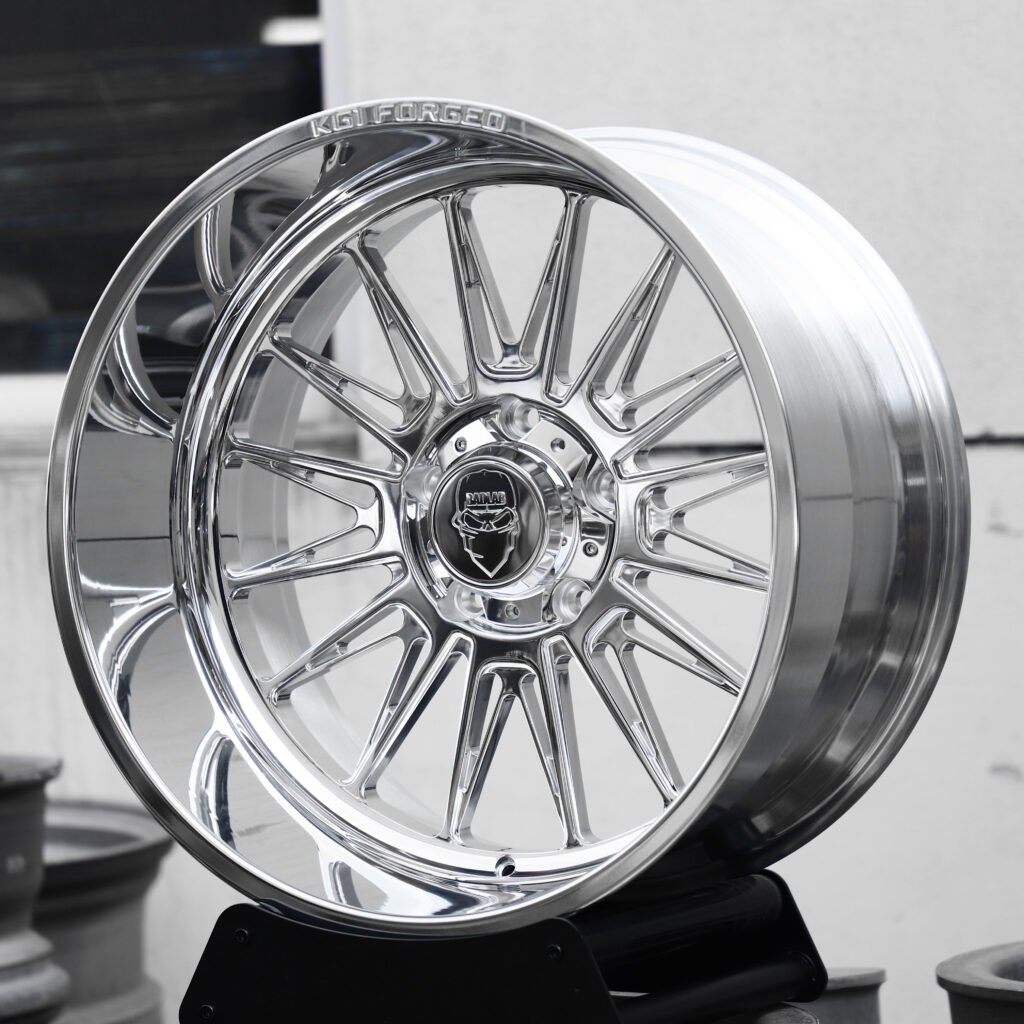

The KG1 Forged Radar is a fine multi-spoke forged wheel finished in a mirror Polished, featuring a dense radial spoke pattern for a deep concave look on TRX-spec suspension travel. Every KG1 Forged wheel supplied by ANKUSI is forged from 6061-T6 aluminum billet, then CNC machined and finished and quality-checked in our Guangzhou facility before shipping.
Featured fitment: Ram 1500 TRX – 6x139.7 PCD, 77.8mm center bore. Factory TRX wheels run 18x9.0J at ET19. ANKUSI fitment data for this chassis shows a flush setup at 18x9.0J ET0, stepping up to a max aggressive 20x10.0J ET-18 before fender clearance gets tight. TRX owners chasing this stance commonly pair the wheel change with Foutz Motorsports leveling collars and 37-inch BFGoodrich KM3 tires.
Offset / backspacing reference (max aggressive 20x10.0J ET-18 example): backspacing ≈ 10.0/2 + (-18)/25.4 + 0.5 ≈ 4.8 inches. The flush 18x9.0J ET0 setup backspaces to ≈ 5.0 inches. Useful if you cross-shop against backspace-spec'd parts instead of offset.
Available in custom PCD, center bore, and offset to fit Ram TRX and other 6x139.7 platforms. Contact ANKUSI for a fitment quote on your specific chassis and year.
