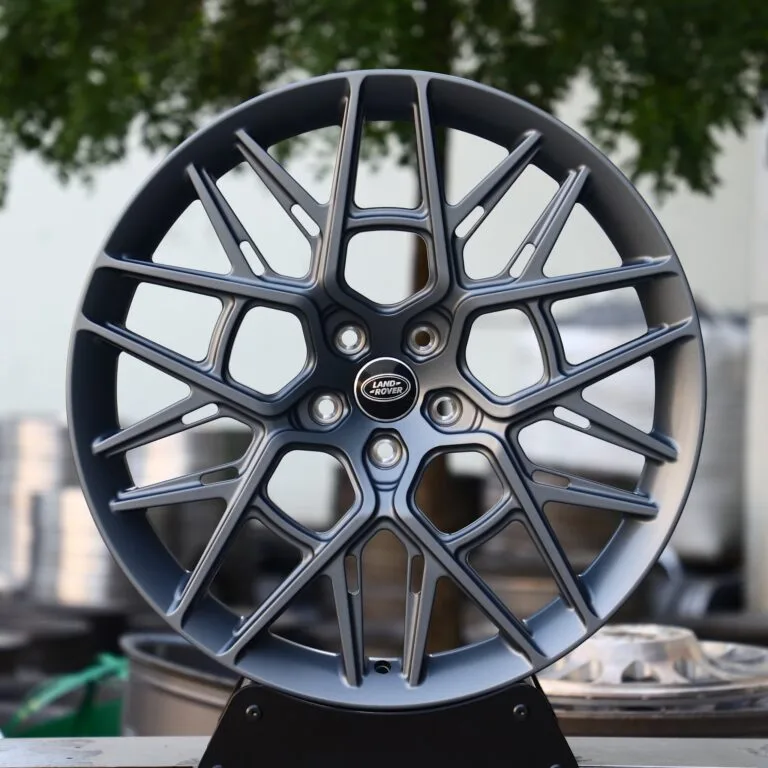

Land Rover Range Rover / Defender Forged Wheels
Gunmetal Mesh
2022 Land Rover Range Rover SV Serenity Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Land Rover Range Rover SV Serenity wheels? This page gives the 2022 Land Rover Range Rover SV Serenity bolt pattern (5x120), centre bore, factory rim size and the offset range for aftermarket and forged Land Rover Range Rover SV Serenity rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2022 Land Rover Range Rover SV Serenity uses a 5x120 bolt pattern with a 72.6 mm centre bore and M14x1.5 lug nuts. Factory wheels: 23x9.5J at ET42. For aftermarket wheels, 23x10J ET35 sits flush and 24x10.5J ET30 is the most aggressive fit.
Forged wheels for the 2022 Land Rover Range Rover SV Serenity — drilled 5x120 with a 72.6 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
Land Rover Range Rover SV Serenity (2022): 5x120 bolt pattern, 72.6mm center bore. Factory wheels: 23x9.5J. Reference fitment ranges.
Bolt Pattern5x120
Wheel Bolt/NutM14x1.5 Nut
Center Bore72.6mm
Wheel Load Rating900–1250 kg/wheel (SUV segment reference)
Year2022
CategorySUV
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 23x9.5J at ET42 |
| Flush Fitment | 23x10J at ET35 offset |
| Maximum Aggressive | 24x10.5J at ET30 offset |
Forged wheels for the Land Rover Range Rover SV SerenityMachined to the 5x120 bolt pattern and 72.6 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
The Land Rover Range Rover SV Serenity's factory suspension tuning already accounts for a specific unsprung mass target. Forged construction lets ANKUSI match the factory strength spec while keeping rotational weight down, which is where the real handling benefit comes from on a taller, heavier SUV platform.
The Land Rover Range Rover SV Serenity runs a 5x120 bolt pattern, 72.6mm center bore, and a 23x9.5J at ET42, front and rear, wheel from the factory. Our Flush Fitment reference is 23x10J ET35, which tucks the tire under the fender lip on a stock-height Land Rover Range Rover SV Serenity. Our Maximum Aggressive reference is 24x10.5J ET30 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Land Rover Range Rover SV Serenity OE Wheel Specs
The 2022 Land Rover Range Rover SV Serenity (SUV) uses a 5x120 bolt pattern with a 72.6mm center bore. Factory wheels are 23x9.5J at ET42.
Why the factory spec works for most owners:
- Supports the vehicle's curb weight and load capacity
- Preserves ground clearance for everyday and light off-road use
- Balances ride comfort with cargo and passenger stability
- Maintains clearance for the factory suspension travel and brake package
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Land Rover Range Rover SV Serenity (2022) we drill the 5x120 pattern and cut the centre bore to 72.6mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, 23x10J ET35 is the recommended starting point on a stock or mildly lowered Land Rover Range Rover SV Serenity.
Maximum Aggressive Fitment
24x10.5J ET30 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
Real-World Fitment Notes
Chassis: Air lowering links. Wheels: Luxury VIP styling. Tires: 285/40 R23.
5-Tier Configuration Options
A Factory-Style 23x9.5J ET42
Recommended setup: 23x9.5J ET42 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B Comfortable Upgrade 23x10.0J ET39
Recommended setup: 23x10.0J ET39 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit 23x10.0J ET35
Recommended setup: 23x10.0J ET35 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive 24x10.5J ET33
Recommended setup: 24x10.5J ET33 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive 24x10.5J ET30
Recommended setup: 24x10.5J ET30 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 23x9.5J ET42 | 23x10.0J ET39 | 23x10.0J ET35 | 24x10.5J ET33 | 24x10.5J ET30 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 23x9.5J ET42
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 23x10.0J ET35
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 24x10.5J ET30
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Land Rover Range Rover SV Serenity owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: 23x9.5J ET42 → ~6.9″ backspacing
- Flush: 23x10J ET35 → ~6.88″ backspacing
- Max: 24x10.5J ET30 → ~6.93″ backspacing
A Note on Clearance
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Land Rover spec, or want a wheel built to a custom offset for your Land Rover Range Rover SV Serenity? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Land Rover Range Rover SV Serenity (2022)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x120 pattern and the 72.6mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Land Rover orders on this platform land somewhere between the 23x10J ET35 flush setup and the 24x10.5J ET30 aggressive setup referenced above.
Designs we already tool for the 5x120 pattern — each one is re-cut to your sizes and offsets:
Forgiato Silver Full-Face Forged Wheels - Lamborghini Urus / Land Rover Range Rover Fitment (5-Lug)
Land Rover OEM-Style Matte Black Round-Hole Steelie-Style Off-Road Forged Wheels – Land Rover Defender / Range Rover Fitment (5-Lug)
Land Rover Range Rover / Defender Forged Wheels – Silver Multi-Spoke
Jeep Wrangler / Defender Off-Road Forged Wheels – Matte Bronze 10-Spoke Gunmetal-Ring Beadlock (5-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the Land Rover Range Rover SV Serenity use?
The 2022 Land Rover Range Rover SV Serenity uses a 5x120 bolt pattern.
How many lug bolts does the Land Rover Range Rover SV Serenity use?
The Land Rover Range Rover SV Serenity uses a 5-lug bolt pattern (5x120), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Land Rover Range Rover SV Serenity?
The Land Rover Range Rover SV Serenity's center bore is 72.6mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Land Rover Range Rover SV Serenity?
Factory wheels on the Land Rover Range Rover SV Serenity are 23x9.5J at ET42.
What is the biggest wheel size I can fit on my Land Rover Range Rover SV Serenity without rubbing?
The most aggressive fitment we recommend without fender work is 24x10.5J at ET30 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Land Rover Range Rover SV Serenity?
For a flush look with minimal to no rubbing, we recommend 23x10J at ET35 offset as a starting point on a stock or mildly lowered Land Rover Range Rover SV Serenity.
Do I need wheel spacers for my Land Rover Range Rover SV Serenity?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Land Rover Range Rover SV Serenity?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 6.88" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Land Rover Range Rover SV Serenity?
The Land Rover Range Rover SV Serenity runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Vehicles With the Same Hub as the Land Rover Range Rover SV Serenity (5x120, 72.6 mm Bore)
In our database, 338 other vehicle entries from 10 makes use exactly the same 5x120 bolt pattern and 72.6 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x120 is used by 10.3% of the vehicle pages in our English fitment guide (670 of 6,503); 50.6% of those also use a 72.6 mm center bore.
Hub-Centric Rings for a 72.6 mm Center Bore
A wheel with a center bore larger than 72.6 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 73.1 mm | 73.1 → 72.6 mm |
| 74.1 mm | 74.1 → 72.6 mm |
| 76.1 mm | 76.1 → 72.6 mm |
| 78.1 mm | 78.1 → 72.6 mm |
ANKUSI forged wheels are bored to exactly 72.6 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 23 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Land Rover Range Rover SV Serenity
Every design below is forged to order, so it can be machined to the Land Rover Range Rover SV Serenity's 5x120 bolt pattern and 72.6 mm center bore, with the width and offset calculated for your setup.

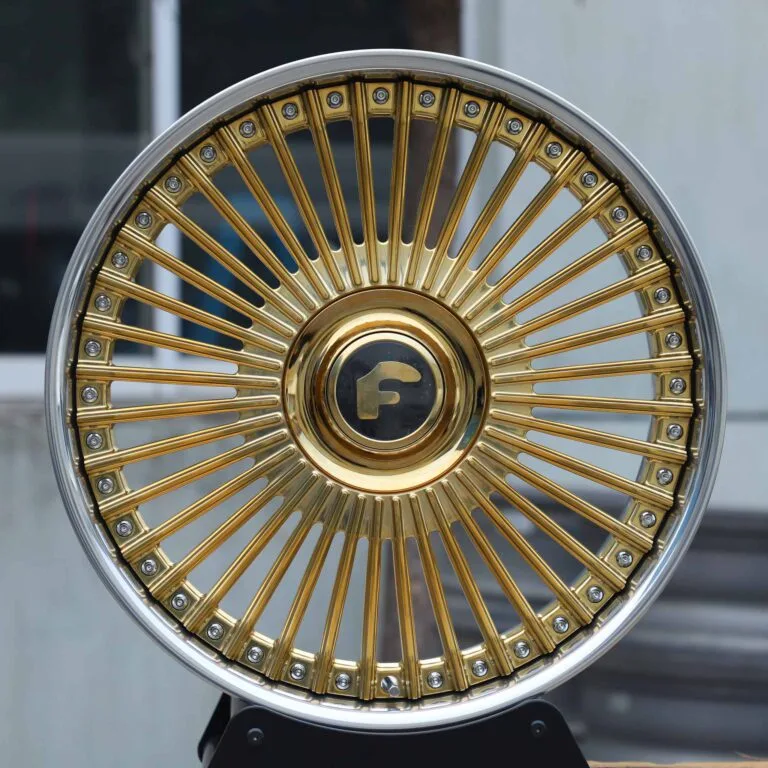

Forgiato Custom Finish 2-Piece Multi-Spoke Forged Wheels - Lamborghini Urus / Land Rover Range Rover Fitment (5-Lug)
Forgiato-Style forged wheels featuring the custom finish 2-piece multi-spoke design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

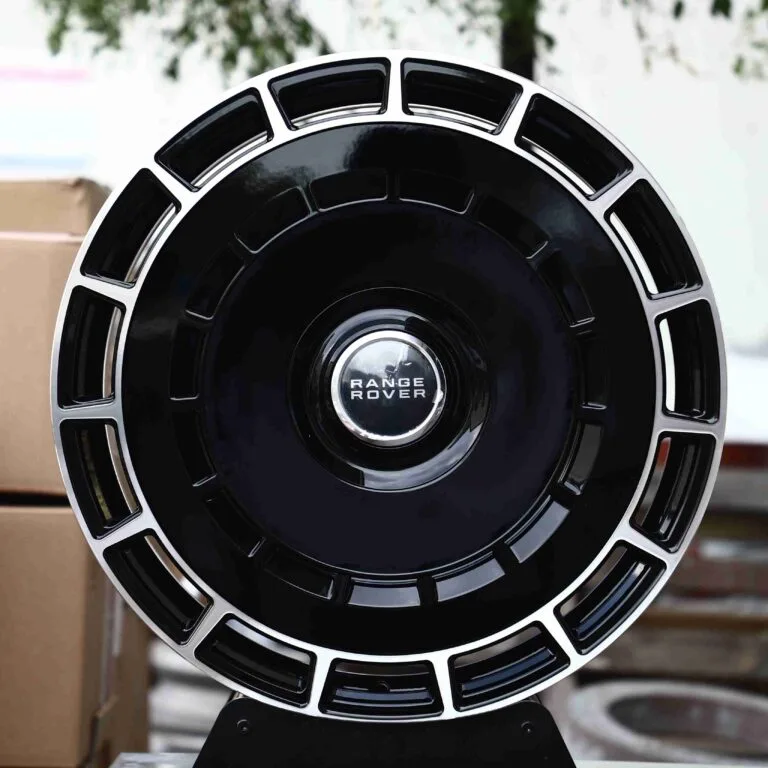

Land Rover OEM-Style Black / Machined Slotted Full-Face Forged Wheels
Land Rover Range Rover / Defender Fitment · 5-Lug
HRE P101-Style Gloss Black 6-Spoke Y-Design Forged Wheels
Land Rover Defender Octa Black Fitment · 20-24in, 5x120

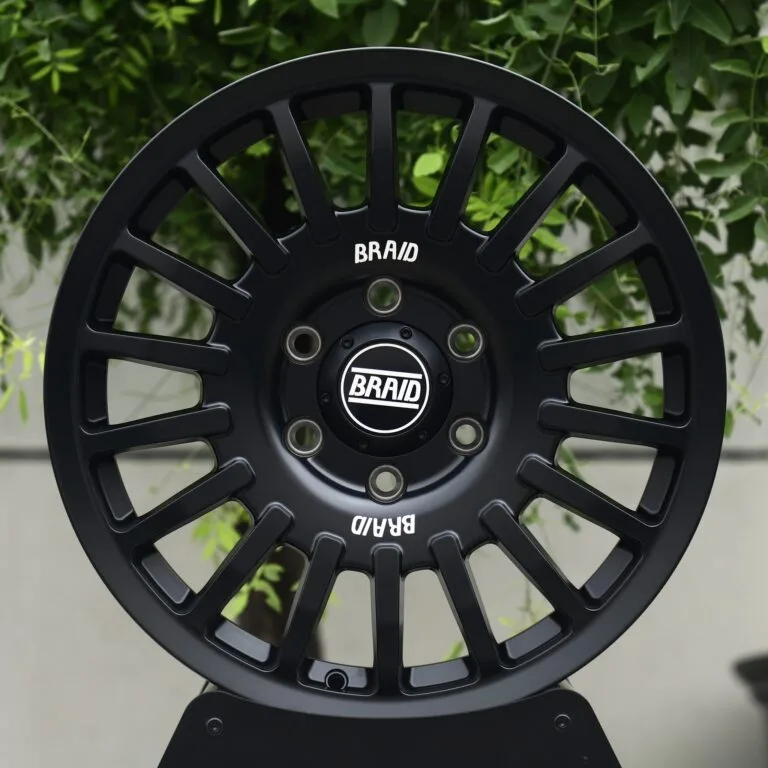

Braid-Style Matte Black 20-Spoke Rally Off-Road Forged Wheels
Jeep Wrangler / Defender Fitment · 5-Lug

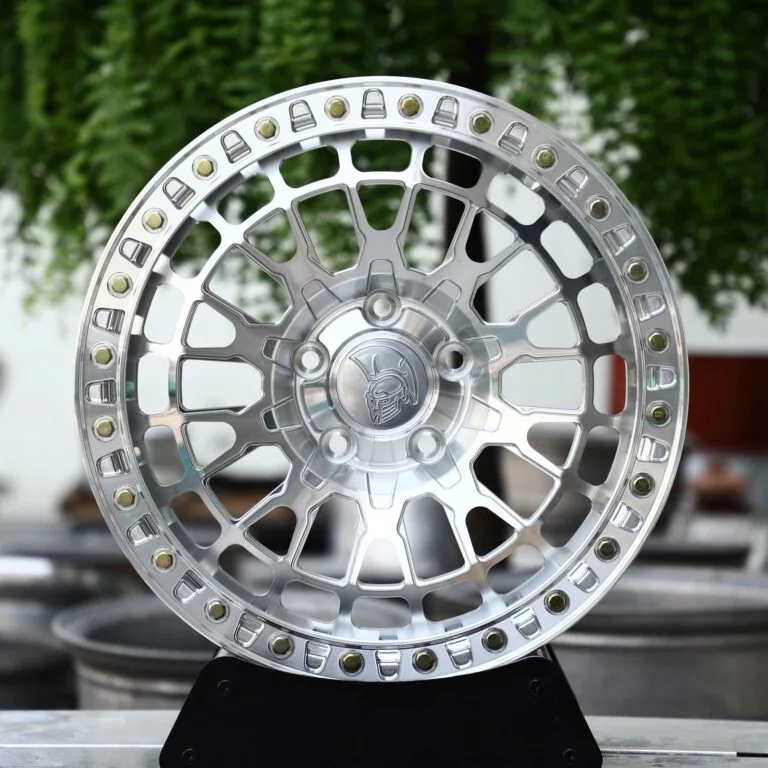

Jeep Wrangler / Defender Off-Road Forged Wheels
Mirror Polished Mesh Beadlock · 5-Lug

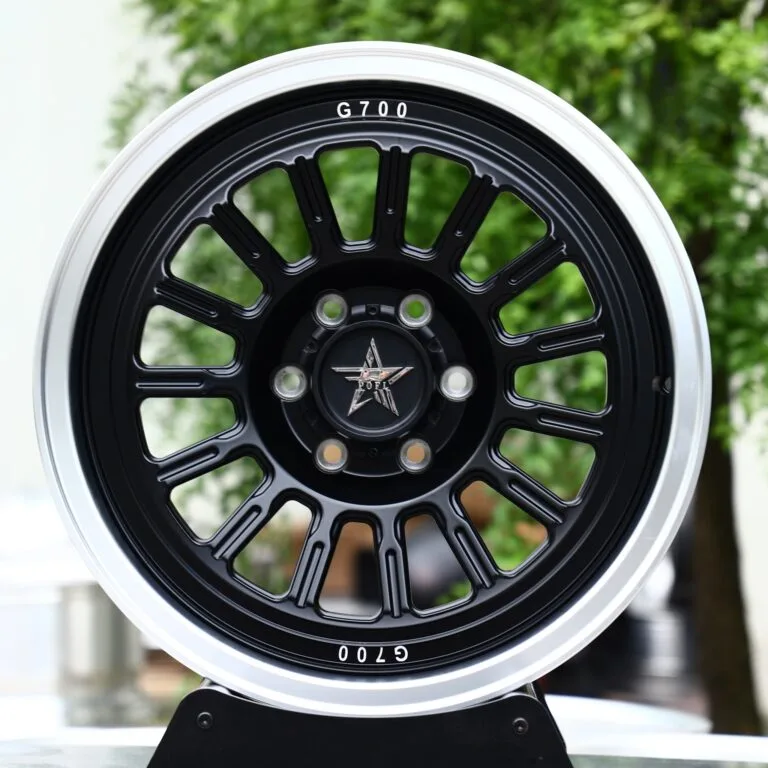

Jeep Wrangler / Land Rover Defender Off-Road Forged Wheels
Satin Black Polished Lip 16-Spoke · 5-Lug

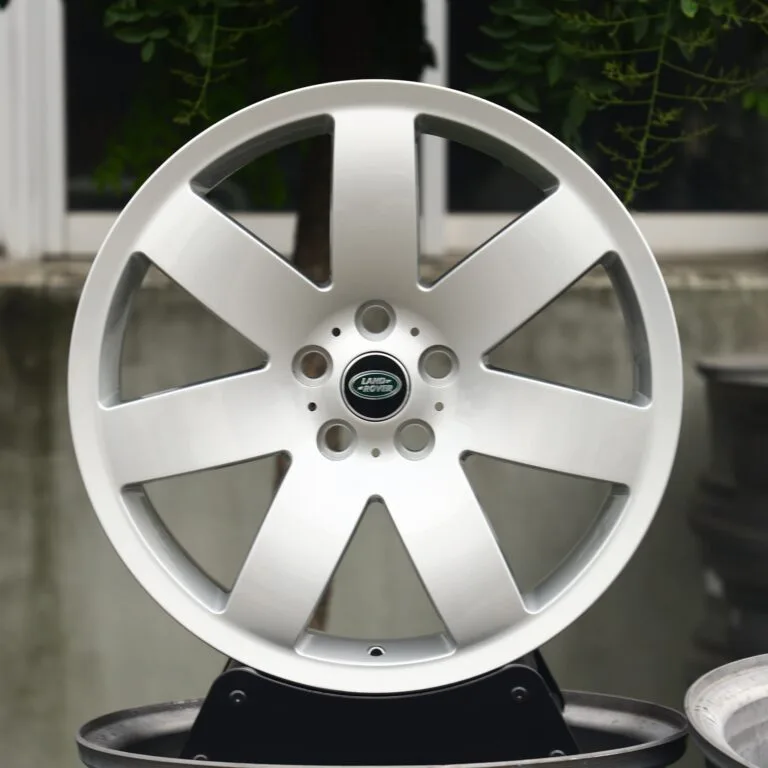

Land Rover Range Rover / Defender Forged Wheels
