2006 Fisker Latigo CS Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Fisker Latigo CS wheels? This page gives the 2006 Fisker Latigo CS bolt pattern (5x120), centre bore, factory rim size and the offset range for aftermarket and forged Fisker Latigo CS rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Fisker Latigo CS (2006): 5x120 bolt pattern, 72.6mm center bore. Factory wheels: F: 20x9.0J R: 20x11.0J. Reference fitment ranges.
Bolt Pattern5x120
Center Bore72.6mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Year2006
CategoryCoupe
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | F: 20x9.0J R: 20x11.0J |
| Flush Fitment | F 20x9.5J ET5 / R 20x11.5J ET5 |
| Maximum Aggressive | F 21x10.0J ET0 / R 21x12.0J ET5 |
Forged wheels for the Fisker Latigo CSMachined to the 5x120 bolt pattern and 72.6 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Coupes and performance platforms are where rotational mass shows up fastest — in acceleration, in braking, and in how quickly the chassis changes direction. Forging lets us build to the same strength spec as the factory wheel at a meaningfully lower rotational weight, which is where the performance gain actually comes from, not just the visual one.
The Fisker Latigo CS runs a 5x120 bolt pattern, 72.6mm center bore, and a F: 20x9.0J wheel from the factory. Our Flush Fitment reference is F 20x9.5J ET5 / R 20x11.5J ET5, which tucks the tire under the fender lip on a stock-height Fisker Latigo CS. Our Maximum Aggressive reference is F 21x10.0J ET0 / R 21x12.0J ET5 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Fisker Latigo CS OE Wheel Specs
The 2006 Fisker Latigo CS (Coupe) uses a 5x120 bolt pattern with a 72.6mm center bore. Factory wheels are F: 20x9.0J R: 20x11.0J.
Why the factory spec works for most owners:
- Keeps the factory ride quality and noise levels intact
- A common fitment for this class, so replacement tires are easy to source
- Preserves clearance around the OE brakes and suspension geometry
- Delivers predictable, easy-to-live-with handling for daily use
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Fisker Latigo CS (2006) we drill the 5x120 pattern and cut the centre bore to 72.6mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 6,436 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, F 20x9.5J ET5 / R 20x11.5J ET5 is the recommended starting point on a stock or mildly lowered Fisker Latigo CS.
Maximum Aggressive Fitment
F 21x10.0J ET0 / R 21x12.0J ET5 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
5-Tier Configuration Options
A Factory-Style F 20x9.0J ET10 / R 20x11.0J ET10
Recommended setup: F 20x9.0J ET10 / R 20x11.0J ET10 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B Comfortable Upgrade F 20x9.5J ET8 / R 20x11.5J ET8
Recommended setup: F 20x9.5J ET8 / R 20x11.5J ET8 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit F 20x9.5J ET5 / R 20x11.5J ET5
Recommended setup: F 20x9.5J ET5 / R 20x11.5J ET5 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive F 21x10.0J ET3 / R 21x12.0J ET5
Recommended setup: F 21x10.0J ET3 / R 21x12.0J ET5 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive F 21x10.0J ET0 / R 21x12.0J ET5
Recommended setup: F 21x10.0J ET0 / R 21x12.0J ET5 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | F 20x9.0J ET10 / R 20x11.0J ET10 | F 20x9.5J ET8 / R 20x11.5J ET8 | F 20x9.5J ET5 / R 20x11.5J ET5 | F 21x10.0J ET3 / R 21x12.0J ET5 | F 21x10.0J ET0 / R 21x12.0J ET5 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: F 20x9.0J ET10 / R 20x11.0J ET10
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: F 20x9.5J ET5 / R 20x11.5J ET5
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: F 21x10.0J ET0 / R 21x12.0J ET5
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Fisker Latigo CS owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: F 20x9.0J ET10 → ~5.39″ F backspacing, R 20x11.0J ET10 → ~6.39″ R backspacing
- Flush: F 20x9.5J ET5 → ~5.45″ F backspacing, R 20x11.5J ET5 → ~6.45″ R backspacing
- Max: F 21x10.0J ET0 → ~5.5″ F backspacing, R 21x12.0J ET5 → ~6.7″ R backspacing
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Fisker spec, or want a wheel built to a custom offset for your Fisker Latigo CS? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Fisker Latigo CS (2006)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x120 pattern and the 72.6mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
Designs we already tool for the 5x120 pattern — each one is re-cut to your sizes and offsets:
Audi A8 / BMW 7 Series Forged Wheels – Gloss White Multi-Spoke
Toyota GR86 / BMW 3 Series F30 Forged Wheels – Brushed Silver 5 Y-Spoke Side-Milled
BMW M3 E46 / BMW 3 Series F30 Forged Wheels – Brushed Silver 10-Spoke (5-Lug)
APEX ARC-8-Style Polished Silver 8 Y-Spoke Forged Wheels - BMW M3 E46 / BMW 3 Series F30 Fitment (5-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the Fisker Latigo CS use?
The 2006 Fisker Latigo CS uses a 5x120 bolt pattern.
How many lug bolts does the Fisker Latigo CS use?
The Fisker Latigo CS uses a 5-lug bolt pattern (5x120), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Fisker Latigo CS?
The Fisker Latigo CS's center bore is 72.6mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Fisker Latigo CS?
Factory wheels on the Fisker Latigo CS are F: 20x9.0J R: 20x11.0J.
What is the biggest wheel size I can fit on my Fisker Latigo CS without rubbing?
The most aggressive fitment we recommend without fender work is F 21x10.0J ET0 / R 21x12.0J ET5. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Fisker Latigo CS?
For a flush look with minimal to no rubbing, we recommend F 20x9.5J ET5 / R 20x11.5J ET5 as a starting point on a stock or mildly lowered Fisker Latigo CS.
Do I need wheel spacers for my Fisker Latigo CS?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Fisker Latigo CS?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 5.45" backspacing up front and 6.45" in the rear.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Fisker Latigo CS?
Yes — the Fisker Latigo CS's factory and our recommended flush/max fitments already use staggered sizing (different width front and rear), and ANKUSI can forge matching staggered sets to your target offsets.
Vehicles With the Same Hub as the Fisker Latigo CS (5x120, 72.6 mm Bore)
In our database, 338 other vehicle entries from 9 makes use exactly the same 5x120 bolt pattern and 72.6 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x120 is used by 10.3% of the vehicle entries in our database (670 of 6,503); 50.6% of those also use a 72.6 mm center bore.
Hub-Centric Rings for a 72.6 mm Center Bore
A wheel with a center bore larger than 72.6 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 73.1 mm | 73.1 → 72.6 mm |
| 74.1 mm | 74.1 → 72.6 mm |
| 76.1 mm | 76.1 → 72.6 mm |
| 78.1 mm | 78.1 → 72.6 mm |
ANKUSI forged wheels are bored to exactly 72.6 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 20x9 wheels · 20 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Fisker Latigo CS
Every design below is forged to order, so it can be machined to the Fisker Latigo CS's 5x120 bolt pattern and 72.6 mm center bore, with the width and offset calculated for your setup.
Porsche 911 / BMW M3 Forged Wheels
Polished Slotted Deep-Dish · 5-Lug

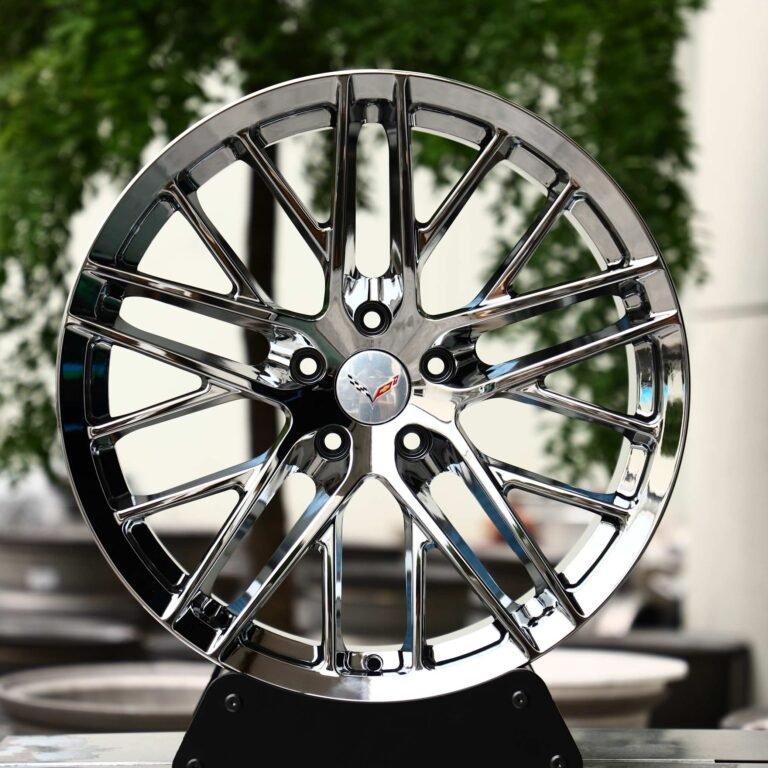

Corvette OEM-Style Chrome Silver 10 Y-Spoke Forged Wheels
Chevrolet Corvette C8 / Camaro 5th Gen Fitment · 5-Lug
BMW M3 / M5 Forged Wheels
Gloss Black Mesh Concave

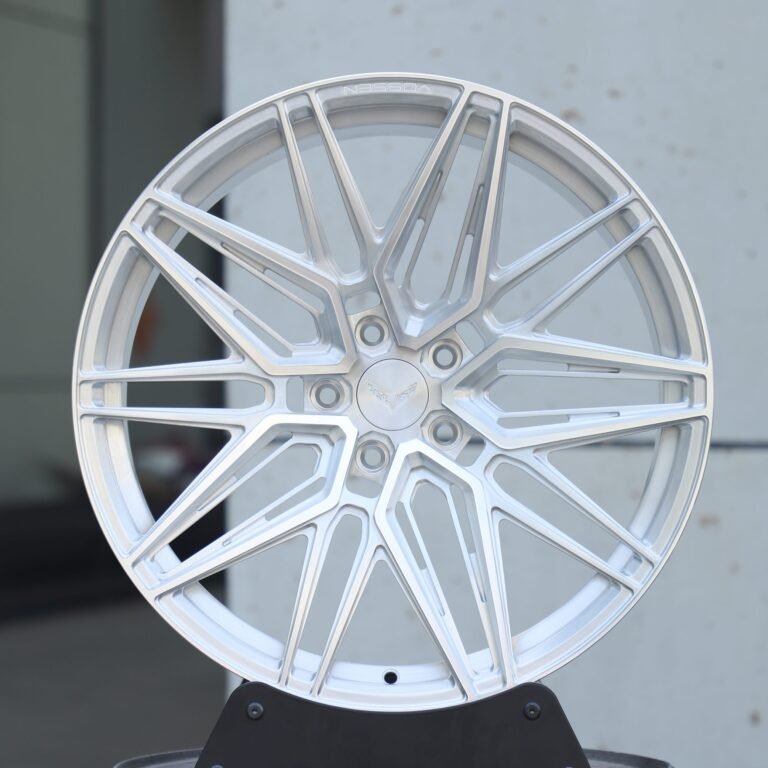

Corvette OEM-Style Brushed Silver 10 Y-Spoke Machined Face Forged Wheels
Chevrolet Corvette / Camaro Fitment · 5-Lug
Porsche 911 / M3 Forged Wheels
Gloss Black 6-Spoke · 5-Lug
Wheelforce-Style Transparent Gold Brushed 10-Spoke Star Forged Wheels
BMW M3 / Audi RS5 Fitment · 5-Lug

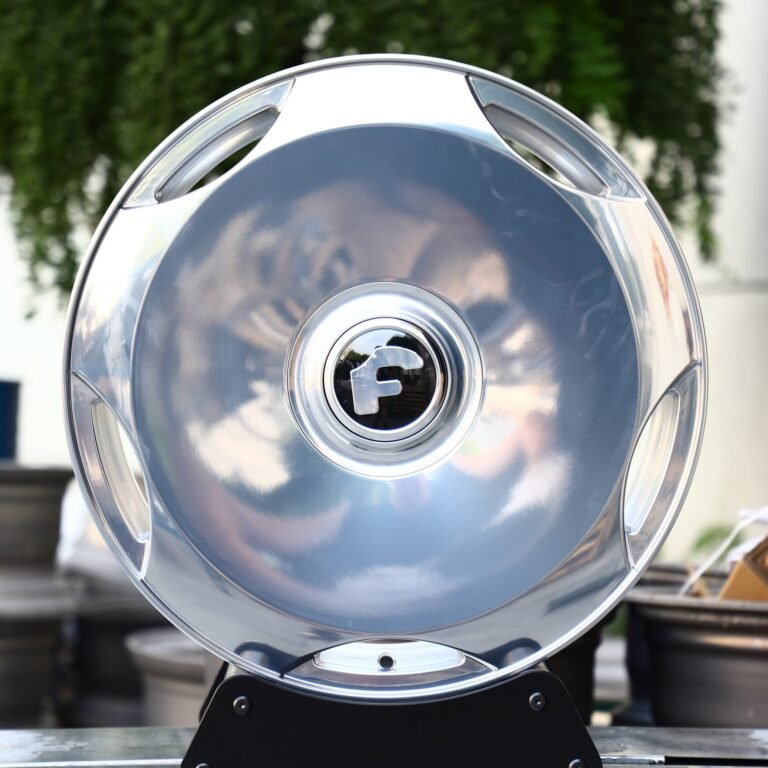

Forgiato Silver Full-Face Forged Wheels - Lamborghini Urus / Land Rover Range Rover Fitment (5-Lug)
