2008 Chrysler Sebring Convertible Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Chrysler Sebring Convertible wheels? This page gives the 2008 Chrysler Sebring Convertible bolt pattern (5x114.3), centre bore, factory rim size and the offset range for aftermarket and forged Chrysler Sebring Convertible rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2008 Chrysler Sebring Convertible uses a 5x114.3 bolt pattern with a 67.1 mm centre bore and M12x1.5 lug nuts. Factory wheels: 17x6.5J at ET40. For aftermarket wheels, 18x7.5J ET38 sits flush and 19x8J ET35 is the most aggressive fit.
Forged wheels for the 2008 Chrysler Sebring Convertible — drilled 5x114.3 with a 67.1 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
Chrysler Sebring Convertible (2008): 5x114.3 bolt pattern, 67.1mm center bore. Factory wheels: 17x6.5J. Reference fitment ranges.
Bolt Pattern5x114.3
Wheel Bolt/NutM12x1.5 Nut
Center Bore67.1mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Year2008
CategoryConvertible
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 17x6.5J at ET40 |
| Flush Fitment | 18x7.5J at ET38 offset |
| Maximum Aggressive | 19x8J at ET35 offset |
Forged wheels for the Chrysler Sebring ConvertibleMachined to the 5x114.3 bolt pattern and 67.1 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Convertibles lose some of the structural rigidity a fixed roof provides, which means the suspension and wheels end up doing more of the work to keep the chassis composed. A forged wheel keeps unsprung mass down without sacrificing the strength margin the factory built in — useful on a platform that's already managing extra flex.
The Chrysler Sebring Convertible runs a 5x114.3 bolt pattern, 67.1mm center bore, and a 17x6.5J at ET40, front and rear, wheel from the factory. Our Flush Fitment reference is 18x7.5J ET38, which tucks the tire under the fender lip on a stock-height Chrysler Sebring Convertible. Our Maximum Aggressive reference is 19x8J ET35 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Chrysler Sebring Convertible OE Wheel Specs
The 2008 Chrysler Sebring Convertible (Convertible) uses a 5x114.3 bolt pattern with a 67.1mm center bore. Factory wheels are 17x6.5J at ET40.
Why the factory spec works for most owners:
- Matches the chassis tuning used to help offset reduced structural rigidity
- Balances ride comfort with the sportier character typical of this body style
- Keeps unsprung weight low for stable handling
- Maintains clearance for the factory brake package and suspension components
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Chrysler Sebring Convertible (2008) we drill the 5x114.3 pattern and cut the centre bore to 67.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, 18x7.5J ET38 is the recommended starting point on a stock or mildly lowered Chrysler Sebring Convertible.
Maximum Aggressive Fitment
19x8J ET35 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
Real-World Fitment Notes
H&R Sport springs; 18x7.5J ET38 Vossen wheels; standard brakes; Continental ExtremeContact DWS06 225/50 R18 tires.
5-Tier Configuration Options
A Factory-Style 17x6.5J ET40
Recommended setup: 17x6.5J ET40 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B Comfortable Upgrade 18x7.0J ET39
Recommended setup: 18x7.0J ET39 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit 18x7.5J ET38
Recommended setup: 18x7.5J ET38 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive 19x8.0J ET37
Recommended setup: 19x8.0J ET37 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive 19x8.0J ET35
Recommended setup: 19x8.0J ET35 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 17x6.5J ET40 | 18x7.0J ET39 | 18x7.5J ET38 | 19x8.0J ET37 | 19x8.0J ET35 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 17x6.5J ET40
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 18x7.5J ET38
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 19x8.0J ET35
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Chrysler Sebring Convertible owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: 17x6.5J ET40 → ~5.32″ backspacing
- Flush: 18x7.5J ET38 → ~5.75″ backspacing
- Max: 19x8J ET35 → ~5.88″ backspacing
A Note on Clearance
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Chrysler spec, or want a wheel built to a custom offset for your Chrysler Sebring Convertible? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Chrysler Sebring Convertible (2008)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x114.3 pattern and the 67.1mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Chrysler orders on this platform land somewhere between the 18x7.5J ET38 flush setup and the 19x8J ET35 aggressive setup referenced above.
We do not hold 5x114.3 wheels on a shelf — they are forged to order, which is why any offset, width and bore combination on this page is buildable rather than limited to a stock list.
Frequently Asked Questions
What bolt pattern (PCD) does the Chrysler Sebring Convertible use?
The 2008 Chrysler Sebring Convertible uses a 5x114.3 bolt pattern.
How many lug bolts does the Chrysler Sebring Convertible use?
The Chrysler Sebring Convertible uses a 5-lug bolt pattern (5x114.3), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Chrysler Sebring Convertible?
The Chrysler Sebring Convertible's center bore is 67.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Chrysler Sebring Convertible?
Factory wheels on the Chrysler Sebring Convertible are 17x6.5J at ET40.
What is the biggest wheel size I can fit on my Chrysler Sebring Convertible without rubbing?
The most aggressive fitment we recommend without fender work is 19x8J at ET35 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Chrysler Sebring Convertible?
For a flush look with minimal to no rubbing, we recommend 18x7.5J at ET38 offset as a starting point on a stock or mildly lowered Chrysler Sebring Convertible.
Do I need wheel spacers for my Chrysler Sebring Convertible?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Chrysler Sebring Convertible?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 5.75" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Chrysler Sebring Convertible?
The Chrysler Sebring Convertible runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Vehicles With the Same Hub as the Chrysler Sebring Convertible (5x114.3, 67.1 mm Bore)
In our database, 456 other vehicle entries from 30 makes use exactly the same 5x114.3 bolt pattern and 67.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.0% of the vehicle pages in our English fitment guide (1,300 of 6,503); 35.2% of those also use a 67.1 mm center bore.
Hub-Centric Rings for a 67.1 mm Center Bore
A wheel with a center bore larger than 67.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 70.1 mm | 70.1 → 67.1 mm |
| 70.5 mm | 70.5 → 67.1 mm |
| 71.6 mm | 71.6 → 67.1 mm |
| 72.6 mm | 72.6 → 67.1 mm |
| 73.1 mm | 73.1 → 67.1 mm |
ANKUSI forged wheels are bored to exactly 67.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 17x6.5 wheels · 17 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Chrysler Sebring Convertible
Every design below is forged to order, so it can be machined to the Chrysler Sebring Convertible's 5x114.3 bolt pattern and 67.1 mm center bore, with the width and offset calculated for your setup.
Chrysler 300 Forged Wheels
Brushed Silver 5-Spoke · 5-Lug
Alpine OEM-Style Hyper Silver 5 Y-Spoke Forged Wheels
Alpine A290 Fitment · 5-Lug
Vossen HF-5-Style Bronze 5 Y-Spoke Concave Forged Wheels - Tesla Model 3 / Tesla Model Y Fitment (5-Lug)
Vossen-Style forged wheels featuring the HF-5-style bronze 5 Y-spoke concave design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.
Chrysler OEM-Style Polished 5-Spoke Forged Wheels
Chrysler 300 Fitment · 5-Lug
STI-Style Black Chrome 5 Y-Spoke 2-Piece Polished Lip Forged Wheels
Subaru WRX STI / WRX Fitment · 5-Lug
O.Z Racing Gloss Black 10-Spoke Racing Forged Wheels - Volkswagen Golf R / Subaru WRX Fitment (5-Lug)
OZ Racing-Style forged wheels featuring the O.Z racing gloss black 10-spoke racing design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

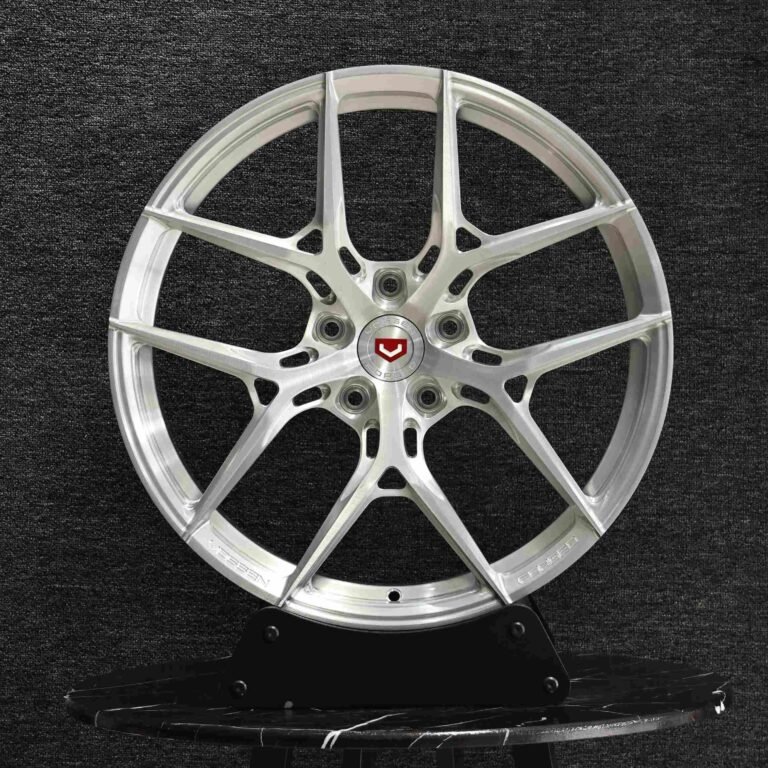

Vossen HF-5-Style Side-Milled Brushed Silver 5 Y-Spoke Forged Wheels - Tesla Model 3 / Tesla Model Y Fitment (5-Lug)
