2016 Chevrolet Camaro SS Indy 500 Pace Car Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Chevrolet Camaro SS Indy 500 Pace Car wheels? This page gives the 2016 Chevrolet Camaro SS Indy 500 Pace Car bolt pattern (5x120), centre bore, factory rim size and the offset range for aftermarket and forged Chevrolet Camaro SS Indy 500 Pace Car rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Chevrolet Camaro SS Indy 500 Pace Car (2016): 5x120 bolt pattern, 66.9mm center bore. Factory wheels: F: 20x8.5J R: 20x9.5J. Reference fitment ranges.
Bolt Pattern5x120
Wheel Bolt/NutM14x1.5 Nut
Center Bore66.9mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Year2016
CategoryCoupe
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | F: 20x8.5J R: 20x9.5J |
| Flush Fitment | F 20x9.5J ET20 / R 20x10.5J ET35 |
| Maximum Aggressive | F 20x10.0J ET15 / R 20x11.0J ET30 |
Forged Wheel Designs for the Chevrolet Camaro SS Indy 500 Pace Car
Every design below is forged to order, so it can be machined to the Chevrolet Camaro SS Indy 500 Pace Car's 5x120 bolt pattern and 66.9 mm center bore, with the width and offset calculated for your setup.
Platinum Gloss Black 5 Y-Spoke Cut-Out Forged Wheels
Monoblock · Gloss Black
Corvette OEM-Style Matte Silver Custom Forged Wheels
Monoblock · Matte Silver

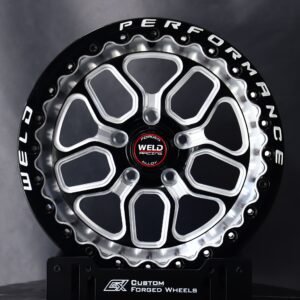

Weld Racing-Style Black / Milled 10-Window Polished-Lip Forged Drag Racing Wheels
Drag Racing · Polished

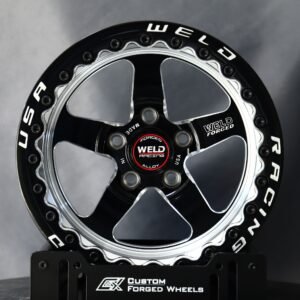

Weld Racing-Style Gloss Black / Machined 5-Spoke Forged Drag Racing Wheels
Drag Racing · Gloss Black / Machined
Mirror Polished 5-Spoke 3-Piece Forged Wheels
Monoblock · Mirror Polished
Weld Racing-Style Black Machined Mesh Polished Deep Lip Forged Drag Racing Wheels
Drag Racing · Black Machined
Corvette OEM-Style Custom Finish Deep Lip Forged Wheels
Monoblock · Custom Finish
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Coupes and performance platforms are where rotational mass shows up fastest — in acceleration, in braking, and in how quickly the chassis changes direction. Forging lets us build to the same strength spec as the factory wheel at a meaningfully lower rotational weight, which is where the performance gain actually comes from, not just the visual one.
The Chevrolet Camaro SS Indy 500 Pace Car runs a 5x120 bolt pattern, 66.9mm center bore, and a F: 20x8.5J wheel from the factory. Our Flush Fitment reference is F 20x9.5J ET20 / R 20x10.5J ET35, which tucks the tire under the fender lip on a stock-height Chevrolet Camaro SS Indy 500 Pace Car. Our Maximum Aggressive reference is F 20x10.0J ET15 / R 20x11.0J ET30 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Chevrolet Camaro SS Indy 500 Pace Car OE Wheel Specs
The 2016 Chevrolet Camaro SS Indy 500 Pace Car (Coupe) uses a 5x120 bolt pattern with a 66.9mm center bore. Factory wheels are F: 20x8.5J R: 20x9.5J.
Why the factory spec works for most owners:
- Balances ride comfort with everyday drivability
- A commonly used size for this vehicle class, supporting parts and tire availability
- Maintains clearance for the factory suspension and brake components
- Provides stable, predictable handling across normal driving conditions
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Chevrolet Camaro SS Indy 500 Pace Car (2016) we drill the 5x120 pattern and cut the centre bore to 66.9mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: F 20x8.5J ET25 → ~5.73″ F backspacing, R 20x9.5J ET39 → ~6.79″ R backspacing
- Flush: F 20x9.5J ET20 → ~6.04″ F backspacing, R 20x10.5J ET35 → ~7.13″ R backspacing
- Max: F 20x10.0J ET15 → ~6.09″ F backspacing, R 20x11.0J ET30 → ~7.18″ R backspacing
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Chevrolet spec, or want a wheel built to a custom offset for your Chevrolet Camaro SS Indy 500 Pace Car? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Frequently Asked Questions
What bolt pattern (PCD) does the Chevrolet Camaro SS Indy 500 Pace Car use?
The 2016 Chevrolet Camaro SS Indy 500 Pace Car uses a 5x120 bolt pattern.
How many lug bolts does the Chevrolet Camaro SS Indy 500 Pace Car use?
The Chevrolet Camaro SS Indy 500 Pace Car uses a 5-lug bolt pattern (5x120), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Chevrolet Camaro SS Indy 500 Pace Car?
The Chevrolet Camaro SS Indy 500 Pace Car's center bore is 66.9mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Chevrolet Camaro SS Indy 500 Pace Car?
Factory wheels on the Chevrolet Camaro SS Indy 500 Pace Car are F: 20x8.5J R: 20x9.5J.
What is the biggest wheel size I can fit on my Chevrolet Camaro SS Indy 500 Pace Car without rubbing?
The most aggressive fitment we recommend without fender work is F 20x10.0J ET15 / R 20x11.0J ET30. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Chevrolet Camaro SS Indy 500 Pace Car?
For a flush look with minimal to no rubbing, we recommend F 20x9.5J ET20 / R 20x10.5J ET35 as a starting point on a stock or mildly lowered Chevrolet Camaro SS Indy 500 Pace Car.
Do I need wheel spacers for my Chevrolet Camaro SS Indy 500 Pace Car?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Chevrolet Camaro SS Indy 500 Pace Car?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 6.04" backspacing up front and 7.13" in the rear.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Chevrolet Camaro SS Indy 500 Pace Car?
Yes — the Chevrolet Camaro SS Indy 500 Pace Car's factory and our recommended flush/max fitments already use staggered sizing (different width front and rear), and ANKUSI can forge matching staggered sets to your target offsets.
Wheel Installation Reference: Torque, Thread & TPMS
Thread & Fastener: M12x1.5, conical-seat lug nut.
Factory Torque Spec: 136 Nm (100 ft-lb). Covers most Chevrolet passenger cars and crossovers on M12 studs.
TPMS: TPMS (Tire Pressure Monitoring System) has been federally mandated on all new light vehicles sold in the US since the 2008 model year. If your wheels use OE-style sensors, have them transferred or cloned to the new wheels at installation.
Tire Pressure: Always set tire pressure to the value on your vehicle's tire placard (driver's doorjamb or glovebox), not the max PSI printed on the tire sidewall — this is trim- and tire-size-specific and stays the same reference point when you switch to a different wheel and tire combination.
Reference data compiled from published OEM service specifications and cross-checked against independent repair sources; always confirm against your owner's manual or door-jamb placard before installation.
