2008 Cadillac BLS Wagon Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Cadillac BLS Wagon wheels? This page gives the 2008 Cadillac BLS Wagon bolt pattern (5x110), centre bore, factory rim size and the offset range for aftermarket and forged Cadillac BLS Wagon rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2008 Cadillac BLS Wagon uses a 5x110 bolt pattern with a 65.1 mm centre bore and M12x1.5 lug nuts. Factory wheels: 17x7.5J at ET41. For aftermarket wheels, 18x8J ET35 sits flush and 19x8.5J ET32 is the most aggressive fit.
Forged wheels for the 2008 Cadillac BLS Wagon — drilled 5x110 with a 65.1 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
Cadillac BLS Wagon (2008): 5x110 bolt pattern, 65.1mm center bore. Factory wheels: 17x7.5J. Reference fitment ranges.
Bolt Pattern5x110
Wheel Bolt/NutM12x1.5 Nut
Center Bore65.1mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Year2008
CategoryWagon
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 17x7.5J at ET41 |
| Flush Fitment | 18x8J at ET35 offset |
| Maximum Aggressive | 19x8.5J at ET32 offset |
Forged wheels for the Cadillac BLS WagonMachined to the 5x110 bolt pattern and 65.1 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
A wagon carries wagon-specific weight distribution — more mass over the rear axle when loaded — so wheel strength at the rear corners matters as much as the front. Forging lets us match the factory's strength target on both ends while keeping rotational mass down, which keeps the ride composed whether the cargo area is empty or full.
The Cadillac BLS Wagon runs a 5x110 bolt pattern, 65.1mm center bore, and a 17x7.5J at ET41, front and rear, wheel from the factory. Our Flush Fitment reference is 18x8J ET35, which tucks the tire under the fender lip on a stock-height Cadillac BLS Wagon. Our Maximum Aggressive reference is 19x8.5J ET32 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Cadillac BLS Wagon OE Wheel Specs
The 2008 Cadillac BLS Wagon (Wagon) uses a 5x110 bolt pattern with a 65.1mm center bore. Factory wheels are 17x7.5J at ET41.
Why the factory spec works for most owners:
- Balances ride comfort with everyday fuel efficiency
- A widely used size in this segment, so tire and wheel availability stays strong
- Keeps unsprung weight low for stable, predictable handling
- Maintains clearance for the factory brake calipers and suspension components
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Cadillac BLS Wagon (2008) we drill the 5x110 pattern and cut the centre bore to 65.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, 18x8J ET35 is the recommended starting point on a stock or mildly lowered Cadillac BLS Wagon.
Maximum Aggressive Fitment
19x8.5J ET32 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
Real-World Fitment Notes
Saab 9-3/Vectra platform uses 5x110 PCD!
5-Tier Configuration Options
A Factory-Style 17x7.5J ET41
Recommended setup: 17x7.5J ET41 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B Comfortable Upgrade 18x8.0J ET38
Recommended setup: 18x8.0J ET38 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit 18x8.0J ET35
Recommended setup: 18x8.0J ET35 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive 19x8.5J ET34
Recommended setup: 19x8.5J ET34 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive 19x8.5J ET32
Recommended setup: 19x8.5J ET32 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 17x7.5J ET41 | 18x8.0J ET38 | 18x8.0J ET35 | 19x8.5J ET34 | 19x8.5J ET32 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 17x7.5J ET41
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 18x8.0J ET35
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 19x8.5J ET32
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Cadillac BLS Wagon owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: 17x7.5J ET41 → ~5.86″ backspacing
- Flush: 18x8J ET35 → ~5.88″ backspacing
- Max: 19x8.5J ET32 → ~6.01″ backspacing
A Note on Clearance
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Cadillac spec, or want a wheel built to a custom offset for your Cadillac BLS Wagon? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Cadillac BLS Wagon (2008)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x110 pattern and the 65.1mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Cadillac orders on this platform land somewhere between the 18x8J ET35 flush setup and the 19x8.5J ET32 aggressive setup referenced above.
We do not hold 5x110 wheels on a shelf — they are forged to order, which is why any offset, width and bore combination on this page is buildable rather than limited to a stock list.
Frequently Asked Questions
What bolt pattern (PCD) does the Cadillac BLS Wagon use?
The 2008 Cadillac BLS Wagon uses a 5x110 bolt pattern.
How many lug bolts does the Cadillac BLS Wagon use?
The Cadillac BLS Wagon uses a 5-lug bolt pattern (5x110), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Cadillac BLS Wagon?
The Cadillac BLS Wagon's center bore is 65.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Cadillac BLS Wagon?
Factory wheels on the Cadillac BLS Wagon are 17x7.5J at ET41.
What is the biggest wheel size I can fit on my Cadillac BLS Wagon without rubbing?
The most aggressive fitment we recommend without fender work is 19x8.5J at ET32 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Cadillac BLS Wagon?
For a flush look with minimal to no rubbing, we recommend 18x8J at ET35 offset as a starting point on a stock or mildly lowered Cadillac BLS Wagon.
Do I need wheel spacers for my Cadillac BLS Wagon?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Cadillac BLS Wagon?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 5.88" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Cadillac BLS Wagon?
The Cadillac BLS Wagon runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Vehicles With the Same Hub as the Cadillac BLS Wagon (5x110, 65.1 mm Bore)
In our database, 139 other vehicle entries from 19 makes use exactly the same 5x110 bolt pattern and 65.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x110 is used by 2.2% of the vehicle pages in our English fitment guide (145 of 6,503); 96.6% of those also use a 65.1 mm center bore.
Hub-Centric Rings for a 65.1 mm Center Bore
A wheel with a center bore larger than 65.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 66.1 mm | 66.1 → 65.1 mm |
| 66.6 mm | 66.6 → 65.1 mm |
| 67.1 mm | 67.1 → 65.1 mm |
| 70.1 mm | 70.1 → 65.1 mm |
| 73.1 mm | 73.1 → 65.1 mm |
ANKUSI forged wheels are bored to exactly 65.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 17x7.5 wheels · 17 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Cadillac BLS Wagon
Every design below is forged to order, so it can be machined to the Cadillac BLS Wagon's 5x110 bolt pattern and 65.1 mm center bore, with the width and offset calculated for your setup.
Cadillac OEM-Style Gloss Black Turbine Multi-Spoke Forged Wheels
Cadillac CT5 / CT4 Fitment · 5-Lug
Toyota GR86 / BMW 3 Series F30 Forged Wheels
Brushed Silver 7 Y-Spoke Side-Milled

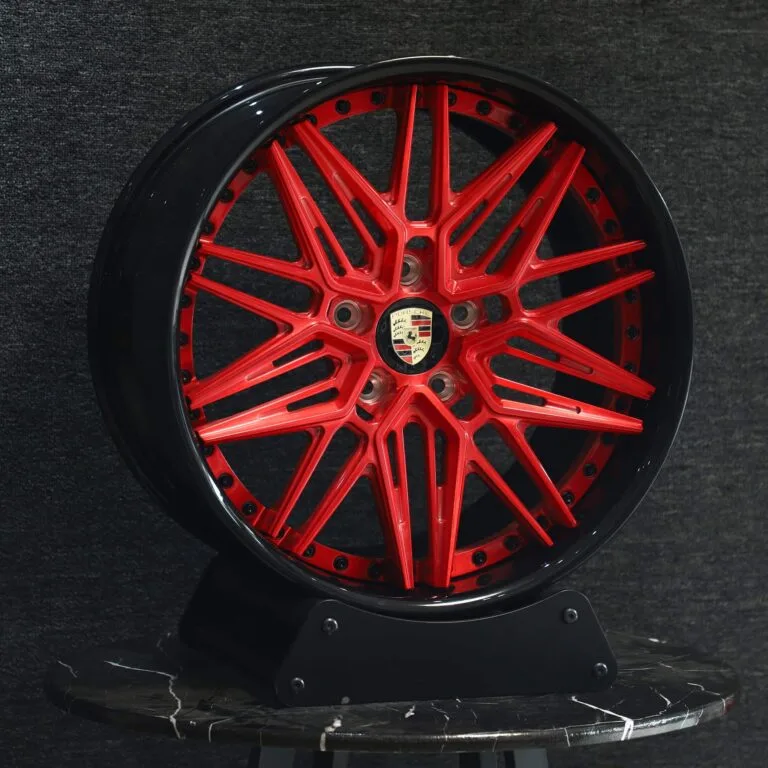

Porsche 911 / Panamera Forged Wheels
Red Mesh 2-Piece Gloss Black Lip
Cadillac OEM-Style Gloss Black Multi-Spoke Forged Wheels
Cadillac CT5 / CT6 Fitment · 5-Lug

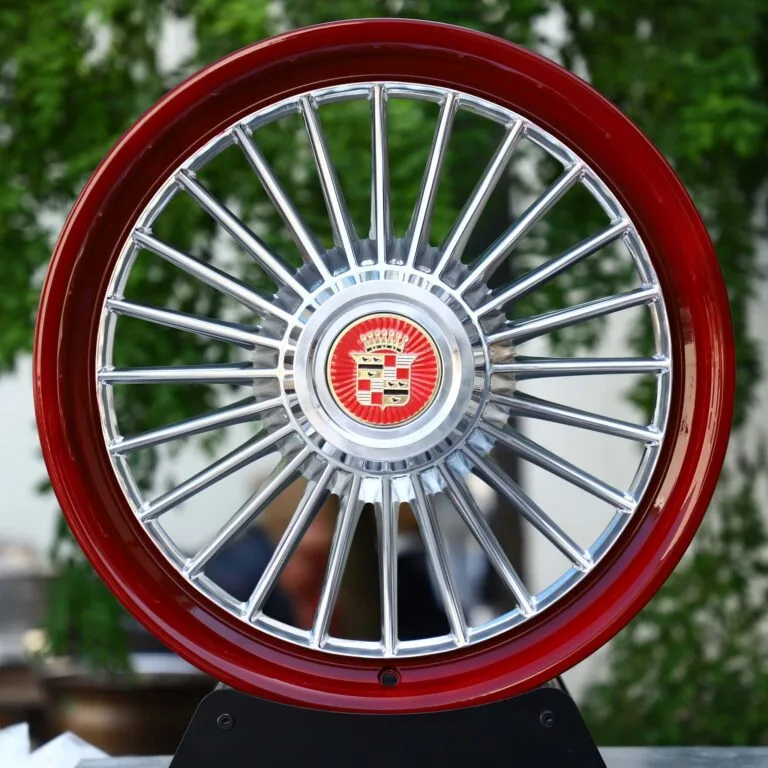

Cadillac OEM-Style Polished Multi-Spoke Red Lip Floating Cap Forged Wheels
Cadillac CTS / ATS Fitment · 5-Lug

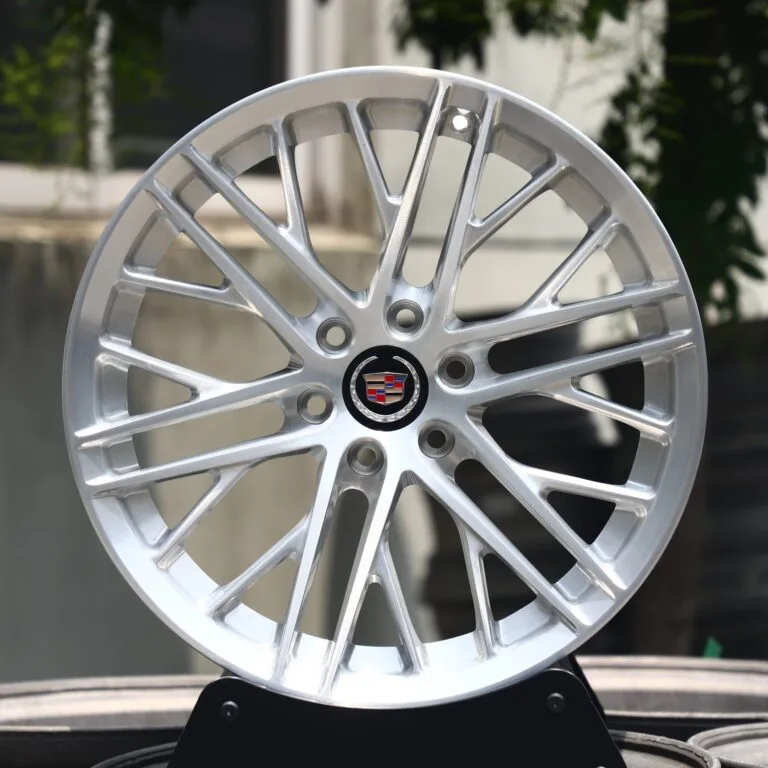

Cadillac OEM-Style Bright Silver 10 Y-Spoke Forged Wheels
