2022-2025 BYD Tang DM-p Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting BYD Tang DM-p wheels? This page gives the 2022-2025 BYD Tang DM-p bolt pattern (5x120), centre bore, factory rim size and the offset range for aftermarket and forged BYD Tang DM-p rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2022-2025 BYD Tang DM-p uses a 5x120 bolt pattern with a 64.1 mm centre bore and M12x1.5 lug nuts. Factory wheels: 20x8.0J (255/50R20) or 21x9.0J (265/45R21), both at ET41, front and rear.
Forged wheels for the 2022-2025 BYD Tang DM-p — drilled 5x120 with a 64.1 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
BYD Tang DM-p (2022-2025): 5x120 bolt pattern, 64.1mm center bore. 20x8.0J F/R at ET41. Aftermarket sizes confirmed on request.
Bolt Pattern5x120
Wheel Bolt/NutM12x1.5 Nut
Center Bore64.1mm
Wheel Load Rating900–1250 kg/wheel (SUV segment reference)
Year2022-2025
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Forged wheels for the BYD Tang DM-pMachined to the 5x120 bolt pattern and 64.1 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
SUVs carry more curb weight higher off the ground, so wheel strength and rotational mass both matter more than on a comparable sedan. Forging keeps the wheel light without giving up the load rating the factory suspension geometry was tuned around.
The BYD Tang DM-p runs a 5x120 bolt pattern with a 64.1mm center bore from the factory. We haven't yet verified real-world Flush or Maximum Aggressive offset data for this exact generation from owner communities, so ANKUSI forges to this confirmed OE specification today — or to a wider custom offset once you tell us your target tire size and stance, rather than publishing invented aftermarket numbers.
BYD Tang DM-p OE Wheel Specs
The 2022-2025 BYD Tang DM-p (Hybrid SUV) uses a 5x120 bolt pattern with a 64.1mm center bore. Factory wheels are available in 20x8.0J (255/50R20) or 21x9.0J (265/45R21), both at ET41, front and rear.
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the BYD Tang DM-p (2022-2025) we drill the 5x120 pattern and cut the centre bore to 64.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Aftermarket Fitment: Confirmed on Request
We are still verifying real-world Flush and Maximum Aggressive reference fitments for this exact generation from owner communities, so we are not publishing offset ranges yet rather than guessing. Contact ANKUSI now with your target look and tire size and we will confirm a custom-offset forged wheel build for your BYD Tang DM-p directly.
Custom Forged Wheels for the BYD Tang DM-p (2022-2025)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x120 pattern and the 64.1mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
Designs we already tool for the 5x120 pattern — each one is re-cut to your sizes and offsets:
BYD OEM-Style Gloss Black Riveted Mirror Milled Forged Wheels – BYD M6 / Seal 07 Fitment (5-Lug)
BYD OEM-Style Gloss Black 5-Spoke Forged Wheels – BYD M6 / Seal 07 Fitment (5-Lug)
IM L7 / LS7 Forged Wheels – Black / Machined Directional Multi-Spoke (5-Lug)
IM L7 / LS7 Forged Wheels – Gloss Black 10-Spoke (5-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the BYD Tang DM-p use?
The 2022-2025 BYD Tang DM-p uses a 5x120 bolt pattern.
What is the center bore size on the BYD Tang DM-p?
The center bore is 64.1mm. If an aftermarket wheel has a larger center bore, hub-centric rings are recommended.
What size are the factory wheels on the BYD Tang DM-p?
Factory wheels are available in 20x8.0J (255/50R20) or 21x9.0J (265/45R21), both at ET41, front and rear.
Can I get a custom offset before your Flush/Max data is published?
Yes -- contact ANKUSI with your bolt pattern and target offset and we will confirm the correct forged wheel spec for your build now.
Vehicles With the Same Hub as the BYD Tang DM-p (5x120, 64.1 mm Bore)
In our database, 28 other vehicle entries from 8 makes use exactly the same 5x120 bolt pattern and 64.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x120 is used by 10.3% of the vehicle pages in our English fitment guide (670 of 6,503); 4.3% of those also use a 64.1 mm center bore.
Hub-Centric Rings for a 64.1 mm Center Bore
A wheel with a center bore larger than 64.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 65.1 mm | 65.1 → 64.1 mm |
| 66.1 mm | 66.1 → 64.1 mm |
| 66.6 mm | 66.6 → 64.1 mm |
| 67.1 mm | 67.1 → 64.1 mm |
| 73.1 mm | 73.1 → 64.1 mm |
ANKUSI forged wheels are bored to exactly 64.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the BYD Tang DM-p
Every design below is forged to order, so it can be machined to the BYD Tang DM-p's 5x120 bolt pattern and 64.1 mm center bore, with the width and offset calculated for your setup.
BYD OEM-Style Gloss Black Riveted Mirror Milled Forged Wheels
BYD M6 / Seal 07 Fitment · 5-Lug
APEX ARC-8-Style Silver Mesh Forged Wheels
BMW M3 E46 / BMW 3 Series F30 Fitment · 5-Lug
BMW 5 Series / 3 Series Forged Wheels
Brushed Silver 5-Spoke
HRE-Style Hyper Silver 5-Spoke Rotor Forged Wheels
Porsche 911 / M3 Fitment · 5-Lug
BMW M3 / M5 Forged Wheels
Gloss Black / Gloss White 5-Spoke
Rays-Style Bronze 5 Y-Spoke Forged Wheels
Porsche 911 / M3 Fitment · 5-Lug

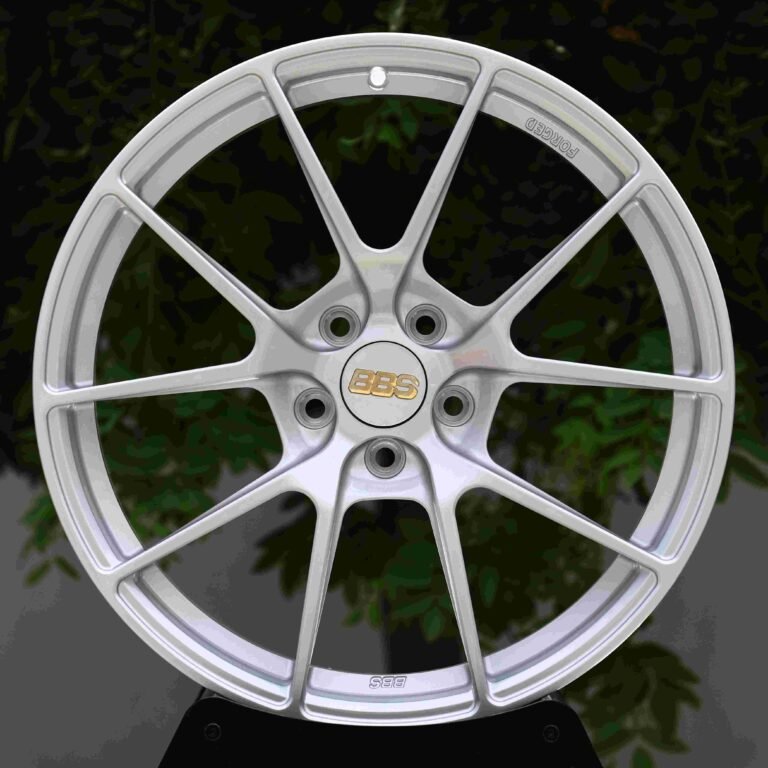

BBS-Style Matte Silver 5 Y-Spoke Forged Wheels
