2025 BYD Atto 2 Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting BYD Atto 2 wheels? This page gives the 2025 BYD Atto 2 bolt pattern (5x114.3), centre bore, factory rim size and the offset range for aftermarket and forged BYD Atto 2 rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2025 BYD Atto 2 uses a 5x114.3 bolt pattern. Factory wheels: 16x6.5J at ET40, front and rear, with 17x6.5J at ET40 on higher trims.
Forged wheels for the 2025 BYD Atto 2 — drilled 5x114.3, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
BYD Atto 2 (2025): 5x114.3 bolt pattern. Factory wheels: 16x6.5J at ET40 offset. Flush and max fitment confirmed on request.
Bolt Pattern5x114.3
Wheel Bolt/NutLug Nut
Center BoreNot published
Wheel Load Rating800–950 kg/wheel (Crossover segment reference)
Caliper TypeFactory brake package (confirm clearance before ordering)
Year2025
CategoryCrossover
OE Wheel Size16x6.5J
OE OffsetET40
Data check: the bolt pattern and center bore on this page have not yet been confirmed by a second independent source. Measure your hub or ask us before ordering. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Forged wheels for the BYD Atto 2Machined to the 5x114.3 bolt pattern · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
On a vehicle this heavy, the wheel is a structural part before it is a styling part - it carries the load, the brake heat and the cornering forces all at once. A forged wheel buys back unsprung weight without giving up the load rating an SUV actually needs, which is the one number most cast aftermarket wheels quietly fall short on.
We publish the factory specification for the BYD Atto 2 below. We have not yet been able to verify aftermarket flush or maximum-aggressive offsets for this exact variant against a source we trust, so we are not listing any - an invented offset is worse than no offset when a wheel has to clear a caliper.
BYD Atto 2 OE Wheel Specs
The 2025 BYD Atto 2 (Crossover) runs a 5x114.3 hub. Factory wheels are 16x6.5J at ET40, front and rear, with 17x6.5J at ET40 on higher trims.
Why the factory spec works for most owners:
- Supports the vehicle's curb weight and load capacity
- Preserves ground clearance for everyday and light off-road use
- Balances ride comfort with cargo and passenger stability
- Maintains clearance for the factory suspension travel and brake package
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the BYD Atto 2 (2025) we drill the 5x114.3 pattern on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Aftermarket Fitment Data: Verification in Progress
Published aftermarket fitment for this exact variant is still thin, so we have not committed to a flush or maximum-aggressive figure. Our engineering team is still collecting verified data for this variant. In the meantime the factory specification above is accurate and is the safe reference point for ordering.
Send us your car and current wheel size on WhatsApp and our engineers will confirm a flush and a maximum fitment for this exact vehicle, usually within one working day.
What we do know: BYD Atto 2 small electric SUV (sold in China as the Yuan Up). Factory tires are 215/65R16 on 16x6.5J ET40, with 215/60R17 on 17x6.5J ET40. Only one published source lists the center bore (60.1 mm), so we are not stating it until a second source confirms it.
Need a wheel for this car now? Contact ANKUSI with your target diameter, width and offset and our engineers will confirm the correct forged spec against your brake package before anything is cut. You can also use our Offset & Backspacing Calculator to work through the numbers yourself.
Custom Forged Wheels for the BYD Atto 2 (2025)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x114.3 pattern is machined for this car specifically. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
We do not hold 5x114.3 wheels on a shelf — they are forged to order, which is why any offset, width and bore combination on this page is buildable rather than limited to a stock list.
Frequently Asked Questions
What bolt pattern (PCD) does the BYD Atto 2 use?
The 2025 BYD Atto 2 uses a 5x114.3 bolt pattern.
How many lug bolts does the BYD Atto 2 use?
The BYD Atto 2 uses a 5-lug bolt pattern (5x114.3), so you need a 5-lug forged wheel to bolt straight on.
Do I need wheel spacers for my BYD Atto 2?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my BYD Atto 2?
The BYD Atto 2 runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Forged Wheel Designs for the BYD Atto 2
Every design below is forged to order, so it can be machined to the BYD Atto 2's 5x114.3 bolt pattern, with the width and offset calculated for your setup.

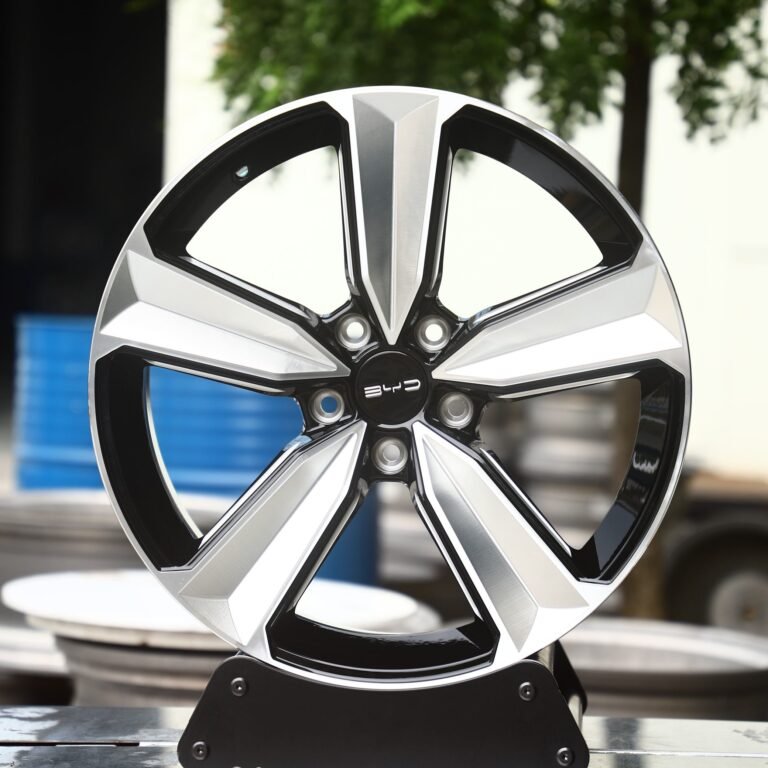

BYD OEM-Style Gloss Black 5-Spoke Forged Wheels
BYD M6 / Seal 07 Fitment · 5-Lug
Alpine OEM-Style Hyper Silver 5 Y-Spoke Forged Wheels
Alpine A290 Fitment · 5-Lug
Vossen HF-5-Style Bronze 5 Y-Spoke Concave Forged Wheels - Tesla Model 3 / Tesla Model Y Fitment (5-Lug)
Vossen-Style forged wheels featuring the HF-5-style bronze 5 Y-spoke concave design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

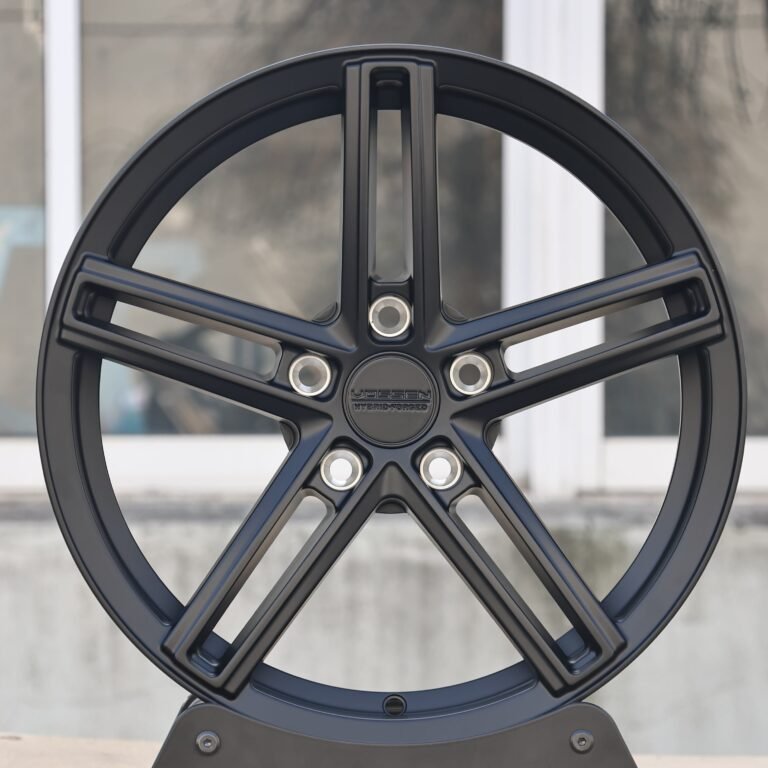

Vossen HF-1-Style Matte Black 5-Spoke Forged Wheels
Tesla Model Y / Ford Mustang Fitment · 5-Lug
BBS RI-D-Style Metallic Gray Custom Forged Wheels - BMW M3 G80 / Honda Civic Type R Fitment (5-Lug)
BBS-Style forged wheels featuring the RI-D-style metallic gray custom design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

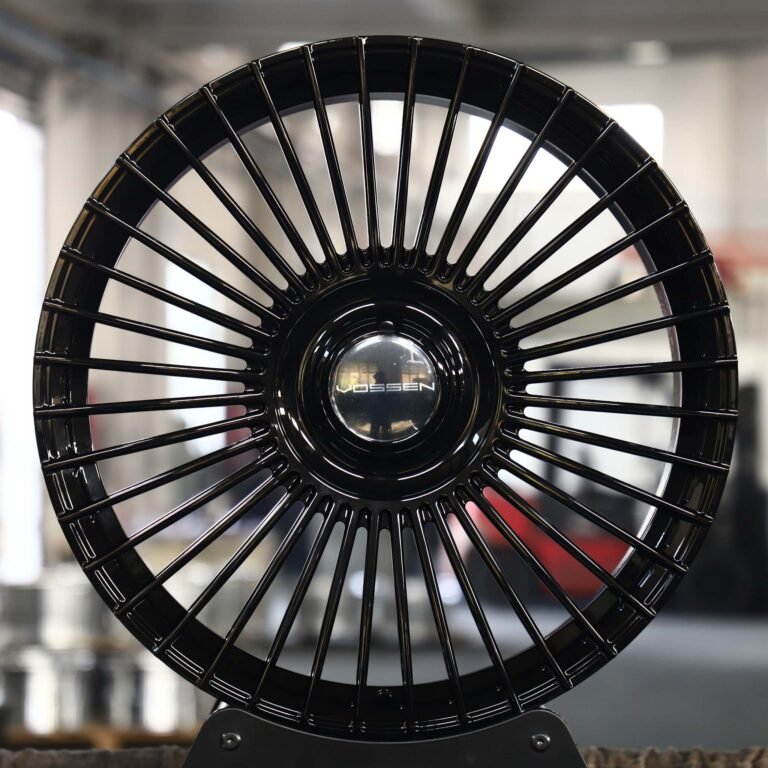

Vossen-Style Gloss Black Multi-Spoke Turbine Forged Wheels
