BMW 135i Wheel Offset Guide: E82/E88 Fitment Chart for the 128i and 135i

The safest 135i wheel offset for an E82 coupe or E88 convertible stays close to the factory 18-inch staggered setup. That setup is 18x7.5 ET49 at the front and 18x8.5 ET52 at the rear, on a 5x120 bolt pattern with a 72.6 mm center bore. For a fuller look that still fits on stock suspension, the most widely recommended aftermarket sizes are 18x8.5 ET45 at the front and 18x9.5 ET58 at the rear. Anything that pushes the rear wheel more than about 15 mm further out than stock usually needs rolled fenders, extra negative camber or flares.

This guide is for owners of the 2008–2013 128i and 135i. It turns the factory numbers and published fitment references into millimetres, so you can see exactly where a new wheel will sit before you order.

Key facts: E82/E88 135i wheel specs

Every E82 and E88 128i and 135i uses the same hub: 5x120, a 72.6 mm center bore and M12x1.5 lug bolts. Only the factory wheel sizes differ by model.

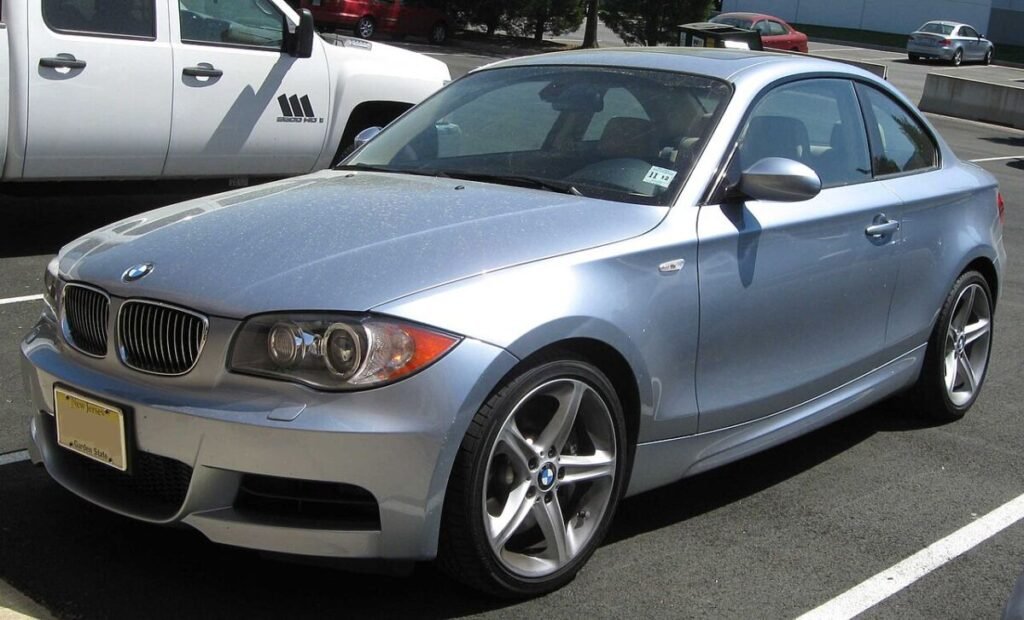

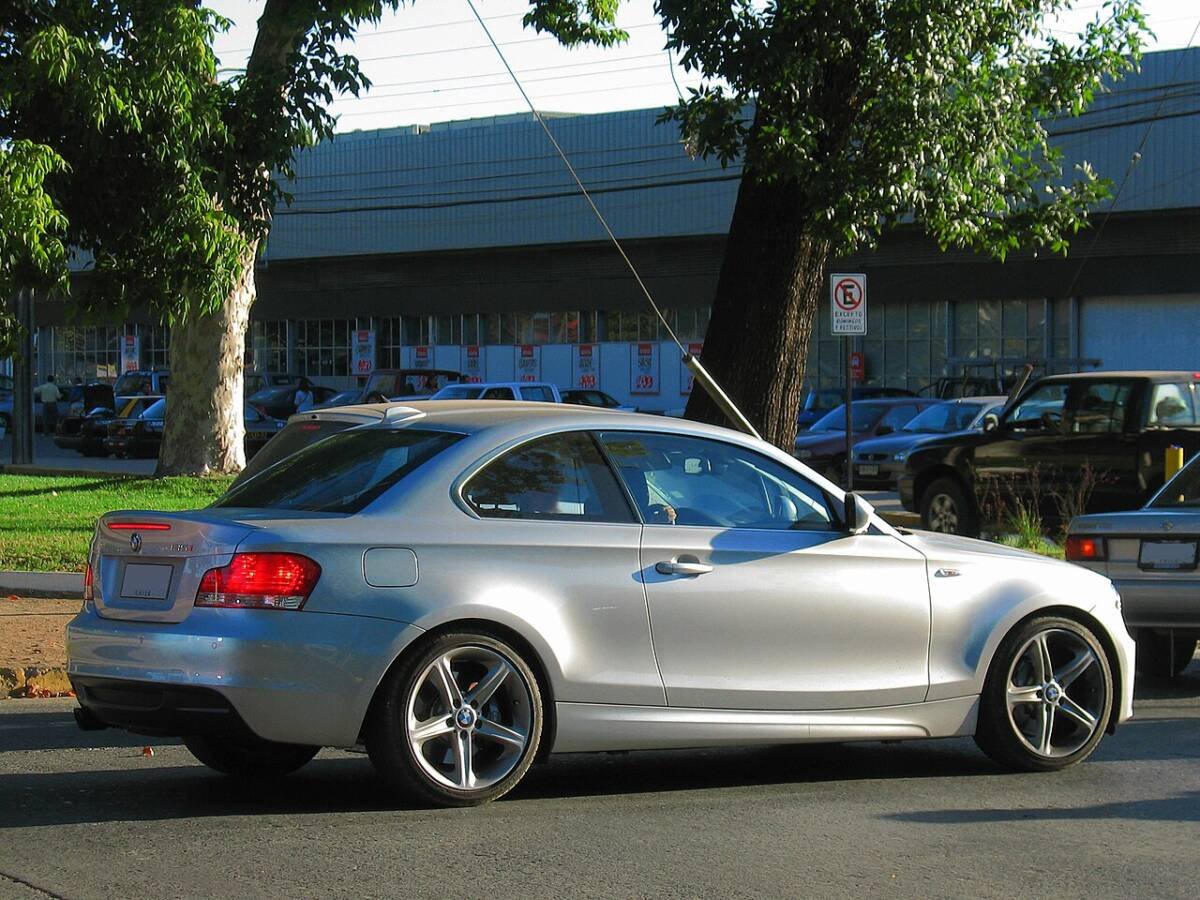

• Factory 18-inch staggered (135i): 7.5Jx18 ET49 with 215/40R18 front and 8.5Jx18 ET52 with 245/35R18 rear. Sources: Wheel-Size.com (USDM 135i) and avtoreference.com.
• Factory 17-inch square (128i and base trims): 7Jx17 ET47 with 205/50R17 on all four corners. Both sources list the same size.
• Hub fitment: 5x120 bolt pattern, 72.6 mm center bore, M12x1.5 bolts. The same hub dimensions are shared with the E90-series 3 Series, so many E9X wheels bolt on. Offsets still need checking, because the 1 Series body is narrower.

Why 135i wheel offset has to stay high

The 135i wheel offset has to stay high because BMW fitted 3 Series running gear inside a shorter, narrower body. The suspension and hubs come from the E90-family 3 Series, but the fenders give less room at the outer edge. Published fitment notes agree on this point. BimmerWorld's Wheel Info Tech table notes that wheels wider than 8.5 inches are hard to fit on a stock-body E82.

In practice, every 135i wheel offset decision happens inside a narrow window. If the offset is too low, the tire hits the fender lip. If the offset is too high, a wide rear wheel moves inward toward the strut and the inner liner.

135i wheel offset chart: what each setup changes

Use this 135i wheel offset chart to compare popular E82/E88 setups with the factory 18-inch wheels. "Outward" is how much further the outer lip sits toward the fender. "Inward" is how much closer the inner lip sits to the strut and liner. A negative value means more clearance than stock.

The numbers follow simple geometry. Half of the extra width in inches is converted to millimetres, and the offset difference is then subtracted (outward) or added (inward). You can check any other combination with the offset and backspacing calculator.

The rear 9.5 ET58 trade-off most owners miss

The popular 18x9.5 ET58 rear wheel barely moves outward, but it moves 18.7 mm inward. This explains a warning in a widely used E82/E88 fitment guide published by a US wheel maker: with wide rear tires, check the passenger-side rear wheel liner for contact near the fuel filler neck. The wheel looks almost stock from outside, and nearly all of the extra inch of width goes inboard.

A rear 18x9.0 ET45, by contrast, pushes 13.3 mm outward and actually gains 0.7 mm of inner clearance. It suits cars with more rear camber or rolled fenders. The 9.5 ET58 suits cars kept at stock alignment. Our 2010 BMW 135i Coupe E82 fitment page uses the same limits. The flush reference is F 18x8.0 ET38 with R 18x9.0 ET50, and the maximum reference is F 18x8.5 ET35 with R 18x9.0 ET45.

Which 18-inch setup suits your 128i or 135i?

For a daily-driven car on stock suspension, the Easy or Mild setup is the right 135i wheel offset choice. Both keep you within the clearance window without changing alignment. The 128i uses the same hub and body as the 135i, so the same aftermarket sizes apply. Moving from the 17-inch factory wheel changes outer position more, so compare against the 2008 BMW 128i Convertible E88 page.

1. Stock suspension, daily use: F 18x8.5 ET45 with 235/40R18, and R 18x9.5 ET58 with 265/35R18. Square 18x8.5 ET45 is also a common choice if you want to rotate tires front to rear.
2. Lowered, with camber plates: F 18x8.5 ET35–ET40. Plan on at least −2° front camber for ET35 or ET38.
3. Track tires, wide rear: R 18x9.0 ET45 with rolled fenders. Keep the tire's rolling diameter within about 3% of stock to protect speedometer accuracy.

Wheels in these sizes for the 1 Series often borrow designs from the 3 Series. A bright silver 5 Y-spoke forged wheel or a silver 8 Y-spoke mesh forged wheel can be built in 18x8.5 and 18x9.5 with the offsets above.

Brakes, spacers and lug bolts

Most 18-inch wheels clear the factory 135i brakes, but big brake kits change the picture. The same wheel-maker guide reports that 18x8.5 ET35–ET45 wheels clear the stock 135i M Sport brakes, and that some six-piston 355 mm and 380 mm kits do not. If you have upgraded brakes, ask for a caliper template check before you settle on a 135i wheel offset.

Spacers are a fine-tuning tool, not a cure. A 5 mm front spacer is often used with ET45 wheels on some aftermarket suspension. When you add a spacer, use longer M12x1.5 bolts. The new bolt length should equal your existing bolt length plus the spacer thickness, with about 6.5 turns of thread engagement. Wheels must also sit snugly on the 72.6 mm hub, because a loose center bore can cause vibration.

What about the 1M Coupe?

The 1 Series M Coupe is a different case. It uses the wider E9X M3 suspension and flared fenders, and its factory wheels are 19x9 front and 19x10 rear. The hub is still 5x120 with a 72.6 mm bore, but the 135i wheel offset figures above do not apply. See the 2011 BMW 1-Series M Coupe E82 page and the full BMW 1 Series bolt pattern and center bore list. For other 5x120 cars and wheels, browse the 5x120 bolt pattern page.

For a deeper look at choosing forged wheels for a specific platform, read our forged wheel fitment verification checklist. A gold 10-spoke forged wheel or a cross-spoke mesh forged wheel are two more 5x120 designs that suit the E82 and E88 shape.
