Custom Forged Wheels for the Maserati GranCabrio (5x110)
ANKUSI forges custom wheels for the Maserati GranCabrio, drilled 5x110 with a 65.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 20x8.5J ET35 (model year 2027).
Recommended wheel sizes for the Maserati GranCabrio
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 20x8.5J | ET35 |
| Flush | 20x9.5J | ET25 |
| Max | 21x1J | ET20 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Maserati GranCabrio
Forged wheels that can be drilled for the Maserati GranCabrio
Maserati Ghibli / Levante Forged Wheels – Black / Machined 5-Spoke Machined Face
Maserati Ghibli / Quattroporte Forged Wheels – Gloss Bronze 5 V-Spoke
Porsche 911 / Panamera Forged Wheels – Gloss Black / Gunmetal Custom
Honda Civic / Mazda MX-5 Forged Wheels – Polished Silver 6-Spoke Deep Lip (5-Lug)
Maserati OEM-Style Silver Mesh Forged Wheels – Maserati Ghibli / Quattroporte Fitment (5-Lug)
Maserati OEM-Style Gloss Black 5 Y-Spoke Forged Wheels – Maserati Ghibli / Quattroporte Fitment (5-Lug)
Maserati Ghibli / Levante Forged Wheels – Gloss Black 5 Y-Spoke

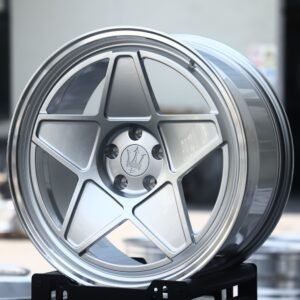

Maserati OEM-Style Bright Silver 5-Star Spoke Stepped Lip Forged Wheels – Maserati Ghibli / Quattroporte Fitment (5-Lug)Get a quote for Maserati GranCabrio wheels
Vehicles With the Same Hub as the Maserati GranCabrio (5x110, 65.1 mm Bore)
In our database, 125 other vehicle entries from 18 makes use exactly the same 5x110 bolt pattern and 65.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x110 is used by 2.1% of the vehicle entries in our database (136 of 6,396); 100.0% of those also use a 65.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 20x8.5J | ET35 | 6.13 in (156 mm) | — | — |
| Flush | 20x9.5J | ET25 | 6.23 in (158 mm) | +3 mm | +23 mm |
| Maximum | 21x1J | ET20 | 1.79 in (45 mm) | −110 mm | −80 mm |
Hub-Centric Rings for a 65.1 mm Center Bore
A wheel with a center bore larger than 65.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 66.1 mm | 66.1 → 65.1 mm |
| 66.6 mm | 66.6 → 65.1 mm |
| 67.1 mm | 67.1 → 65.1 mm |
| 70.1 mm | 70.1 → 65.1 mm |
| 73.1 mm | 73.1 → 65.1 mm |
ANKUSI forged wheels are bored to exactly 65.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Maserati GranCabrio take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x110 with a 65.1 mm center bore.
What is the factory wheel size of the Maserati GranCabrio?
The factory size in our database is 20x8.5J ET35. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Maserati GranCabrio flush?
We recommend 20x9.5J ET25 for a flush fit and 21x1J ET20 as the maximum. Check clearance before ordering.
