Custom Forged Wheels for the Chevrolet Cavalier (5x100)
ANKUSI forges custom wheels for the Chevrolet Cavalier, drilled 5x100 with a 57.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 14x5.5J ET42 (model year 2002).
Recommended wheel sizes for the Chevrolet Cavalier
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 14x5.5J | ET42 |
| Flush | 17x7.5J | ET35 |
| Max | 18x8J | ET32 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Chevrolet Cavalier
Forged wheels that can be drilled for the Chevrolet Cavalier
Weld Racing-Style Mirror Polished 5-Star Beadlock Forged Drag Racing Wheels – Ford Mustang / Corvette C7 Fitment (5-Lug)
Chevrolet Corvette Style Bright Silver 5 Y-Spoke Left/Right Directional Double-Ring Forged Wheels - Chevrolet Corvette / Cadillac CT5 Fitment (5-Lug)
Corvette OEM-Style Mirror Polished 5 Y-Spoke Deep Lip 2-Piece Forged Wheels – Chevrolet Corvette C7 / Corvette C6 Fitment (5-Lug)
Corvette OEM-Style Matte Silver Custom Forged Wheels – Chevrolet Corvette C8 / Camaro 5th Gen Fitment (5-Lug)
Weld Racing-Style Gloss Black / Machined 5-Spoke Deep Lip Forged Drag Racing Wheels – Ford Mustang / Corvette C7 Fitment (5-Lug)

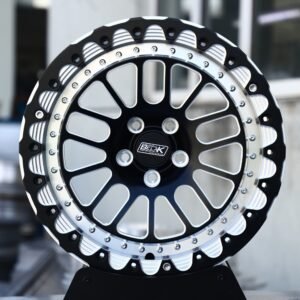

Belak-Style Polished / Black 20-Spoke Beadlock Forged Drag Racing Wheels – Ford Mustang / Corvette C7 Fitment (5-Lug)

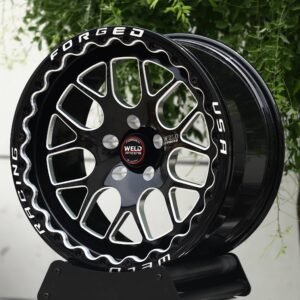

Weld Racing-Style Gloss Black Milled Mesh Beadlock Forged Drag Racing Wheels – Ford Mustang / Corvette C7 Fitment (5-Lug)
Ford Mustang / Chevrolet Corvette Forged Wheels – Black / Machined 10 Split-Spoke Beadlock (5-Lug)Get a quote for Chevrolet Cavalier wheels
Vehicles With the Same Hub as the Chevrolet Cavalier (5x100, 57.1 mm Bore)
In our database, 81 other vehicle entries from 10 makes use exactly the same 5x100 bolt pattern and 57.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x100 is used by 1.9% of the vehicle entries in our database (124 of 6,503); 69.4% of those also use a 57.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 14x5.5J | ET42 | 4.90 in (125 mm) | — | — |
| Flush | 17x7.5J | ET35 | 5.63 in (143 mm) | +18 mm | +32 mm |
| Maximum | 18x8J | ET32 | 5.76 in (146 mm) | +22 mm | +42 mm |
Hub-Centric Rings for a 57.1 mm Center Bore
A wheel with a center bore larger than 57.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 60.1 mm | 60.1 → 57.1 mm |
| 63.4 mm | 63.4 → 57.1 mm |
| 64.1 mm | 64.1 → 57.1 mm |
| 65.1 mm | 65.1 → 57.1 mm |
| 73.1 mm | 73.1 → 57.1 mm |
ANKUSI forged wheels are bored to exactly 57.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Chevrolet Cavalier take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x100 with a 57.1 mm center bore.
What is the factory wheel size of the Chevrolet Cavalier?
The factory size in our database is 14x5.5J ET42. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Chevrolet Cavalier flush?
We recommend 17x7.5J ET35 for a flush fit and 18x8J ET32 as the maximum. Check clearance before ordering.
