Opel Mokka Bolt Pattern, Center Bore & Wheel Offset (2013–2025)
Opel Mokka wheel fitment: 5x105 bolt pattern, 56.6mm center bore (2013–2017); 4x108 bolt pattern, 65.1mm center bore. OE wheel sizes and offsets for every Mok
- 5x105bolt pattern (PCD), most common
- 56.6 mmcenter bore
- M12x1.5 Nutwheel bolt / nut
- 3 guidesmodel years 2013–2025
Bolt pattern by generation
- 5x105, 56.6 mm center bore — 2013–2017 (2 variants)
- 4x108, 65.1 mm center bore — 2025 (1 variants)
Opel Mokka wheel specs by year and trim
| Year | Model / trim | Bolt pattern | Center bore | OE wheel |
|---|---|---|---|---|
| 2025 | Opel Mokka Hybrid | 4x108 | 65.1 mm | 18x7J ET32 |
| 2017 | Opel Mokka X | 5x105 | 56.6 mm | 18x7J ET38 |
| 2013 | Opel Mokka | 5x105 | 56.6 mm | 18x7J ET38 |
Factory wheel sizes on the Opel Mokka
Across the 3 Opel Mokka trims with a documented factory wheel, the OE diameter is 18 inch, width 7J and offset ET32-38. A forged wheel that keeps the bolt pattern and hub bore of your generation (see the table above) and stays inside that offset range bolts on without spacers or hub rings. Going one inch up in diameter with a lower-profile tyre keeps the rolling circumference inside the usual 1.5% tolerance; every extra 0.5J of width moves the outer lip about 6 mm outward at the same offset, and each 5 mm less offset moves the whole wheel 5 mm outward.

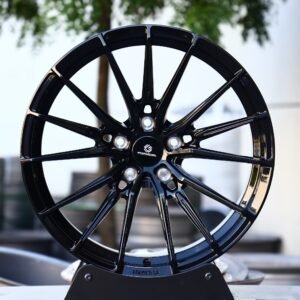

Forged wheels for the Opel Mokka (5x105)
Shop all Opel Mokka forged wheels →
Get a quote for Opel Mokka wheels
Vehicles With the Same Hub as the Opel Mokka (5x105, 56.6 mm Bore)
In our database, 33 other vehicle entries from 3 makes use exactly the same 5x105 bolt pattern and 56.6 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x105 is used by 0.6% of the vehicle entries in our database (37 of 6,503); 100.0% of those also use a 56.6 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 18x7J | ET38 | 5.50 in (140 mm) | — | — |
| Flush | 19x8J | ET30 | 5.68 in (144 mm) | +5 mm | +21 mm |
| Maximum | 20x8.5J | ET25 | 5.73 in (146 mm) | +6 mm | +32 mm |
Hub-Centric Rings for a 56.6 mm Center Bore
A wheel with a center bore larger than 56.6 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 57.1 mm | 57.1 → 56.6 mm |
| 60.1 mm | 60.1 → 56.6 mm |
| 63.4 mm | 63.4 → 56.6 mm |
| 64.1 mm | 64.1 → 56.6 mm |
| 73.1 mm | 73.1 → 56.6 mm |
ANKUSI forged wheels are bored to exactly 56.6 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
FAQ
What is the bolt pattern on a Opel Mokka?
The Opel Mokka uses a 5x105 bolt pattern on most variants we cover with a 56.6mm center bore. Other generations use 4x108 / 65.1mm (2025–2025). Always check the exact year and trim before ordering.
What is the Opel Mokka center bore?
The hub-centric center bore is 56.6 mm on the most common generation; see the table for variants. Aftermarket wheels should match this bore or use hub-centric rings so the hub, not the bolts, carries the load.
Do all Opel Mokka years share the same wheel fitment?
No. The bolt pattern or center bore changed between generations, so wheels are not interchangeable across all years. Use the year-by-year table on this page to pick the right specification.
Which forged wheels fit the Opel Mokka?
Any wheel drilled 5x105 with a 56.6mm hub bore in the offset range shown on the model guide. ANKUSI forges wheels to order for this exact specification, in 14–24 inch diameters, so no adapters or hub rings are needed.
