Custom Forged Wheels for the Opel Mokka (5x105)
ANKUSI forges custom wheels for the Opel Mokka, drilled 5x105 with a 56.6 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 18x7J ET38 (model year 2017).
Recommended wheel sizes for the Opel Mokka
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 18x7J | ET38 |
| Flush | 19x8J | ET30 |
| Max | 20x8.5J | ET25 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Opel Mokka
Forged wheels that can be drilled for the Opel Mokka
Opel OEM-Style Gloss Black Multi-Spoke Forged Wheels – Opel Astra / Insignia Fitment (5-Lug)
BMW M2 G87 / M3 G80 Forged Wheels – Gloss Black 15-Spoke
Porsche Taycan / Panamera Forged Wheels – Black / White Aero 5 Y-Spoke (5-Lug)
SVV Brushed Silver 10-Spoke Y-Design Forged Wheels – BMW M3 CS Handschalter Fitment (19-21in, 5x112)
Lincoln Continental / Aviator Forged Wheels – Bright Silver 5 W-Spoke Side-Milled
Porsche 911 / BMW M3 Forged Wheels – Yellow / Black Riveted

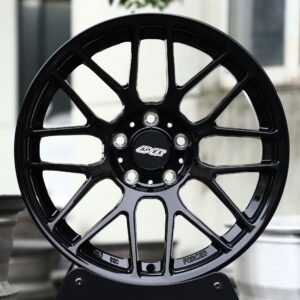

APEX ARC-8-Style ARC Gloss Black 8 Y-Spoke Forged Wheels - BMW M3 E46 / BMW 3 Series F30 Fitment (5-Lug)

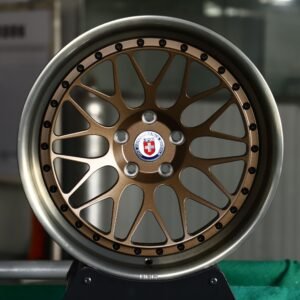

HRE Transparent Gray / Bronze / Silver 2-Piece Deep Lip Forged Wheels - Porsche 911 / BMW M3 G80 Fitment (5-Lug)Get a quote for Opel Mokka wheels
Vehicles With the Same Hub as the Opel Mokka (5x105, 56.6 mm Bore)
In our database, 33 other vehicle entries from 3 makes use exactly the same 5x105 bolt pattern and 56.6 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x105 is used by 0.6% of the vehicle entries in our database (37 of 6,503); 100.0% of those also use a 56.6 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 18x7J | ET38 | 5.50 in (140 mm) | — | — |
| Flush | 19x8J | ET30 | 5.68 in (144 mm) | +5 mm | +21 mm |
| Maximum | 20x8.5J | ET25 | 5.73 in (146 mm) | +6 mm | +32 mm |
Hub-Centric Rings for a 56.6 mm Center Bore
A wheel with a center bore larger than 56.6 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 57.1 mm | 57.1 → 56.6 mm |
| 60.1 mm | 60.1 → 56.6 mm |
| 63.4 mm | 63.4 → 56.6 mm |
| 64.1 mm | 64.1 → 56.6 mm |
| 73.1 mm | 73.1 → 56.6 mm |
ANKUSI forged wheels are bored to exactly 56.6 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Opel Mokka take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x105 with a 56.6 mm center bore.
What is the factory wheel size of the Opel Mokka?
The factory size in our database is 18x7J ET38. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Opel Mokka flush?
We recommend 19x8J ET30 for a flush fit and 20x8.5J ET25 as the maximum. Check clearance before ordering.
