Deepal Wheel Fitment Guide
2 fitment guides for Deepal, covering 2023 to 2025, built around the 5x114.3 bolt pattern. Browse the full list below, then open a model for bolt pattern, center bore, OE offset, flush and max wheel sizes, and offset/backspacing conversions.
Deepal models: bolt pattern by model
Deepal Bolt Pattern & Center Bore Notes
Every Deepal model we currently cover uses the same 5x114.3 bolt pattern with a 60.1mm center bore. As we add more Deepal model years to this guide we will flag any generation that changes this here — always double-check the specific model page below since older or international-market versions can differ.
Offset and backspacing recommendations vary by trim even within the same bolt pattern, mainly due to differences in brake caliper size and suspension geometry between base and performance trims. Every ANKUSI wheel is forged to your exact target offset, so send us your Deepal model, year, and trim and we will confirm the correct spec before production — no guessing required.
How to check the bolt pattern on your Deepal
The most common Deepal fitment in our guide is 5x114.3 with a 60.1 mm center bore (2 of 2 model years we cover).
- Read the stamping on the back of an original wheel: size, offset (ET) and bolt pattern are usually cast into a spoke or the hub pad.
- No stamping? Measure center-to-center between two adjacent lug holes. For 5x114.3 that distance is 67.2 mm (PCD × sin(180° / 5)). A 2 mm difference already means a different bolt pattern.
- Match generation and year on the model pages below — the same nameplate can change bolt pattern or center bore between generations.
Changing width or offset? Check how far the wheel moves in or out with our offset & backspacing calculator.
Forged Wheels for Deepal
Forged-to-order wheel designs matched to Deepal bolt patterns. Every set is machined to your exact model, offset and center bore.

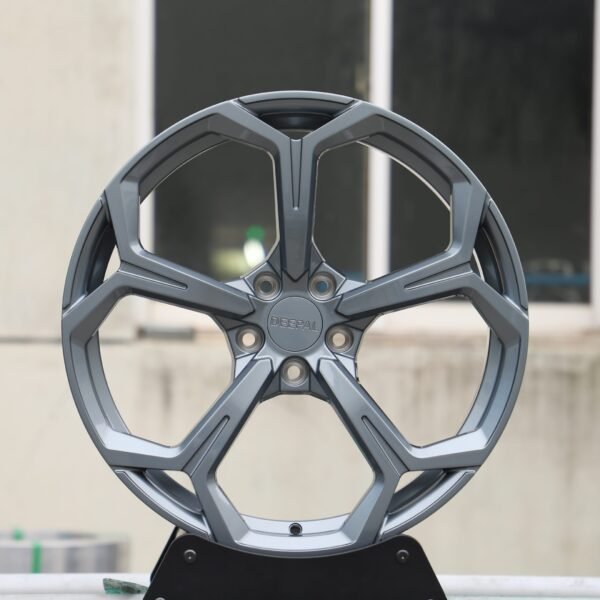

Deepal OEM-Style Metallic Gray 5 Y-Spoke Forged Wheels
Deepal S07 Fitment · 5-Lug
Vehicles Using 5x114.3 With a 60.1 mm Center Bore
In our database, 217 other vehicle entries from 18 makes use exactly the same 5x114.3 bolt pattern and 60.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.0% of the vehicle entries in our database (1,303 of 6,503); 16.7% of those also use a 60.1 mm center bore.
Hub-Centric Rings for a 60.1 mm Center Bore
A wheel with a center bore larger than 60.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 63.4 mm | 63.4 → 60.1 mm |
| 64.1 mm | 64.1 → 60.1 mm |
| 65.1 mm | 65.1 → 60.1 mm |
| 66.1 mm | 66.1 → 60.1 mm |
| 73.1 mm | 73.1 → 60.1 mm |
ANKUSI forged wheels are bored to exactly 60.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
