Buick Velite 5 Bolt Pattern, Center Bore & Wheel Offset (2017–2018)
Buick Velite 5 wheel fitment: 5x105 bolt pattern, 56.6mm center bore (2017–2018). OE wheel sizes and offsets for every Velite 5 variant we cover (2 guides), p
- 5x105bolt pattern (PCD)
- 56.6 mmcenter bore
- M12x1.5 Nutwheel bolt / nut
- 2 guidesmodel years 2017–2018
Buick Velite 5 wheel specs by year and trim
| Year | Model / trim | Bolt pattern | Center bore | OE wheel |
|---|---|---|---|---|
| 2018 | Buick Velite 5 | 5x105 | 56.6 mm | 17x7J |
| 2017 | Buick Velite 5 | 5x105 | 56.6 mm | 17x7J |
Factory wheel sizes on the Buick Velite 5
Across the 2 Buick Velite 5 trims with a documented factory wheel, the OE diameter is 17 inch, width 7J. A forged wheel that keeps the 5x105 bolt pattern and the 56.6 mm hub bore and matches the factory offset listed on the model page bolts on without spacers or hub rings. Going one inch up in diameter with a lower-profile tyre keeps the rolling circumference inside the usual 1.5% tolerance; every extra 0.5J of width moves the outer lip about 6 mm outward at the same offset, and each 5 mm less offset moves the whole wheel 5 mm outward.

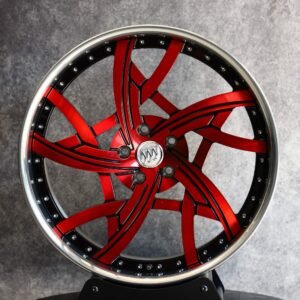

Forged wheels for the Buick Velite 5 (5x105)
Get a quote for Buick Velite 5 wheels
Vehicles With the Same Hub as the Buick Velite 5 (5x105, 56.6 mm Bore)
In our database, 21 other vehicle entries from 3 makes use exactly the same 5x105 bolt pattern and 56.6 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x105 is used by 0.6% of the vehicle entries in our database (37 of 6,396); 100.0% of those also use a 56.6 mm center bore.
Hub-Centric Rings for a 56.6 mm Center Bore
A wheel with a center bore larger than 56.6 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 57.1 mm | 57.1 → 56.6 mm |
| 60.1 mm | 60.1 → 56.6 mm |
| 63.4 mm | 63.4 → 56.6 mm |
| 64.1 mm | 64.1 → 56.6 mm |
| 73.1 mm | 73.1 → 56.6 mm |
ANKUSI forged wheels are bored to exactly 56.6 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
FAQ
What is the bolt pattern on a Buick Velite 5?
The Buick Velite 5 uses a 5x105 bolt pattern with a 56.6mm center bore across every Velite 5 variant in our database (2 guides, 2017–2018).
What is the Buick Velite 5 center bore?
The hub-centric center bore is 56.6 mm. Aftermarket wheels should match this bore or use hub-centric rings so the hub, not the bolts, carries the load.
Do all Buick Velite 5 years share the same wheel fitment?
The bolt pattern and center bore are the same across the years we cover, but OE wheel width and offset differ by trim, so check the exact model line before choosing an aftermarket size.
Which forged wheels fit the Buick Velite 5?
Any wheel drilled 5x105 with a 56.6mm hub bore in the offset range shown on the model guide. ANKUSI forges wheels to order for this exact specification, in 14–24 inch diameters, so no adapters or hub rings are needed.
