Fitting Toyota Century wheels? This page gives the 2024 Toyota Century bolt pattern (5x120), centre bore, factory rim size and the offset range for aftermarket and forged Toyota Century rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Forged wheels for Toyota Century — styles, sizes & factory quote →
Toyota Century (2024): 5x120 bolt pattern, 60.1mm center bore. Factory wheels: F/R: 20x8.5J at ET45 offset, front and rear. Reference fitment ranges.
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | F/R: 20x8.5J F/R |
| Flush Fitment | 20x9.5J at ET38 offset |
| Maximum Aggressive | 21x10.0J at ET35 offset |
Every design below is forged to order, so it can be machined to the Toyota Century's 5x120 bolt pattern and 60.1 mm center bore, with the width and offset calculated for your setup.

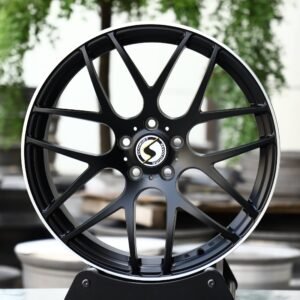

Deep Dish · Gloss Black

Replica · White

Monoblock · Brushed Silver

Concave · Brushed Silver

Monoblock · Gloss Black

Replica · Black Chrome

Replica · Light Gray

Monoblock · Bright Silver
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.


Most of the engineering value in a forged wheel over a cast one shows up in rotational mass, not outright strength — both can meet the same load rating, but the forged piece gets there lighter. On a sedan platform tuned for everyday balance, that weight saving is felt directly in steering response and ride quality.
The Toyota Century runs a 5x120 bolt pattern, 60.1mm center bore, and a 20x8.5J, front and rear, wheel from the factory. Our Flush Fitment reference is 20x9.5J ET38, which tucks the tire under the fender lip on a stock-height Toyota Century. Our Maximum Aggressive reference is 21x10.0J ET35 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
The 2024 Toyota Century (Ultra-Luxury Sedan) uses a 5x120 bolt pattern with a 60.1mm center bore. Factory wheels are F/R: 20x8.5J F/R.
Why the factory spec works for most owners:
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Toyota Century (2024) we drill the 5x120 pattern and cut the centre bore to 60.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Toyota spec, or want a wheel built to a custom offset for your Toyota Century? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
