2009-2015 Seat Ibiza Cupra Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Seat Ibiza Cupra wheels? This page gives the 2009-2015 Seat Ibiza Cupra bolt pattern (5x100), centre bore, factory rim size and the offset range for aftermarket and forged Seat Ibiza Cupra rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2009-2015 Seat Ibiza Cupra uses a 5x100 bolt pattern with a 57.1 mm centre bore and M14x1.5 lug bolts. Factory wheels: 17x7.0J at ET43, front and rear.
Forged wheels for the 2009-2015 Seat Ibiza Cupra — drilled 5x100 with a 57.1 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
Seat Ibiza Cupra (2009-2015): 5x100 bolt pattern, 57.1mm center bore. Factory wheels: 17x7.0J F/R at ET43. Aftermarket sizes confirmed on request.
Bolt Pattern5x100
Wheel Bolt/NutM14x1.5 Bolt
Center Bore57.1mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Year2009-2015
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Forged wheels for the Seat Ibiza CupraMachined to the 5x100 bolt pattern and 57.1 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Hot hatches and performance compacts are built around quick direction changes, so rotational mass at the wheel has an outsized effect on how the car feels to drive. Forging trims that mass while holding the same strength margin as the factory wheel.
The Seat Ibiza Cupra runs a 5x100 bolt pattern with a 57.1mm center bore from the factory. We haven't yet verified real-world Flush or Maximum Aggressive offset data for this exact generation from owner communities, so ANKUSI forges to this confirmed OE specification today — or to a wider custom offset once you tell us your target tire size and stance, rather than publishing invented aftermarket numbers.
Seat Ibiza Cupra OE Wheel Specs
The 2009-2015 Seat Ibiza Cupra (Hot Hatch) uses a 5x100 bolt pattern with a 57.1mm center bore. Factory wheels are 17x7.0J F/R at ET43.
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Seat Ibiza Cupra (2009-2015) we drill the 5x100 pattern and cut the centre bore to 57.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Aftermarket Fitment: Confirmed on Request
We are still verifying real-world Flush and Maximum Aggressive reference fitments for this exact generation from owner communities, so we are not publishing offset ranges yet rather than guessing. Contact ANKUSI now with your target look and tire size and we will confirm a custom-offset forged wheel build for your Seat Ibiza Cupra directly.
Custom Forged Wheels for the Seat Ibiza Cupra (2009-2015)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x100 pattern and the 57.1mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
We do not hold 5x100 wheels on a shelf — they are forged to order, which is why any offset, width and bore combination on this page is buildable rather than limited to a stock list.
Frequently Asked Questions
What bolt pattern (PCD) does the Seat Ibiza Cupra use?
The 2009-2015 Seat Ibiza Cupra uses a 5x100 bolt pattern.
What is the center bore size on the Seat Ibiza Cupra?
The center bore is 57.1mm. If an aftermarket wheel has a larger center bore, hub-centric rings are recommended.
What size are the factory wheels on the Seat Ibiza Cupra?
Factory wheels are 17x7.0J F/R at ET43.
Can I get a custom offset before your Flush/Max data is published?
Yes -- contact ANKUSI with your bolt pattern and target offset and we will confirm the correct forged wheel spec for your build now.
Vehicles With the Same Hub as the Seat Ibiza Cupra (5x100, 57.1 mm Bore)
In our database, 85 other vehicle entries from 11 makes use exactly the same 5x100 bolt pattern and 57.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x100 is used by 1.9% of the vehicle pages in our English fitment guide (124 of 6,503); 69.4% of those also use a 57.1 mm center bore.
Seat Ibiza Cupra: Specs by Model Year
| Year | Bolt pattern | Center bore | Factory wheel |
|---|---|---|---|
| 2002-2008 | 5x100 | 57.1 mm | 17x7J ET41 |
| 2009-2015 | 5x100 | 57.1 mm | 17x7J ET43 |
Bolt pattern and center bore stay the same across all 2 model years in our database (2002–2009).
Hub-Centric Rings for a 57.1 mm Center Bore
A wheel with a center bore larger than 57.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 60.1 mm | 60.1 → 57.1 mm |
| 63.4 mm | 63.4 → 57.1 mm |
| 64.1 mm | 64.1 → 57.1 mm |
| 65.1 mm | 65.1 → 57.1 mm |
| 73.1 mm | 73.1 → 57.1 mm |
ANKUSI forged wheels are bored to exactly 57.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 17x7 wheels · 17 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Seat Ibiza Cupra
Every design below is forged to order, so it can be machined to the Seat Ibiza Cupra's 5x100 bolt pattern and 57.1 mm center bore, with the width and offset calculated for your setup.

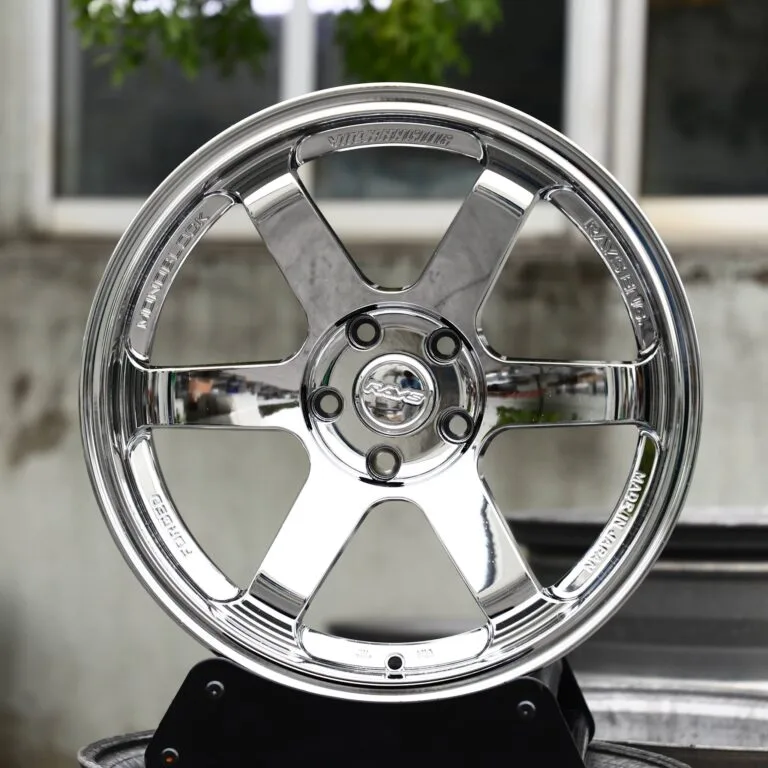

Rays-Style Chrome 6-Spoke Forged Wheels
Toyota GR86 / Subaru WRX Fitment · 5-Lug

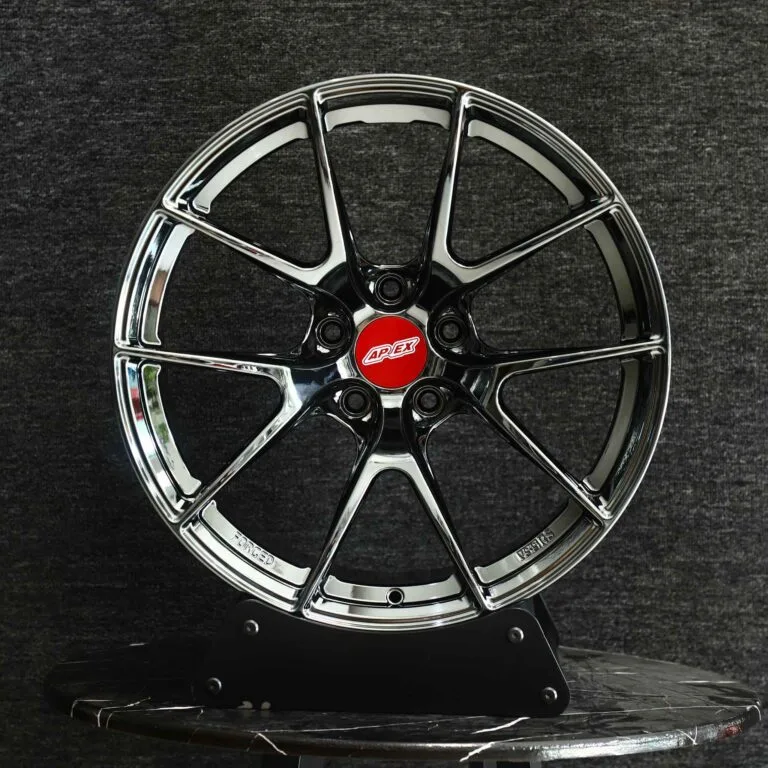

APEX-Style Black / Machined 5 Split-Spoke Forged Wheels
Toyota GR86 / BMW 3 Series F30 Fitment · 5-Lug

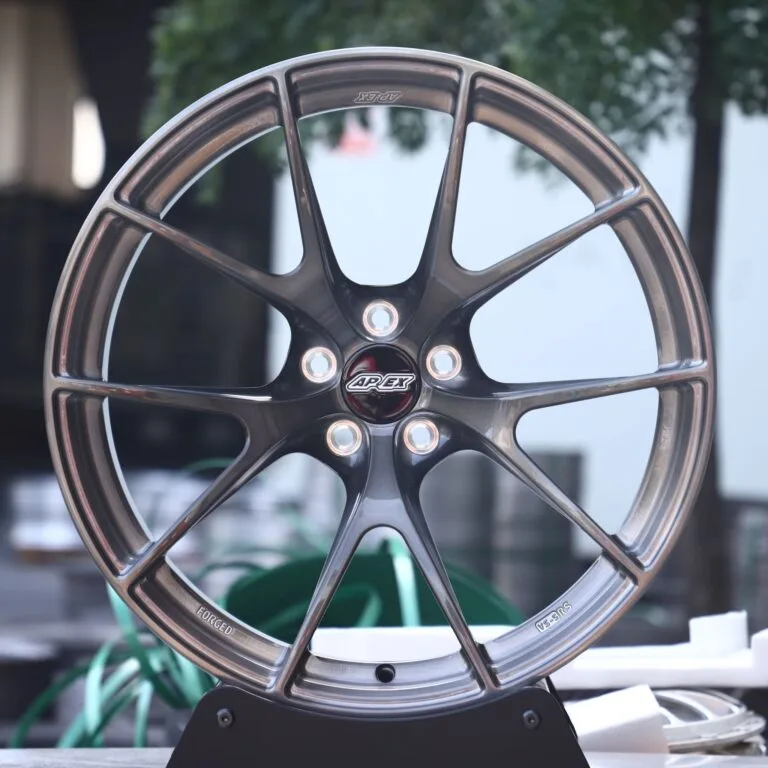

APEX VS-5RS-Style Transparent Gray 5 Y-Spoke Forged Wheels - Toyota GR86 / BMW 3 Series F30 Fitment (5-Lug)
APEX-Style forged wheels featuring the VS-5RS-style transparent gray 5 Y-spoke design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.
Rays-Style Gloss Black 5 Y-Spoke Side-Milled Forged Wheels
Nissan 370Z / Toyota GR86 Fitment · 5-Lug

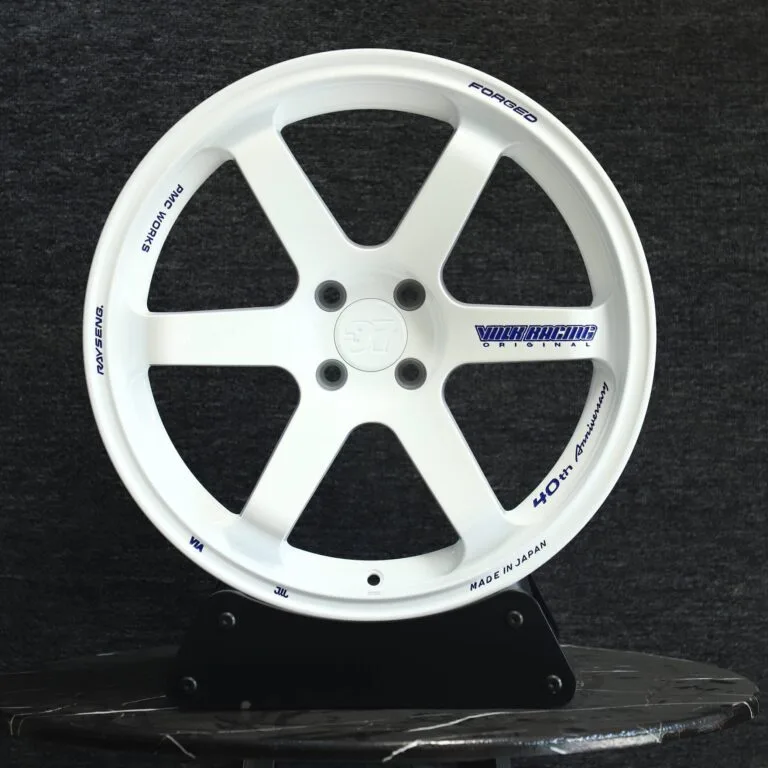

Rays TE37-Style Gloss White 6-Spoke Forged Wheels - Toyota GR86 / Subaru WRX Fitment (5-Lug)
