2013 Porsche Cayenne S Diesel Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Porsche Cayenne S Diesel wheels? This page gives the 2013 Porsche Cayenne S Diesel bolt pattern (5x130), centre bore, factory rim size and the offset range for aftermarket and forged Porsche Cayenne S Diesel rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Porsche Cayenne S Diesel (2013): 5x130 bolt pattern, 71.6mm center bore. Factory wheels: 20x9J F/R. Reference fitment ranges.
Bolt Pattern5x130
Wheel Bolt/NutM14x1.5 Bolt
Center Bore71.6mm
Wheel Load Rating900–1250 kg/wheel (SUV segment reference)
Caliper TypeFixed 6-piston front caliper (OEM, Porsche)
Year2013
CategorySUV
✓ Verified by ANKUSI's Engineering Team — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 20x9J F/R |
| Flush Fitment | F 21x9.5J ET50 / R 21x9.5J ET50 |
| Maximum Aggressive | F 22x10.5J ET45 / R 22x10.5J ET45 |
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
On a vehicle this heavy, the wheel is a structural part before it is a styling part - it carries the load, the brake heat and the cornering forces all at once. A forged wheel buys back unsprung weight without giving up the load rating an SUV actually needs, which is the one number most cast aftermarket wheels quietly fall short on.
The Porsche Cayenne S Diesel runs a 5x130 fitment, 71.6mm center bore, and a F: 20x9J wheel from the factory. Our Flush Fitment reference is F 21x9.5J ET50 / R 21x9.5J ET50, which tucks the tire under the fender lip on a stock-height Porsche Cayenne S Diesel. Our Maximum Aggressive reference is F 22x10.5J ET45 / R 22x10.5J ET45 - beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Porsche Cayenne S Diesel OE Wheel Specs
The 2013 Porsche Cayenne S Diesel (SUV) uses a 5x130 bolt pattern with a 71.6mm center bore. Factory wheels are 20x9J F/R.
Why the factory spec works for most owners:
- Keeps unsprung weight low to preserve the factory handling balance
- Matches the wider, performance-oriented tire sizing typical of this platform
- Maintains clearance for the factory brake package and suspension geometry
- Balances grip with ride comfort for daily and spirited driving
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Porsche Cayenne S Diesel (2013) we drill the 5x130 pattern and cut the centre bore to 71.6mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 6,436 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, F 21x9.5J ET50 / R 21x9.5J ET50 is the recommended starting point on a stock or mildly lowered Porsche Cayenne S Diesel.
Maximum Aggressive Fitment
F 22x10.5J ET45 / R 22x10.5J ET45 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
Real-World Fitment Notes
real 958 builds run Vossen VFS/HF-series, HRE, or Vorsteiner V-FF concave 22s on air-suspension lowering module or lowering links; 5x130 71.6 hubcentric spacers standard verified at 958 platform level (Cayenne/S/Diesel share hubs & arches); use load-rated wheels for SUV weight
5-Tier Configuration Options
A Factory-Style F 20x9.0J ET50 / R 20x9.0J ET50
Recommended setup: F 20x9.0J ET50 / R 20x9.0J ET50 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $450-800 (wheels + tires + install)
B Comfortable Upgrade F 21x9.5J ET50 / R 21x9.5J ET50
Recommended setup: F 21x9.5J ET50 / R 21x9.5J ET50 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit F 21x9.5J ET50 / R 21x9.5J ET50
Recommended setup: F 21x9.5J ET50 / R 21x9.5J ET50 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive F 22x10.0J ET48 / R 22x10.0J ET48
Recommended setup: F 22x10.0J ET48 / R 22x10.0J ET48 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive F 22x10.5J ET45 / R 22x10.5J ET45
Recommended setup: F 22x10.5J ET45 / R 22x10.5J ET45 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | F 20x9.0J ET50 / R 20x9.0J ET50 | F 21x9.5J ET50 / R 21x9.5J ET50 | F 21x9.5J ET50 / R 21x9.5J ET50 | F 22x10.0J ET48 / R 22x10.0J ET48 | F 22x10.5J ET45 / R 22x10.5J ET45 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $450-800 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: F 20x9.0J ET50 / R 20x9.0J ET50
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: F 21x9.5J ET50 / R 21x9.5J ET50
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: F 22x10.5J ET45 / R 22x10.5J ET45
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Porsche Cayenne S Diesel owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: F 20x9J ET50 → ~6.97″ F backspacing, R 20x9J ET50 → ~6.97″ R backspacing
- Flush: F 21x9.5J ET50 → ~7.22″ F backspacing, R 21x9.5J ET50 → ~7.22″ R backspacing
- Max: F 22x10.5J ET45 → ~7.52″ F backspacing, R 22x10.5J ET45 → ~7.52″ R backspacing
A Note on Clearance
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Porsche spec, or want a wheel built to a custom offset for your Porsche Cayenne S Diesel? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Porsche Cayenne S Diesel (2013)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x130 pattern and the 71.6mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
Designs we already tool for the 5x130 pattern — each one is re-cut to your sizes and offsets:
iCar OEM-Style Matte Silver Full-Face Forged Wheels – Porsche 911 / M3 Fitment (5-Lug) – Design 6
Porsche 911 / BMW M3 Forged Wheels – Gloss White 5-Spoke
HRE 522M-Style Polished Silver 5-Spoke Directional Forged Wheels – Porsche Cayenne / Porsche 911 Fitment (5-Lug)
Porsche 911 / BMW M3 Forged Wheels – Matte Silver 5-Spoke Deep LipFrequently Asked Questions
What bolt pattern (PCD) does the Porsche Cayenne S Diesel use?
The 2013 Porsche Cayenne S Diesel uses a 5x130 bolt pattern.
How many lug bolts does the Porsche Cayenne S Diesel use?
The Porsche Cayenne S Diesel uses a 5-lug bolt pattern (5x130), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Porsche Cayenne S Diesel?
The Porsche Cayenne S Diesel's center bore is 71.6mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Porsche Cayenne S Diesel?
Factory wheels on the Porsche Cayenne S Diesel are 20x9J F/R.
What is the biggest wheel size I can fit on my Porsche Cayenne S Diesel without rubbing?
The most aggressive fitment we recommend without fender work is F 22x10.5J ET45 / R 22x10.5J ET45. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Porsche Cayenne S Diesel?
For a flush look with minimal to no rubbing, we recommend F 21x9.5J ET50 / R 21x9.5J ET50 as a starting point on a stock or mildly lowered Porsche Cayenne S Diesel.
Do I need wheel spacers for my Porsche Cayenne S Diesel?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Porsche Cayenne S Diesel?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 7.22" backspacing up front and 7.22" in the rear.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Porsche Cayenne S Diesel?
Yes — the Porsche Cayenne S Diesel's factory and our recommended flush/max fitments already use staggered sizing (different width front and rear), and ANKUSI can forge matching staggered sets to your target offsets.
Forged Wheel Designs for the Porsche Cayenne S Diesel
Every design below is forged to order, so it can be machined to the Porsche Cayenne S Diesel's 5x130 bolt pattern and 71.6 mm center bore, with the width and offset calculated for your setup.

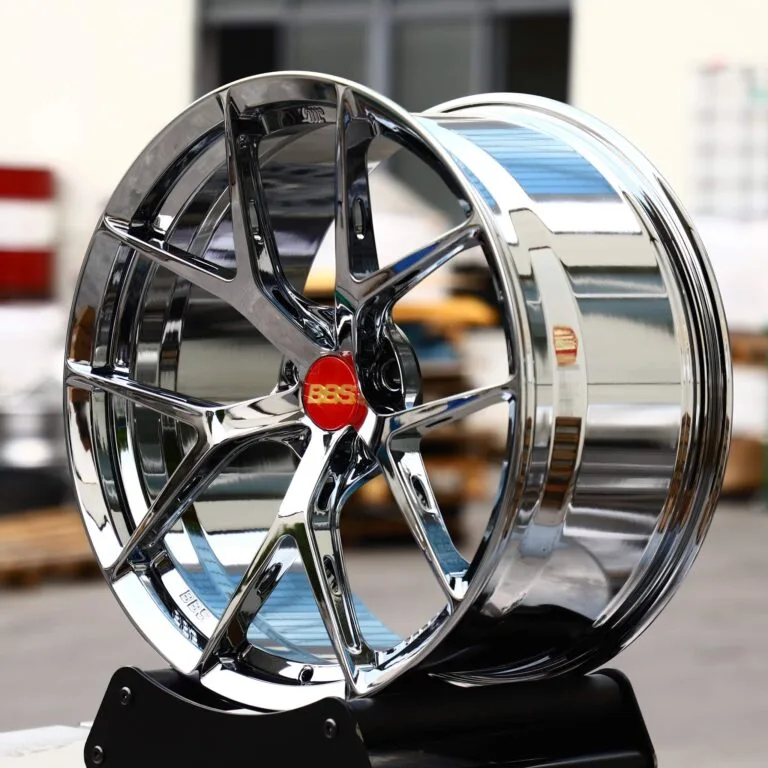

BBS Chrome 5-Spoke Deep Lip 2-Piece Forged Wheels
BMW M3 G80 / Porsche 911 Fitment · 5-Lug
Porsche 911 / BMW M3 Forged Wheels
Transparent Copper 2-Piece Deep Lip

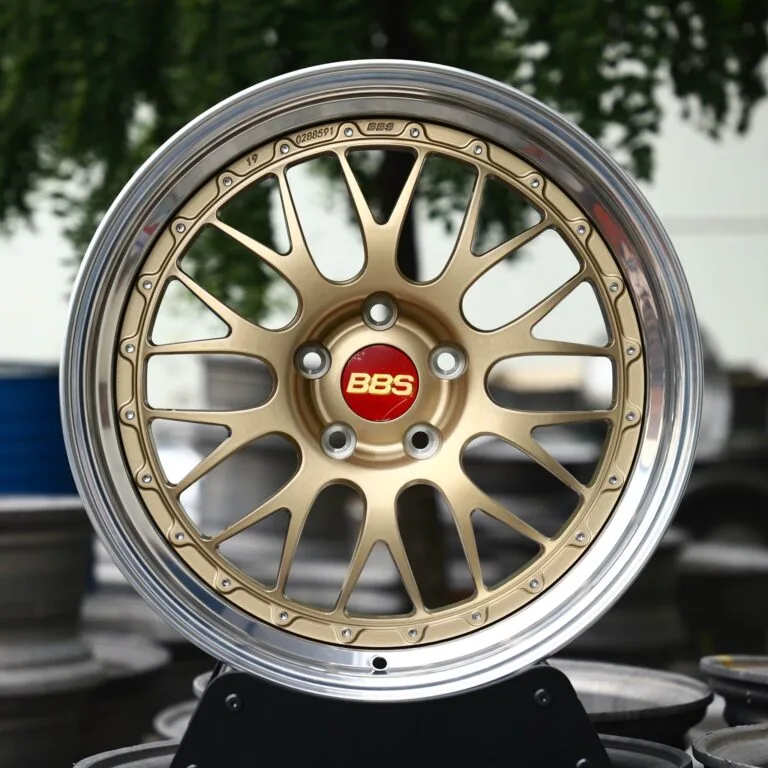

BBS LM-Style Gold 2-Piece Deep Lip Forged Wheels
