1997-2001 Honda Prelude Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Honda Prelude wheels? This page gives the 1997-2001 Honda Prelude bolt pattern (5x114.3), centre bore, factory rim size and the offset range for aftermarket and forged Honda Prelude rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 1997-2001 Honda Prelude uses a 5x114.3 bolt pattern with a 64.1 mm centre bore and M12x1.5 lug nuts. Factory wheels: 16x6.5J ET55, front and rear. For aftermarket wheels, 18x8.5J ET32 sits flush and 17x9.0J ET30 is the most aggressive fit.
Forged wheels for the 1997-2001 Honda Prelude — drilled 5x114.3 with a 64.1 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
Honda Prelude (1997-2001): 5x114.3 bolt pattern, 64.1mm center bore. Factory wheels: 16x6.5J at ET55 offset, front and rear. Reference fitment ranges.
Bolt Pattern5x114.3
Wheel Bolt/NutM12x1.5 Nut
Center Bore64.1mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Year1997-2001
CategorySedan
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 16x6.5J F/R |
| Flush Fitment | 18x8.5J at ET32 offset |
| Maximum Aggressive | 17x9.0J at ET30 offset |
Forged wheels for the Honda PreludeMachined to the 5x114.3 bolt pattern and 64.1 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
A sedan's wheel spec is a balance point the factory tuned between ride comfort, steering feel, and everyday durability. Forging lets us hold that same structural margin while cutting rotational mass, which is where most of the real-world benefit — quicker steering response, marginally better ride — actually comes from.
The Honda Prelude runs a 5x114.3 bolt pattern, 64.1mm center bore, and a 16x6.5J, front and rear, wheel from the factory. Our Flush Fitment reference is 18x8.5J ET32, which tucks the tire under the fender lip on a stock-height Honda Prelude. Our Maximum Aggressive reference is 17x9.0J ET30 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Honda Prelude OE Wheel Specs
Correction (19 Sep 2026): model-year range corrected from 1997-2008 to 1997-2001. Fifth-generation Prelude production ended with the 2001 model year.
The 1997-2001 Honda Prelude (Sedan) uses a 5x114.3 bolt pattern with a 64.1mm center bore. Factory wheels are 16x6.5J F/R.
Why the factory spec works for most owners:
- Balances ride comfort with everyday fuel efficiency
- A widely used size in this segment, so tire and wheel availability stays strong
- Keeps unsprung weight low for stable, predictable handling
- Maintains clearance for the factory brake calipers and suspension components
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Honda Prelude (1997-2001) we drill the 5x114.3 pattern and cut the centre bore to 64.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look, F/R 18x8.5J ET32 is a commonly used starting point — clearance must be verified on a stock or mildly lowered Honda Prelude.
Maximum Aggressive Fitment
F/R 17x9.0J ET30 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
5-Tier Configuration Options
A
Factory-Style
16x6.5J ET55Recommended setup: 16x6.5J ET55 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B
Comfortable Upgrade
17x7.5J ET44Recommended setup: 17x7.5J ET44 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C
Balanced / Flush Fit
18x8.5J ET32Recommended setup: 18x8.5J ET32 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D
Aggressive
18x9.0J ET31Recommended setup: 18x9.0J ET31 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E
Max Aggressive
17x9.0J ET30Recommended setup: 17x9.0J ET30 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 16x6.5J ET55 | 17x7.5J ET44 | 18x8.5J ET32 | 18x9.0J ET31 | 17x9.0J ET30 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 16x6.5J ET55
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 18x8.5J ET32
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 17x9.0J ET30
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Honda Prelude owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: 16x6.5J ET55 → ~5.92″ backspacing
- Flush: 18x8.5J ET32 → ~6.01″ backspacing
- Max: 17x9.0J ET30 → ~6.18″ backspacing
A Note on Clearance
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Honda spec, or want a wheel built to a custom offset for your Honda Prelude? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Honda Prelude (1997-2001)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x114.3 pattern and the 64.1mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Honda orders on this platform land somewhere between the 18x8.5J ET32 flush setup and the 17x9.0J ET30 aggressive setup referenced above.
Designs we already tool for the 5x114.3 pattern — each one is re-cut to your sizes and offsets:
Rays-Style Candy Blue 10-Spoke Forged Wheels – Honda Civic Type R / Subaru WRX Fitment (5-Lug)
Honda Civic / Accord Forged Wheels – Matte Silver Directional Milled Machined Face
Advan Racing GT-Style White 5-Spoke Forged Wheels – Toyota GR86 / Honda Civic Type R Fitment (5-Lug)
Honda OEM-Style Gloss White Custom Forged Wheels – Honda Civic / Accord Fitment (5-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the Honda Prelude use?
The 1997-2001 Honda Prelude uses a 5x114.3 bolt pattern.
How many lug bolts does the Honda Prelude use?
The Honda Prelude uses a 5-lug bolt pattern (5x114.3), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Honda Prelude?
The Honda Prelude's center bore is 64.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Honda Prelude?
Factory wheels on the Honda Prelude are 16x6.5J F/R.
What is the biggest wheel size I can fit on my Honda Prelude without rubbing?
The most aggressive fitment we recommend without fender work is 17x9.0J at ET30 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Honda Prelude?
For a flush look with minimal to no rubbing, we recommend 18x8.5J at ET32 offset as a starting point on a stock or mildly lowered Honda Prelude.
Do I need wheel spacers for my Honda Prelude?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Honda Prelude?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 6.01" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Honda Prelude?
The Honda Prelude runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Vehicles With the Same Hub as the Honda Prelude (5x114.3, 64.1 mm Bore)
In our database, 36 other vehicle entries from 7 makes use exactly the same 5x114.3 bolt pattern and 64.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.0% of the vehicle pages in our English fitment guide (1,300 of 6,503); 2.8% of those also use a 64.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 16x6.5J | ET55 | 5.92 in (150 mm) | — | — |
| Flush | 18x8.5J | ET32 | 6.01 in (153 mm) | +2 mm | +48 mm |
| Maximum | 17x9J | ET30 | 6.18 in (157 mm) | +7 mm | +57 mm |
Hub-Centric Rings for a 64.1 mm Center Bore
A wheel with a center bore larger than 64.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 65.1 mm | 65.1 → 64.1 mm |
| 66.1 mm | 66.1 → 64.1 mm |
| 66.6 mm | 66.6 → 64.1 mm |
| 67.1 mm | 67.1 → 64.1 mm |
| 73.1 mm | 73.1 → 64.1 mm |
ANKUSI forged wheels are bored to exactly 64.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 16x6.5 wheels · 16 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Honda Prelude
Every design below is forged to order, so it can be machined to the Honda Prelude's 5x114.3 bolt pattern and 64.1 mm center bore, with the width and offset calculated for your setup.
BBS-Style Brushed Silver 5 Split-Spoke Forged Wheels
BMW M3 G80 / Honda Civic Type R Fitment · 5-Lug
Honda OEM-Style Gloss White Custom Forged Wheels
Honda Civic / Accord Fitment · 5-Lug
Honda Civic / Mazda MX-5 Forged Wheels
Polished Silver 6-Spoke Deep Lip · 5-Lug
Honda Civic / Toyota Corolla Forged Wheels
Matte Black 7 Y-Spoke
ADVAN RACING GT-Style Gloss White 5-Spoke Forged Wheels
Honda Civic Type R Fitment · 18-20in, 5x120
CCW-Style 2-Piece Gloss Black Mesh Riveted Polished Lip Forged Wheels
Honda Civic / Accord Fitment · 5-Lug

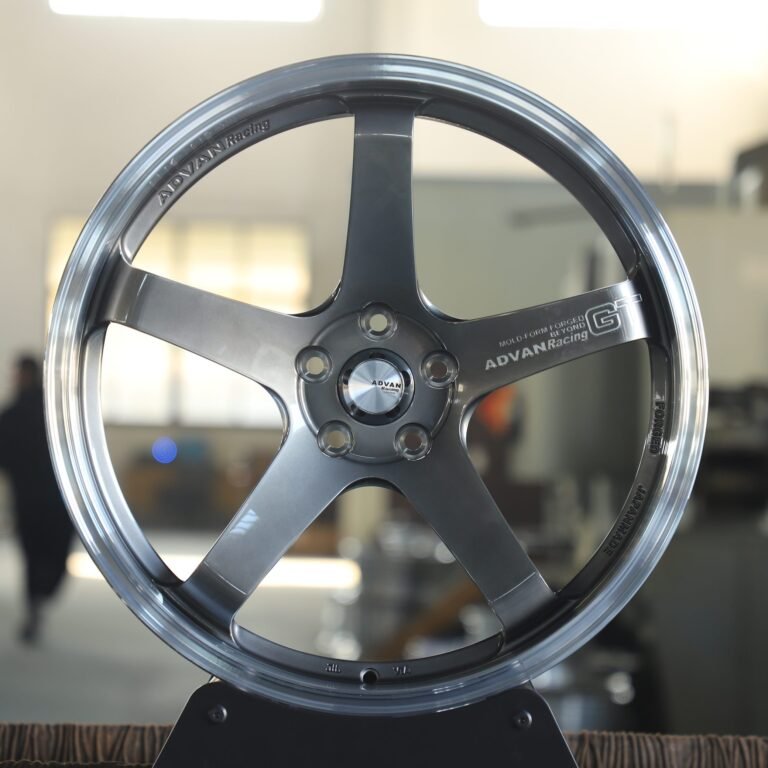

Advan-Style Gunmetal / Polished 5-Spoke Deep-Lip Forged Wheels
