2025 Honda HR-V Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Honda HR-V wheels? This page gives the 2025 Honda HR-V bolt pattern (5x114.3), centre bore, factory rim size and the offset range for aftermarket and forged Honda HR-V rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2025 Honda HR-V uses a 5x114.3 bolt pattern with a 64.1 mm centre bore and M12x1.5 lug thread. Factory wheels: 17x6.5J at ET50, front and rear. For aftermarket wheels, 17x7J ET45 sits flush and 18x7.5J ET40 is the most aggressive fit.
Forged wheels for the 2025 Honda HR-V — drilled 5x114.3 with a 64.1 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
Honda HR-V (2025): 5x114.3 bolt pattern, 64.1mm center bore. Factory wheels: 17x6.5J at ET50 offset. Reference fitment ranges.
Bolt Pattern5x114.3
Wheel Bolt/NutM12x1.5 Lug Nut
Center Bore64.1mm
Wheel Load Rating800–950 kg/wheel (Crossover segment reference)
Caliper TypeFactory brake package (confirm clearance before ordering)
Year2025
CategoryCrossover
OE Wheel Size17x6.5J
OE OffsetET50
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed October 19, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 17x6.5J at ET50, front and rear |
| Flush Fitment | F 17x7J ET45 / R 17x7J ET45 |
| Maximum Aggressive | F 18x7.5J ET40 / R 18x7.5J ET40 |
Forged wheels for the Honda HR-VMachined to the 5x114.3 bolt pattern and 64.1 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
On a vehicle this heavy, the wheel is a structural part before it is a styling part - it carries the load, the brake heat and the cornering forces all at once. A forged wheel buys back unsprung weight without giving up the load rating an SUV actually needs, which is the one number most cast aftermarket wheels quietly fall short on.
The Honda HR-V runs a 5x114.3 bolt pattern, 64.1mm center bore, and a 17x6.5J ET50 wheel front and rear from the factory. Our Flush Fitment reference is F 17x7J ET45 / R 17x7J ET45, which tucks the tire under the fender lip on a stock-height Honda HR-V. Our Maximum Aggressive reference is F 18x7.5J ET40 / R 18x7.5J ET40 - beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Honda HR-V OE Wheel Specs
The 2025 Honda HR-V (Crossover) uses a 5x114.3 bolt pattern with a 64.1mm center bore. Factory wheels are 17x6.5J at ET50, front and rear.
Why the factory spec works for most owners:
- Supports the vehicle's curb weight and load capacity
- Preserves ground clearance for everyday and light off-road use
- Balances ride comfort with cargo and passenger stability
- Maintains clearance for the factory suspension travel and brake package
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Honda HR-V (2025) we drill the 5x114.3 pattern and cut the centre bore to 64.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, F 17x7J ET45 / R 17x7J ET45 is the recommended starting point on a stock or mildly lowered Honda HR-V.
Maximum Aggressive Fitment
F 18x7.5J ET40 / R 18x7.5J ET40 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
Real-World Fitment Notes
Third-generation HR-V sold in North America from the 2023 model year (built on the Civic platform). The earlier 2015-2022 HR-V shares the 5x114.3 / 64.1 mm hub but uses different factory wheel sizes.
5-Tier Configuration Options
A Factory-Style F 17x6.5J ET50 / R 17x6.5J ET50
Recommended setup: F 17x6.5J ET50 / R 17x6.5J ET50 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $450-800 (wheels + tires + install)
B Comfortable Upgrade F 17x7.0J ET48 / R 17x7.0J ET48
Recommended setup: F 17x7.0J ET48 / R 17x7.0J ET48 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit F 17x7.0J ET45 / R 17x7.0J ET45
Recommended setup: F 17x7.0J ET45 / R 17x7.0J ET45 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive F 18x7.5J ET43 / R 18x7.5J ET43
Recommended setup: F 18x7.5J ET43 / R 18x7.5J ET43 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive F 18x7.5J ET40 / R 18x7.5J ET40
Recommended setup: F 18x7.5J ET40 / R 18x7.5J ET40 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | F 17x6.5J ET50 / R 17x6.5J ET50 | F 17x7.0J ET48 / R 17x7.0J ET48 | F 17x7.0J ET45 / R 17x7.0J ET45 | F 18x7.5J ET43 / R 18x7.5J ET43 | F 18x7.5J ET40 / R 18x7.5J ET40 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $450-800 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: F 17x6.5J ET50 / R 17x6.5J ET50
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: F 17x7.0J ET45 / R 17x7.0J ET45
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: F 18x7.5J ET40 / R 18x7.5J ET40
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Honda HR-V owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: F 17x6.5J ET50 → ~5.72″ F backspacing, R 17x6.5J ET50 → ~5.72″ R backspacing
- Flush: F 17x7J ET45 → ~5.77″ F backspacing, R 17x7J ET45 → ~5.77″ R backspacing
- Max: F 18x7.5J ET40 → ~5.82″ F backspacing, R 18x7.5J ET40 → ~5.82″ R backspacing
A Note on Clearance
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Honda spec, or want a wheel built to a custom offset for your Honda HR-V? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Honda HR-V (2025)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x114.3 pattern and the 64.1mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
Designs we already tool for the 5x114.3 pattern — each one is re-cut to your sizes and offsets:
Rays-Style Candy Blue 10-Spoke Forged Wheels – Honda Civic Type R / Subaru WRX Fitment (5-Lug)
Honda Civic / Accord Forged Wheels – Matte Silver Directional Milled Machined Face
Advan Racing GT-Style White 5-Spoke Forged Wheels – Toyota GR86 / Honda Civic Type R Fitment (5-Lug)
Honda OEM-Style Gloss White Custom Forged Wheels – Honda Civic / Accord Fitment (5-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the Honda HR-V use?
The 2025 Honda HR-V uses a 5x114.3 bolt pattern.
How many lug bolts does the Honda HR-V use?
The Honda HR-V uses a 5-lug bolt pattern (5x114.3), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Honda HR-V?
The Honda HR-V's center bore is 64.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Honda HR-V?
Factory wheels on the Honda HR-V are 17x6.5J at ET50, front and rear.
What is the biggest wheel size I can fit on my Honda HR-V without rubbing?
The most aggressive fitment we recommend without fender work is F 18x7.5J ET40 / R 18x7.5J ET40. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Honda HR-V?
For a flush look with minimal to no rubbing, we recommend F 17x7J ET45 / R 17x7J ET45 as a starting point on a stock or mildly lowered Honda HR-V.
Do I need wheel spacers for my Honda HR-V?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Honda HR-V?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 5.77" backspacing up front and 5.77" in the rear.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Honda HR-V?
Yes — the Honda HR-V's factory and our recommended flush/max fitments already use staggered sizing (different width front and rear), and ANKUSI can forge matching staggered sets to your target offsets.
Forged Wheel Designs for the Honda HR-V
Every design below is forged to order, so it can be machined to the Honda HR-V's 5x114.3 bolt pattern and 64.1 mm center bore, with the width and offset calculated for your setup.

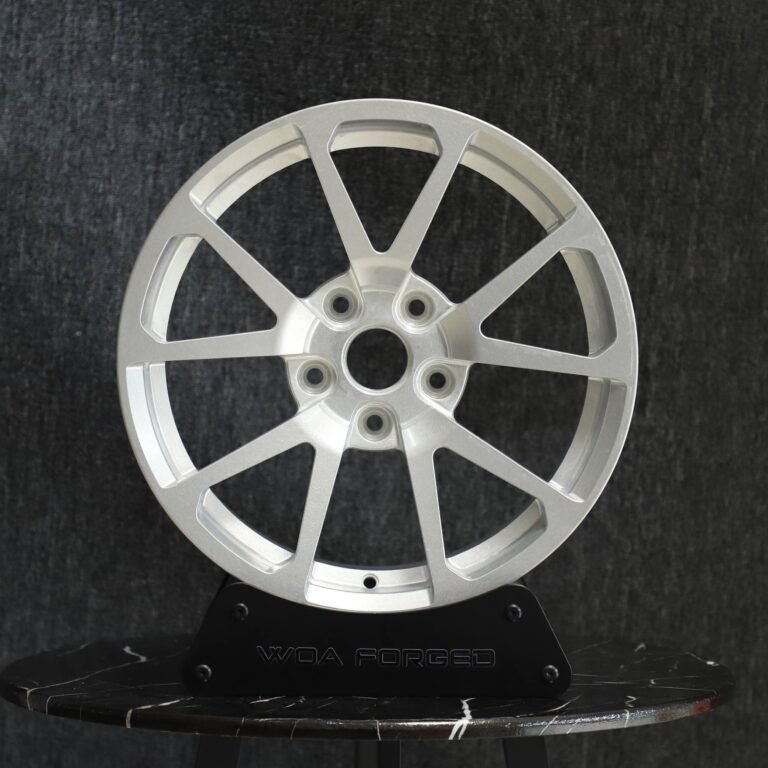

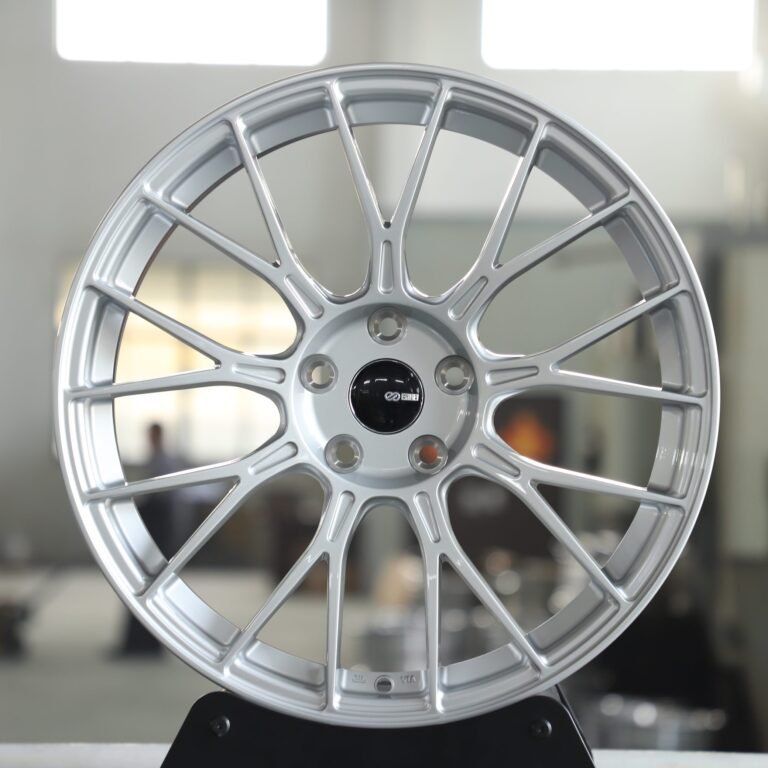

Toyota GR86 / Honda Civic Type R Forged Wheels
Bright Silver 9 Y-Spoke

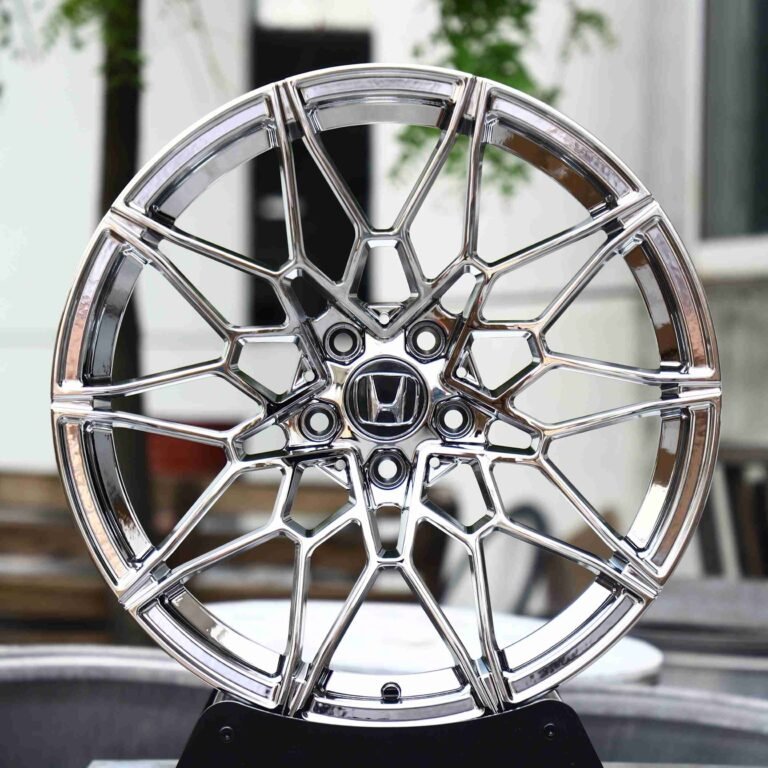

Honda OEM-Style Chrome Web-Mesh Forged Wheels
Honda Civic / Accord Fitment · 5-Lug
Honda OEM-Style Metallic Gray Directional Milled Forged Wheels
Honda Civic / Accord Fitment · 5-Lug
BBS-Style Gloss Black 5 Split-Spoke Forged Wheels
BMW M3 G80 / Honda Civic Type R Fitment · 5-Lug
BBS RI-D-Style Mirror Polished Silver 5 Y-Spoke Forged Wheels - BMW M3 G80 / Honda Civic Type R Fitment (5-Lug)
BBS-Style forged wheels featuring the RI-D-style mirror polished silver 5 Y-spoke design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.
Rays-Style Matte Gunmetal 10-Spoke Forged Wheels
Toyota Camry / Honda Accord Fitment · 5-Lug
Advan Racing GT-Style White 5-Spoke Forged Wheels
Toyota GR86 / Honda Civic Type R Fitment · 5-Lug
Bolt pattern and center bore on this page were cross-checked against at least two independent sources before publication. Last reviewed 2026-10-19. Spotted an error? Email info@ankusi.com and we will verify and correct it.
