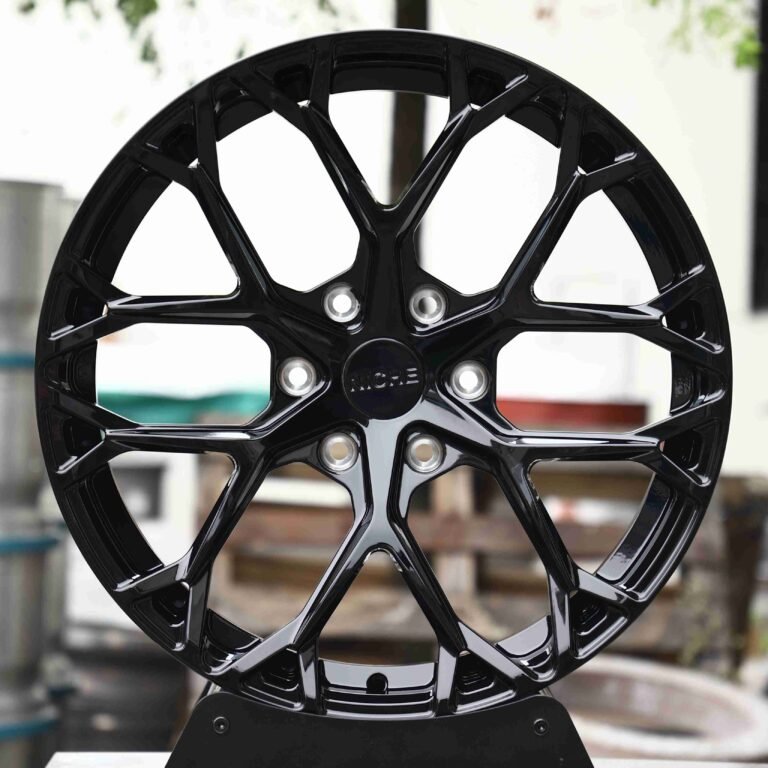

Niche-Style Gloss Black 12 Y-Spoke Forged Wheels
Ferrari 488 / R8 Fitment · 5-Lug
2004 Ferrari 612 Scaglietti Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Ferrari 612 Scaglietti wheels? This page gives the 2004 Ferrari 612 Scaglietti bolt pattern (5x114.3), centre bore, factory rim size and the offset range for aftermarket and forged Ferrari 612 Scaglietti rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Ferrari 612 Scaglietti (2004): 5x114.3 bolt pattern, 67.1mm center bore. Factory wheels: F: 18x8.0J R: 19x10.0J. Reference fitment ranges.
Bolt Pattern5x114.3
Wheel Bolt/NutM14x1.5 Bolt
Center Bore67.1mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Caliper TypeBrembo fixed multi-piston aluminum monoblock caliper (OEM, standard across Ferrari lineup)
Year2004
CategoryGran Tourer
✓ Verified by ANKUSI's Engineering Team — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | F: 18x8.0J R: 19x10.0J |
| Flush Fitment | F 18x8.5J ET40 / R 19x11.0J ET45 |
| Maximum Aggressive | F 19x9.0J ET35 / R 20x11.5J ET40 |
Forged wheels for the Ferrari 612 ScagliettiMachined to the 5x114.3 bolt pattern and 67.1 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Every gram of rotational mass on a supercar fights the acceleration, braking, and rotational inertia numbers the factory spent enormous engineering effort achieving. A forged wheel for the Ferrari 612 Scaglietti holds the OE strength rating at meaningfully less weight, which is a real, measurable performance gain rather than a cosmetic one.
The Ferrari 612 Scaglietti runs a 5x114.3 bolt pattern, 67.1mm center bore, and a F: 18x8.0J wheel from the factory. Our Flush Fitment reference is F 18x8.5J ET40 / R 19x11.0J ET45, which tucks the tire under the fender lip on a stock-height Ferrari 612 Scaglietti. Our Maximum Aggressive reference is F 19x9.0J ET35 / R 20x11.5J ET40 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Ferrari 612 Scaglietti OE Wheel Specs
The 2004 Ferrari 612 Scaglietti (Gran Tourer) uses a 5x114.3 bolt pattern with a 67.1mm center bore. Factory wheels are F: 18x8.0J R: 19x10.0J.
Why the factory spec works for most owners:
- Balances ride comfort with everyday drivability
- A commonly used size for this vehicle class, supporting parts and tire availability
- Maintains clearance for the factory suspension and brake components
- Provides stable, predictable handling across normal driving conditions
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Ferrari 612 Scaglietti (2004) we drill the 5x114.3 pattern and cut the centre bore to 67.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 6,436 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, F 18x8.5J ET40 / R 19x11.0J ET45 is the recommended starting point on a stock or mildly lowered Ferrari 612 Scaglietti.
Maximum Aggressive Fitment
F 19x9.0J ET35 / R 20x11.5J ET40 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
5-Tier Configuration Options
A Factory-Style F 18x8.0J ET47 / R 19x10.0J ET52
Recommended setup: F 18x8.0J ET47 / R 19x10.0J ET52 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B Comfortable Upgrade F 18x8.5J ET44 / R 19x10.5J ET49
Recommended setup: F 18x8.5J ET44 / R 19x10.5J ET49 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit F 18x8.5J ET40 / R 19x11.0J ET45
Recommended setup: F 18x8.5J ET40 / R 19x11.0J ET45 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive F 19x9.0J ET38 / R 20x11.5J ET43
Recommended setup: F 19x9.0J ET38 / R 20x11.5J ET43 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive F 19x9.0J ET35 / R 20x11.5J ET40
Recommended setup: F 19x9.0J ET35 / R 20x11.5J ET40 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | F 18x8.0J ET47 / R 19x10.0J ET52 | F 18x8.5J ET44 / R 19x10.5J ET49 | F 18x8.5J ET40 / R 19x11.0J ET45 | F 19x9.0J ET38 / R 20x11.5J ET43 | F 19x9.0J ET35 / R 20x11.5J ET40 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: F 18x8.0J ET47 / R 19x10.0J ET52
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: F 18x8.5J ET40 / R 19x11.0J ET45
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: F 19x9.0J ET35 / R 20x11.5J ET40
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Ferrari 612 Scaglietti owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: F 18x8.0J ET47.7 → ~6.38″ F backspacing, R 19x10.0J ET52.8 → ~7.58″ R backspacing
- Flush: F 18x8.5J ET40 → ~6.32″ F backspacing, R 19x11.0J ET45 → ~7.77″ R backspacing
- Max: F 19x9.0J ET35 → ~6.38″ F backspacing, R 20x11.5J ET40 → ~7.82″ R backspacing
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Ferrari spec, or want a wheel built to a custom offset for your Ferrari 612 Scaglietti? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Ferrari 612 Scaglietti (2004)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x114.3 pattern and the 67.1mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
Designs we already tool for the 5x114.3 pattern — each one is re-cut to your sizes and offsets:
Frequently Asked Questions
What bolt pattern (PCD) does the Ferrari 612 Scaglietti use?
The 2004 Ferrari 612 Scaglietti uses a 5x114.3 bolt pattern.
How many lug bolts does the Ferrari 612 Scaglietti use?
The Ferrari 612 Scaglietti uses a 5-lug bolt pattern (5x114.3), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Ferrari 612 Scaglietti?
The Ferrari 612 Scaglietti's center bore is 67.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Ferrari 612 Scaglietti?
Factory wheels on the Ferrari 612 Scaglietti are F: 18x8.0J R: 19x10.0J.
What is the biggest wheel size I can fit on my Ferrari 612 Scaglietti without rubbing?
The most aggressive fitment we recommend without fender work is F 19x9.0J ET35 / R 20x11.5J ET40. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Ferrari 612 Scaglietti?
For a flush look with minimal to no rubbing, we recommend F 18x8.5J ET40 / R 19x11.0J ET45 as a starting point on a stock or mildly lowered Ferrari 612 Scaglietti.
Do I need wheel spacers for my Ferrari 612 Scaglietti?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Ferrari 612 Scaglietti?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 6.32" backspacing up front and 7.77" in the rear.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Ferrari 612 Scaglietti?
Yes — the Ferrari 612 Scaglietti's factory and our recommended flush/max fitments already use staggered sizing (different width front and rear), and ANKUSI can forge matching staggered sets to your target offsets.
Vehicles With the Same Hub as the Ferrari 612 Scaglietti (5x114.3, 67.1 mm Bore)
In our database, 448 other vehicle entries from 26 makes use exactly the same 5x114.3 bolt pattern and 67.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.1% of the vehicle entries in our database (1,284 of 6,396); 35.0% of those also use a 67.1 mm center bore.
Ferrari 612 Scaglietti: Specs by Model Year
| Year | Bolt pattern | Center bore | Factory wheel |
|---|---|---|---|
| 2004 | 5x114.3 | 67.1 mm | 18x8J |
| 2006 | 5x114.3 | 67.1 mm | 19x8J |
Bolt pattern and center bore stay the same across all 2 model years in our database (2004–2006).
Hub-Centric Rings for a 67.1 mm Center Bore
A wheel with a center bore larger than 67.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 70.1 mm | 70.1 → 67.1 mm |
| 70.5 mm | 70.5 → 67.1 mm |
| 71.6 mm | 71.6 → 67.1 mm |
| 72.6 mm | 72.6 → 67.1 mm |
| 73.1 mm | 73.1 → 67.1 mm |
ANKUSI forged wheels are bored to exactly 67.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 18x8 wheels · 18 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Ferrari 612 Scaglietti
Every design below is forged to order, so it can be machined to the Ferrari 612 Scaglietti's 5x114.3 bolt pattern and 67.1 mm center bore, with the width and offset calculated for your setup.

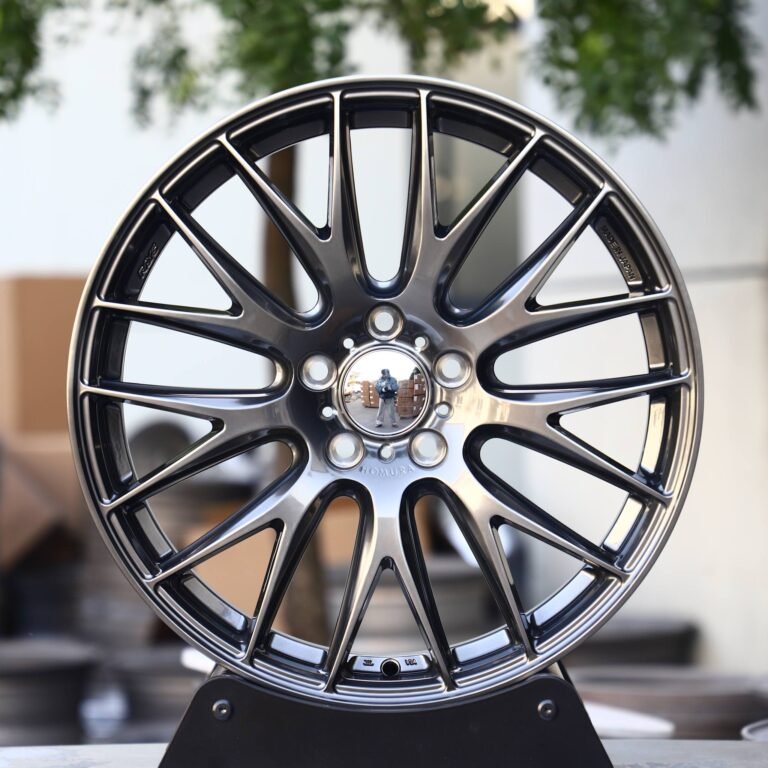

Ferrari 488 / Audi R8 Forged Wheels
Metallic Gray 9 Y-Spoke
Honda Civic / Mazda MX-5 Forged Wheels
Polished Silver 6-Spoke Deep Lip · 5-Lug

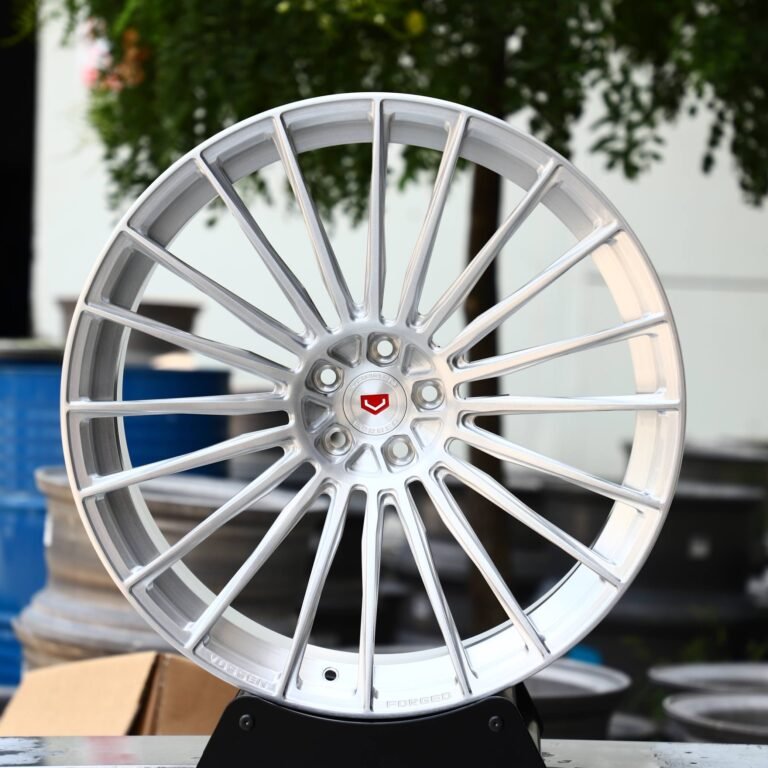

Vossen HF-7-Style Brushed Silver Multi-Spoke Forged Wheels - Tesla Model Y / Tesla Model 3 Fitment (5-Lug)
Vossen-Style forged wheels featuring the HF-7-style brushed silver multi-spoke design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.
HRE-Style Brushed Silver Web-Mesh Forged Wheels
Ferrari 488 / Audi R8 Fitment · 5-Lug
HRE P200-Style Gloss Black 10 Y-Spoke Mesh Forged Wheels - Ferrari 488 / Audi R8 Fitment (5-Lug)
HRE-Style forged wheels featuring the gloss black 10 Y-spoke mesh design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.
Mansory Matte Silver Forged Wheels - Mercedes-Benz S-Class / Ferrari 488 Fitment (5-Lug)
Mansory-Style forged wheels featuring the matte silver design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

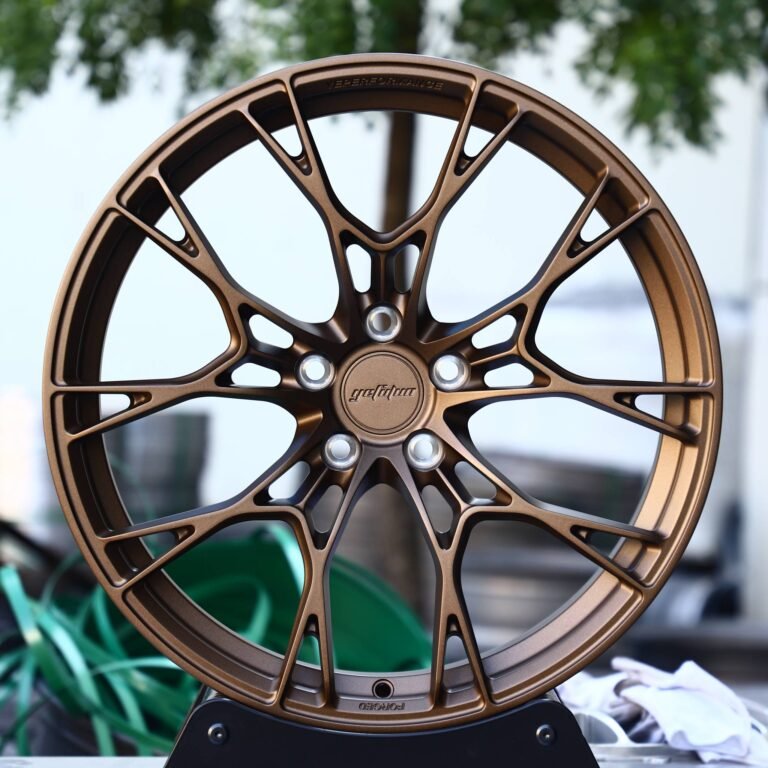

Ferrari 488 / Audi R8 Forged Wheels
