2017 Chevrolet Sonic Sedan Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Chevrolet Sonic Sedan wheels? This page gives the 2017 Chevrolet Sonic Sedan bolt pattern (5x105), centre bore, factory rim size and the offset range for aftermarket and forged Chevrolet Sonic Sedan rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Chevrolet Sonic Sedan (2017): 5x105 bolt pattern, 56.6mm center bore. Factory wheels: 17x6.5J F/R. Reference fitment ranges.
Bolt Pattern5x105
Wheel Bolt/NutM12x1.5 Nut
Center Bore56.6mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Year2017
CategorySedan
✓ Verified by ANKUSI's Engineering Team — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 17x6.5J F/R |
| Flush Fitment | 18x7.5J at ET30 offset |
| Maximum Aggressive | 19x8.0J at ET28 offset |
Forged wheels for the Chevrolet Sonic SedanMachined to the 5x105 bolt pattern and 56.6 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
The Chevrolet Sonic Sedan's factory wheel spec reflects a deliberate balance between comfort, steering feel and durability that the engineering team tuned for. Forging lets ANKUSI match that same strength target while trimming rotational mass — the part of a wheel upgrade that actually changes how the car drives, not just how it looks.
The Chevrolet Sonic Sedan runs a 5x105 bolt pattern, 56.6mm center bore, and a 17x6.5J, front and rear, wheel from the factory. Our Flush Fitment reference is 18x7.5J ET30, which tucks the tire under the fender lip on a stock-height Chevrolet Sonic Sedan. Our Maximum Aggressive reference is 19x8.0J ET28 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Chevrolet Sonic Sedan OE Wheel Specs
The 2017 Chevrolet Sonic Sedan (Sedan) uses a 5x105 bolt pattern with a 56.6mm center bore. Factory wheels are 17x6.5J F/R.
Why the factory spec works for most owners:
- Keeps the factory ride quality and noise levels intact
- A common fitment for this class, so replacement tires are easy to source
- Preserves clearance around the OE brakes and suspension geometry
- Delivers predictable, easy-to-live-with handling for daily use
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Chevrolet Sonic Sedan (2017) we drill the 5x105 pattern and cut the centre bore to 56.6mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 6,436 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, F/R 18x7.5J ET30 is the recommended starting point on a stock or mildly lowered Chevrolet Sonic Sedan.
Maximum Aggressive Fitment
F/R 19x8.0J ET28 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
5-Tier Configuration Options
A Factory-Style 17x6.5J ET39
Recommended setup: 17x6.5J ET39 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $450-800 (wheels + tires + install)
B Comfortable Upgrade 18x7.0J ET35
Recommended setup: 18x7.0J ET35 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit 18x7.5J ET30
Recommended setup: 18x7.5J ET30 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive 19x8.0J ET29
Recommended setup: 19x8.0J ET29 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive 19x8.0J ET28
Recommended setup: 19x8.0J ET28 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 17x6.5J ET39 | 18x7.0J ET35 | 18x7.5J ET30 | 19x8.0J ET29 | 19x8.0J ET28 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $450-800 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 17x6.5J ET39
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 18x7.5J ET30
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 19x8.0J ET28
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Chevrolet Sonic Sedan owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: 17x6.5J ET39 → ~5.29″ backspacing
- Flush: 18x7.5J ET30 → ~5.43″ backspacing
- Max: 19x8.0J ET28 → ~5.6″ backspacing
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Chevrolet spec, or want a wheel built to a custom offset for your Chevrolet Sonic Sedan? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Chevrolet Sonic Sedan (2017)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x105 pattern and the 56.6mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Chevrolet orders on this platform land somewhere between the 18x7.5J ET30 flush setup and the 19x8.0J ET28 aggressive setup referenced above.
We do not hold 5x105 wheels on a shelf — they are forged to order, which is why any offset, width and bore combination on this page is buildable rather than limited to a stock list.
Frequently Asked Questions
What bolt pattern (PCD) does the Chevrolet Sonic Sedan use?
The 2017 Chevrolet Sonic Sedan uses a 5x105 bolt pattern.
How many lug bolts does the Chevrolet Sonic Sedan use?
The Chevrolet Sonic Sedan uses a 5-lug bolt pattern (5x105), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Chevrolet Sonic Sedan?
The Chevrolet Sonic Sedan's center bore is 56.6mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Chevrolet Sonic Sedan?
Factory wheels on the Chevrolet Sonic Sedan are 17x6.5J F/R.
What is the biggest wheel size I can fit on my Chevrolet Sonic Sedan without rubbing?
The most aggressive fitment we recommend without fender work is 19x8.0J at ET28 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Chevrolet Sonic Sedan?
For a flush look with minimal to no rubbing, we recommend 18x7.5J at ET30 offset as a starting point on a stock or mildly lowered Chevrolet Sonic Sedan.
Do I need wheel spacers for my Chevrolet Sonic Sedan?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Chevrolet Sonic Sedan?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 5.43" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Chevrolet Sonic Sedan?
The Chevrolet Sonic Sedan runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Forged Wheel Designs for the Chevrolet Sonic Sedan
Every design below is forged to order, so it can be machined to the Chevrolet Sonic Sedan's 5x105 bolt pattern and 56.6 mm center bore, with the width and offset calculated for your setup.
Weld Racing 5-Spoke Mirror Milled Beadlock Forged Drag Racing Wheels – Design 30
Ford Mustang / Chevrolet Corvette Fitment · 5-Lug
Weld Racing 5-Spoke Chrome Milled Beadlock Forged Drag Racing Wheels
Ford Mustang / Chevrolet Corvette Fitment · 5-Lug
Corvette OEM-Style Matte Silver 10 Y-Spoke Deep Lip Forged Wheels
Chevrolet Corvette / Camaro Fitment · 5-Lug
Weld Racing 5-Spoke Mirror Polished Beadlock Forged Drag Racing Wheels
Ford Mustang / Chevrolet Corvette Fitment · 5-Lug

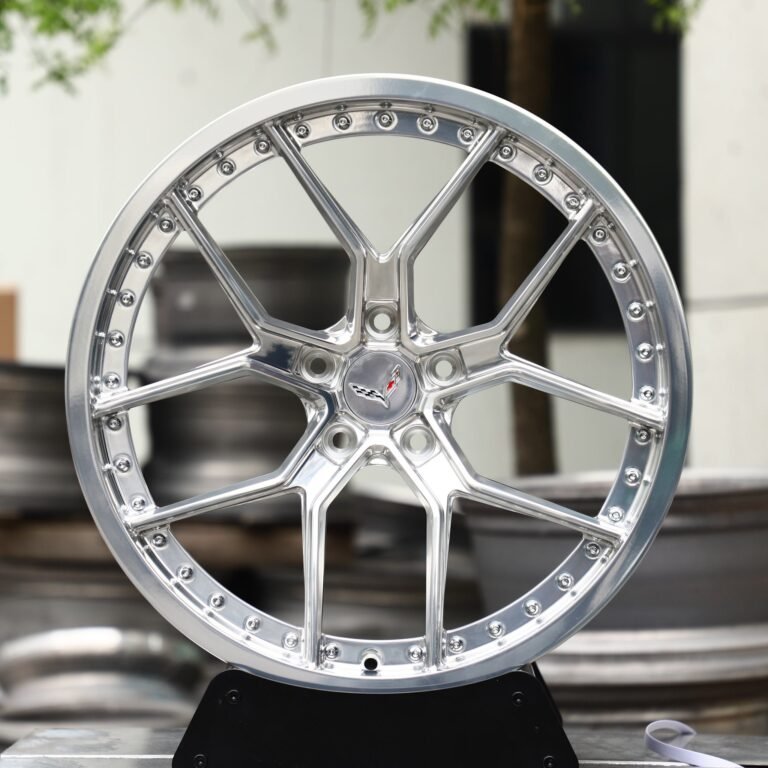

Corvette OEM-Style Chrome Mesh Riveted 2-Piece Forged Wheels
Chevrolet Corvette C7 / Corvette C6 Fitment · 5-Lug
Ford Mustang / Chevrolet Corvette Beadlock Forged Drag Racing Wheels
Gloss Black / Machined Multi-Spoke · 5-Lug
Ford Mustang / Chevrolet Corvette Forged Wheels
Platinum Bright Silver Mesh Deep Lip
Wheel Installation Reference: Torque, Thread & TPMS
Thread & Fastener: M12x1.5, conical-seat lug nut.
Factory Torque Spec: 136 Nm (100 ft-lb). Covers most Chevrolet passenger cars and crossovers on M12 studs.
TPMS: TPMS (Tire Pressure Monitoring System) has been federally mandated on all new light vehicles sold in the US since the 2008 model year. If your wheels use OE-style sensors, have them transferred or cloned to the new wheels at installation.
Tire Pressure: Always set tire pressure to the value on your vehicle's tire placard (driver's doorjamb or glovebox), not the max PSI printed on the tire sidewall — this is trim- and tire-size-specific and stays the same reference point when you switch to a different wheel and tire combination.
Reference data compiled from published OEM service specifications and cross-checked against independent repair sources; always confirm against your owner's manual or door-jamb placard before installation.
