2026 Cadillac Lyriq-V Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Cadillac Lyriq-V wheels? This page gives the 2026 Cadillac Lyriq-V bolt pattern (6x132), centre bore, factory rim size and the offset range for aftermarket and forged Cadillac Lyriq-V rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2026 Cadillac Lyriq-V uses a 6x132 bolt pattern with a 74.5 mm centre bore and M12x1.5 lug nuts. Factory wheels: 22x9J at ET40. For aftermarket wheels, 22x10J ET35 sits flush and 23x10.5J ET30 is the most aggressive fit.
Forged wheels for the 2026 Cadillac Lyriq-V — drilled 6x132 with a 74.5 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
Cadillac Lyriq-V (2026): 6x132 bolt pattern, 74.5mm center bore. Factory wheels: 22x9J. Reference fitment ranges.
Bolt Pattern6x132
Wheel Bolt/NutM12x1.5 Nut
Center Bore74.5mm
Wheel Load Rating1035–1438 kg/wheel (SUV segment reference)
Year2026
CategoryEV SUV
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 22x9J at ET40 |
| Flush Fitment | 22x10J at ET35 offset |
| Maximum Aggressive | 23x10.5J at ET30 offset |
Forged wheels for the Cadillac Lyriq-VMachined to the 6x132 bolt pattern and 74.5 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Because an SUV's center of gravity is already higher than a sedan's, anything added at the corners — including wheel weight — has an outsized effect on handling balance. A forged wheel lets us hit the visual stance owners want without adding the rotational mass a cast wheel of the same strength would carry.
The Cadillac Lyriq-V runs a 6x132 bolt pattern, 74.5mm center bore, and a 22x9J at ET40, front and rear, wheel from the factory. Our Flush Fitment reference is 22x10J ET35, which tucks the tire under the fender lip on a stock-height Cadillac Lyriq-V. Our Maximum Aggressive reference is 23x10.5J ET30 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Cadillac Lyriq-V OE Wheel Specs
The 2026 Cadillac Lyriq-V (EV SUV) uses a 6x132 bolt pattern with a 74.5mm center bore. Factory wheels are 22x9J at ET40.
Why the factory spec works for most owners:
- Supports the vehicle's curb weight and load capacity
- Preserves ground clearance for everyday and light off-road use
- Balances ride comfort with cargo and passenger stability
- Maintains clearance for the factory suspension travel and brake package
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Cadillac Lyriq-V (2026) we drill the 6x132 pattern and cut the centre bore to 74.5mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, 22x10J ET35 is the recommended starting point on a stock or mildly lowered Cadillac Lyriq-V.
Maximum Aggressive Fitment
23x10.5J ET30 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
Real-World Fitment Notes
Extreme torque load rating mandatory
5-Tier Configuration Options
A Factory-Style 22x9.0J ET40
Recommended setup: 22x9.0J ET40 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B Comfortable Upgrade 22x9.5J ET38
Recommended setup: 22x9.5J ET38 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit 22x10.0J ET35
Recommended setup: 22x10.0J ET35 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive 23x10.5J ET33
Recommended setup: 23x10.5J ET33 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive 23x10.5J ET30
Recommended setup: 23x10.5J ET30 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 22x9.0J ET40 | 22x9.5J ET38 | 22x10.0J ET35 | 23x10.5J ET33 | 23x10.5J ET30 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 22x9.0J ET40
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 22x10.0J ET35
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 23x10.5J ET30
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Cadillac Lyriq-V owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: 22x9J ET40 → ~6.57″ backspacing
- Flush: 22x10J ET35 → ~6.88″ backspacing
- Max: 23x10.5J ET30 → ~6.93″ backspacing
A Note on Clearance
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Cadillac spec, or want a wheel built to a custom offset for your Cadillac Lyriq-V? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Cadillac Lyriq-V (2026)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 6x132 pattern and the 74.5mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Cadillac orders on this platform land somewhere between the 22x10J ET35 flush setup and the 23x10.5J ET30 aggressive setup referenced above.
We do not hold 6x132 wheels on a shelf — they are forged to order, which is why any offset, width and bore combination on this page is buildable rather than limited to a stock list.
Frequently Asked Questions
What bolt pattern (PCD) does the Cadillac Lyriq-V use?
The 2026 Cadillac Lyriq-V uses a 6x132 bolt pattern.
How many lug bolts does the Cadillac Lyriq-V use?
The Cadillac Lyriq-V uses a 6-lug bolt pattern (6x132), so you need a 6-lug forged wheel to bolt straight on.
What is the center bore size on the Cadillac Lyriq-V?
The Cadillac Lyriq-V's center bore is 74.5mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Cadillac Lyriq-V?
Factory wheels on the Cadillac Lyriq-V are 22x9J at ET40.
What is the biggest wheel size I can fit on my Cadillac Lyriq-V without rubbing?
The most aggressive fitment we recommend without fender work is 23x10.5J at ET30 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Cadillac Lyriq-V?
For a flush look with minimal to no rubbing, we recommend 22x10J at ET35 offset as a starting point on a stock or mildly lowered Cadillac Lyriq-V.
Do I need wheel spacers for my Cadillac Lyriq-V?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Cadillac Lyriq-V?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 6.88" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Cadillac Lyriq-V?
The Cadillac Lyriq-V runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Vehicles With the Same Hub as the Cadillac Lyriq-V (6x132, 74.5 mm Bore)
In our database, 13 other vehicle entries from 5 makes use exactly the same 6x132 bolt pattern and 74.5 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
6x132 is used by 0.2% of the vehicle pages in our English fitment guide (15 of 6,503); 93.3% of those also use a 74.5 mm center bore.
Hub-Centric Rings for a 74.5 mm Center Bore
A wheel with a center bore larger than 74.5 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 76.1 mm | 76.1 → 74.5 mm |
| 78.1 mm | 78.1 → 74.5 mm |
| 84.1 mm | 84.1 → 74.5 mm |
| 93.1 mm | 93.1 → 74.5 mm |
ANKUSI forged wheels are bored to exactly 74.5 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 22x9 wheels · 22 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Cadillac Lyriq-V
Every design below is forged to order, so it can be machined to the Cadillac Lyriq-V's 6x132 bolt pattern and 74.5 mm center bore, with the width and offset calculated for your setup.
Cadillac OEM-Style Custom Finish 2-Piece Off-Road Forged Wheels
Cadillac Escalade Fitment · 6-Lug

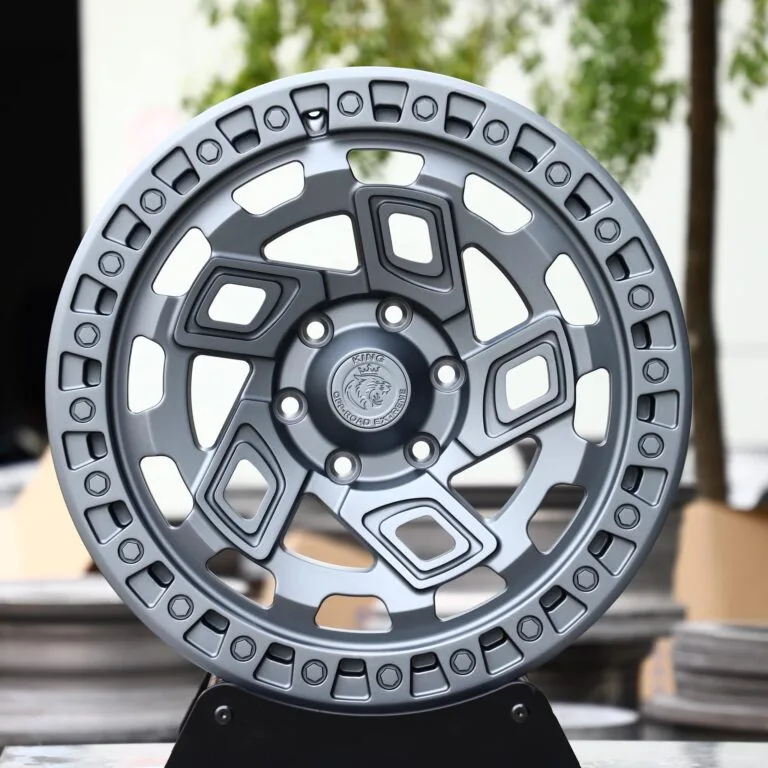

Toyota Tacoma / 4Runner Forged Wheels
