2025 BYD Sealion 7 Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting BYD Sealion 7 wheels? This page gives the 2025 BYD Sealion 7 bolt pattern (5x120), centre bore, factory rim size and the offset range for aftermarket and forged BYD Sealion 7 rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2025 BYD Sealion 7 uses a 5x120 bolt pattern with a 64.1 mm centre bore and M14x1.5 lug thread. Factory wheels: 19x7.5J at ET40 front and 19x8.5J at ET40 rear, or 20x8J at ET40 front and rear.
Forged wheels for the 2025 BYD Sealion 7 — drilled 5x120 with a 64.1 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
BYD Sealion 7 (2025): 5x120 bolt pattern, 64.1mm center bore. Factory wheels: 19x7.5J ET40 front / 19x8.5J ET40 rear. Flush and max fitment confirmed on request.
Bolt Pattern5x120
Wheel Bolt/NutM14x1.5 Lug Nut
Center Bore64.1mm
Wheel Load Rating900–1250 kg/wheel (SUV segment reference)
Caliper TypeFactory brake package (confirm clearance before ordering)
Year2025
CategorySUV
OE Wheel Size19x7.5J / 19x8.5J
OE OffsetET40 / ET40
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed October 19, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Forged wheels for the BYD Sealion 7Machined to the 5x120 bolt pattern and 64.1 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
On a vehicle this heavy, the wheel is a structural part before it is a styling part - it carries the load, the brake heat and the cornering forces all at once. A forged wheel buys back unsprung weight without giving up the load rating an SUV actually needs, which is the one number most cast aftermarket wheels quietly fall short on.
We publish the factory specification for the BYD Sealion 7 below. We have not yet been able to verify aftermarket flush or maximum-aggressive offsets for this exact variant against a source we trust, so we are not listing any - an invented offset is worse than no offset when a wheel has to clear a caliper.
BYD Sealion 7 OE Wheel Specs
The 2025 BYD Sealion 7 (SUV) uses a 5x120 bolt pattern with a 64.1mm center bore. Factory wheels are 19x7.5J at ET40 front and 19x8.5J at ET40 rear, or 20x8J at ET40 front and rear.
Why the factory spec works for most owners:
- Supports the vehicle's curb weight and load capacity
- Preserves ground clearance for everyday and light off-road use
- Balances ride comfort with cargo and passenger stability
- Maintains clearance for the factory suspension travel and brake package
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the BYD Sealion 7 (2025) we drill the 5x120 pattern and cut the centre bore to 64.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Aftermarket Fitment Data: Verification in Progress
Published aftermarket fitment for this exact variant is still thin, so we have not committed to a flush or maximum-aggressive figure. Our engineering team is still collecting verified data for this variant. In the meantime the factory specification above is accurate and is the safe reference point for ordering.
Send us your car and current wheel size on WhatsApp and our engineers will confirm a flush and a maximum fitment for this exact vehicle, usually within one working day.
What we do know: BYD Sealion 7 electric SUV (2024 launch, sold in Europe, Australia, Latin America and Japan). Factory wheels are listed as 19x7.5J ET40 and 19x8.5J ET40, and 20x8J ET40. Check whether your car runs the staggered 19-inch set or the square 20-inch set before ordering.
Need a wheel for this car now? Contact ANKUSI with your target diameter, width and offset and our engineers will confirm the correct forged spec against your brake package before anything is cut. You can also use our Offset & Backspacing Calculator to work through the numbers yourself.
Custom Forged Wheels for the BYD Sealion 7 (2025)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x120 pattern and the 64.1mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
Designs we already tool for the 5x120 pattern — each one is re-cut to your sizes and offsets:

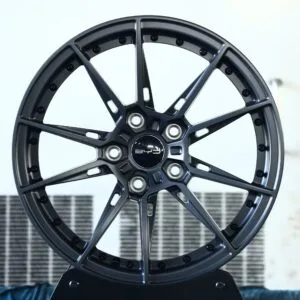

BYD OEM-Style Gloss Black Riveted Mirror Milled Forged Wheels – BYD M6 / Seal 07 Fitment (5-Lug)

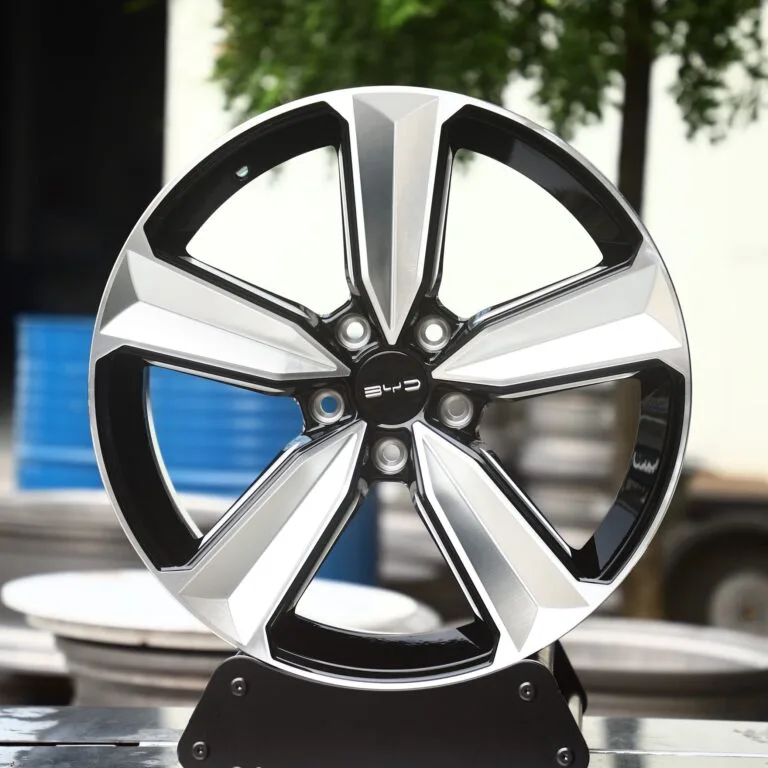

BYD OEM-Style Gloss Black 5-Spoke Forged Wheels – BYD M6 / Seal 07 Fitment (5-Lug)
IM L7 / LS7 Forged Wheels – Black / Machined Directional Multi-Spoke (5-Lug)

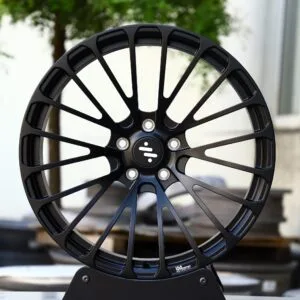

IM L7 / LS7 Forged Wheels – Gloss Black 10-Spoke (5-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the BYD Sealion 7 use?
The 2025 BYD Sealion 7 uses a 5x120 bolt pattern.
How many lug bolts does the BYD Sealion 7 use?
The BYD Sealion 7 uses a 5-lug bolt pattern (5x120), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the BYD Sealion 7?
The BYD Sealion 7's center bore is 64.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the BYD Sealion 7?
Factory wheels on the BYD Sealion 7 are 19x7.5J at ET40 front and 19x8.5J at ET40 rear, or 20x8J at ET40 front and rear.
Do I need wheel spacers for my BYD Sealion 7?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my BYD Sealion 7?
The BYD Sealion 7 runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Forged Wheel Designs for the BYD Sealion 7
Every design below is forged to order, so it can be machined to the BYD Sealion 7's 5x120 bolt pattern and 64.1 mm center bore, with the width and offset calculated for your setup.

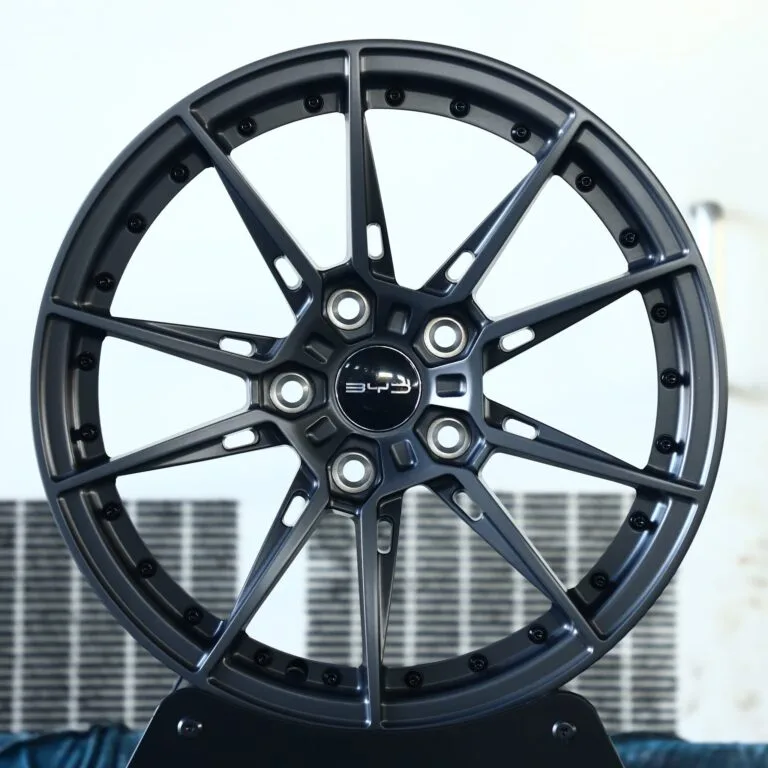

BYD OEM-Style Gloss Black Riveted Mirror Milled Forged Wheels
BYD M6 / Seal 07 Fitment · 5-Lug
Toyota GR86 / BMW 3 Series F30 Forged Wheels
Matte Silver 12-Spoke

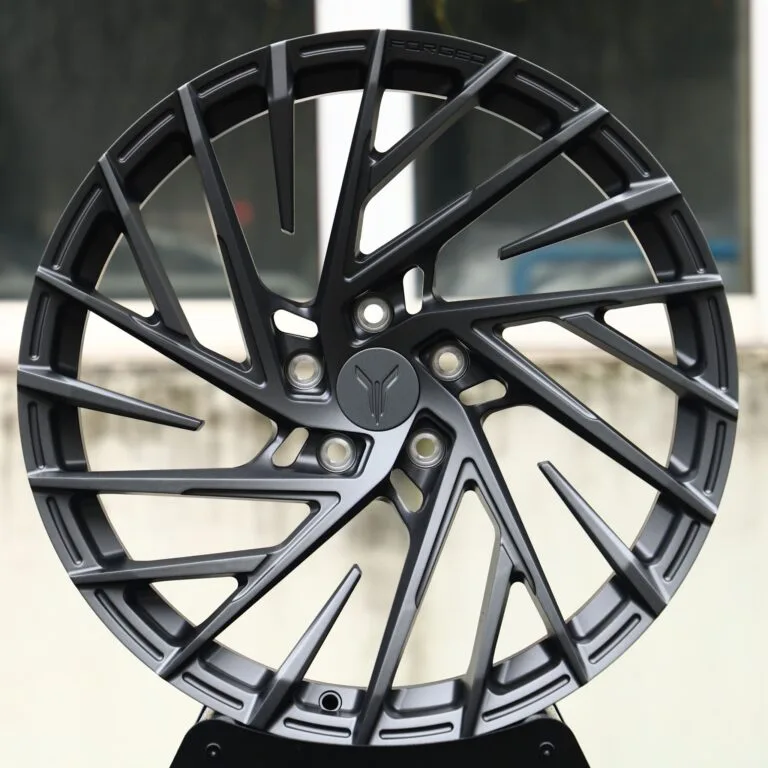

Voyah OEM-Style Gunmetal Directional Multi-Spoke Forged Wheels
Voyah Free / Dream Fitment · 5-Lug

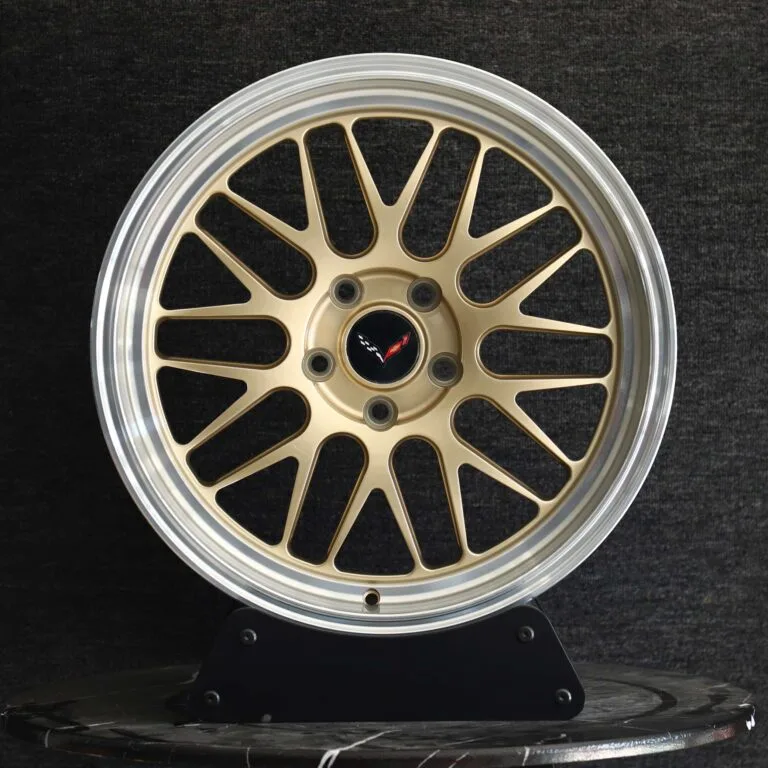

Corvette OEM-Style Gold Mesh Polished Deep Lip Forged Wheels
Chevrolet Corvette / Camaro Fitment · 5-Lug

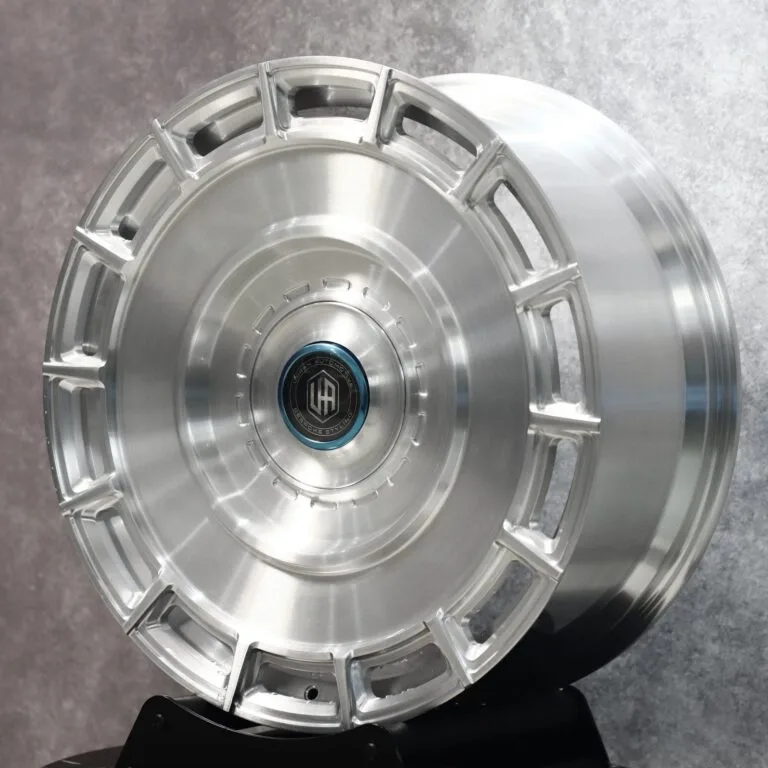

Audi A6 / BMW 5 Series Forged Wheels
Brushed Silver Slotted Dish

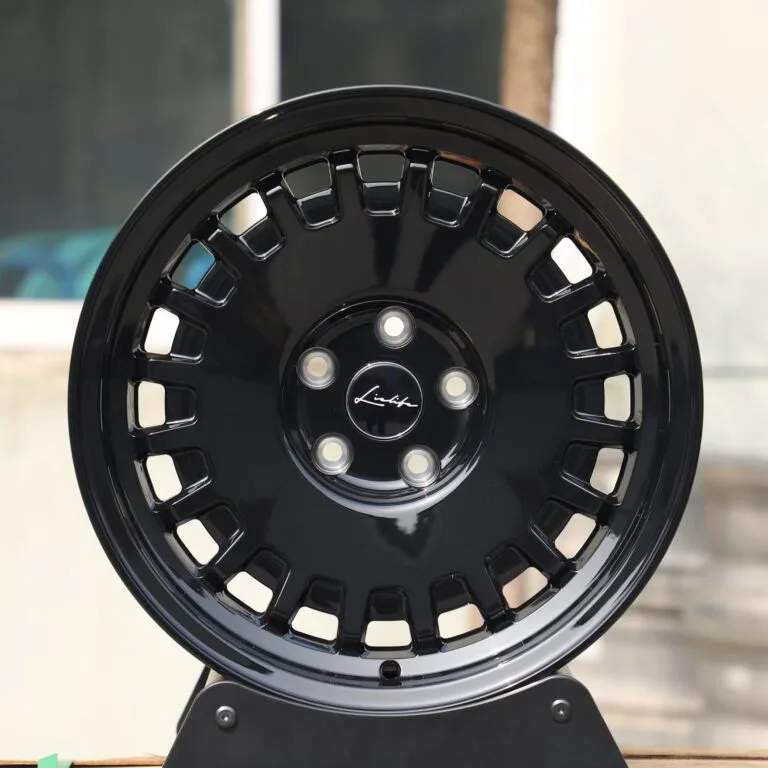

Land Rover Range Rover / Toyota Land Cruiser Off-Road 5-Lug Forged Wheels
Matte Silver Full-Face Deep Lip

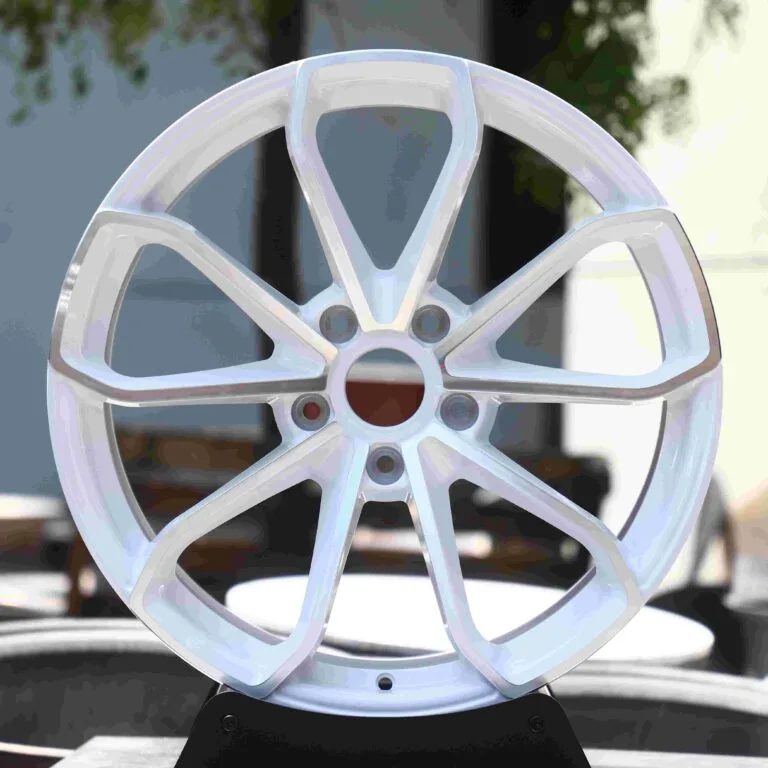

Porsche 911 / BMW M3 Forged Wheels
