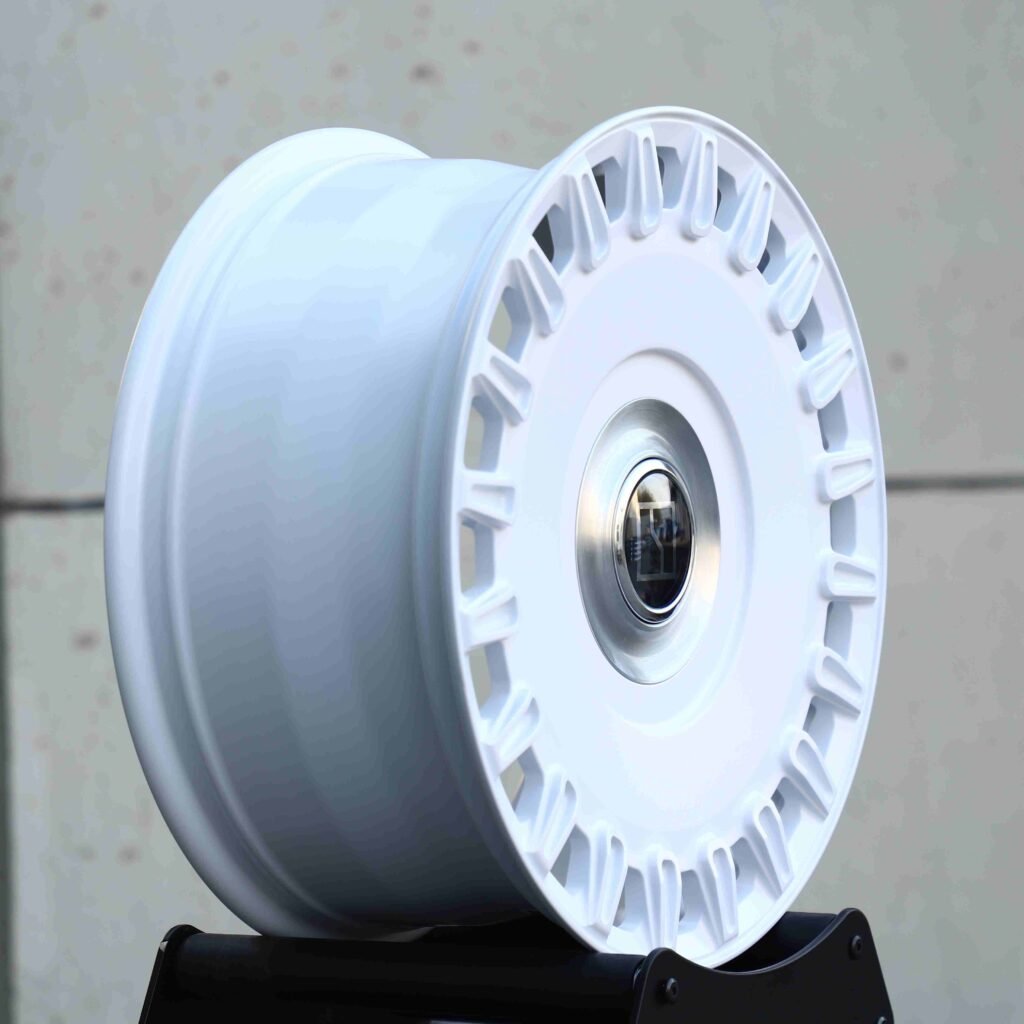

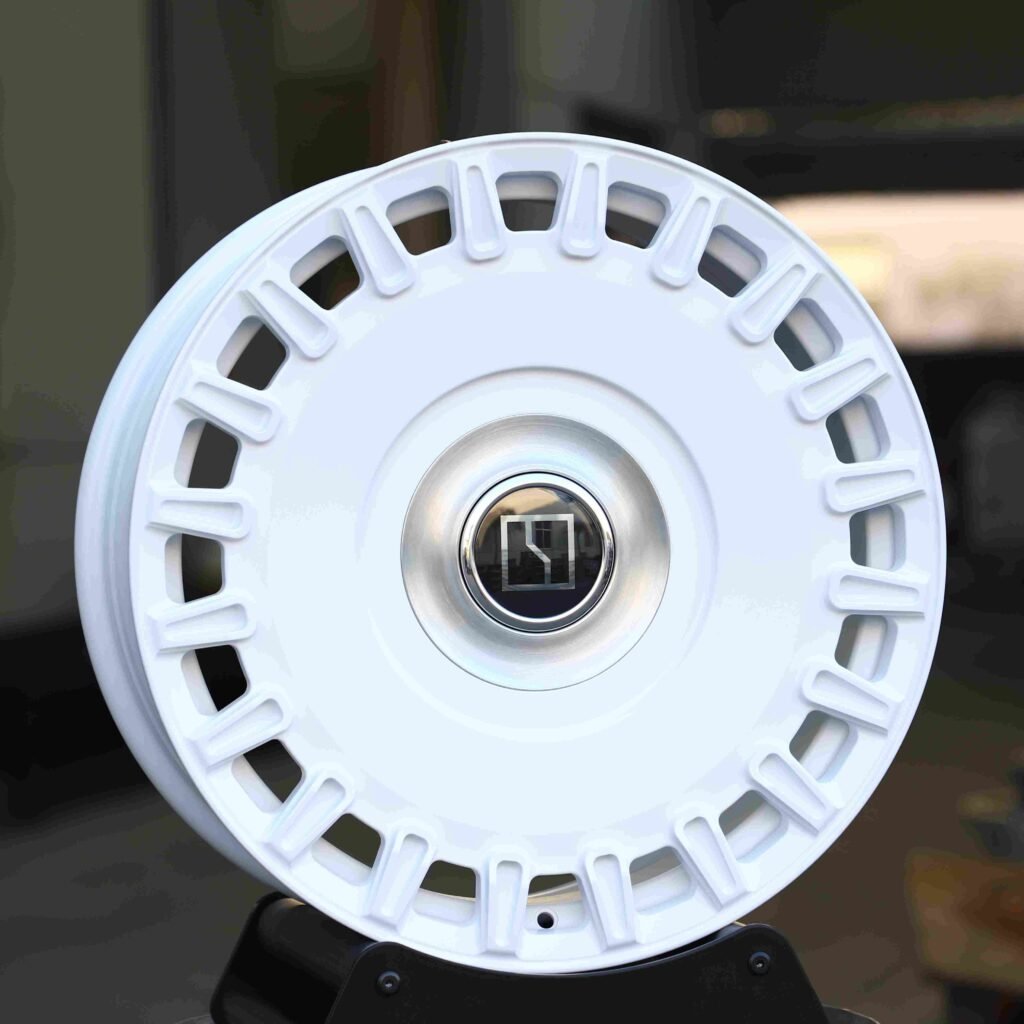

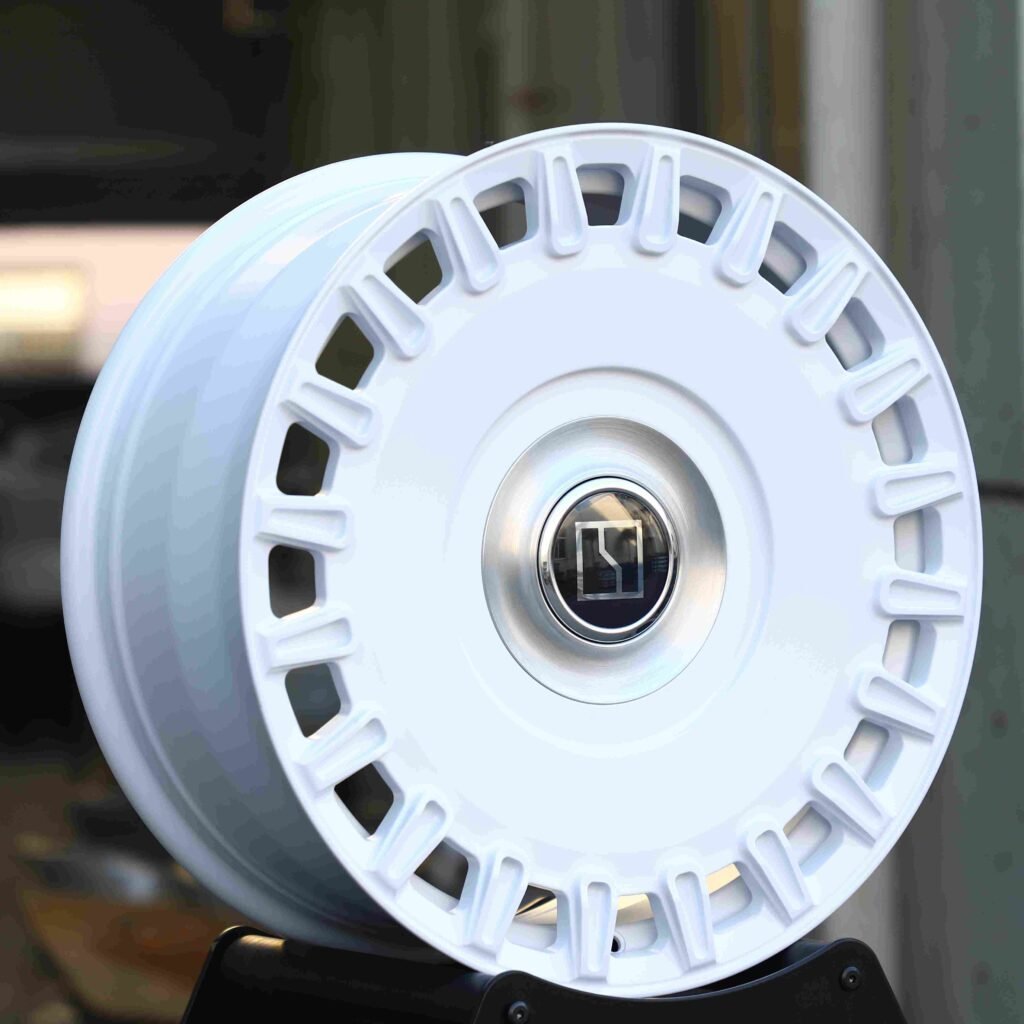

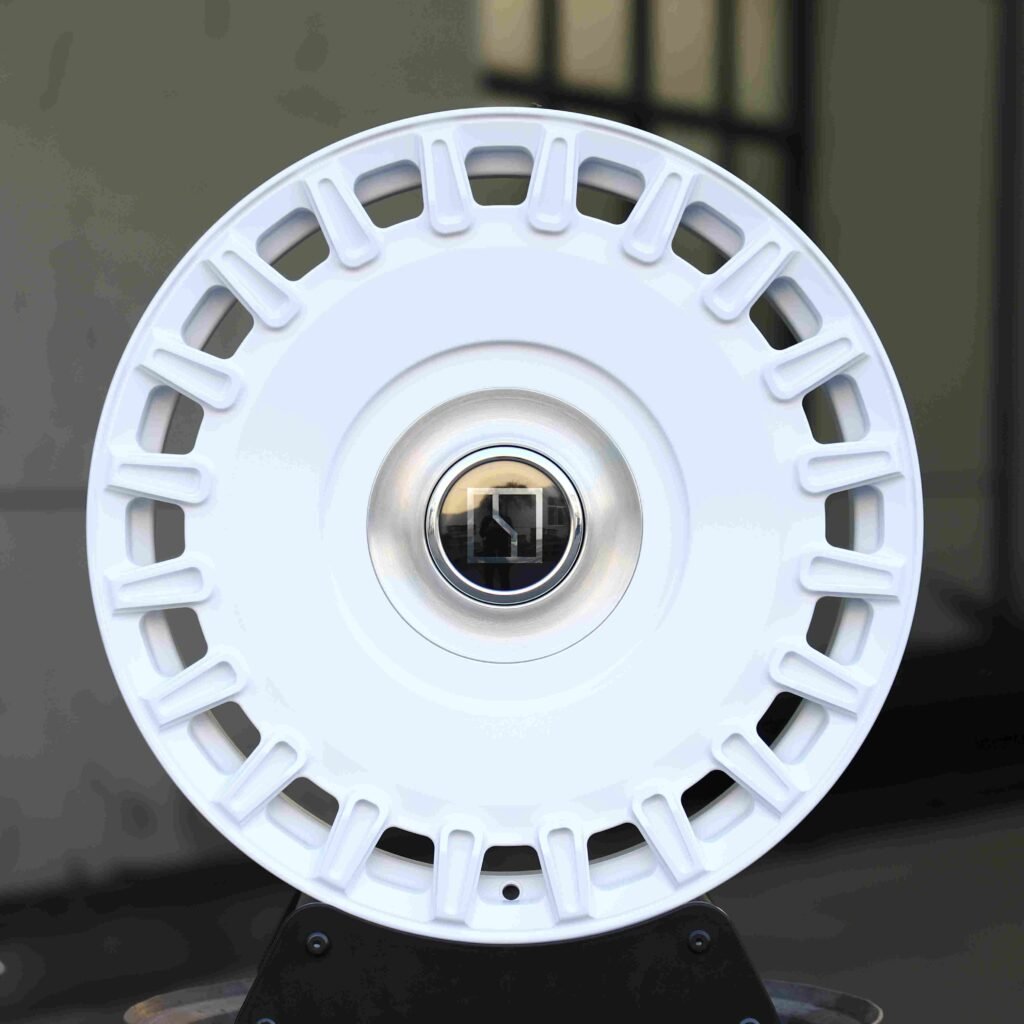

Zeekr 001 / 009 Forged Wheels – Gloss White Full-Face

Forged wheels for the Zeekr 001 featuring the gloss white full-face design. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Design details

As a one-piece monoblock it is machined from a single forging, the lightest and stiffest construction we make. It is supplied with a plain centre cap, or with your own logo on request. Drilled for 5-lug hubs (5x108, 5x120 as listed below), with diameter from 14 to 24 inch depending on brake clearance. See more full-face forged wheels, white forged wheels.

Specification

• Construction: forged 6061-T6 aluminium
• Load rating: 950–1,750 kg (2,094–3,858 lb) per wheel, set to your vehicle's axle load when the wheel is specified
• Bolt pattern: 5-lug, machined to order
• Diameter and width: cut to order
• Offset: calculated for your vehicle, flush to aggressive
• Finish: Gloss White

Single sets through to full container orders. Tell us your vehicle and the stance you are after and we will quote.

Zeekr 001 wheels and Zeekr 009 wheels: bolt patterns this design is cut for

This Zeekr 001 / 009 Forged design is forged blank and machined to order, so the same wheel is made as 5x108 wheels or 5x120 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern. Send us your year and model and we confirm the exact spec before production.

• Zeekr 001 wheels – 5x108, 63.3 mm centre bore
• Zeekr 009 wheels – 5x108, 63.3 mm centre bore
• Lexus LS – 5x120, 60.1 mm centre bore (factory 19x8.0J at ET25 offset, front and rear)
• Rolls-Royce Wraith – 5x120, 72.6 mm centre bore (factory 19x8.5J F/R)
• BMW M3 F80 – 5x120, 72.6 mm centre bore (factory F: 19x9.0J R: 20x10.0J)
• Ford Mustang Mach-E – 5x108, 63.4 mm centre bore (factory 19x7.5J at ET45 offset, front and rear)
• Jaguar F-Type – 5x108, 63.4 mm centre bore
• Jaguar XE – 5x108, 63.4 mm centre bore
• Chery Tiggo 8 – 5x108, 60.1 mm centre bore (factory 18x7.5J F/R)
• Daimler Super Eight – 5x108, 63.4 mm centre bore (factory 18x8.0J F/R)
• Ford Fusion – 5x108, 63.4 mm centre bore (factory 17x7.5J F/R)
• Jaecoo 7 – 5x108, 65.1 mm centre bore (factory 19x8J F/R)
• Omoda 5 – 5x108, 60.1 mm centre bore (factory 18x7J F/R)
• Opel Grandland – 5x108, 65.1 mm centre bore
• Tata Safari – 5x108, 65.1 mm centre bore
• iCar V23 – 5x108, 60.1 mm centre bore (factory 21x9J F/R)
