2024 Zeekr 001 Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Zeekr 001 wheels? This page gives the 2024 Zeekr 001 bolt pattern (5x108), centre bore, factory rim size and the offset range for aftermarket and forged Zeekr 001 rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Zeekr 001 (2024): 5x108 bolt pattern, 63.4mm center bore. Factory wheels: 21x8.5J F/R. Flush and max fitment confirmed on request.
Bolt Pattern5x108
Wheel Bolt/NutM14x1.5
Center Bore63.4mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Caliper TypeFactory caliper package (OEM)
Year2024
CategoryPerformance Sedan
Data check: the bolt pattern and center bore on this page have not yet been confirmed by a second independent source. Measure your hub or ask us before ordering. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Forged wheels for the Zeekr 001Machined to the 5x108 bolt pattern and 63.4 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
A big saloon lives or dies on ride quality, and the wheel is the first thing that ruins it. Going wider and lower without watching load rating and offset trades away exactly the composure you paid for. Forging lets you add diameter and width while keeping rotating mass close to the factory figure.
We publish the factory specification for the Zeekr 001 below. We have not yet been able to verify aftermarket flush or maximum-aggressive offsets for this exact variant against a source we trust, so we are not listing any - an invented offset is worse than no offset when a wheel has to clear a caliper.
Zeekr 001 OE Wheel Specs
The 2024 Zeekr 001 (Performance Sedan) uses a 5x108 bolt pattern with a 63.4mm center bore. Factory wheels are 21x8.5J F/R.
Why the factory spec works for most owners:
- Keeps unsprung weight low to preserve the factory handling balance
- Matches the wider, performance-oriented tire sizing typical of this platform
- Maintains clearance for the factory brake package and suspension geometry
- Balances grip with ride comfort for daily and spirited driving
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Zeekr 001 (2024) we drill the 5x108 pattern and cut the centre bore to 63.4mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 6,436 vehicles, free to download, CC BY 4.0.
Aftermarket Fitment Data: Verification in Progress
Published aftermarket fitment for this exact variant is still thin, so we have not committed to a flush or maximum-aggressive figure. Our engineering team is still collecting verified data for this variant. In the meantime the factory specification above is accurate and is the safe reference point for ordering.
Send us your car and current wheel size on WhatsApp and our engineers will confirm a flush and a maximum fitment for this exact vehicle, usually within one working day.
What we do know: The 21x8.5J wheel runs ET40, and some trims are fitted with 22x9.5J ET48 wheels instead. The car is built on Geely SEA architecture, and its 5x108 / 63.4 mm hub matches current Volvo and smart models from the same group.
Need a wheel for this car now? Contact ANKUSI with your target diameter, width and offset and our engineers will confirm the correct forged spec against your brake package before anything is cut. You can also use our Offset & Backspacing Calculator to work through the numbers yourself.
How does the Zeekr 001 compare with other Chinese cars sold in Europe? See our table of Chinese car bolt patterns and center bores from the 2026 Paris Motor Show.
Custom Forged Wheels for the Zeekr 001 (2024)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x108 pattern and the 63.4mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
Designs we already tool for the 5x108 pattern — each one is re-cut to your sizes and offsets:
Frequently Asked Questions
What bolt pattern (PCD) does the Zeekr 001 use?
The 2024 Zeekr 001 uses a 5x108 bolt pattern.
How many lug bolts does the Zeekr 001 use?
The Zeekr 001 uses a 5-lug bolt pattern (5x108), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Zeekr 001?
The Zeekr 001's center bore is 63.4mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Zeekr 001?
Factory wheels on the Zeekr 001 are 21x8.5J F/R.
Do I need wheel spacers for my Zeekr 001?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Zeekr 001?
The Zeekr 001 runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Vehicles With the Same Hub as the Zeekr 001 (5x108, 63.4 mm Bore)
In our database, 276 other vehicle entries from 17 makes use exactly the same 5x108 bolt pattern and 63.4 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x108 is used by 7.7% of the vehicle entries in our database (498 of 6,503); 55.6% of those also use a 63.4 mm center bore.
Hub-Centric Rings for a 63.4 mm Center Bore
A wheel with a center bore larger than 63.4 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 64.1 mm | 64.1 → 63.4 mm |
| 65.1 mm | 65.1 → 63.4 mm |
| 66.1 mm | 66.1 → 63.4 mm |
| 66.6 mm | 66.6 → 63.4 mm |
| 73.1 mm | 73.1 → 63.4 mm |
ANKUSI forged wheels are bored to exactly 63.4 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 21x8.5 wheels · 21 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Zeekr 001
Every design below is forged to order, so it can be machined to the Zeekr 001's 5x108 bolt pattern and 63.4 mm center bore, with the width and offset calculated for your setup.
Zeekr 001 / 007 Forged Wheels
Black / Machined 5-Window Turbine · 5-Lug
BBS RI-D-Style Clear Copper Tint 5-Spoke Y-Design Forged Wheels
BMW M3 CS Handschalter Fitment · 19-21in, 5x112

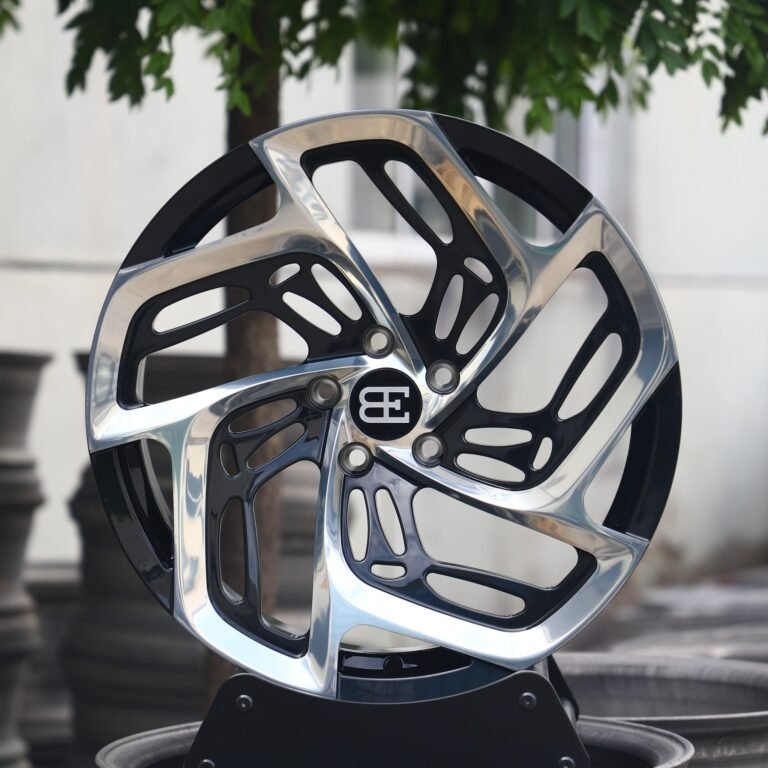

Bugatti OEM-Style Polished Directional Machined-Face Forged Wheels
Bugatti Chiron Fitment · 5-Lug
Mercedes-Benz E-Class / Range Rover Forged Wheels
Black / Machined 5-Window Full-Face · 5-Lug

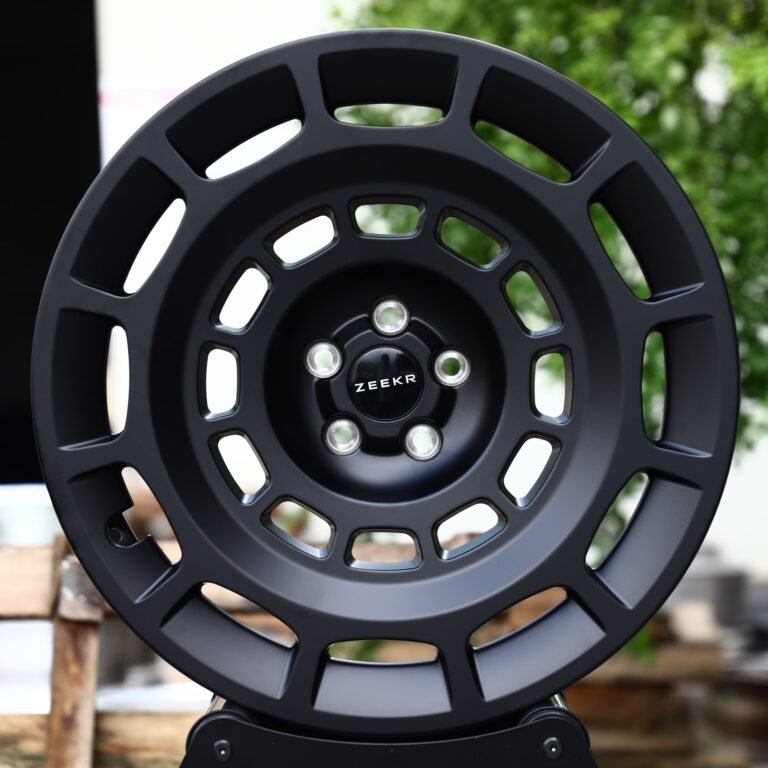

Zeekr OEM-Style Satin Black Windowed Disc Forged Wheels
