Wheels / Off-Road Beadlock / Corvette OEM-Style Gloss Black Red-Ring Beadlock Off-Road Forged Wheels – Chevrolet Corvette / Malibu Fitment (5-Lug)

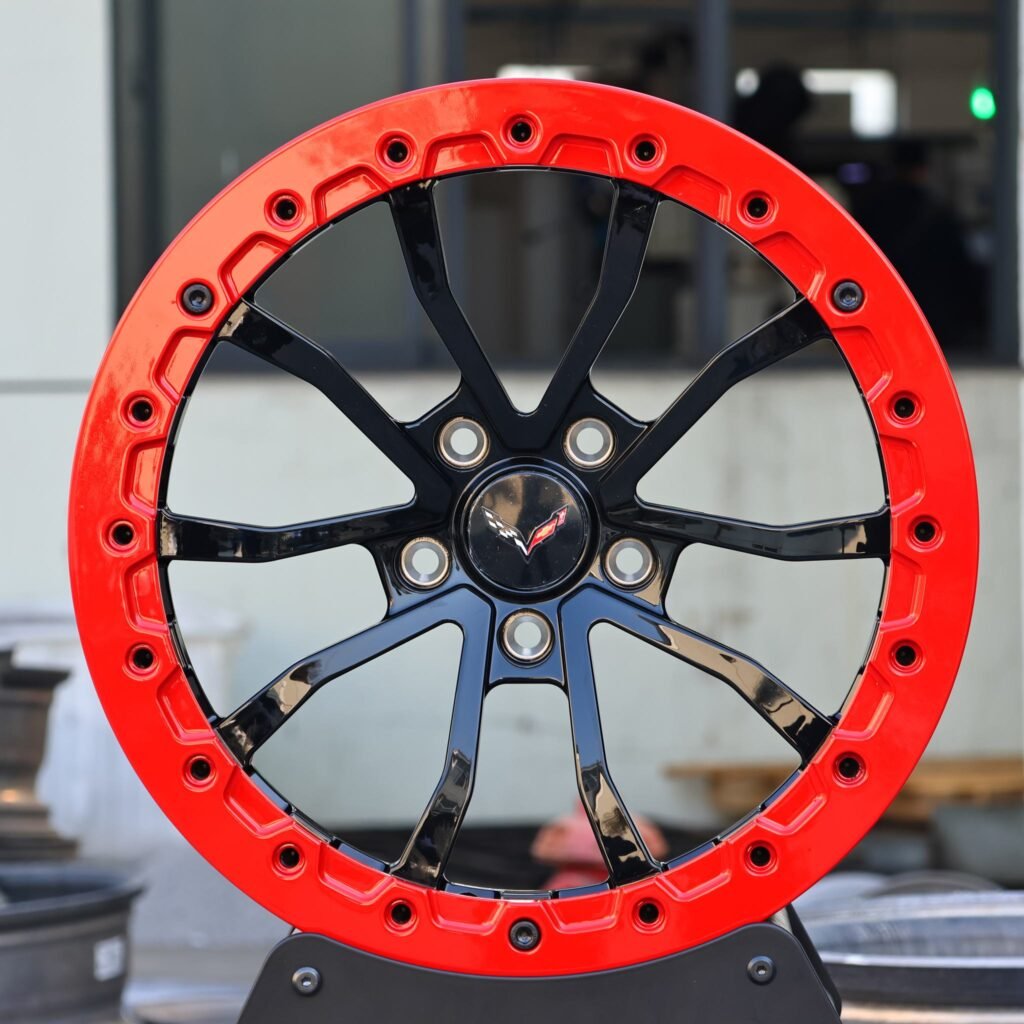

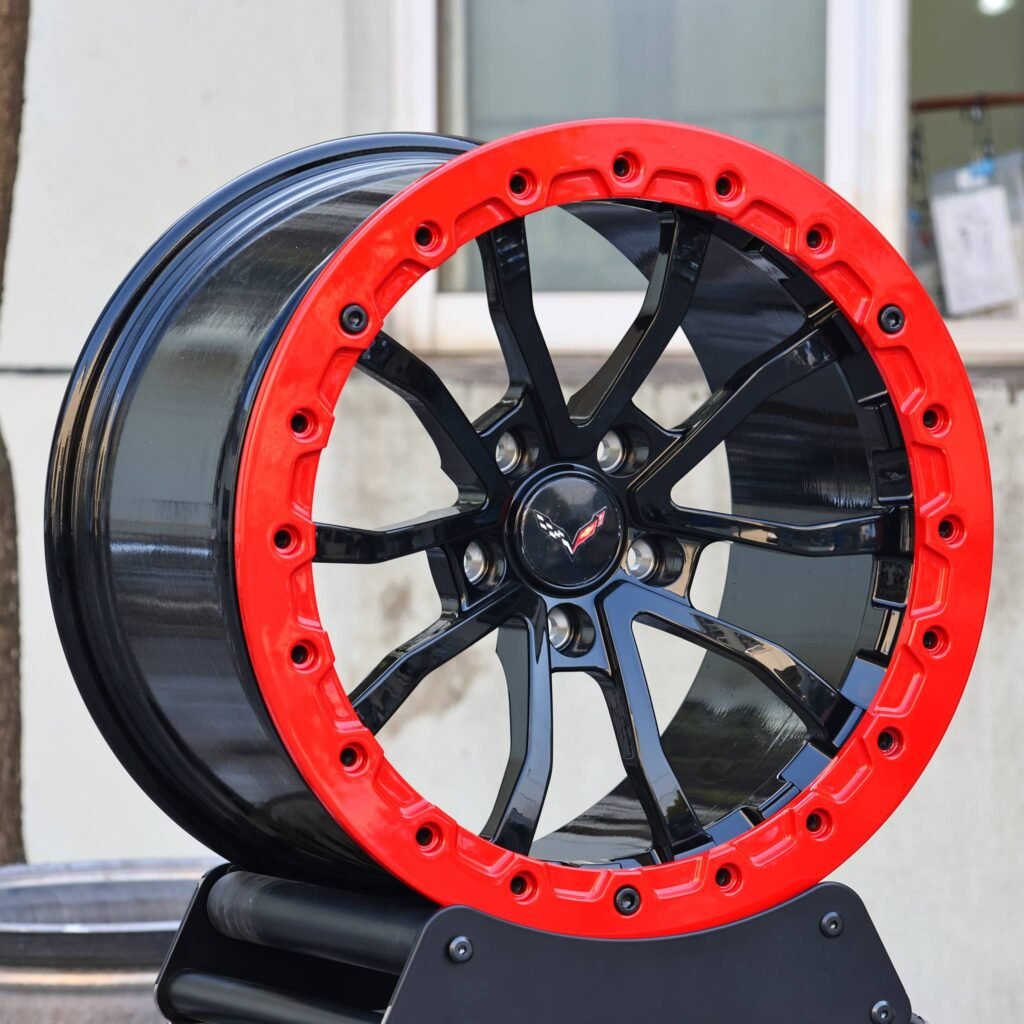

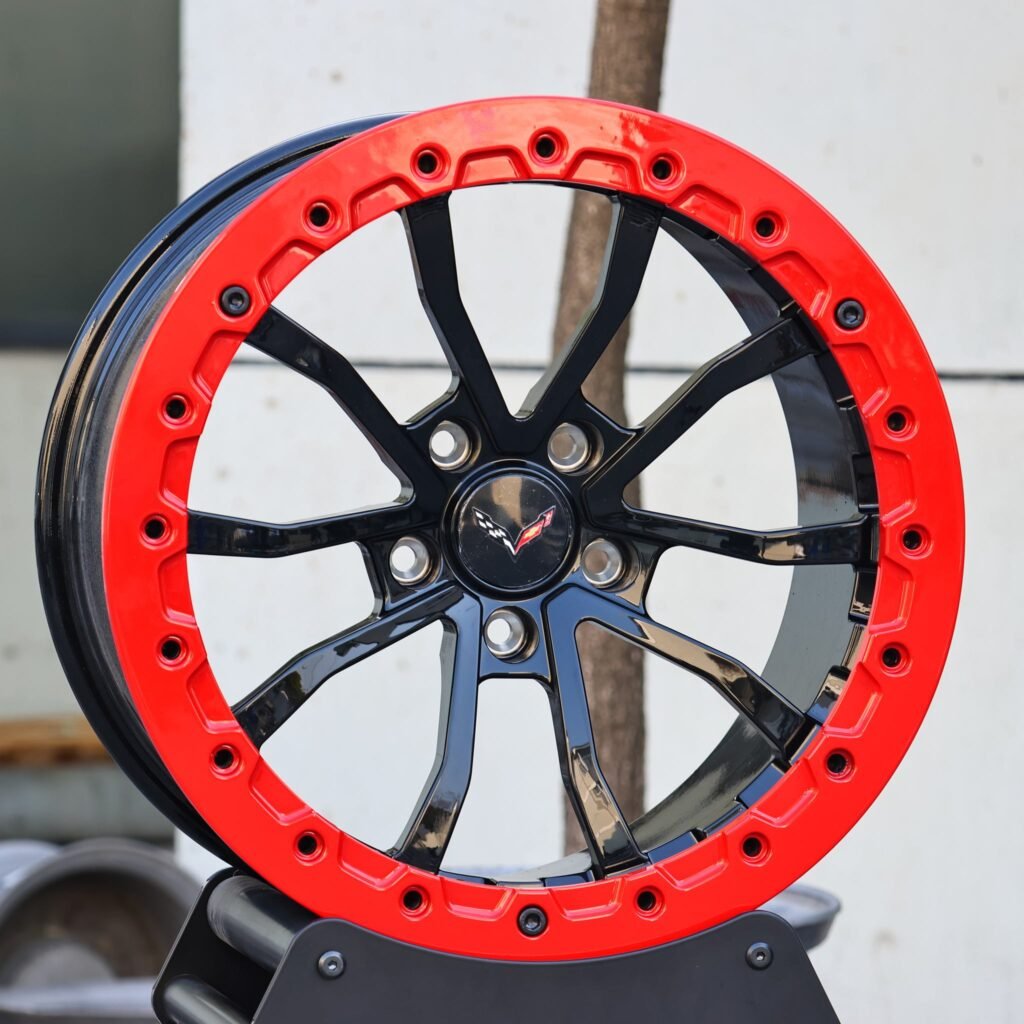

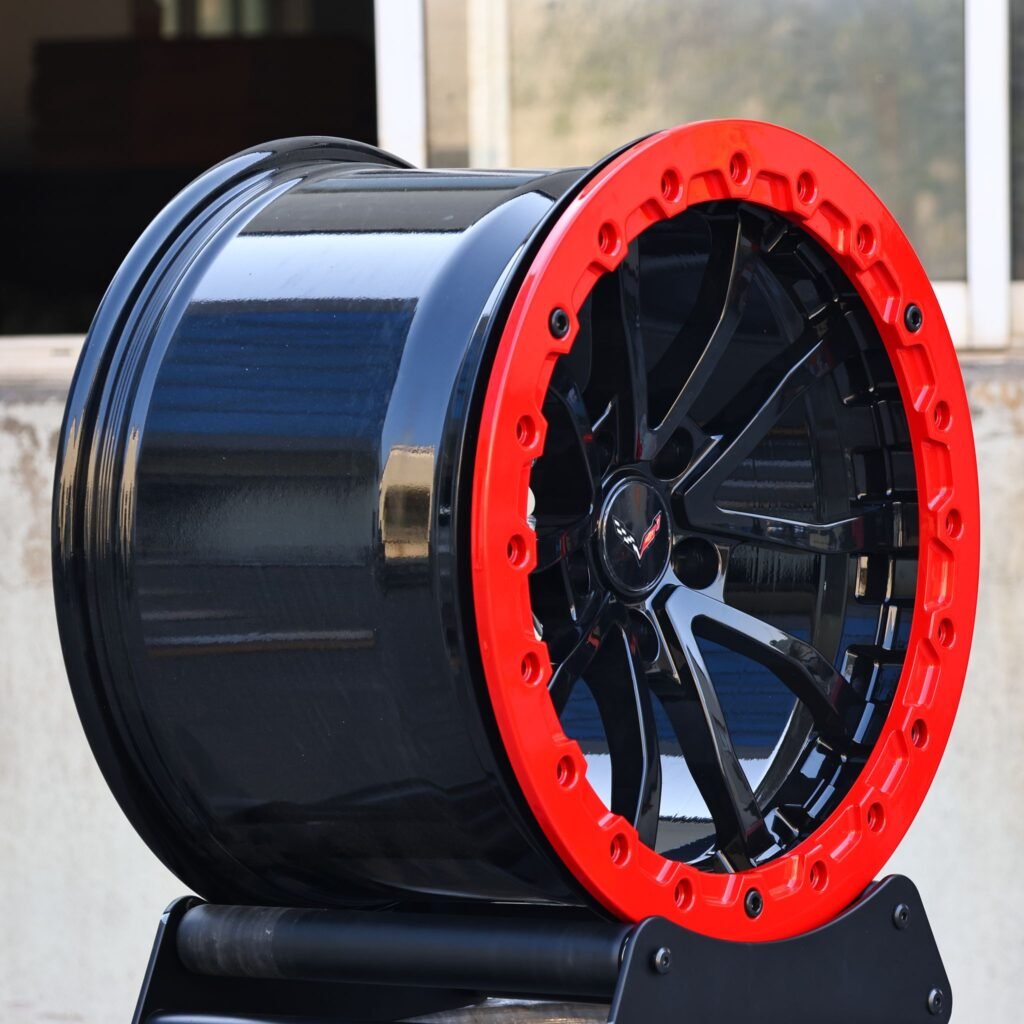

Corvette OEM-Style Gloss Black Red-Ring Beadlock Off-Road Forged Wheels – Chevrolet Corvette / Malibu, front view

Corvette OEM-Style Gloss Black Red-Ring Beadlock Off-Road Forged Wheels – Chevrolet Corvette / Malibu, front view

Seen a wheel you like? Send us a photo

A photo from a car show, Instagram or the street is enough. We tell you which design it is, whether we can forge it for your car, and what a set costs.

Send a photo on WhatsAppEmail the photo
Off-Road Beadlock Forged Wheels

Corvette OEM-Style Gloss Black Red-Ring Beadlock Off-Road Forged Wheels – Chevrolet Corvette / Malibu Fitment (5-Lug)

Corvette OEM-Style forged wheels featuring the gloss black red-ring design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

CategoryOff-Road Beadlock
SKUANK-64141
Bolt Pattern5x110, 5x115, 5x120, 5x120.65
MaterialForged Aluminum
FinishGloss Black / Red
Reference priceFrom $220 per wheel
Approximate. Final quote depends on size, finish and quantity.
Made to orderCustom size, offset, PCD & finish

Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.

Get a price for this wheel on your car

Tell us your car. We reply within one business day with the size, offset and price. From $220 per wheel, production 18–22 days.

or chat with the factory on WhatsApp

Not sure of your vehicle's fitment specs?Look up bolt pattern, offset and center bore by brand, year and model.
Look Up My Vehicle Fitment →

Product Details

Corvette OEM-Style forged wheels featuring the gloss black red-ring design. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Design details

The bolt-on beadlock ring clamps the outer tyre bead, which lets the tyre run very low pressure off-road or on a drag launch without slipping on the rim; the ring can be finished to match or to contrast. The photos show it with the Corvette centre cap, and the fitment list is kept to Chevrolet models. Drilled for 5-lug hubs (5x110, 5x115, 5x120 as listed below), with diameter from 14 to 24 inch depending on brake clearance. See more corvette oem-style forged wheels, beadlock forged wheels, off-road 5-lug forged wheels.

Specification

  • Construction: forged 6061-T6 aluminium
  • Load rating: 950–1,750 kg (2,094–3,858 lb) per wheel, set to your vehicle's axle load when the wheel is specified
  • Bolt pattern: 5-lug, machined to order
  • Diameter and width: cut to order
  • Offset: calculated for your vehicle, flush to aggressive
  • Finish: Custom Finish

Single sets through to full container orders. Tell us your vehicle and the stance you are after and we will quote.

Chevrolet Corvette wheels and Chevrolet Malibu wheels: bolt patterns this design is cut for

This Corvette OEM-Style Gloss Black Red-Ring Beadlock design is forged blank and machined to order, so the same wheel is made as 5x110 wheels or 5x115 / 5x120 / 5x120.65 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern. Send us your year and model and we confirm the exact spec before production.

  • Chevrolet Corvette wheels – 5x120.65, 70.3 mm centre bore
  • Chevrolet Malibu wheels – 5x110
  • Chevrolet Equinox – 5x115, 70.3 mm centre bore (factory 19x7.5J at ET45 offset, front and rear)
  • Chevrolet Trailblazer – 5x115, 70.3 mm centre bore (factory 18x7.5J at ET40 offset, front and rear)

Shipping and returns

Sea freight for a set of four is US$250–450 depending on diameter (16–24 inch), with air freight available for up to 22 inch. Production takes 20–25 days and sea transit 30–35 days; the exact freight is confirmed in your quotation. Wheels are forged to order, so they are not returnable, but if a wheel has a quality problem caused by the wheel itself we make and ship a new one at our cost. Shipping and returns details.

Fitment Reference

Factory bolt pattern, center bore and wheel sizes by generation for the vehicles this design is most often ordered for. We machine the bolt pattern and center bore to your exact car.

VehicleBolt patternCenter boreFactory wheels
Corvette Grand Sport X (2027)5x12066.9 mmF 20x10.0J ET40 / R 21x13.0J ET50
Chevrolet Corvette Z06 (2023)5x12066.9 mmF: 20x10.0J R: 21x13.0J
Chevrolet Corvette (2008)5x120.6570.3 mmF: 18x8.5J R: 19x10.0J
Chevrolet Malibu (2019)5x11570.3 mm19x8.5J at ET45 offset, front and rear
Chevrolet Malibu (2014)5x12067.1 mm18x8.0J at ET41 offset, front and rear
Chevrolet Malibu (2004)5x11065.1 mm16x6.5J at ET41 offset, front and rear

Questions about this wheel

Will these forged wheels fit my Chevrolet Corvette?

Yes. These rims are forged to order, so we machine the bolt pattern (5x120, 5x110, 5x115, 5x120.65 for the vehicles listed) and the centre bore to your exact car. Send us the year, model and brake setup and we confirm fitment before production starts.

What sizes can I order?

Diameter, width and offset are cut to order on a 5-lug hub, from a factory-flush fit to an aggressive stance. Tell us the size you want and we check it against your car.

How much do these wheels cost?

The reference price starts from $220 per wheel. The final quote depends on size, finish and quantity, and we send it after confirming your fitment.

Can I choose a different color or finish?

Yes. Every wheel is finished to order; Gloss Black / Red is one option shown here. Tell us the color, polish or two-tone finish you want.

Is the beadlock ring included?

Yes. This is a beadlock design, so the bolted outer ring that clamps the tyre bead is part of the wheel.

Can custom forged wheels be returned?

Because each set is forged and machined to your order, we do not accept returns. That is why we confirm the fitment and specifications with you before production.
