Custom Forged Wheels for the Toyota Verso (5x114.3)
ANKUSI forges custom wheels for the Toyota Verso, drilled 5x114.3 with a 60.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 16x6.5J ET45 (model year 2014).
Recommended wheel sizes for the Toyota Verso
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 16x6.5J | ET45 |
| Flush | 17x7.5J | ET38 |
| Max | 18x8J | ET35 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Toyota Verso
Forged wheels that can be drilled for the Toyota Verso
Rays-Style Gunmetal 10 Y-Mesh Forged Wheels – Nissan 370Z / Toyota GR86 Fitment (5-Lug)
Toyota OEM-Style Matte Silver 6-Spoke Forged Wheels – Toyota GR86 / Supra Fitment (5-Lug)
Rays-Style Silver 6-Spoke Forged Wheels – Toyota GR86 / Subaru WRX Fitment (5-Lug)
Advan Racing Metallic Gray / Gray 5-Spoke Racing Forged Wheels - Honda S2000 / Toyota GR86 Fitment (5-Lug)
Vossen-Style Satin Black Y-Spoke Mesh Forged Wheels – Subaru WRX / Toyota GR86 Fitment (5-Lug)
Rays-Style Gloss Black 14-Spoke Polished Deep Lip Forged Wheels – Nissan 370Z / Toyota GR86 Fitment (5-Lug)
Toyota Camry / Honda Accord Forged Wheels – Satin Black 10-Spoke Concave (5-Lug)

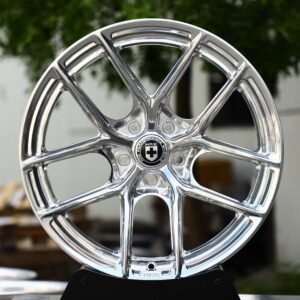

HRE-Style Polished 5 Y-Spoke Forged Wheels – Lexus RX / Toyota Highlander Fitment (5-Lug)Get a quote for Toyota Verso wheels
Vehicles With the Same Hub as the Toyota Verso (5x114.3, 60.1 mm Bore)
In our database, 138 other vehicle entries from 18 makes use exactly the same 5x114.3 bolt pattern and 60.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.0% of the vehicle entries in our database (1,300 of 6,503); 16.8% of those also use a 60.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 16x6.5J | ET45 | 5.52 in (140 mm) | — | — |
| Flush | 17x7.5J | ET38 | 5.75 in (146 mm) | +6 mm | +20 mm |
| Maximum | 18x8J | ET35 | 5.88 in (149 mm) | +9 mm | +29 mm |
Hub-Centric Rings for a 60.1 mm Center Bore
A wheel with a center bore larger than 60.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 63.4 mm | 63.4 → 60.1 mm |
| 64.1 mm | 64.1 → 60.1 mm |
| 65.1 mm | 65.1 → 60.1 mm |
| 66.1 mm | 66.1 → 60.1 mm |
| 73.1 mm | 73.1 → 60.1 mm |
ANKUSI forged wheels are bored to exactly 60.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Toyota Verso take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x114.3 with a 60.1 mm center bore.
What is the factory wheel size of the Toyota Verso?
The factory size in our database is 16x6.5J ET45. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Toyota Verso flush?
We recommend 17x7.5J ET38 for a flush fit and 18x8J ET35 as the maximum. Check clearance before ordering.
