Custom Forged Wheels for the Toyota RAV4 (5x114.3)
ANKUSI forges custom wheels for the Toyota RAV4, drilled 5x114.3 with a 60.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 17x7J ET40 (model year 2026).
Recommended wheel sizes for the Toyota RAV4
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 17x7J | ET40 |
| Flush | 19x8J | ET38 |
| Max | 20x8.5J | ET35 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Toyota RAV4
Forged wheels that can be drilled for the Toyota RAV4
Rays-Style Gunmetal 10 Y-Mesh Forged Wheels – Nissan 370Z / Toyota GR86 Fitment (5-Lug)
Toyota OEM-Style Matte Silver 6-Spoke Forged Wheels – Toyota GR86 / Supra Fitment (5-Lug)
Toyota OEM-Style Gold 6-Spoke Forged Wheels – Toyota Camry / Supra Fitment (5-Lug)
Toyota OEM-Style Gloss Black Machined Split Multi-Spoke Forged Wheels – Toyota Camry / Supra Fitment (5-Lug)
Rays-Style Silver 6-Spoke Forged Wheels – Toyota GR86 / Subaru WRX Fitment (5-Lug)

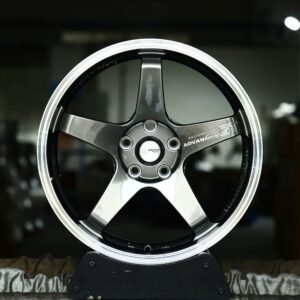

Advan Racing Metallic Gray / Gray 5-Spoke Racing Forged Wheels - Honda S2000 / Toyota GR86 Fitment (5-Lug)
Vossen-Style Satin Black Y-Spoke Mesh Forged Wheels – Subaru WRX / Toyota GR86 Fitment (5-Lug)

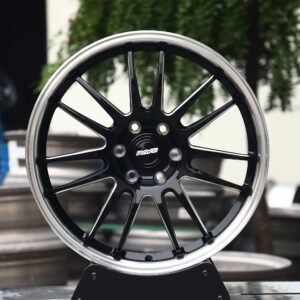

Rays-Style Gloss Black 14-Spoke Polished Deep Lip Forged Wheels – Nissan 370Z / Toyota GR86 Fitment (5-Lug)Get a quote for Toyota RAV4 wheels
Vehicles With the Same Hub as the Toyota RAV4 (5x114.3, 60.1 mm Bore)
In our database, 128 other vehicle entries from 15 makes use exactly the same 5x114.3 bolt pattern and 60.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.1% of the vehicle entries in our database (1,284 of 6,396); 16.1% of those also use a 60.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 17x7J | ET40 | 5.57 in (142 mm) | — | — |
| Flush | 19x8J | ET38 | 6.00 in (152 mm) | +11 mm | +15 mm |
| Maximum | 20x8.5J | ET35 | 6.13 in (156 mm) | +14 mm | +24 mm |
Hub-Centric Rings for a 60.1 mm Center Bore
A wheel with a center bore larger than 60.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 63.4 mm | 63.4 → 60.1 mm |
| 64.1 mm | 64.1 → 60.1 mm |
| 65.1 mm | 65.1 → 60.1 mm |
| 66.1 mm | 66.1 → 60.1 mm |
| 73.1 mm | 73.1 → 60.1 mm |
ANKUSI forged wheels are bored to exactly 60.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Toyota RAV4 take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x114.3 with a 60.1 mm center bore.
What is the factory wheel size of the Toyota RAV4?
The factory size in our database is 17x7J ET40. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Toyota RAV4 flush?
We recommend 19x8J ET38 for a flush fit and 20x8.5J ET35 as the maximum. Check clearance before ordering.
