Custom Forged Wheels for the Ram Heavy Duty (8x165.1)
ANKUSI forges custom wheels for the Ram Heavy Duty, drilled 8x165.1 with a 121.3 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 18x8J ET42 (model year 2025).
Recommended wheel sizes for the Ram Heavy Duty
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 18x8J | ET42 |
| Flush | 18x9J | ET18 |
| Max | 20x10J | ET0 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Ram Heavy Duty
Forged wheels that can be drilled for the Ram Heavy Duty
Ram 2500 / Ford F-250 Off-Road Forged Wheels – Satin Black 9-Spoke (8-Lug)
Rays-Style Gloss Black / Gunmetal Deep Lip Off-Road Forged Wheels – Ram 2500 / Chevrolet Silverado 2500HD Fitment (8-Lug)
KG1 Forged Radar Red-Barrel Forged Wheels – Ram 3500 Heavy Duty Fitment (20-22in, 8×165.1)
Ram 2500 / Chevrolet Silverado 2500HD 8-Lug Forged Wheels – Gloss Black H-Type
KK-Style Polished 18-Spoke Bolted Ring Beadlock Off-Road Forged Wheels – Ford F-250 Super Duty / Ram 2500 Fitment (8-Lug)

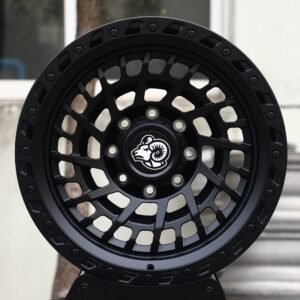

Ram OEM-Style Gloss Black 16-Hole Beadlock Off-Road Forged Wheels – Ram 2500 Fitment (8-Lug)
KMC Gloss Black Off-Road Beadlock Forged Wheels - Ram 2500 / Chevrolet Silverado 2500HD Fitment (8-Lug)
American Force-Style Polished Mesh Multi-Spoke Off-Road Forged Wheels – Chevrolet Silverado HD / Ram 2500 Fitment (8-Lug)Get a quote for Ram Heavy Duty wheels
Vehicles With the Same Hub as the Ram Heavy Duty (8x165.1, 121.3 mm Bore)
In our database, 2 other Dodge entries use exactly the same 8x165.1 bolt pattern and 121.3 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
8x165.1 is used by 0.4% of the vehicle entries in our database (29 of 6,503); 27.6% of those also use a 121.3 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 18x8J | ET42 | 6.15 in (156 mm) | — | — |
| Flush | 18x9J | ET18 | 5.71 in (145 mm) | −11 mm | +37 mm |
| Maximum | 20x10J | ET0 | 5.50 in (140 mm) | −17 mm | +67 mm |
Hub-Centric Rings for a 121.3 mm Center Bore
A wheel with a center bore larger than 121.3 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 130.1 mm | 130.1 → 121.3 mm |
ANKUSI forged wheels are bored to exactly 121.3 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Ram Heavy Duty take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 8x165.1 with a 121.3 mm center bore.
What is the factory wheel size of the Ram Heavy Duty?
The factory size in our database is 18x8J ET42. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Ram Heavy Duty flush?
We recommend 18x9J ET18 for a flush fit and 20x10J ET0 as the maximum. Check clearance before ordering.
