Custom Forged Wheels for the Opel Insignia (5x120)
ANKUSI forges custom wheels for the Opel Insignia, drilled 5x120 with a 67.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 18x8J ET41 (model year 2014).
Recommended wheel sizes for the Opel Insignia
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 18x8J | ET41 |
| Flush | 19x9J | ET35 |
| Max | 20x9.5J | ET30 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Opel Insignia
Forged wheels that can be drilled for the Opel Insignia
Opel OEM-Style Gloss Black Multi-Spoke Forged Wheels – Opel Astra / Insignia Fitment (5-Lug)
Lexus IS / GS Forged Wheels – Chrome 5 Y-Spoke Polished
APEX SM-10-Style Metallic Gray 10-Spoke Forged Wheels - BMW 3 Series E90 / BMW 3 Series F30 Fitment (5-Lug)
BMW 5 Series / 3 Series Forged Wheels – Gloss Black 10-Spoke Polished Lip

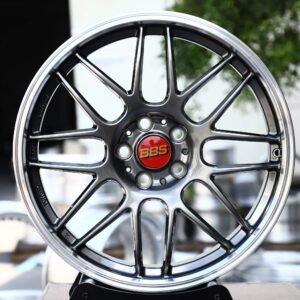

BBS-Style Metallic Gray Cross-Spoke Mesh Polished Lip Forged Wheels – Mercedes-Benz E-Class / BMW 5 Series Fitment (5-Lug)
Fuel-Style Gunmetal Multi-Spoke Bolted Ring Off-Road Forged Wheels – Jeep Wrangler / Land Rover Defender Fitment (5-Lug)
Rolls-Royce Ghost / Cullinan Forged Wheels – Gloss Black Petal Machined Face
HRE-Style Polished 5 Y-Spoke Forged Wheels – Audi S4 / BMW M3 Fitment (5-Lug)Get a quote for Opel Insignia wheels
Vehicles With the Same Hub as the Opel Insignia (5x120, 67.1 mm Bore)
In our database, 7 other vehicle entries from 4 makes use exactly the same 5x120 bolt pattern and 67.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x120 is used by 10.3% of the vehicle entries in our database (670 of 6,503); 1.6% of those also use a 67.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 18x8J | ET41 | 6.11 in (155 mm) | — | — |
| Flush | 19x9J | ET35 | 6.38 in (162 mm) | +7 mm | +19 mm |
| Maximum | 20x9.5J | ET30 | 6.43 in (163 mm) | +8 mm | +30 mm |
Hub-Centric Rings for a 67.1 mm Center Bore
A wheel with a center bore larger than 67.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 70.1 mm | 70.1 → 67.1 mm |
| 70.5 mm | 70.5 → 67.1 mm |
| 71.6 mm | 71.6 → 67.1 mm |
| 72.6 mm | 72.6 → 67.1 mm |
| 73.1 mm | 73.1 → 67.1 mm |
ANKUSI forged wheels are bored to exactly 67.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Opel Insignia take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x120 with a 67.1 mm center bore.
What is the factory wheel size of the Opel Insignia?
The factory size in our database is 18x8J ET41. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Opel Insignia flush?
We recommend 19x9J ET35 for a flush fit and 20x9.5J ET30 as the maximum. Check clearance before ordering.
