Custom Forged Wheels for the Nissan Armada (6x139.7)
ANKUSI forges custom wheels for the Nissan Armada, drilled 6x139.7 with a 77.8 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 22x9J ET30 (model year 2026).
Recommended wheel sizes for the Nissan Armada
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 22x9J | ET30 |
| Flush | 22x10J | ET15 |
| Max | 24x10J | ET10 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Nissan Armada
Forged wheels that can be drilled for the Nissan Armada
Nissan OEM-Style Matte Black Exposed Bolt Detail Off-Road Forged Wheels – Nissan Titan / Pathfinder Armada Fitment (6-Lug)
Nissan OEM-Style Gloss Black Machined Face Off-Road Forged Wheels – Nissan Titan / Pathfinder Armada Fitment (6-Lug)
Nissan OEM-Style Matte Black 6-Spoke Off-Road Beadlock Forged Wheels – Nissan Titan / Pathfinder Armada Fitment (6-Lug)
Toyota Land Cruiser / Nissan Patrol Off-Road Forged Wheels – Bright Silver 4-Slot Dish (6-Lug)
Nissan OEM-Style Gloss Black 10-Spoke Off-Road Forged Wheels – Nissan Titan / Pathfinder Armada Fitment (6-Lug)
Nissan OEM-Style Matte Black Custom Off-Road Forged Wheels – Nissan Titan / Pathfinder Armada Fitment (6-Lug)

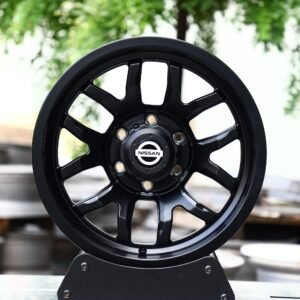

Nissan OEM-Style Gloss Black 10 Y-Spoke Off-Road Forged Wheels – Nissan Titan / Pathfinder Armada Fitment (6-Lug)
Nissan OEM-Style Black / Machined 6 Y-Spoke Off-Road Forged Wheels – Nissan Titan / Frontier Fitment (6-Lug)Get a quote for Nissan Armada wheels
Vehicles With the Same Hub as the Nissan Armada (6x139.7, 77.8 mm Bore)
In our database, 23 other vehicle entries from 4 makes use exactly the same 6x139.7 bolt pattern and 77.8 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
6x139.7 is used by 4.0% of the vehicle entries in our database (258 of 6,503); 12.4% of those also use a 77.8 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 22x9J | ET30 | 6.18 in (157 mm) | — | — |
| Flush | 22x10J | ET15 | 6.09 in (155 mm) | −2 mm | +28 mm |
| Maximum | 24x10J | ET10 | 5.89 in (150 mm) | −7 mm | +33 mm |
Hub-Centric Rings for a 77.8 mm Center Bore
A wheel with a center bore larger than 77.8 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 78.1 mm | 78.1 → 77.8 mm |
| 84.1 mm | 84.1 → 77.8 mm |
| 93.1 mm | 93.1 → 77.8 mm |
| 100.1 mm | 100.1 → 77.8 mm |
ANKUSI forged wheels are bored to exactly 77.8 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Nissan Armada take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 6x139.7 with a 77.8 mm center bore.
What is the factory wheel size of the Nissan Armada?
The factory size in our database is 22x9J ET30. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Nissan Armada flush?
We recommend 22x10J ET15 for a flush fit and 24x10J ET10 as the maximum. Check clearance before ordering.
