Custom Forged Wheels for the Mercedes-Benz Citan (5x114.3)
ANKUSI forges custom wheels for the Mercedes-Benz Citan, drilled 5x114.3 with a 66.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 16x6.5J (model year 2022).
Recommended wheel sizes for the Mercedes-Benz Citan
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 16x6.5J | — |
| Flush | 17x7.5J | ET38 |
| Max | 18x8J | ET35 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Mercedes-Benz Citan
Forged wheels that can be drilled for the Mercedes-Benz Citan
Mansory Matte Silver Forged Wheels - Mercedes-Benz S-Class / Ferrari 488 Fitment (5-Lug)
Mercedes-Benz E-Class / S-Class Forged Wheels – Black / Machined Slotted Dish
Brabus-Style Gunmetal / Carbon Monoblock Z-Style Forged Wheels – Mercedes-AMG G63 / G-Class Fitment (5-Lug)
Brabus-Style Custom Finish 10-Spoke Carbon Fibre Forged Wheels – Mercedes-Benz G-Class / G55 AMG Fitment (5-Lug)
Forgiato-Style Gloss Black Full-Disc Forged Wheels – Porsche 911 / M3 Fitment (5-Lug)
AMG-Style Gold 10-Spoke Forged Wheels – Mercedes-Benz C-Class W206 / E-Class W213 Fitment (5-Lug)

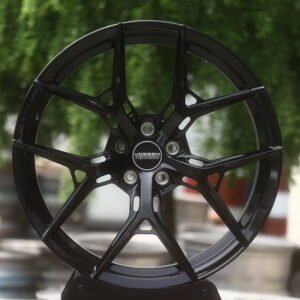

VOSSEN HF-5-Style Gloss Black 10-Spoke Y-Design Forged Wheels – Mercedes-Benz S-Class Maybach Fitment (19-22in, 5x112)
Porsche 911 / M3 Forged Wheels – Pink / Silver Heart Petal (5-Lug)Get a quote for Mercedes-Benz Citan wheels
Vehicles With the Same Hub as the Mercedes-Benz Citan (5x114.3, 66.1 mm Bore)
In our database, 222 other vehicle entries from 8 makes use exactly the same 5x114.3 bolt pattern and 66.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.1% of the vehicle entries in our database (1,284 of 6,396); 17.5% of those also use a 66.1 mm center bore.
Hub-Centric Rings for a 66.1 mm Center Bore
A wheel with a center bore larger than 66.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 66.6 mm | 66.6 → 66.1 mm |
| 67.1 mm | 67.1 → 66.1 mm |
| 70.1 mm | 70.1 → 66.1 mm |
| 70.5 mm | 70.5 → 66.1 mm |
| 73.1 mm | 73.1 → 66.1 mm |
ANKUSI forged wheels are bored to exactly 66.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Mercedes-Benz Citan take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x114.3 with a 66.1 mm center bore.
What is the factory wheel size of the Mercedes-Benz Citan?
The factory size in our database is 16x6.5J. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Mercedes-Benz Citan flush?
We recommend 17x7.5J ET38 for a flush fit and 18x8J ET35 as the maximum. Check clearance before ordering.
