Custom Forged Wheels for the McLaren 750S (5x112)
ANKUSI forges custom wheels for the McLaren 750S, drilled 5x112 with a 57.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 19x9J ET35 (model year 2025).
Recommended wheel sizes for the McLaren 750S
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 19x9J | ET35 |
| Flush | 20x9.5J | ET30 |
| Max | 20x10J | ET25 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the McLaren 750S
Forged wheels that can be drilled for the McLaren 750S
Novitec-Style Gloss Black Twin 5-Spoke Red-Cap Forged Wheels – McLaren 720S / Lamborghini Huracan Fitment (5-Lug)
Wheelforce-Style Matte Silver 10-Spoke Star Concave Forged Wheels – McLaren 720S / Lamborghini Huracan Fitment (5-Lug)
Alpina-Style Gloss White 20-Spoke Forged Wheels – BMW M3 G80 / M4 G82 Fitment (5-Lug)
Edelweiss-Style LT3 Matte Silver 5 Y-Spoke Daisy-Spoke Forged Wheels – BMW M2 G87 / M3 G80 Fitment (5-Lug)

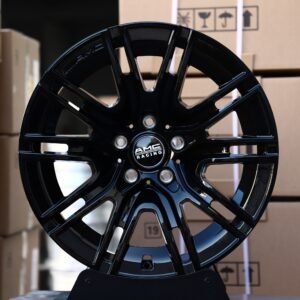

AMC Racing-Style Gloss Black Split-Spoke Mesh Forged Wheels – McLaren 720S / Lamborghini Huracan Fitment (5-Lug)

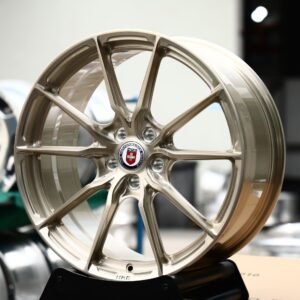

HRE-Style Transparent Gold Brushed 10-Spoke Forged Wheels – McLaren 720S / Lamborghini Huracan Fitment (5-Lug)
McLaren 720S / Lamborghini Huracan Forged Wheels – Transparent Gray Brushed 10-Spoke Concave (5-Lug)

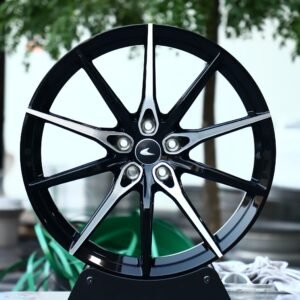

McLaren OEM-Style Black / Machined 10-Spoke Machined Face Forged Wheels – McLaren MP4-12C / 650S Fitment (5-Lug)Get a quote for McLaren 750S wheels
Vehicles With the Same Hub as the McLaren 750S (5x112, 57.1 mm Bore)
In our database, 372 other vehicle entries from 17 makes use exactly the same 5x112 bolt pattern and 57.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x112 is used by 21.9% of the vehicle entries in our database (1,403 of 6,396); 28.9% of those also use a 57.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 19x9J | ET35 | 6.38 in (162 mm) | — | — |
| Flush | 20x9.5J | ET30 | 6.43 in (163 mm) | +1 mm | +11 mm |
| Maximum | 20x10J | ET25 | 6.48 in (165 mm) | +3 mm | +23 mm |
Hub-Centric Rings for a 57.1 mm Center Bore
A wheel with a center bore larger than 57.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 60.1 mm | 60.1 → 57.1 mm |
| 63.4 mm | 63.4 → 57.1 mm |
| 64.1 mm | 64.1 → 57.1 mm |
| 65.1 mm | 65.1 → 57.1 mm |
| 73.1 mm | 73.1 → 57.1 mm |
ANKUSI forged wheels are bored to exactly 57.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the McLaren 750S take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x112 with a 57.1 mm center bore.
What is the factory wheel size of the McLaren 750S?
The factory size in our database is 19x9J ET35. It can vary by trim, so check your exact car before ordering.
What wheel size fits the McLaren 750S flush?
We recommend 20x9.5J ET30 for a flush fit and 20x10J ET25 as the maximum. Check clearance before ordering.
