Custom Forged Wheels for the Maserati GranSport (5x108)
ANKUSI forges custom wheels for the Maserati GranSport, drilled 5x108 with a 67.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 19x8J ET52 (model year 2006).
Recommended wheel sizes for the Maserati GranSport
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 19x8J | ET52 |
| Flush | 19x8.5J | ET42 |
| Max | 20x9J | ET38 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Maserati GranSport
Forged wheels that can be drilled for the Maserati GranSport
Maserati OEM-Style Silver Mesh Forged Wheels – Maserati Ghibli / Quattroporte Fitment (5-Lug)
Maserati Ghibli / Levante Forged Wheels – Black / Machined 5-Spoke Machined Face
BBS CI-R-Style High-Gloss Silver 10-Spoke Y-Design Forged Wheels – BMW M3 CS Handschalter Fitment (19-21in, 5x112)
IM L7 / LS7 Forged Wheels – Black / Machined Directional Milled Machined Face
Maserati Ghibli / Quattroporte Forged Wheels – Gloss Bronze 5 V-Spoke
Maserati Ghibli / Quattroporte Forged Wheels – Gloss Black Machined Face
Maserati Ghibli / Levante Forged Wheels – Black / Machined Petal-Spoke Machined Face

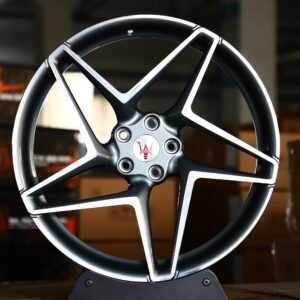

Maserati Ghibli / Quattroporte Forged Wheels – Gunmetal Directional Milled Machined FaceGet a quote for Maserati GranSport wheels
Vehicles With the Same Hub as the Maserati GranSport (5x108, 67.1 mm Bore)
In our database, 27 other vehicle entries from 4 makes use exactly the same 5x108 bolt pattern and 67.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x108 is used by 7.5% of the vehicle entries in our database (479 of 6,396); 7.1% of those also use a 67.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 19x8J | ET52 | 6.55 in (166 mm) | — | — |
| Flush | 19x8.5J | ET42 | 6.40 in (163 mm) | −4 mm | +16 mm |
| Maximum | 20x9J | ET38 | 6.50 in (165 mm) | −1 mm | +27 mm |
Hub-Centric Rings for a 67.1 mm Center Bore
A wheel with a center bore larger than 67.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 70.1 mm | 70.1 → 67.1 mm |
| 70.5 mm | 70.5 → 67.1 mm |
| 71.6 mm | 71.6 → 67.1 mm |
| 72.6 mm | 72.6 → 67.1 mm |
| 73.1 mm | 73.1 → 67.1 mm |
ANKUSI forged wheels are bored to exactly 67.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Maserati GranSport take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x108 with a 67.1 mm center bore.
What is the factory wheel size of the Maserati GranSport?
The factory size in our database is 19x8J ET52. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Maserati GranSport flush?
We recommend 19x8.5J ET42 for a flush fit and 20x9J ET38 as the maximum. Check clearance before ordering.
