Custom Forged Wheels for the Dodge Ram 1500 (5x139.7)
ANKUSI forges custom wheels for the Dodge Ram 1500, drilled 5x139.7 with a 77.8 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 17x7J ET19 (model year 2009).
Recommended wheel sizes for the Dodge Ram 1500
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 17x7J | ET19 |
| Flush | 20x9J | ET20 |
| Max | 20x10J | ET15 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Dodge Ram 1500
Forged wheels that can be drilled for the Dodge Ram 1500
Ford Mustang / Corvette C7 Forged Wheels – Yellow 16-Spoke Silver-Ring Beadlock (5-Lug)
Ford Mustang / Corvette C7 Forged Wheels – Gloss Black 5-Spoke Polished Lip (5-Lug)
Jeep Wrangler / Grand Cherokee Forged Wheels – Black / Machined Cross-Spoke Machined Face
Jeep Wrangler / Grand Cherokee Forged Wheels – Gunmetal Round-Hole Deep Lip

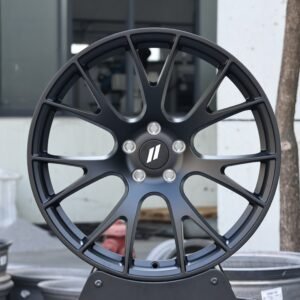

Dodge OEM-Style Matte Black 7 Y-Spoke Forged Wheels – Dodge Challenger / Charger Fitment (5-Lug)

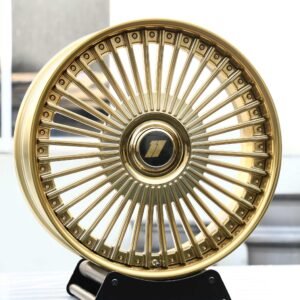

Dodge Challenger / Charger Forged Wheels – Gold 2-Piece Multi-Spoke (5-Lug)
Ford Mustang / Corvette C7 Forged Wheels – Brushed Silver 10-Spoke Beadlock (5-Lug)
Ford Mustang / Chevrolet Corvette Forged Wheels – Mirror Polished Swirl Smoothie (5-Lug)Get a quote for Dodge Ram 1500 wheels
Vehicles With the Same Hub as the Dodge Ram 1500 (5x139.7, 77.8 mm Bore)
In our database, 16 other vehicle entries from 3 makes use exactly the same 5x139.7 bolt pattern and 77.8 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x139.7 is used by 0.9% of the vehicle entries in our database (56 of 6,503); 50.0% of those also use a 77.8 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 17x7J | ET19 | 4.75 in (121 mm) | — | — |
| Flush | 20x9J | ET20 | 5.79 in (147 mm) | +26 mm | +24 mm |
| Maximum | 20x10J | ET15 | 6.09 in (155 mm) | +34 mm | +42 mm |
Hub-Centric Rings for a 77.8 mm Center Bore
A wheel with a center bore larger than 77.8 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 78.1 mm | 78.1 → 77.8 mm |
| 84.1 mm | 84.1 → 77.8 mm |
| 93.1 mm | 93.1 → 77.8 mm |
| 100.1 mm | 100.1 → 77.8 mm |
ANKUSI forged wheels are bored to exactly 77.8 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Dodge Ram 1500 take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x139.7 with a 77.8 mm center bore.
What is the factory wheel size of the Dodge Ram 1500?
The factory size in our database is 17x7J ET19. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Dodge Ram 1500 flush?
We recommend 20x9J ET20 for a flush fit and 20x10J ET15 as the maximum. Check clearance before ordering.
