Custom Forged Wheels for the Carlsson Mercedes-Benz M-Class (5x112)
ANKUSI forges custom wheels for the Carlsson Mercedes-Benz M-Class, drilled 5x112 with a 66.6 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 22x10J (model year 2006).
Recommended wheel sizes for the Carlsson Mercedes-Benz M-Class
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 22x10J | — |
| Flush | 22x10.5J | ET40 |
| Max | 23x11J | ET35 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Carlsson Mercedes-Benz M-Class
Forged wheels that can be drilled for the Carlsson Mercedes-Benz M-Class
Rohana-Style Bronze / Gloss Black 2-Piece Forged Wheels – Audi A6 / 5 Series Fitment (5-Lug)
BBS-Style Silver Mesh Deep Dish Forged Wheels – Porsche 911 / M3 Fitment (5-Lug)
WF R2-Style Full Polished Silver 10-Spoke Y-Design Forged Wheels – BMW M3 CS Handschalter Fitment (19-21in, 5x112)
EKK Clear Black Tint 15-Spoke Forged Wheels – BMW M3 CS Handschalter Fitment (19-22in, 5x112)

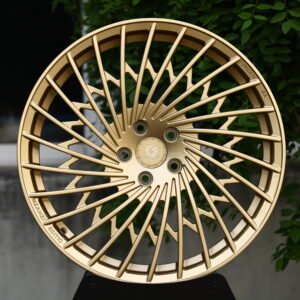

MZANZI EDITION Matte Gold Fine Multi-Spoke Forged Wheels – Mercedes-Benz S-Class Maybach Fitment (19-22in, 5x112)
O.Z Racing Gloss Black Semi-Full-Face Forged Wheels – Volkswagen Golf R / Subaru WRX Fitment (5-Lug)
HRE Performance Brushed Silver 15-Spoke Forged Wheels - Porsche 911 / BMW M3 G80 Fitment (5-Lug)
Bentley Continental GT / Bentayga Forged Wheels – Silver 15-SpokeGet a quote for Carlsson Mercedes-Benz M-Class wheels
Vehicles With the Same Hub as the Carlsson Mercedes-Benz M-Class (5x112, 66.6 mm Bore)
In our database, 807 other vehicle entries from 20 makes use exactly the same 5x112 bolt pattern and 66.6 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x112 is used by 21.6% of the vehicle entries in our database (1,407 of 6,503); 58.6% of those also use a 66.6 mm center bore.
Hub-Centric Rings for a 66.6 mm Center Bore
A wheel with a center bore larger than 66.6 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 67.1 mm | 67.1 → 66.6 mm |
| 70.1 mm | 70.1 → 66.6 mm |
| 70.5 mm | 70.5 → 66.6 mm |
| 71.6 mm | 71.6 → 66.6 mm |
| 73.1 mm | 73.1 → 66.6 mm |
ANKUSI forged wheels are bored to exactly 66.6 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Carlsson Mercedes-Benz M-Class take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x112 with a 66.6 mm center bore.
What is the factory wheel size of the Carlsson Mercedes-Benz M-Class?
The factory size in our database is 22x10J. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Carlsson Mercedes-Benz M-Class flush?
We recommend 22x10.5J ET40 for a flush fit and 23x11J ET35 as the maximum. Check clearance before ordering.
