Custom Forged Wheels for the Acura Integra (5x114.3)
ANKUSI forges custom wheels for the Acura Integra, drilled 5x114.3 with a 64.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 17x7J ET45 (model year 2025).
Recommended wheel sizes for the Acura Integra
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 17x7J | ET45 |
| Flush | 19x9.5J | ET45 |
| Max | 19x9.5J | ET35 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Acura Integra
Forged wheels that can be drilled for the Acura Integra
Acura TLX / NSX Forged Wheels – Transparent Copper
Acura OEM-Style Black Chrome 5 Twin-Spoke Directional Forged Wheels – Acura TLX / MDX Fitment (5-Lug)
Vossen HF-5-Style Bronze 5 Y-Spoke Concave Forged Wheels - Tesla Model 3 / Tesla Model Y Fitment (5-Lug)
Toyota GR Supra MkV Final Edition Forged Wheels – Gunmetal Gray 6-Spoke (18-20in, 5×112)
Rays Volk Racing TE37-Style Gunmetal Forged Wheels - Toyota GR86 / Subaru WRX Fitment (5-Lug)
Advan-Style Bronze 5-Spoke Polished Lip Forged Wheels – Nissan 370Z / Infiniti Q50 Fitment (5-Lug)

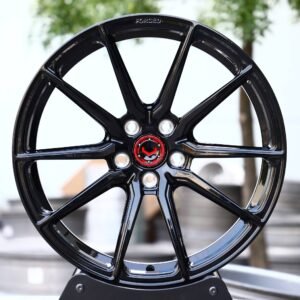

Vossen Gloss Black 10 Y-Spoke Forged Wheels – Tesla Model Y / Ford Mustang Fitment (5-Lug)

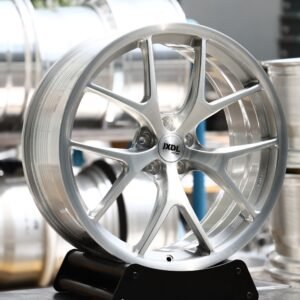

JXDL-Style Brushed Silver 5 Y-Spoke Concave Forged Wheels – Ford Mustang / Chevrolet Camaro Fitment (5-Lug)Get a quote for Acura Integra wheels
Vehicles With the Same Hub as the Acura Integra (5x114.3, 64.1 mm Bore)
In our database, 31 other vehicle entries from 6 makes use exactly the same 5x114.3 bolt pattern and 64.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.0% of the vehicle entries in our database (1,303 of 6,503); 2.8% of those also use a 64.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 17x7J | ET45 | 5.77 in (147 mm) | — | — |
| Flush | 19x9.5J | ET45 | 7.02 in (178 mm) | +32 mm | +32 mm |
| Maximum | 19x9.5J | ET35 | 6.63 in (168 mm) | +22 mm | +42 mm |
Hub-Centric Rings for a 64.1 mm Center Bore
A wheel with a center bore larger than 64.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 65.1 mm | 65.1 → 64.1 mm |
| 66.1 mm | 66.1 → 64.1 mm |
| 66.6 mm | 66.6 → 64.1 mm |
| 67.1 mm | 67.1 → 64.1 mm |
| 73.1 mm | 73.1 → 64.1 mm |
ANKUSI forged wheels are bored to exactly 64.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Acura Integra take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x114.3 with a 64.1 mm center bore.
What is the factory wheel size of the Acura Integra?
The factory size in our database is 17x7J ET45. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Acura Integra flush?
We recommend 19x9.5J ET45 for a flush fit and 19x9.5J ET35 as the maximum. Check clearance before ordering.
