Forged Camaro Rims: Fitment Specs by Generation and Trim

The Chevrolet Camaro is one of the easiest cars to transform with a wheel change, and one of the easiest to get wrong. The camaro rims that fill the market are mostly cast, built to a generic bore, and sold without much thought to the staggered setups these cars ran from the factory. At ANKUSI we forge every wheel from a single block of 6061-T6 and machine it to the exact Camaro pattern, bore, offset and width. Here are the real numbers by generation and trim, then how to choose a set that fits and looks right.

Factory Chevrolet Camaro rims: bolt pattern and bore

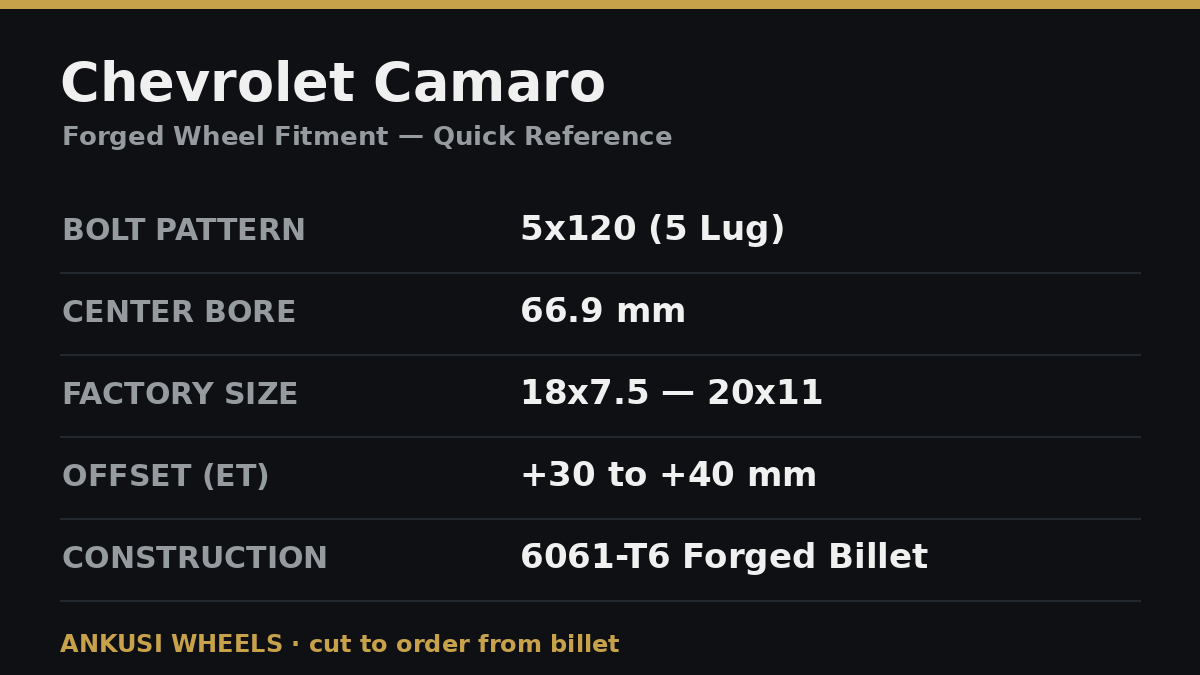

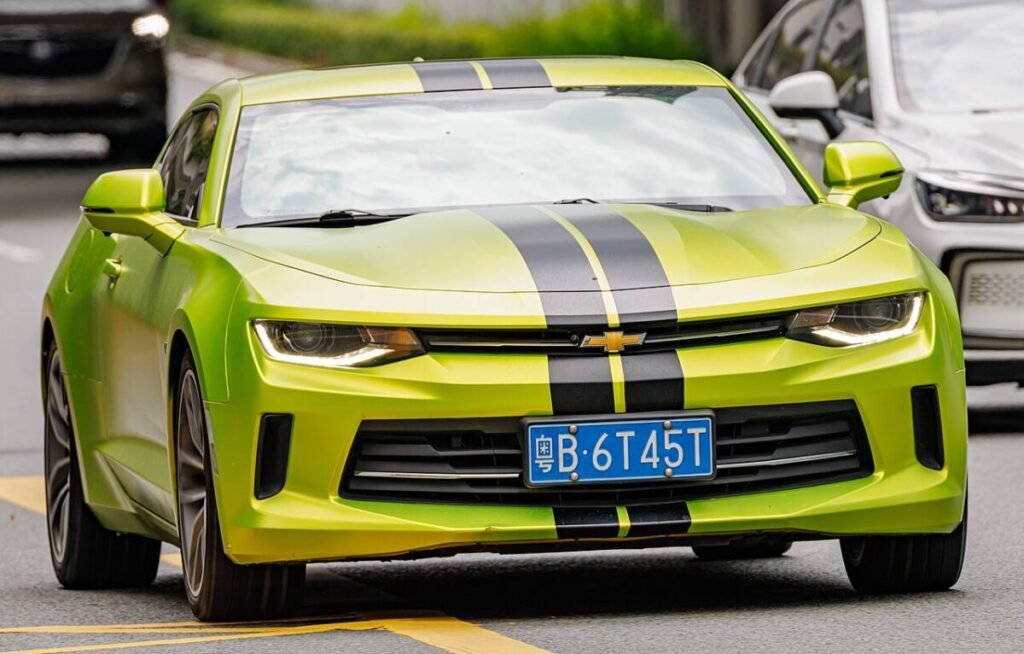

Every fifth- and sixth-gen Camaro — your 2010 camaro rims, 2013 camaro rims and 2018 camaro rims all included — runs a 5×120 bolt pattern on a 66.9 mm center bore. One warning that trips people up: this is the metric 5×120, not the older 5×4.75 (5×120.65) pattern from classic Camaros. They look almost identical and are not interchangeable, so vintage chevy camaro rims will not bolt to a modern car. Match the 66.9 mm bore too, and the wheel centers on the hub instead of the lug nuts, which is what keeps a wide wheel running smooth at speed. Base V6 cars came on modest 18×7.5 camaro wheels, but the performance trims are where it gets interesting.

Camaro SS and ZL1 rims: staggered from the factory

The performance Camaros ran staggered setups straight off the line, and that shapes how you should shop. Factory camaro ss rims measured 20×8 at +35 up front and 20×9 at +40 in the rear, wrapped in 245/45R20 and 275/40R20 tires — wider at the back for traction. Step up to the ZL1 and the SS 1LE and the zl1 rims camaro owners know went to 20×10 front and 20×11 rear, a serious footprint. If you are replacing camaro ss wheels or camaro zl1 wheels, you have to keep that front-to-rear width and offset relationship or the car will not sit or handle the way it should. This is exactly where forging to order pays off: we cut the front and rear widths and offsets separately so your camaro zl1 rims keep the factory staggered stance, or push it wider if that is the look you want.

Sizing: camaro rims 20 and the staggered look

For a modern Camaro, camaro rims 20 are the sweet spot, and it is no accident the factory chose 20s for the SS and ZL1. A 20-inch wheel fills the arch, supports a proper performance tire, and gives the car that planted, wide-body stance. Going staggered — a narrower front and a wider rear — keeps the steering light while putting more rubber down where the power goes. Some owners run a square setup for track use and tire rotation, but for street presence the staggered 20 is hard to beat. Whatever you choose, thinking about width, offset and tire size together is what separates a set that tucks perfectly from one that rubs.

Forged vs cast Camaro wheels: where it shows

A Camaro is heavy and makes real power, so the wheels take a beating. Enthusiasts chase names like bbs wheels camaro owners love because a good forged wheel is lighter and stronger than a cast one, and that is the whole point. A cast wheel has a coarser grain and must be built thick to stay strong, so it carries weight out at the corner where it hurts steering, braking and acceleration most. Our wheels start as one dense billet compressed under a 10,000-ton press, letting us machine thinner, stronger sections that cut unsprung weight and raise impact resistance at the same time. On a track day or a hard canyon run, lighter forged camaro wheels mean quicker turn-in, less brake fade and a wheel that survives a curbing that would crack a casting.

Holding a staggered front-to-rear spec like that run after run is why we keep the whole process in-house. ANKUSI forges and finishes every wheel at our own Guangzhou factory — no subcontracted casting, no outsourced machining — under IATF 16949 and ISO 9001 quality certification, tested to JWL/VIA and DOT standards with TÜV/SFI compliance available on request, at a production capacity over 120,000 wheels a year. That is what separates a wheel built to your ZL1’s exact offset from one pulled off a generic shelf.

Finishes and getting the right Camaro rims

Finish is the last piece. Gloss and satin black are the runaway favorites on a Camaro because black frames the wide arches and works under every color from Riverside Blue to Summit White, but we also cut bronze, gunmetal, brushed and two-tone in-house, all on a wheel already machined to your exact fitment. To spec a set the right way, start with your generation and trim, keep the 5×120 pattern and 66.9 mm bore, and hold the staggered widths and offsets your car was built around. Our Chevrolet Camaro fitment guide lays out the numbers, and our one-piece forged series shows the sizes and finishes we build. Every set is forged from 6061-T6 and cut to order, so nothing is left to a generic bore. When you are ready to spec a set of forged camaro rims, contact us for a factory-direct quote with your year and trim and we will confirm every number before we cut metal.
