Volkswagen Golf GTI Bolt Pattern by Year, Offset & Wheel Sizes
Volkswagen Golf GTI bolt pattern: 5x100, 5x112. The table below gives the bolt pattern, centre bore and lug nut for each model year from 1998 to 2025; further down is the full 2025 spec sheet with factory rim size and offset range for aftermarket and forged rims.
Quick answer: The 2025 Volkswagen Golf GTI uses a 5x112 bolt pattern with a 57.1 mm centre bore and M14x1.5 lug bolts. Factory wheels: 18x7.5J at ET51, front and rear. For aftermarket wheels, 18x8.5J ET45 sits flush and 19x8.5J ET40 is the most aggressive fit.
Forged wheels for the 2025 Volkswagen Golf GTI — drilled 5x112 with a 57.1 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in 20–25 days.
Get a quote for this car
Wheel swap check: Volkswagen Golf GTI and Volkswagen Jetta →
Volkswagen Golf GTI Bolt Pattern by Year (1998–2025)
Volkswagen Golf GTI has used these bolt patterns: 5x100, 5x112 across the model years below. Check your exact year and body style before ordering wheels, then open the full guide for center bore, factory sizes and offset.
| Model year | Version | Bolt pattern | Center bore | Lug nut / bolt | Full guide |
|---|---|---|---|---|---|
| 1998-2005 | Mk4 | 5x100 | 57.1mm | M14x1.5 Bolt | Generation summary |
| 2006-2009 | Mk5 | 5x112 | 57.1mm | M14x1.5 Bolt | Generation summary |
| 2010-2014 | Mk6 | 5x112 | 57.1mm | M14x1.5 Bolt | Generation summary |
| 2015-2021 | Mk7 | 5x112 | 57.1mm | M14x1.5 Bolt | Generation summary |
| 2022-2024 | Mk8 | 5x112 | 57.1mm | M14x1.5 Bolt | Generation summary |
| 2025 | All body styles | 5x112 | 57.1mm | M14x1.5 Bolt | This page |
Generation-level rows are cross-checked against two independent published wheel-specification sources. Always confirm the hub on your own car before ordering.
Volkswagen Golf GTI (2025): 5x112 bolt pattern, 57.1mm center bore. Factory wheels: 18x7.5J at ET51 offset, front and rear. Reference fitment ranges.
Bolt Pattern5x112
Wheel Bolt/NutM14x1.5 Bolt
Center Bore57.1mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Year2025
CategoryHot Hatch
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 25, 2026. How we verify
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 18x7.5J at ET51 offset, front and rear |
| Flush Fitment | 18x8.5J at ET45 offset |
| Maximum Aggressive | 19x8.5J at ET40 offset |
Forged Wheel Designs for the Volkswagen Golf GTI
Every design below is forged to order, so it can be machined to the Volkswagen Golf GTI's 5x112 bolt pattern and 57.1 mm center bore, with the width and offset calculated for your setup.
Gunmetal Twin 5-Spoke Forged Wheels
Monoblock · Gunmetal

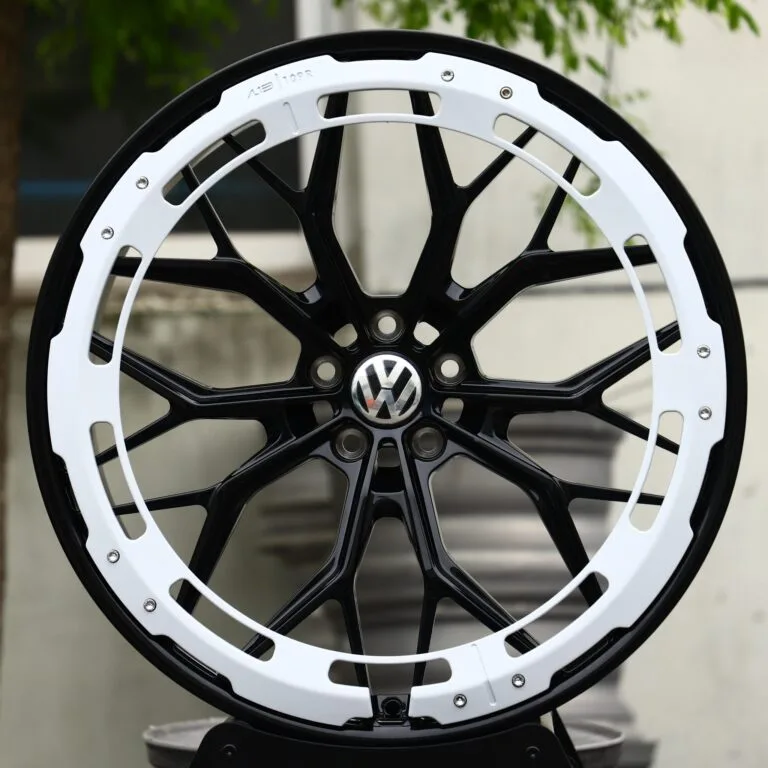

Volkswagen OEM-Style Gloss Black Mesh White Ring Lip Forged Wheels
Monoblock · Gloss Black / White

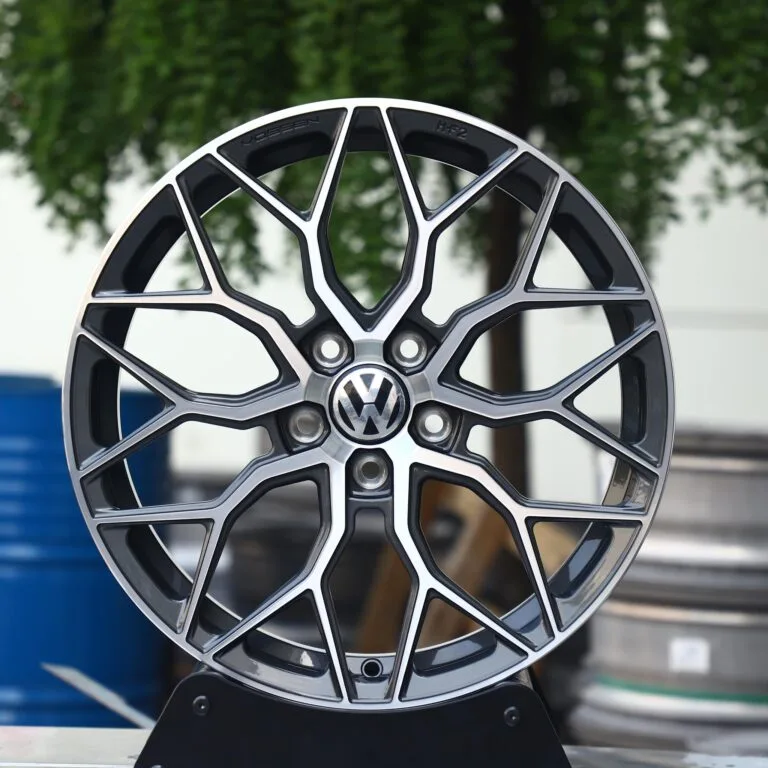

Volkswagen OEM-Style Gunmetal Mesh Forged Wheels
Monoblock · Gunmetal
Rotiform-Style Gloss White 6-Spoke Dish Forged Wheels
Replica · Gloss White

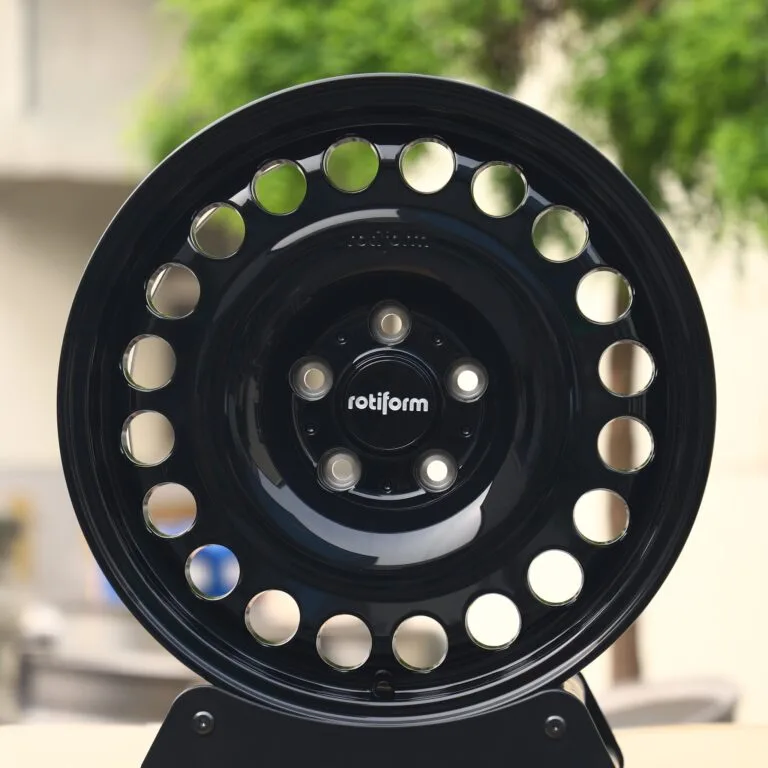

Rotiform Gloss Black Round-Hole Disc Forged Wheels
Replica · Gloss Black

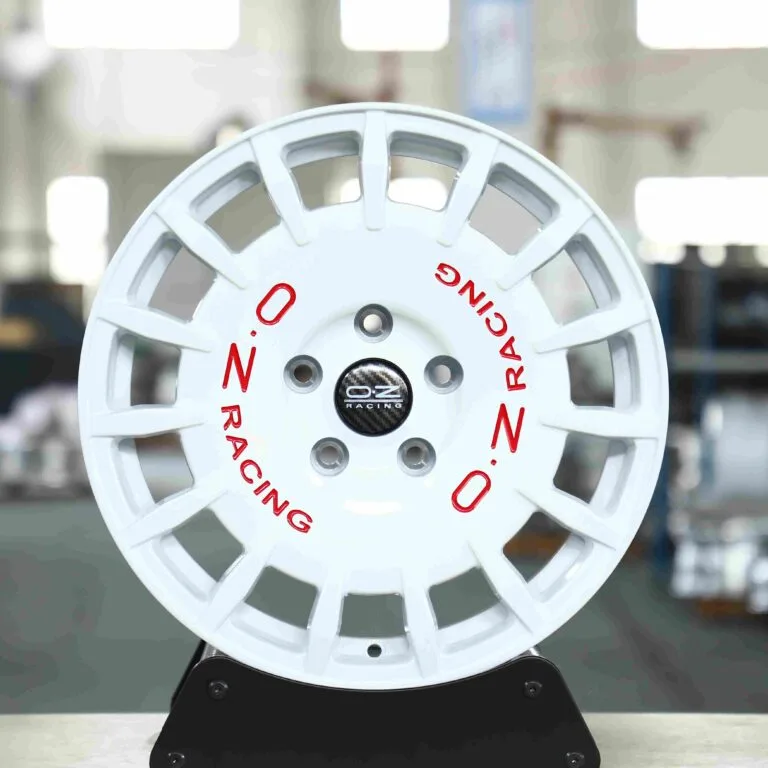

OZ Racing-Style Gloss White 16-Hole Rally Forged Wheels
Replica · Gloss White
See all Volkswagen Golf wheel designs Volkswagen OEM-Style Forged Wheels
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
The GTI's whole reputation rests on how it turns in, so unsprung mass reductions from a forged wheel translate directly into the steering feel this car is known for — more so than on a comparable non-performance hatch. Volkswagen's factory offset is already fairly conservative, which gives us clean, well-tested room to move to our Flush reference without touching the strut geometry.
The Golf GTI uses a 5x112 bolt pattern, 57.1mm center bore, and an 18x7.5J ET51 wheel from the factory, front and rear. Our Flush Fitment reference is an 18x8.5J at ET45, which fills the fender opening on a stock or mildly lowered GTI. Our Maximum Aggressive reference is a 19x8.5J at ET40 — past that, expect rubbing under compression without fender rolling or camber correction.
Volkswagen Golf GTI OE Wheel Specs
The 2025 Volkswagen Golf GTI (Hot Hatch) uses a 5x112 bolt pattern with a 57.1mm center bore. Factory wheels are 18x7.5J at ET51 offset, front and rear.
Why the factory spec works for most owners:
- Balances ride comfort with everyday drivability
- A commonly used size for this vehicle class, supporting parts and tire availability
- Maintains clearance for the factory suspension and brake components
- Provides stable, predictable handling across normal driving conditions
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Volkswagen Golf GTI (2025) we drill the 5x112 pattern and cut the centre bore to 57.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 18x7.5J | ET51 | 6.26 in (159 mm) | — | — |
| Flush | 18x8.5J | ET45 | 6.52 in (166 mm) | +7 mm | +19 mm |
| Maximum | 19x8.5J | ET40 | 6.32 in (161 mm) | +2 mm | +24 mm |
Vehicles With the Same Hub as the Volkswagen Golf GTI (5x112, 57.1 mm Bore)
In our database, 407 other vehicle entries from 18 makes use exactly the same 5x112 bolt pattern and 57.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x112 is used by 21.6% of the vehicle pages in our English fitment guide (1,407 of 6,503); 29.0% of those also use a 57.1 mm center bore.
Hub-Centric Rings for a 57.1 mm Center Bore
A wheel with a center bore larger than 57.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 60.1 mm | 60.1 → 57.1 mm |
| 63.4 mm | 63.4 → 57.1 mm |
| 64.1 mm | 64.1 → 57.1 mm |
| 65.1 mm | 65.1 → 57.1 mm |
| 73.1 mm | 73.1 → 57.1 mm |
ANKUSI forged wheels are bored to exactly 57.1 mm for this vehicle, so no ring is needed.
Frequently Asked Questions
What bolt pattern (PCD) does the Volkswagen Golf GTI use?
The 2025 Volkswagen Golf GTI uses a 5x112 bolt pattern.
How many lug bolts does the Volkswagen Golf GTI use?
The Volkswagen Golf GTI uses a 5-lug bolt pattern (5x112), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Volkswagen Golf GTI?
The Volkswagen Golf GTI's center bore is 57.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Volkswagen Golf GTI?
Factory wheels on the Volkswagen Golf GTI are 18x7.5J at ET51 offset, front and rear.
What is the biggest wheel size I can fit on my Volkswagen Golf GTI without rubbing?
The most aggressive fitment we recommend without fender work is 19x8.5J at ET40 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Volkswagen Golf GTI?
For a flush look with minimal to no rubbing, we recommend 18x8.5J at ET45 offset as a starting point on a stock or mildly lowered Volkswagen Golf GTI.
Do I need wheel spacers for my Volkswagen Golf GTI?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Volkswagen Golf GTI?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 6.52" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Volkswagen Golf GTI?
The Volkswagen Golf GTI runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 18x7.5 wheels · 18 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
