2011 Land Rover Defender X-Tech Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Land Rover Defender X-Tech wheels? This page gives the 2011 Land Rover Defender X-Tech bolt pattern (5x165.1), centre bore, factory rim size and the offset range for aftermarket and forged Land Rover Defender X-Tech rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2011 Land Rover Defender X-Tech uses a 5x165.1 bolt pattern with a 114.3 mm centre bore and M14x1.5 lug nuts. Factory wheels: 16x7J at ET33. For aftermarket wheels, 16x8J ET10 sits flush and 18x9J ET0 is the most aggressive fit.
Forged wheels for the 2011 Land Rover Defender X-Tech — drilled 5x165.1 with a 114.3 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
Land Rover Defender X-Tech (2011): 5x165.1 bolt pattern, 114.3mm center bore. Factory wheels: 16x7J. Reference fitment ranges.
Bolt Pattern5x165.1
Wheel Bolt/NutM14x1.5 Nut
Center Bore114.3mm
Wheel Load Rating900–1250 kg/wheel (SUV segment reference)
Year2011
CategorySUV
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 16x7J at ET33 |
| Flush Fitment | 16x8J at ET10 offset |
| Maximum Aggressive | 18x9J at ET0 offset |
Forged wheels for the Land Rover Defender X-TechMachined to the 5x165.1 bolt pattern and 114.3 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Because an SUV's center of gravity is already higher than a sedan's, anything added at the corners — including wheel weight — has an outsized effect on handling balance. A forged wheel lets us hit the visual stance owners want without adding the rotational mass a cast wheel of the same strength would carry.
The Land Rover Defender X-Tech runs a 5x165.1 bolt pattern, 114.3mm center bore, and a 16x7J at ET33, front and rear, wheel from the factory. Our Flush Fitment reference is 16x8J ET10, which tucks the tire under the fender lip on a stock-height Land Rover Defender X-Tech. Our Maximum Aggressive reference is 18x9J ET0 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Land Rover Defender X-Tech OE Wheel Specs
The 2011 Land Rover Defender X-Tech (SUV) uses a 5x165.1 bolt pattern with a 114.3mm center bore. Factory wheels are 16x7J at ET33.
Why the factory spec works for most owners:
- Supports the vehicle's curb weight and load capacity
- Preserves ground clearance for everyday and light off-road use
- Balances ride comfort with cargo and passenger stability
- Maintains clearance for the factory suspension travel and brake package
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Land Rover Defender X-Tech (2011) we drill the 5x165.1 pattern and cut the centre bore to 114.3mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, 16x8J ET10 is the recommended starting point on a stock or mildly lowered Land Rover Defender X-Tech.
Maximum Aggressive Fitment
18x9J ET0 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
Real-World Fitment Notes
Wheels: Sawtooth alloys factory option. Tires: 235/85 R16.
5-Tier Configuration Options
A Factory-Style 16x7.0J ET33
Recommended setup: 16x7.0J ET33 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B Comfortable Upgrade 16x7.5J ET22
Recommended setup: 16x7.5J ET22 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit 16x8.0J ET10
Recommended setup: 16x8.0J ET10 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive 17x8.5J ET5
Recommended setup: 17x8.5J ET5 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive 18x9.0J ET0
Recommended setup: 18x9.0J ET0 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 16x7.0J ET33 | 16x7.5J ET22 | 16x8.0J ET10 | 17x8.5J ET5 | 18x9.0J ET0 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 16x7.0J ET33
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 16x8.0J ET10
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 18x9.0J ET0
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Land Rover Defender X-Tech owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: 16x7J ET33 → ~5.3″ backspacing
- Flush: 16x8J ET10 → ~4.89″ backspacing
- Max: 18x9J ET0 → ~5.0″ backspacing
A Note on Clearance
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Land Rover spec, or want a wheel built to a custom offset for your Land Rover Defender X-Tech? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Land Rover Defender X-Tech (2011)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x165.1 pattern and the 114.3mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Land Rover orders on this platform land somewhere between the 16x8J ET10 flush setup and the 18x9J ET0 aggressive setup referenced above.
Designs we already tool for the 5x165.1 pattern — each one is re-cut to your sizes and offsets:

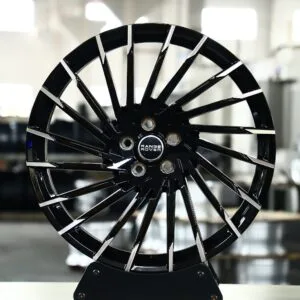

Land Rover Range Rover / Defender Forged Wheels – Gloss Black Multi-Spoke Directional Milled Machined Face

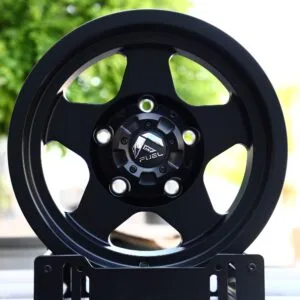

Fuel-Style Gloss Black 5-Spoke Off-Road Forged Wheels – Jeep Wrangler / Land Cruiser Fitment (5-Lug)

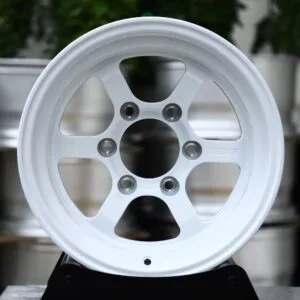

Jeep Wrangler / Land Rover Defender Off-Road Forged Wheels – White 5-Spoke (5-Lug)

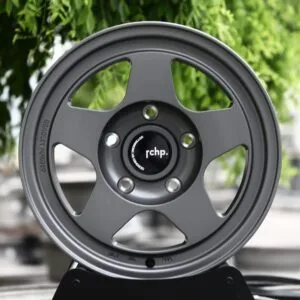

RCHP-Style Matte Gunmetal 5-Spoke Dish Off-Road Forged Wheels – Jeep Wrangler / Defender Fitment (5-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the Land Rover Defender X-Tech use?
The 2011 Land Rover Defender X-Tech uses a 5x165.1 bolt pattern.
How many lug bolts does the Land Rover Defender X-Tech use?
The Land Rover Defender X-Tech uses a 5-lug bolt pattern (5x165.1), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Land Rover Defender X-Tech?
The Land Rover Defender X-Tech's center bore is 114.3mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Land Rover Defender X-Tech?
Factory wheels on the Land Rover Defender X-Tech are 16x7J at ET33.
What is the biggest wheel size I can fit on my Land Rover Defender X-Tech without rubbing?
The most aggressive fitment we recommend without fender work is 18x9J at ET0 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Land Rover Defender X-Tech?
For a flush look with minimal to no rubbing, we recommend 16x8J at ET10 offset as a starting point on a stock or mildly lowered Land Rover Defender X-Tech.
Do I need wheel spacers for my Land Rover Defender X-Tech?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Land Rover Defender X-Tech?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 4.89" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Land Rover Defender X-Tech?
The Land Rover Defender X-Tech runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Vehicles With the Same Hub as the Land Rover Defender X-Tech (5x165.1, 114.3 mm Bore)
In our database, 8 other Land Rover entries use exactly the same 5x165.1 bolt pattern and 114.3 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x165.1 is used by 0.1% of the vehicle pages in our English fitment guide (9 of 6,503); 100.0% of those also use a 114.3 mm center bore.
Hub-Centric Rings for a 114.3 mm Center Bore
A wheel with a center bore larger than 114.3 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 130.1 mm | 130.1 → 114.3 mm |
ANKUSI forged wheels are bored to exactly 114.3 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 16x7 wheels · 16 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Land Rover Defender X-Tech
Every design below is forged to order, so it can be machined to the Land Rover Defender X-Tech's 5x165.1 bolt pattern and 114.3 mm center bore, with the width and offset calculated for your setup.
DOS Engineering-Style Matte Bronze 6-Spoke Off-Road Forged Wheels
Jeep Wrangler / Defender Fitment · 5-Lug
Land Rover OEM-Style Gloss Black / Machined 3-Spoke Forged Wheels
Land Rover Range Rover / Defender Fitment · 5-Lug
Land Rover OEM-Style Gloss Black 8-Spoke Forged Wheels
Land Rover Range Rover / Defender Fitment · 5-Lug
Land Rover Range Rover / Defender Forged Wheels
Copper / Silver Directional Milled
Jeep Wrangler / Land Rover Defender Beadlock Off-Road Forged Wheels
Gloss Black Bolted Ring Hole Pattern · 5-Lug
Land Rover Range Rover / Defender Forged Wheels
Bright Silver 7-Spoke

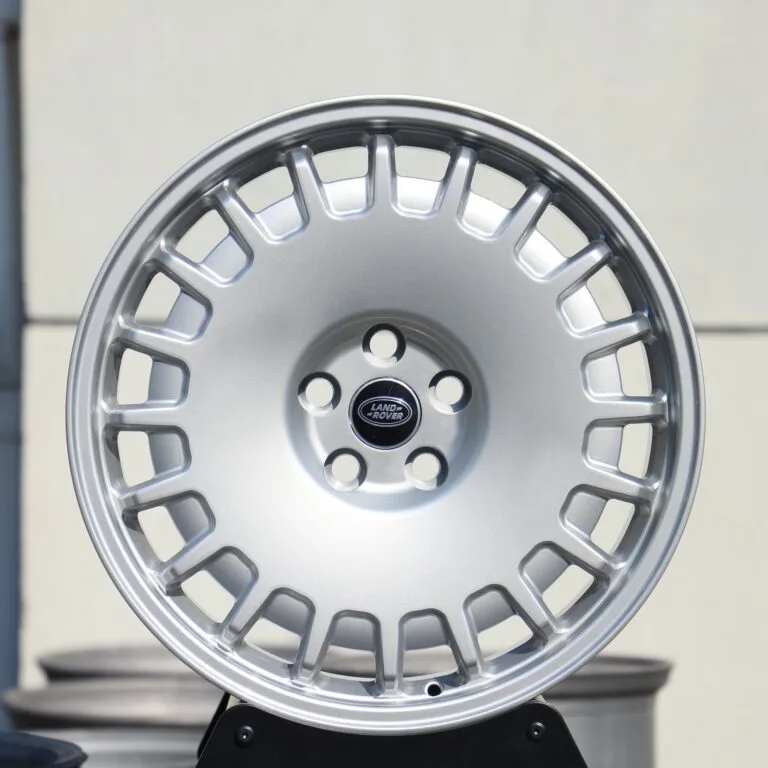

Land Rover OEM-Style Brushed Silver 16-Window Forged Wheels
