2020 Kia Stinger GTS Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Kia Stinger GTS wheels? This page gives the 2020 Kia Stinger GTS bolt pattern (5x114.3), centre bore, factory rim size and the offset range for aftermarket and forged Kia Stinger GTS rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Kia Stinger GTS (2020): 5x114.3 bolt pattern, 67.1mm center bore. Factory wheels: F: 19x8.0J R: 19x8.5J. Reference fitment ranges.
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | F: 19x8.0J R: 19x8.5J |
| Flush Fitment | F 20x9.0J ET30 / R 20x10.0J ET40 |
| Maximum Aggressive | F 20x9.5J ET25 / R 20x10.5J ET35 |
Forged Wheel Designs for the Kia Stinger GTS
Every design below is forged to order, so it can be machined to the Kia Stinger GTS's 5x114.3 bolt pattern and 67.1 mm center bore, with the width and offset calculated for your setup.


HRE-Style Polished 5 Split Y-Spoke Forged Wheels
Monoblock · Polished

BBS RE-V7-Style Gunmetal 7 Y-Spoke Forged Wheels
Replica · Gunmetal

Honda Civic Type R Forged Wheels
Monoblock

EvoCorse-Style Satin Black 12-Spoke Rally Forged Wheels
Monoblock · Satin Black

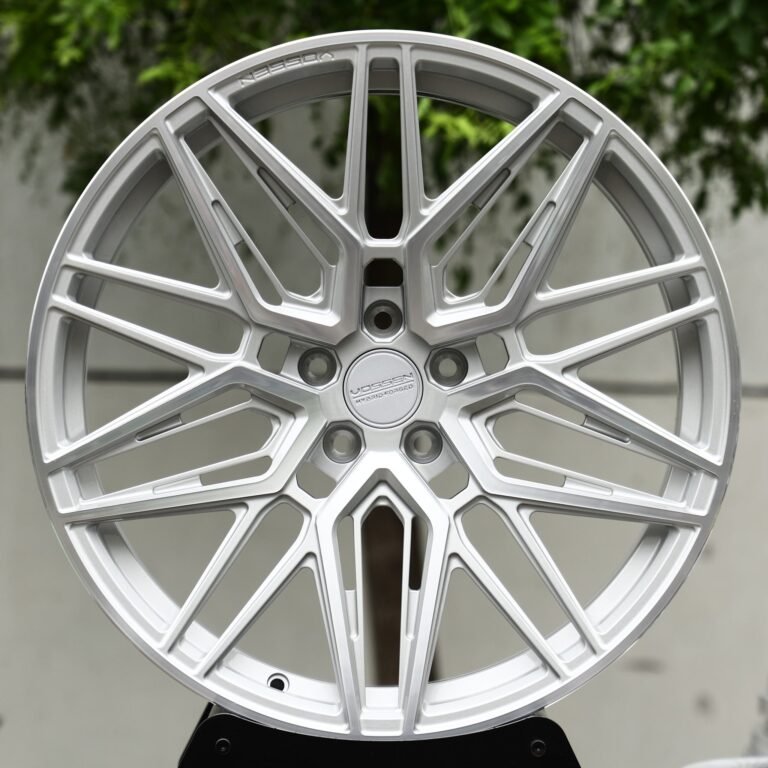

Vossen-Style Bright Silver Y-Spoke Mesh Forged Wheels
Monoblock · Bright Silver

Gloss Black Y-Spoke Mesh Forged Wheels
Monoblock · Gloss Black

OZ Racing-Style Polished Turbofan Dish Riveted Lip Forged Wheels
2-Piece · Polished
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.


ANKUSI Engineering Expert Advice
The Kia Stinger GTS's chassis tuning assumes a certain amount of rotational mass at each corner. Forging lets ANKUSI cut that mass while matching the factory strength rating, which sharpens turn-in and reduces the energy the brakes have to absorb — a real gain on a coupe platform, not just a styling change.
The Kia Stinger GTS runs a 5x114.3 bolt pattern, 67.1mm center bore, and a F: 19x8.0J wheel from the factory. Our Flush Fitment reference is F 20x9.0J ET30 / R 20x10.0J ET40, which tucks the tire under the fender lip on a stock-height Kia Stinger GTS. Our Maximum Aggressive reference is F 20x9.5J ET25 / R 20x10.5J ET35 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Kia Stinger GTS OE Wheel Specs
The 2020 Kia Stinger GTS (Fastback) uses a 5x114.3 bolt pattern with a 67.1mm center bore. Factory wheels are F: 19x8.0J R: 19x8.5J.
Why the factory spec works for most owners:
- Preserves the factory-tuned ride and steering feel
- A mainstream size for this segment, keeping tire choice wide and prices reasonable
- Leaves full clearance for the stock brakes and suspension hardware
- Keeps handling predictable and consistent in everyday conditions
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Kia Stinger GTS (2020) we drill the 5x114.3 pattern and cut the centre bore to 67.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: F 19x8.0J ET34 → ~5.84″ F backspacing, R 19x8.5J ET46 → ~6.56″ R backspacing
- Flush: F 20x9.0J ET30 → ~6.18″ F backspacing, R 20x10.0J ET40 → ~7.07″ R backspacing
- Max: F 20x9.5J ET25 → ~6.23″ F backspacing, R 20x10.5J ET35 → ~7.13″ R backspacing
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Kia spec, or want a wheel built to a custom offset for your Kia Stinger GTS? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Frequently Asked Questions
What bolt pattern (PCD) does the Kia Stinger GTS use?
How many lug bolts does the Kia Stinger GTS use?
What is the center bore size on the Kia Stinger GTS?
What size are the factory (stock) wheels on the Kia Stinger GTS?
What is the biggest wheel size I can fit on my Kia Stinger GTS without rubbing?
What does a flush wheel fitment look like on the Kia Stinger GTS?
Do I need wheel spacers for my Kia Stinger GTS?
How do I calculate wheel backspacing for my Kia Stinger GTS?
What's the difference between wheel offset and backspacing?
Can I run staggered wheels (different sizes front and rear) on my Kia Stinger GTS?
Wheel Installation Reference: Torque, Thread & TPMS
Thread & Fastener: M12x1.5, conical-seat lug nut.
Factory Torque Spec: 107-127 Nm (79-94 ft-lb). Range covers most Kia passenger cars and crossovers on M12x1.5 studs.
TPMS: TPMS (Tire Pressure Monitoring System) has been federally mandated on all new light vehicles sold in the US since the 2008 model year. If your wheels use OE-style sensors, have them transferred or cloned to the new wheels at installation.
Tire Pressure: Always set tire pressure to the value on your vehicle's tire placard (driver's doorjamb or glovebox), not the max PSI printed on the tire sidewall — this is trim- and tire-size-specific and stays the same reference point when you switch to a different wheel and tire combination.
Reference data compiled from published OEM service specifications and cross-checked against independent repair sources; always confirm against your owner's manual or door-jamb placard before installation.
