2022 Geely Tugella FY11 Facelift Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Geely Tugella FY11 Facelift wheels? This page gives the 2022 Geely Tugella FY11 Facelift bolt pattern (5x108), centre bore, factory rim size and the offset range for aftermarket and forged Geely Tugella FY11 Facelift rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Geely Tugella FY11 Facelift (2022): 5x108 bolt pattern, 63.4mm center bore. Factory wheels: 20x8J F/R. Aftermarket flush/max data coming soon.
Bolt Pattern5x108
Wheel Bolt/NutM12x1.5 Nut
Center Bore63.4mm
Wheel Load Rating900–1250 kg/wheel (SUV segment reference)
Caliper TypeFactory caliper package (OEM)
Year2022
CategorySUV
✓ Verified by ANKUSI's Engineering Team — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Forged wheels for the Geely Tugella FY11 FaceliftMachined to the 5x108 bolt pattern and 63.4 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
On a vehicle this heavy, the wheel is a structural part before it is a styling part - it carries the load, the brake heat and the cornering forces all at once. A forged wheel buys back unsprung weight without giving up the load rating an SUV actually needs, which is the one number most cast aftermarket wheels quietly fall short on.
We publish the factory specification for the Geely Tugella FY11 Facelift below. We have not yet been able to verify aftermarket flush or maximum-aggressive offsets for this exact variant against a source we trust, so we are not listing any - an invented offset is worse than no offset when a wheel has to clear a caliper.
Geely Tugella FY11 Facelift OE Wheel Specs
The 2022 Geely Tugella FY11 Facelift (SUV) uses a 5x108 bolt pattern with a 63.4mm center bore. Factory wheels are 20x8J F/R.
Why the factory spec works for most owners:
- Keeps unsprung weight low to preserve the factory handling balance
- Matches the wider, performance-oriented tire sizing typical of this platform
- Maintains clearance for the factory brake package and suspension geometry
- Balances grip with ride comfort for daily and spirited driving
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Geely Tugella FY11 Facelift (2022) we drill the 5x108 pattern and cut the centre bore to 63.4mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 6,436 vehicles, free to download, CC BY 4.0.
Aftermarket Fitment Data — Coming Soon
Published aftermarket fitment for this exact variant is still thin, so we have not committed to a flush or maximum-aggressive figure. Our engineering team is still collecting verified data for this variant. In the meantime the factory specification above is accurate and is the safe reference point for ordering.
Need a wheel for this car now? Contact ANKUSI with your target diameter, width and offset and our engineers will confirm the correct forged spec against your brake package before anything is cut. You can also use our Offset & Backspacing Calculator to work through the numbers yourself.
Custom Forged Wheels for the Geely Tugella FY11 Facelift (2022)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x108 pattern and the 63.4mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
Designs we already tool for the 5x108 pattern — each one is re-cut to your sizes and offsets:
Geely Xingrui L Plus Forged Wheels – Machined Face 5-Spoke Y-Design (18-20in, 5×114.3)
Geely OEM-Style Matte Black 10 Y-Spoke Forged Wheels – Geely Xingyue / Monjaro Fitment (5-Lug)
Porsche 911 / Panamera Forged Wheels – Silver 2-Piece Deep Lip
Toyota GR Supra MkV Final Edition Forged Wheels – Gunmetal Gray 6-Spoke (18-20in, 5×112)Frequently Asked Questions
What bolt pattern (PCD) does the Geely Tugella FY11 Facelift use?
The 2022 Geely Tugella FY11 Facelift uses a 5x108 bolt pattern.
How many lug bolts does the Geely Tugella FY11 Facelift use?
The Geely Tugella FY11 Facelift uses a 5-lug bolt pattern (5x108), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Geely Tugella FY11 Facelift?
The Geely Tugella FY11 Facelift's center bore is 63.4mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Geely Tugella FY11 Facelift?
Factory wheels on the Geely Tugella FY11 Facelift are 20x8J F/R.
Do I need wheel spacers for my Geely Tugella FY11 Facelift?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Geely Tugella FY11 Facelift?
The Geely Tugella FY11 Facelift runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Forged Wheel Designs for the Geely Tugella FY11 Facelift
Every design below is forged to order, so it can be machined to the Geely Tugella FY11 Facelift's 5x108 bolt pattern and 63.4 mm center bore, with the width and offset calculated for your setup.
Geely Xingyue / Geely Borui Forged Wheels
Gunmetal Petal Machined Face
APEX-Style Black / Machined 5 Split-Spoke Forged Wheels
Toyota GR86 / BMW 3 Series F30 Fitment · 5-Lug

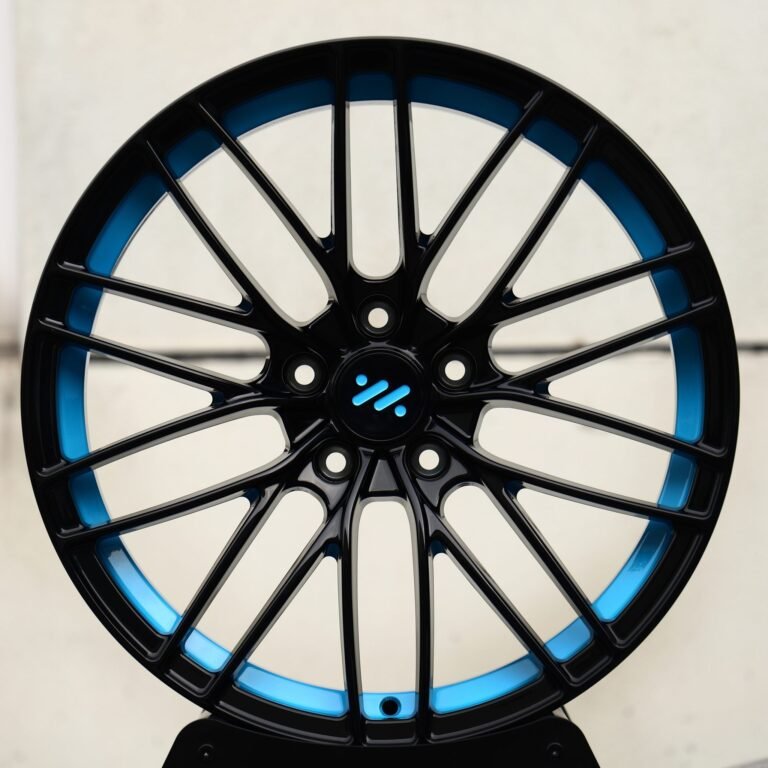

IM OEM-Style Gloss Black / Blue Lip 10 Y-Spoke Mesh Forged Wheels
